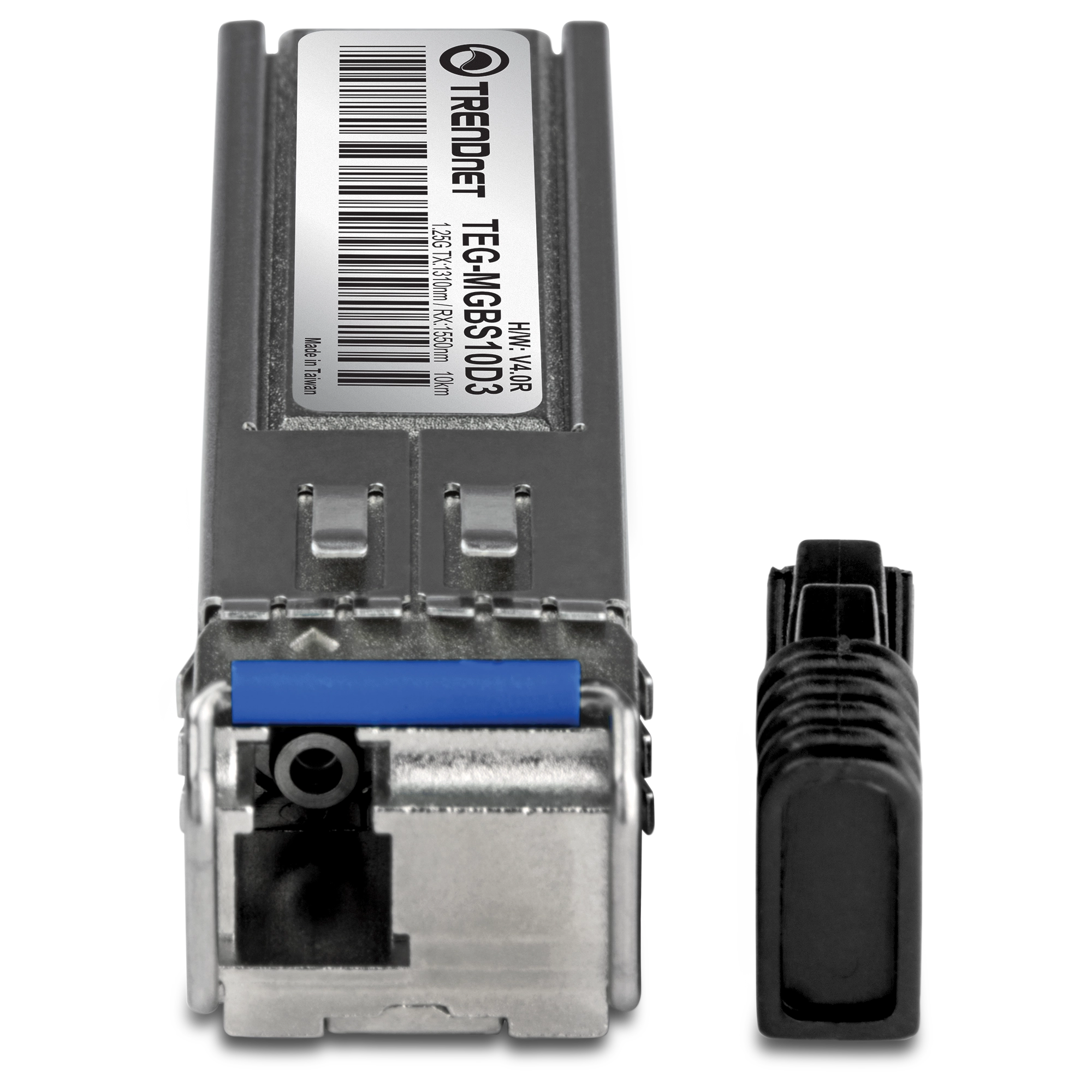

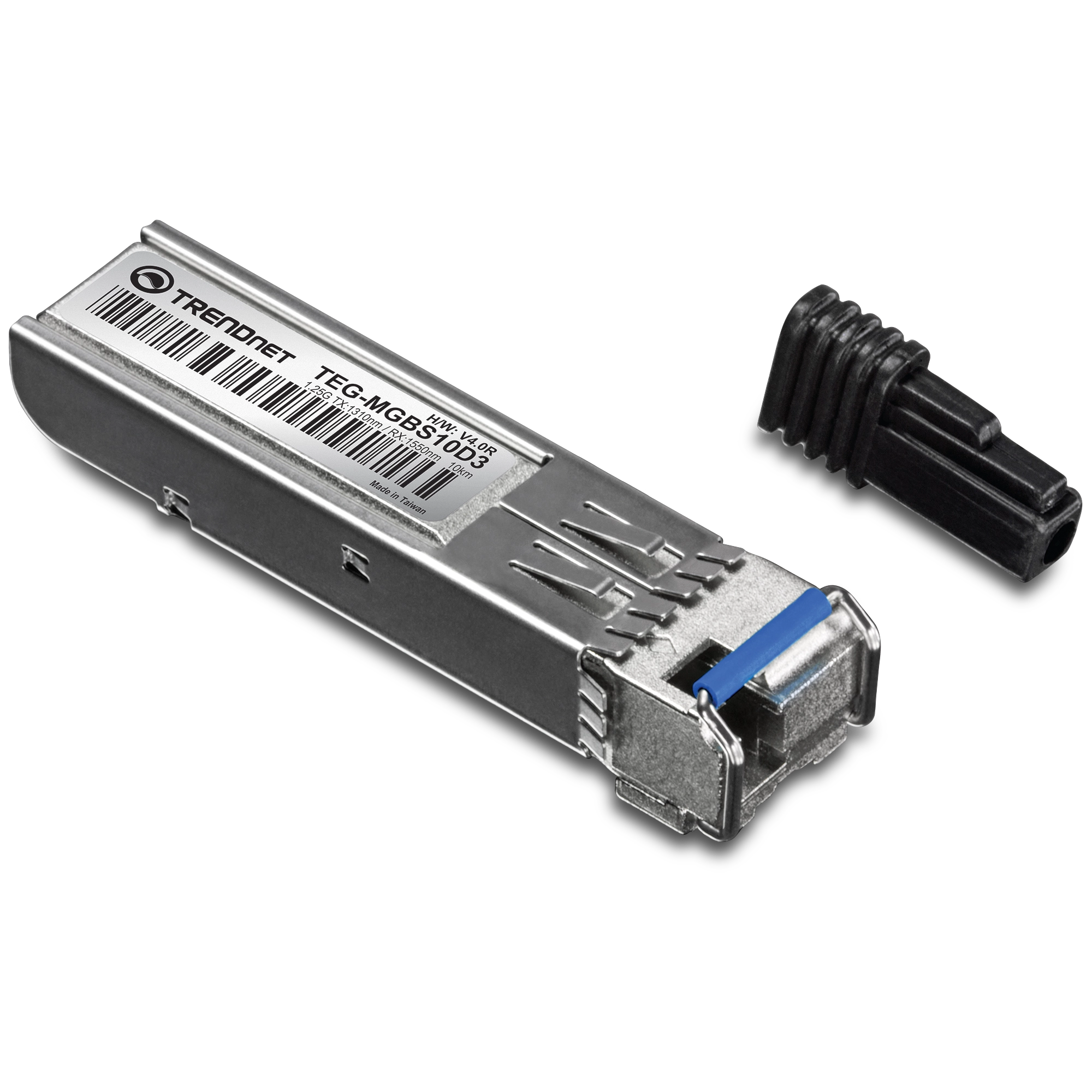

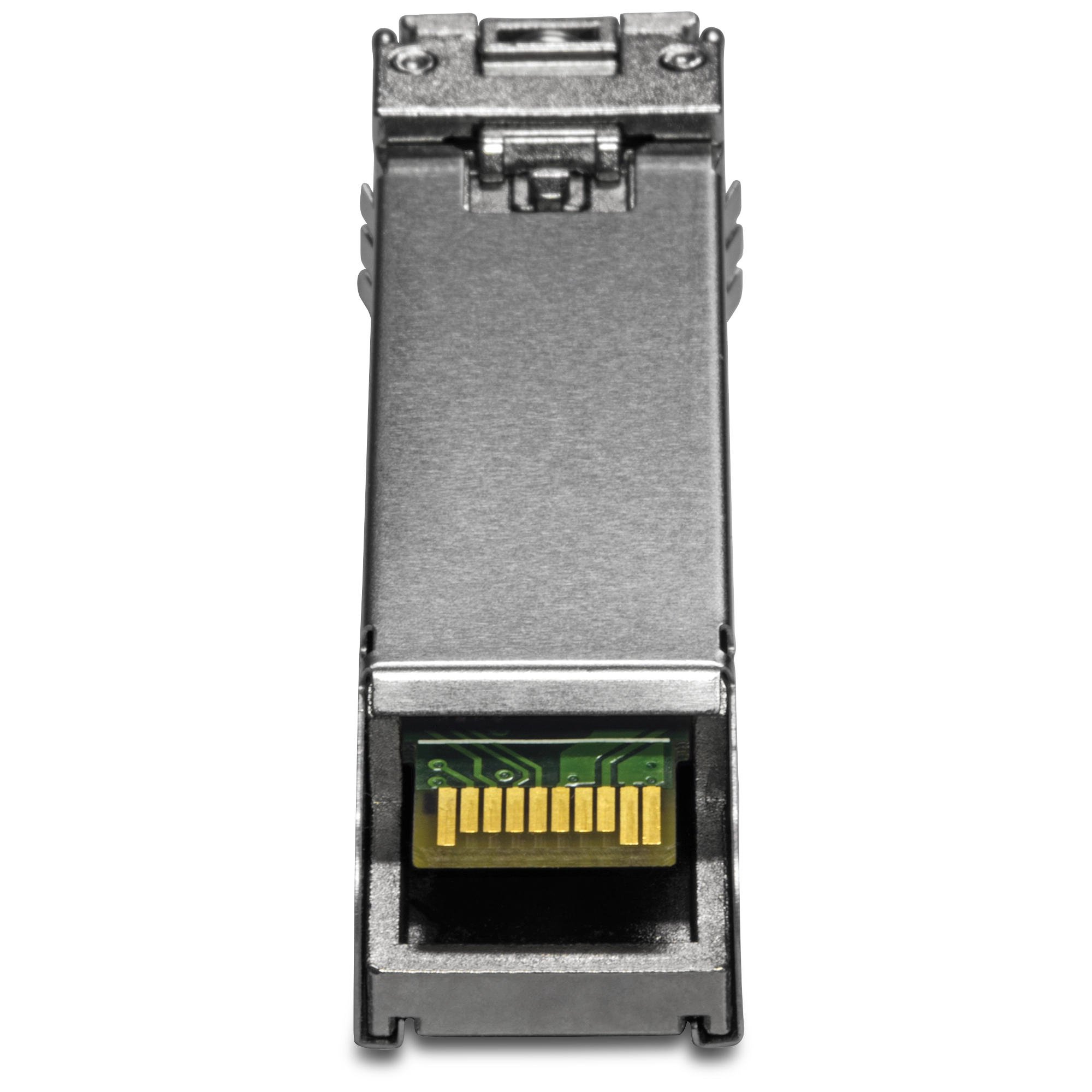

SFP Dual Wavelength Single-Mode LC Module (Certified Refurbished)

RB-TEG-MGBS10D3 (Version v4.1R)

  • Must pair with TEG-MGBS10D5 or other compatible module
  • LC Simplex connector-type
  • Dual wavelength fiber mode
  • Spans distances up to 10 km (6.2 miles)
  • Compatible with standard SFP slots
Price: $22.39
Quantity:
Wishlist

The hot-pluggable TEG-MGBS10D3 must be paired with the TEG-MGBS10D5 or other compatible module. This SFP Dual Wavelength Single Mode LC Type module spans distances of up to 10 kilometers (6.2 miles). The SFP interface is compatible with standard SFP slots and offers a 1000 Mbps-LX SFP interface.

  • Must pair with TEG-MGBS10D5 or other compatible module
  • Compliant with IEEE 802.3z
  • ANSI Fiber Channel compliant
  • Compliant with Small Form-Factor Pluggable (SFP) Multi-Source Agreement (MSA) ports
  • Supports data rate of up to 1.25 Gbps
  • Transmission distance of up to 10 km (6.2 miles)
  • Metal Enclosure with low Electromagnetic Interference (EMI) design
  • Simplex LC optical interface
  • Hot pluggable
  • Low power consumption
HARDWARE
Standards
  • IEEE 802.3z
  • ANSI Fiber Channel compliant
  • Class 1 Laser
Interface
  • SFP MSA Compliant
  • Simplex LC optical interface
Power Consumption
  • Max. 0.8 Watts
Dimension
  • 57 x 13 x 12 mm (2.2 x 0.5 x 0.5 in.)
Weight
  • 18 g (0.6 oz.)
Temperature
  • Operating: 0°C ~ 70°C (32°F ~ 158°F)
  • Storage: -40°C ~ 85°C (-40°F ~ 185°F)
Humidity
  • Max 85% (non-condensing)
Certifications
  • CE, FCC
Wavelength
  • TX: 1310 nm
  • RX: 1550 nm
Optical Output Power (dBm)
  • -9 ~ -3
Optical Input Power (dBm)
  • -23 ~ -3
Power Budget
  • -14
Distance
  • 10 km
Warranty
  • 90-day
PACKAGE CONTENTS
  • TEG-MGBS10D3
  • Quick Installation Guide

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
