16-Port Gigabit PoE+ Switch

TPE-TG160H (Version v2.0R)

  • 16 x Gigabit PoE+ ports
  • 32Gbps switching capacity
  • 123W PoE power budget
  • IEEE 802.3af/at compliant
  • Fanless design eliminates operating noise
  • Reduces equipment cost by delivering data and power over existing network cables
  • 1U 19” rack mountable with brackets included
  • External power supply
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
NDAA/TAA Compliant

Price: $186.99
Quantity:
Wishlist

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Unmanaged Gigabit PoE+ Switches. The new fanless design reduces unnecessary energy consumption and eliminates disruptive operating noise. These fanless PoE+ switches deliver up to 30W per port of PoE power, and data over your existing Ethernet cables.

With PoE technology, users only need one set of cables to deliver both data and power. Connect and network your PoE and PoE+ devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, and access controls, to reliable TRENDnet's fanless PoE+ switches.

A network diagram of 16-Port Network Switch, connected to PoE Camera and wireless access point device up to 123 Watt.

PoE+

Features a 123W total PoE power budget, and supplies 16 Power over Ethernet devices with up to 30W per port.

Illustration of a network cable labeled 32Gbps SWITCHING CAPACITY with icons representing music, video, data transfer moving through the network.

Gigabit Ports

Equipped with high-speed gigabit ports and a full switching capacity, these PoE+ switches are well-suited for the most demanding network applications.

Line art of a 16-Port Network Switch with a no-fan icon.

Fanless

Fanless PoE+ switch design lowers unnecessary energy consumption and eliminates disruptive operating noise.

The illustration depicts a surveillance system setup in a building, showing the connection of multiple security cameras to a network switch labeled TPE-TG160H. The building is a two-story structure with various rooms, including office spaces, a server room, and storage areas. The diagram highlights the path of the cables connecting the cameras to the network switch, which is located in the server room.

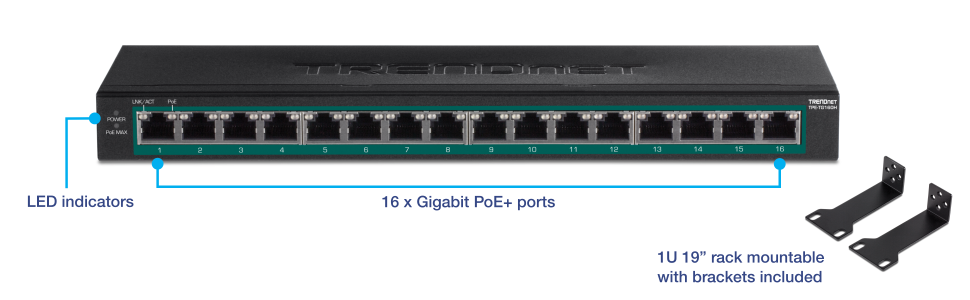

The visual shows a TRENDnet network switch with 16 Gigabit PoE+ ports. The switch features LED indicators for power, PoE max, and link/activity status. The device is 1U 19-inch rack mountable, and the necessary brackets are included.

Easy Installation

No configuration needed, simply connect PoE+ network devices to the PoE+ switch

PoE+

Supplies up to 30W of power per port with data over a single Ethernet cable to PoE and PoE+ devices

Gigabit Ports

Equipped with high-speed gigabit ports and a full switching capacity, these fanless PoE+ switches are well-suited for the most demanding networking applications

Fanless

Fanless PoE+ switch design lowers energy consumption and eliminates operating noise

Housing Design

With a sturdy metal housing and included rackmount brackets, this PoE+ switch is well-suited for wall mount or 19” 1U rack installations

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 10KB) for increased performance

LED Indicators

LED indicators on the fanless PoE+ switches convey port status

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
Device Interface
  • 16 x Gigabit PoE+ ports
  • LED indicators
Data Transfer Rate
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
  • Gigabit: 2000 Mbps (full duplex)
Performance
  • Data RAM Buffer: 512KB
  • Switch Fabric: 32Gbps
  • MAC Address Table: 8K entries
  • Forwarding rate: 23.8Mpps (64-byte packet size)
  • Jumbo Frame: 10KB
Power
  • Input: 100 – 240V AC, 50/60Hz, DC 54V/2.78A
  • Max. consumption: 12.8W (no PD)
PoE
  • PoE budget: 123W
  • PoE Mode A: Pins 1, 2, 3, and 6 for power
  • Over current protection
  • Short circuit protection
MTBF
  • 988,148 hours
Operating Temperature
  • 0° – 45° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 286 x 102 x 27mm (11.3 x 4 x 1 in.)
Weight
  • 0.9kg (2 lbs.)
Certifications
  • CE
  • FCC
Warranty

PACKAGE CONTENTS
  • TPE-TG160H
  • Quick Installation Guide
  • Rack mount kit
  • Power Adapter (54V, 2.78A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
