Products » Certified Refurbished » More » RB-TEG-ECTX

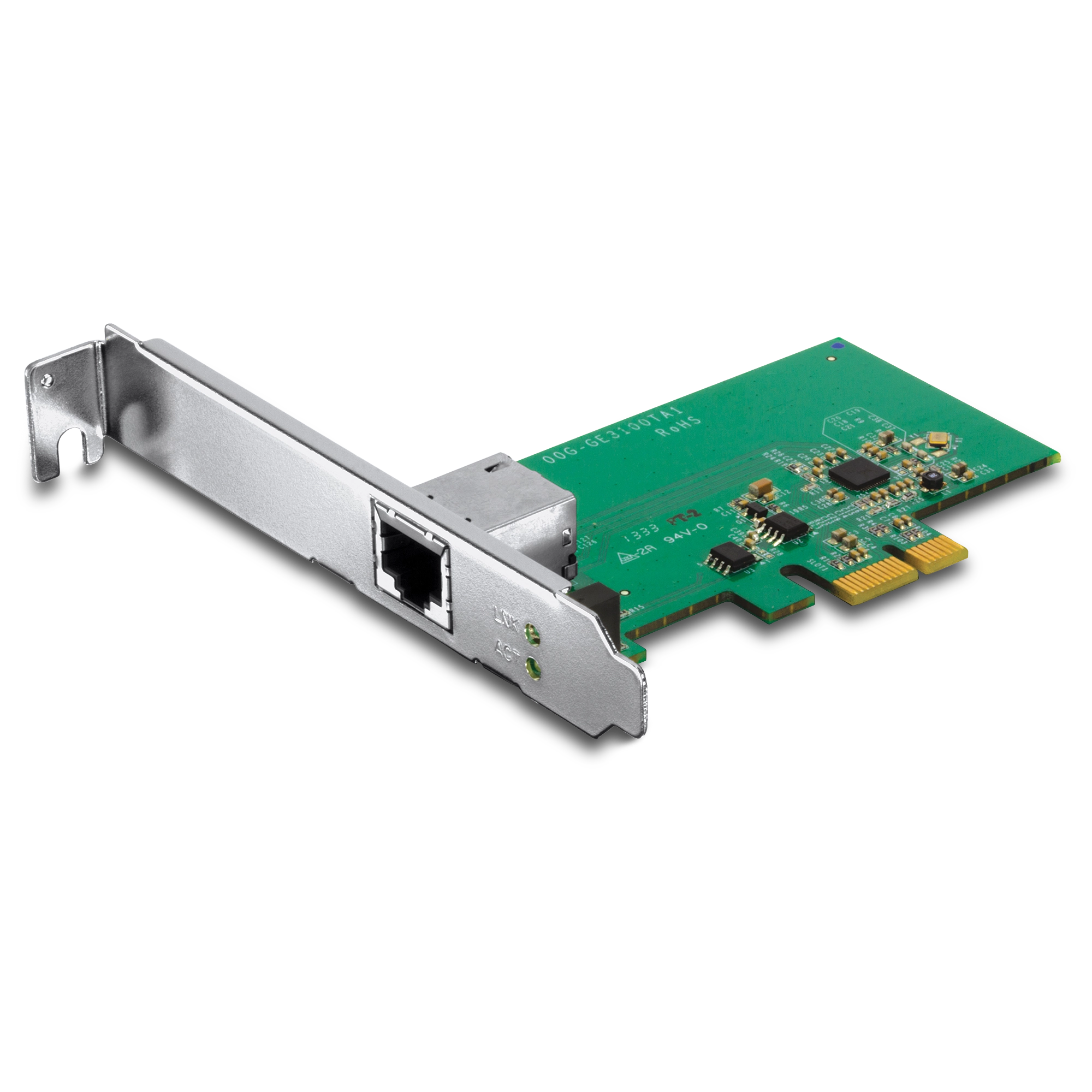

Gigabit PCIe Adapter (Certified Refurbished)

RB-TEG-ECTX (Version v2.0R)

Converts a PCIe slot into a Gigabit Ethernet port
Supports VLAN Tagging and Layer 2 Priority Tagging
Includes standard and low profile brackets
Windows®, Mac®, and Linux® compatible

TRENDnet's Gigabit PCIe Adapter, model TEG-ECTX, converts a free PCI Express slot into a Gigabit Ethernet port. Advanced features include Jumbo Frame, Layer 2 Priority tagging, VLAN tagging, and SNMP support. The included standard and low profile brackets are compatible with Windows®, Mac®, and Linux® tower computer designs.

Gigabit Port

Converts a PCIe slot into a 10/100/1000 Mbps Ethernet port

Jumbo Frame

Supports 9 K Jumbo Frames

LED Indicators

LED indicators convey port status

Monitoring

SNMP v1 protocol support

Traffic Management

802.1Q VLAN and 802.1p Class of Service (CoS) support

Brackets

Includes standard and low profile brackets

Operating Systems

Compatible with Windows®, Mac®, and Linux® operating systems

Standard	IEEE 802.1p IEEE 802.1Q IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3z IEEE 802.3ab
Device Interface	10/100/1000 Mbps Ethernet port PCI Express 1.1 Standard profile bracket Low profile bracket LED Indicators
Supported OS	Windows 10, 8.1, 8, 7, Vista, XP, Server 2003, 2000, Mac OS 10.4-10.7 (Intel-based) Linux 2.4, 2.6, 3.x
Data Rate	Ethernet: 10 Mbps/20 Mbps (half/full-duplex) Fast Ethernet: 100 Mbps/200 Mbps (half/full-duplex) Gigabit: 2000 Mbps (full-duplex)
Special Features	Power down and link down power savings Jumbo Frames up to 9 K IEEE 802.1Q VLAN tagging IEEE 802.1p Layer 2 priority tagging Preboot Execution Environment 2.1 (PXE) PCI Message Signaled Interrupt (MSI) Alert Standard Format 2.0 (ASF) SNMP v1 supported
Power	Consumption: Max. 3.2 Watts
Operating Temperature	0 – 45 °C (32 - 113 °F)
Operating Humidity	Max. 95% non-condensing
Dimensions	94 x 51 x 12 mm (3.7 x 2.0 x 0.5 in.)
Weight	52 g (1.8 oz.)
Certifications	CE FCC
Warranty	90-day limited

PACKAGE CONTENTS

TEG-ECTX
Multi-Language Quick Installation Guide

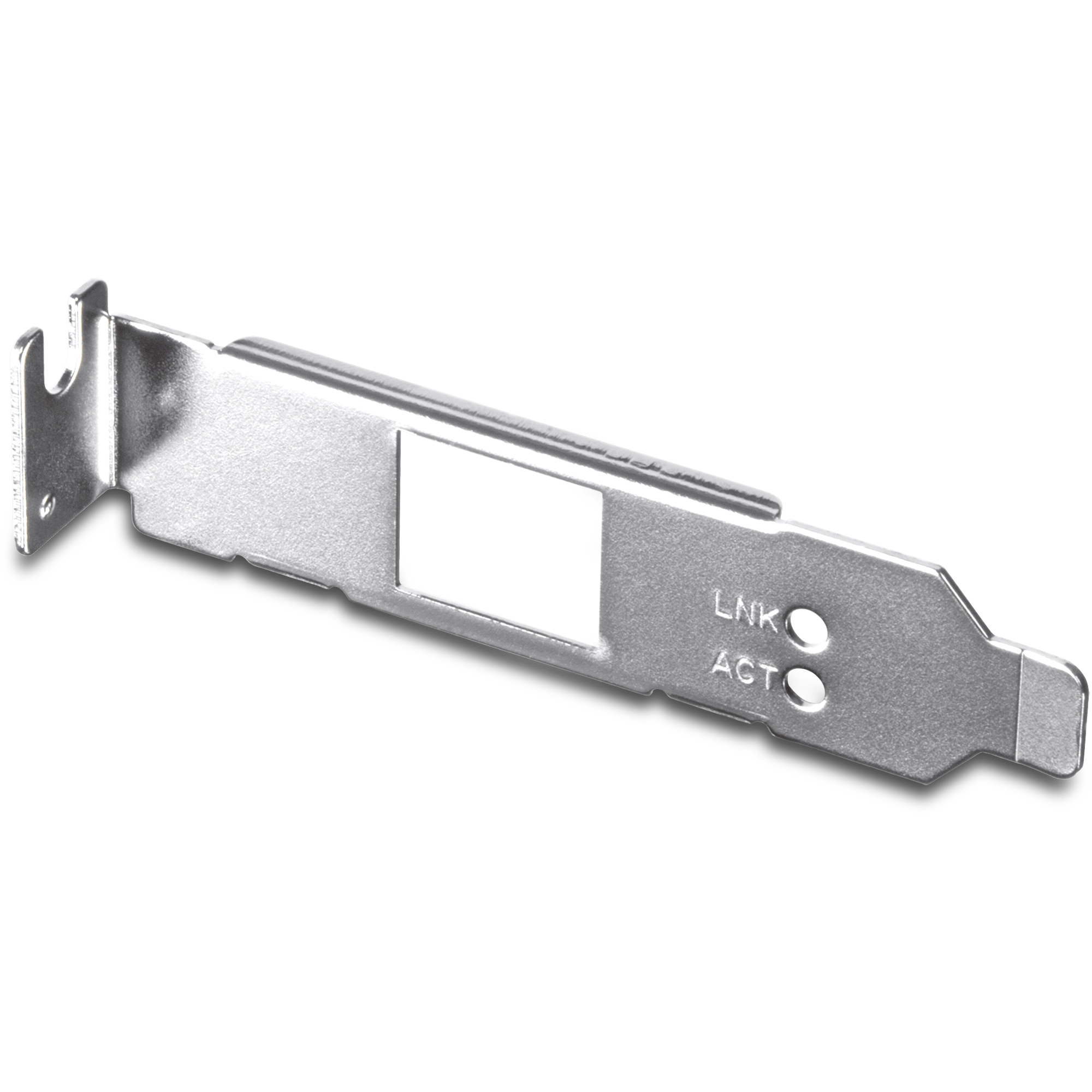

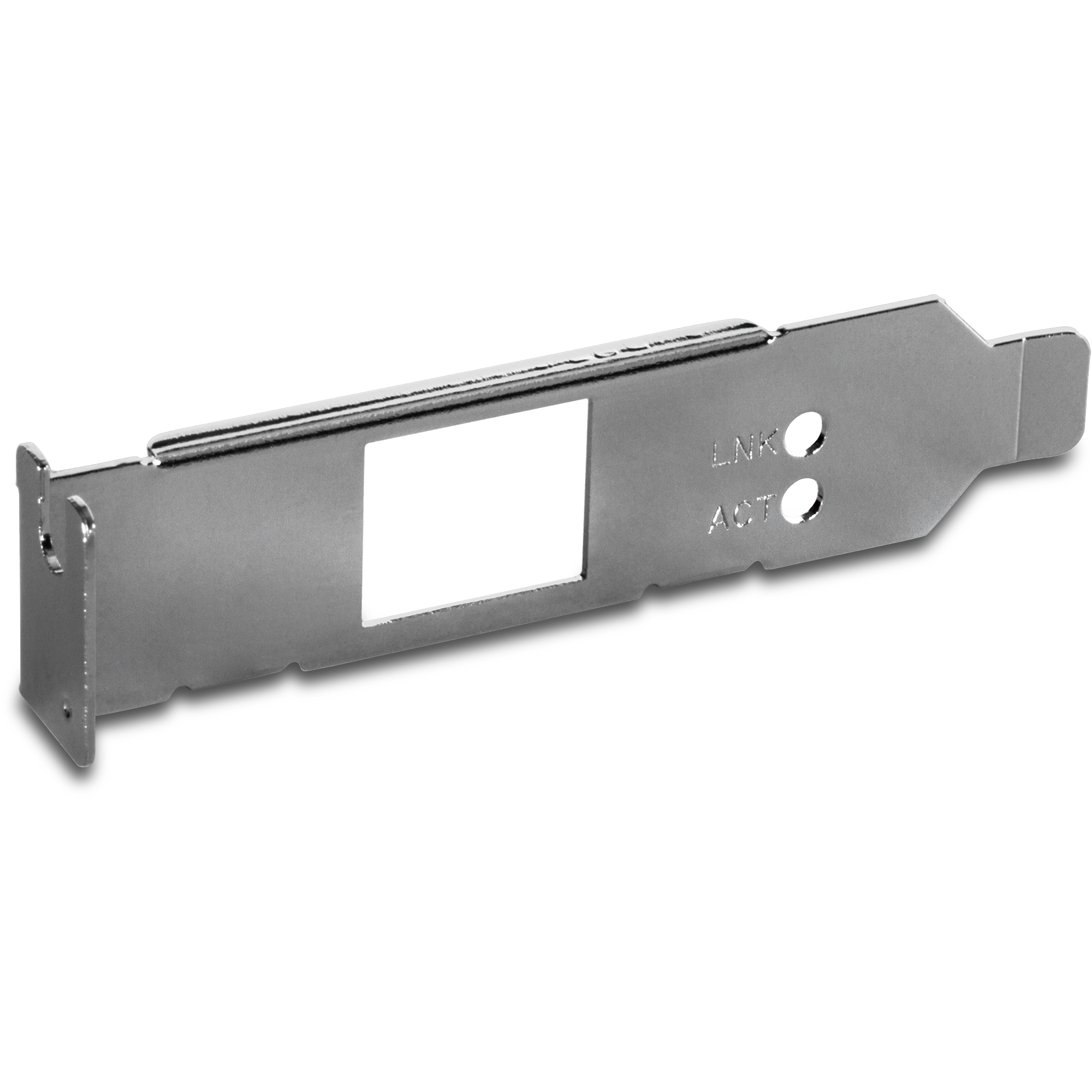

Standard and low profile brackets
CD-ROM (Drivers & User's Guide)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
