24-Port 10/100Mbps Switch

TE100-S24D (Version v1.0R)

  • Compact form factor
  • 24 x 10/100Mbps Auto-MDIX RJ-45 ports
  • Plug and Play solution
  • 4.8 Gbps switching capacity

Price: $39.99
Quantity:
Wishlist

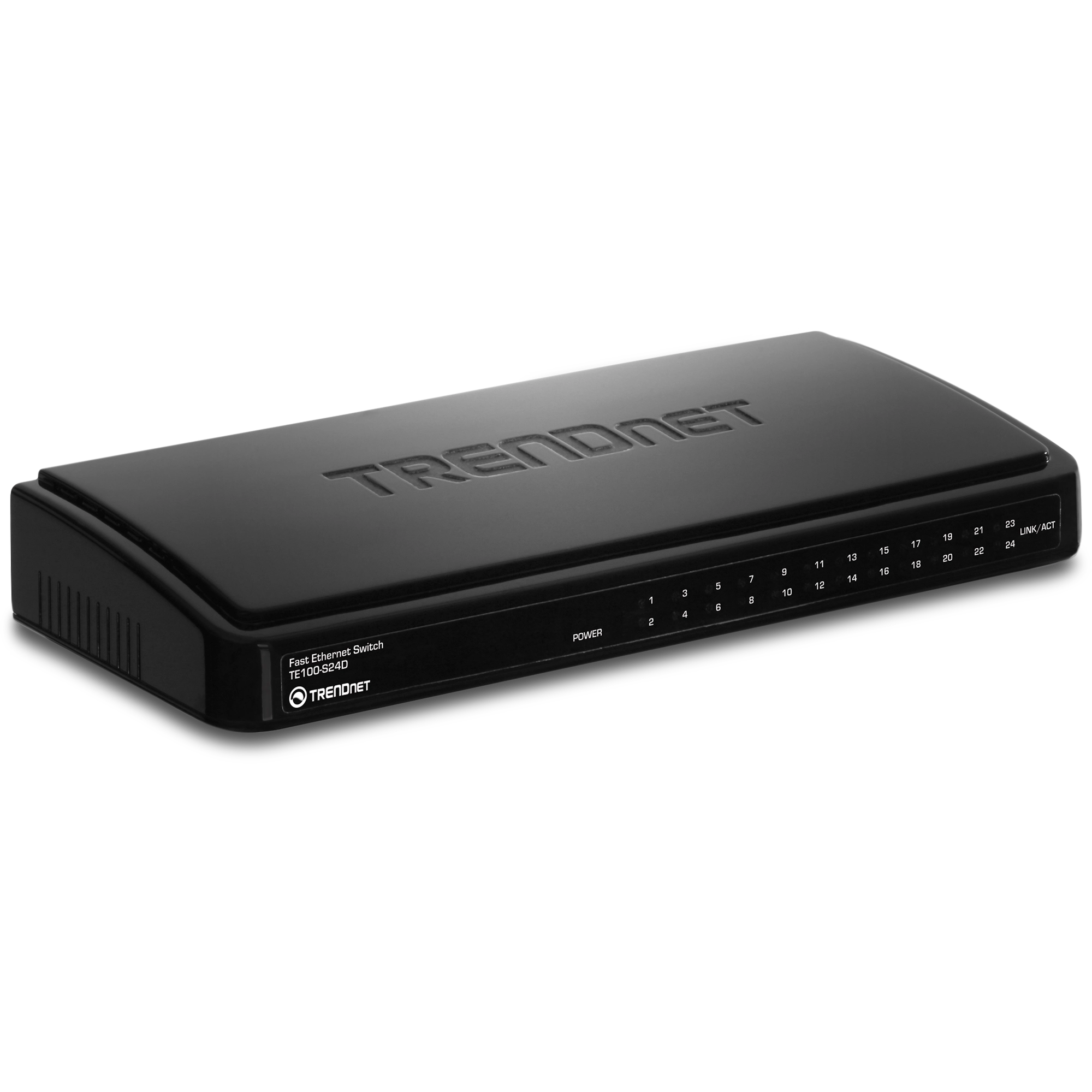

The 24-Port 10/100Mbps Switch, model TE100-S24D, is a reliable Plug-and-Play solution in a compact form factor. Boost network efficiency with a total switching capacity of 4.8 Gbps with Full-Duplex mode.

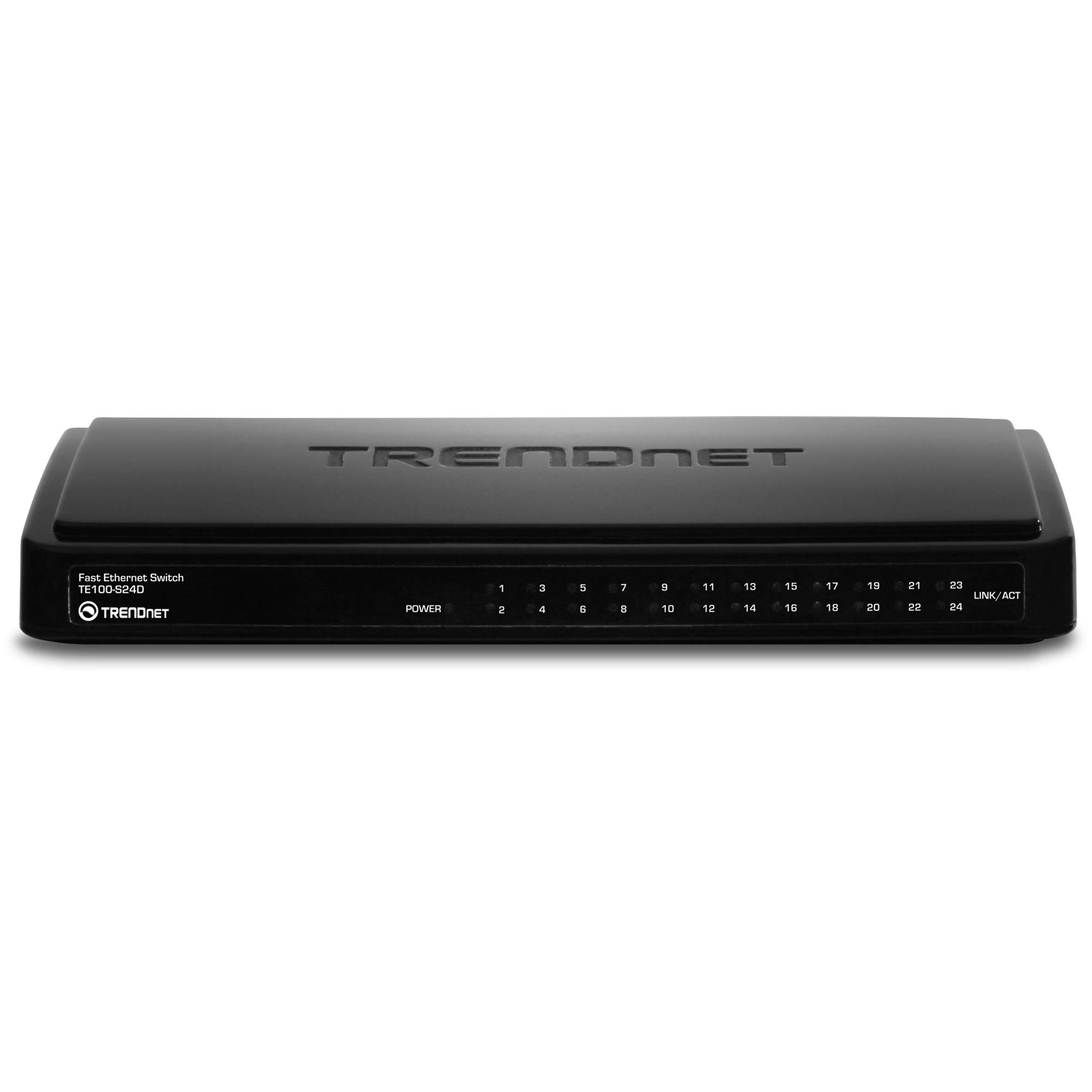

Diagnostic LEDs on the front of the switch help with network troubleshooting. IEEE 802.3x flow control and 8K MAC address entry support provide uninterrupted connectivity. This switch is well suited for networking room, departmental group, and home office applications.

  • 24 x 10/100Mbps Auto-Negotiation, Auto-MDIX Ethernet ports
  • Compliant with IEEE 802.3/IEEE 802.3u standards
  • 4.8Gbps switching fabric
  • Store-and-Forward switching architecture with non-blocking wire-speed performance
  • IEEE 802.3x flow control support
  • Provides 8k MAC address entries
  • 1.75Mbits RAM data buffer
  • Diagnostic LEDs
  • Compact housing
  • Plug & Play installation
  • 3 years limited warranty
Hardware
Standards
  • IEEE 802.3 10Base-TIEEE 802.3u 100Base-TXIEEE 802.3x Flow Control
Network Media
  • Ethernet: UTP/STP Cat. 5, up to 100m
  • Fast Ethernet: UTP/STP Cat. 5, 5e, 6, up to 100m
Data Rate
  • Ethernet: 10Mbps/20Mbps (half/full-duplex)
  • Fast Ethernet: 100Mbps/200Mbps (half/full-duplex)
Protocol / Topology
  • CSMA/CD, Star
Power Consumption
  • 4.65 watts (max.)
Switch Fabric
  • 4.8Gbps forwarding capacity
Interface

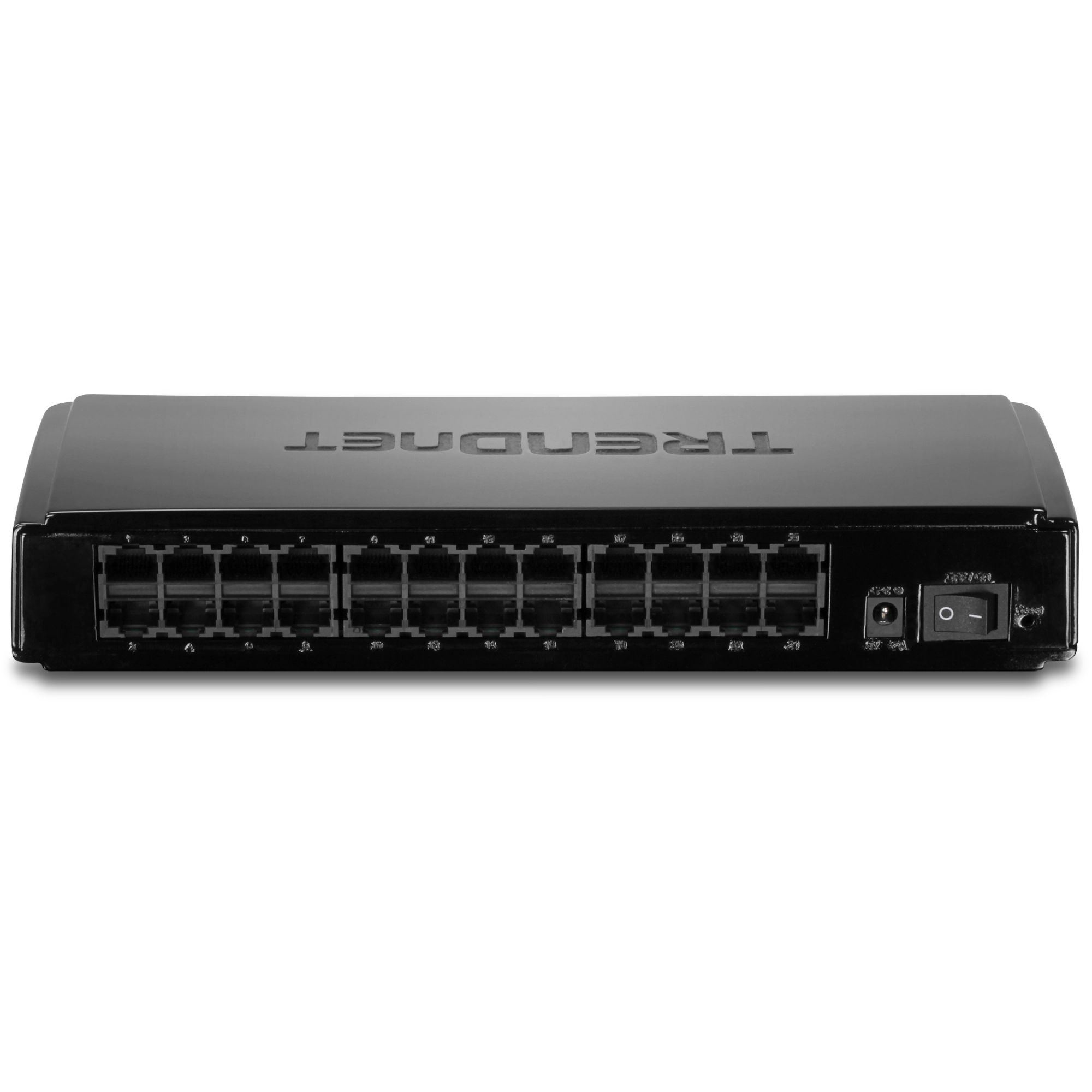

  • 24 x 10/100Mbps Auto-MDIX RJ-45 ports
RAM Data Buffer
  • 1.75Mbits
Filtering Table
  • 8K entries
Diagnostic LED
  • Power, Link/ACT
Power
  • Input: 100~240V, 50/60Hz, 0.4A
  • Output: 5V DC, 2A external power adapter
Dimension
  • 265 x 122.7 x 41 mm (10.4 x 4.8 x 1.6 in.)
Weight
  • 460 g (1.2 lb)
Temperature
  • Operating: 0° ~ 40° C (32° ~ 104° F)
  • Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity
  • Max. 90% (non-condensing)
Certifications
  • CE, FCC

PACKAGE CONTENTS
  • TE100-S24D
  • Multi-Language Quick Installation Guide
  • Power adapter (5V DC, 2A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
