TRENDnet Store

N150 Wireless Travel Router

TEW-714TRU (Version v1.0R)

  • Share a single Internet connection with multiple users
  • Router, WISP, and Repeater, modes
  • USB File Share port
  • USB Quick Charge port
  • Interchangeable Power plugs: USA, Euro, and UK
  • One touch network connection with the WPS button
  • Energy savings GREENnet technology

TRENDnet's N150 Wireless Travel Router, model TEW-714TRU, is a flexible travel router for on the go professionals. Router mode turns a wired Internet connection into a wireless network. Repeater and WISP modes leverage an existing wireless network. Connect a USB storage drive to share content across the wireless network. Quickly charge mobile devices with the convenient quick charge port. Interchangeable power plugs keep you connected on all continents.

Ease of Use

Easy Setup

Get up and running in minutes with the intuitive guided setup

Power Plugs

Stay connected on all continents with Interchangeable USA, Euro, and UK power plugs

USB Share Port

Connect a USB storage drive to share content across the wireless network

USB Charge Port

Quickly charge mobile devices with the convenient quick charge port

On/Off Switch

Handy on/off switch for on the go use

One Touch Connection

Connect to the TEW-714TRU at the touch of the Wi-Fi Protected Setup (WPS) button

Encryption

Wireless Encrypted

Supports the latest wireless encryption standards

Performance

N150 Wireless

Reliable 150 Mbps Wireless N

Router Mode

Turns a wired Internet connection into a wireless network

Repeater and WISP Modes

Leverages an existing wireless network

Energy Savings

Embedded GREENnet technology reduces power consumption by up to 50%

IPv6

IPv6 network support

Standards
  • USB 2.0
  • USB 1.1
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3az
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n (up to 150 Mbps)
Encryption
  • Wireless encryption up to WPA2

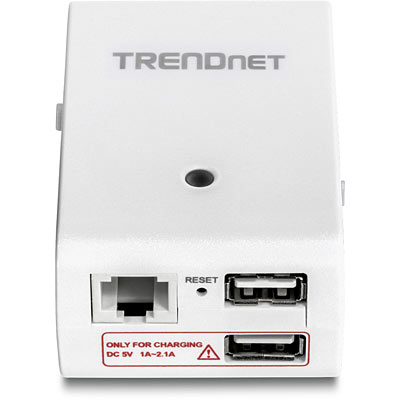

Device Interfaces
  • 1 x USB quick charge port
  • 1 x USB file share port
  • 1 x 10/100 Mbps port
  • On/off power switch

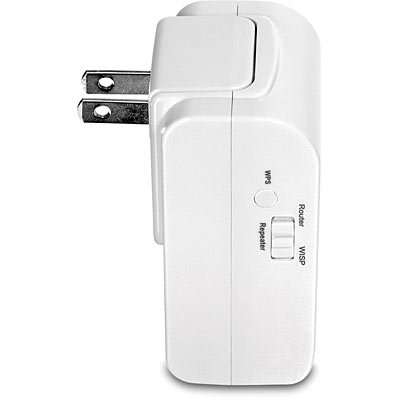

  • Router/Repeater/WISP mode selection switch
  • WPS button
  • Reset button
  • LED indicator
  • Interchangeable Power plugs: US, EU, UK
Special Features
  • Compact form factor
  • Router, WISP, and Repeater modes
  • USB file share port
  • USB quick charge port (Max. 5 V DC 2.1 A)
  • Interchangeable Power plugs: US, EU, UK
Power
  • 100 - 240 V AC
  • Consumption: 2.5 W (Max.)
Antenna Gain
  • 2 dBi internal PIFA
Wireless Output Power (EIRP)/Receiving Sensitivity
  • 802.11b: FCC: 20 dBm (typical), CE: 20 dBm (typical)/-82 dBm (typical) @ 11 Mbps
  • 802.11g: FCC: 17 dBm (typical), CE: 17 dBm (typical)/-70 dBm (typical) @ 54 Mbps
  • 802.11n: FCC: 16 dBm (typical), CE: 16 dBm (typical)/-70 dBm (typical) @ 150 Mbps
Operating Temperature
  • 0 - 40°C (32 - 104°F)
Operating Humidity
  • Max. 90% non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 81 x 50 x 39 mm (3.2 x 2.0 x 1.5 in.)
Weight
  • 120 g (4.2 oz.)
Warranty
  • 3 year limited

PACKAGE CONTENTS

  • TEW-714TRU
  • US, Euro, and UK Power Plugs
  • Multi-Language Quick Installation Guide
  • CD-ROM (User's Guide)
  • Network cable (1 m / 3 ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
