Wireless AC Easy-Upgrader

TEW-820AP   (Version v1.0R)

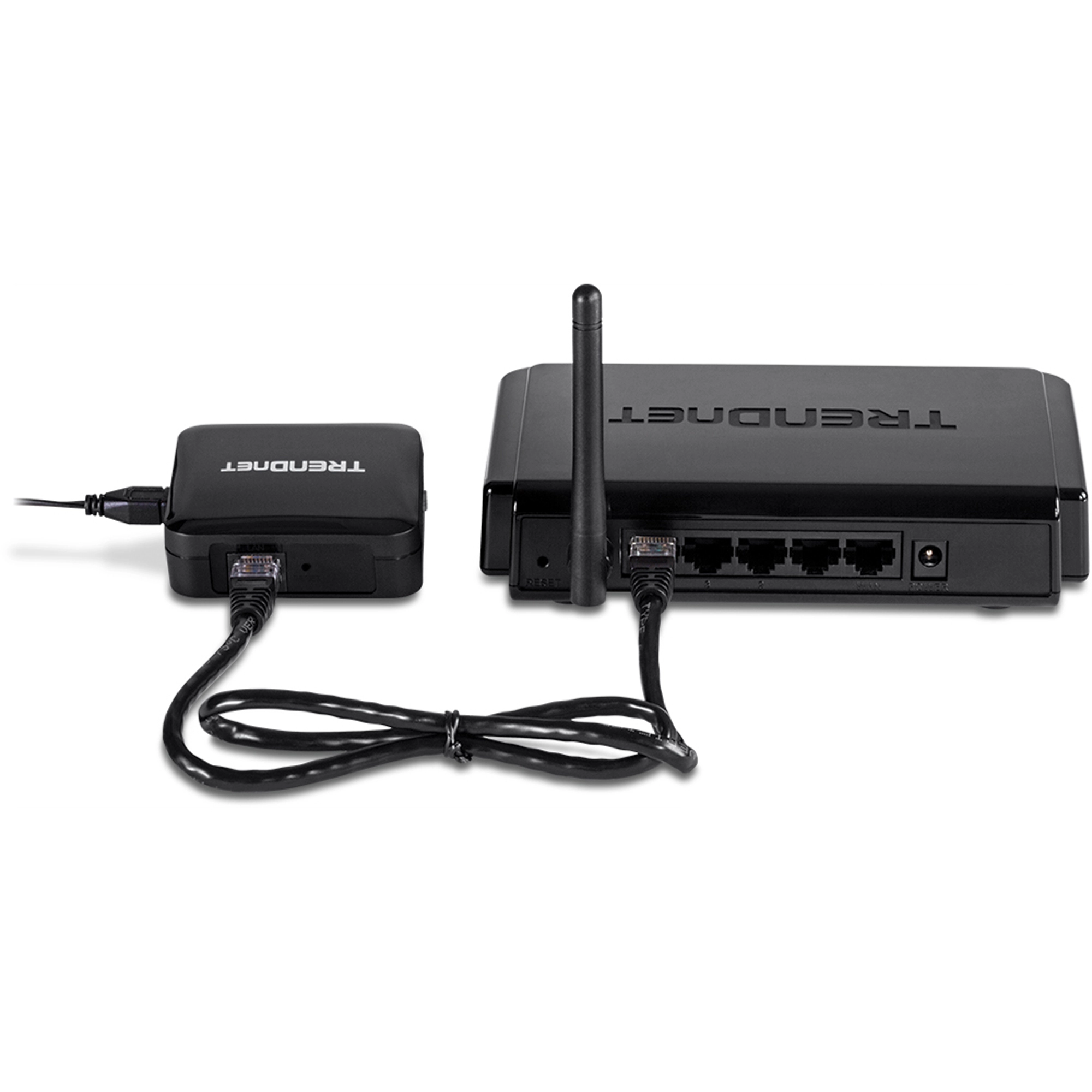

  • Don't throw away your existing wireless or wired router, upgrade it to high speed 5 GHz Wireless AC
  • Pre-encrypted wireless for your convenience
  • Compact housing
  • You need a Wireless AC enabled device in order to connect to the TEW-820AP

DISCONTINUED PRODUCT

The TEW-820AP (Version v1.0R) has been discontinued. For a list of discontinued products, click here.

Utility

Utility
Filename: TEW-820APv1_Utility1.1.zip
SHA-1 Checksum: EA5A8BE70AE04098614BC42151E812E847B55155
Date: 7/28/2017
File Size: 6.01 MB
Download

Firmware

Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection.
Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only

Firmware Version: 1.01.B01
Release Date: 09/2015

Note:
  • Resolved Mac Filter

Filename: TEW-820APv1_(FW1.01B01).zip
SHA-1 Checksum: 043B035DC34320E27722DDDC4DEE63D84F80EBEE
Date: 7/28/2017
File Size: 4.69 MB
Download

Datasheet

Datasheet (English)
Filename: EN_spec_TEW-820AP(v1.0R).pdf
Date: 11/21/2014
File Size: 977.31 KB
Download Email
Datasheet (Français)
Filename: FR_spec_TEW-820AP(v1.0R).pdf
Date: 11/21/2014
File Size: 975.91 KB
Download Email
Datasheet (Deutsch)
Filename: GE_spec_TEW-820AP(v1.0R).pdf
Date: 11/21/2014
File Size: 981.01 KB
Download Email
Datasheet (Português)
Filename: PO_spec_TEW-820AP(v1.0R).pdf
Date: 11/21/2014
File Size: 980.20 KB
Download Email
Datasheet (Español)
Filename: SP_spec_TEW-820AP(v1.0R).pdf
Date: 11/21/2014
File Size: 980.55 KB
Download Email
Datasheet (Pусский)
Filename: RU_spec_TEW-820AP(v1.0R).pdf
Date: 11/21/2014
File Size: 988.79 KB
Download Email
Datasheet (Italiano)
Filename: IT_spec_TEW-820AP(v1.0R).pdf
Date: 11/21/2014
File Size: 977.71 KB
Download Email

Quick Installation Guide

Quick Installation Guide (EUNL)
Filename: EUNL_Web_lineart_TEW-820AP(V1.0R).pdf
Date: 10/16/2014
File Size: 1.27 MB
Download
Quick Installation Guide
Filename: Web_lineart_TEW-820AP(V1.0R).pdf
Date: 10/16/2014
File Size: 4.49 MB
Download

User's Guide

User's Guide
Filename: UG_TEW-820AP(v1.0R).pdf
Date: 10/16/2014
File Size: 2.35 MB
Download

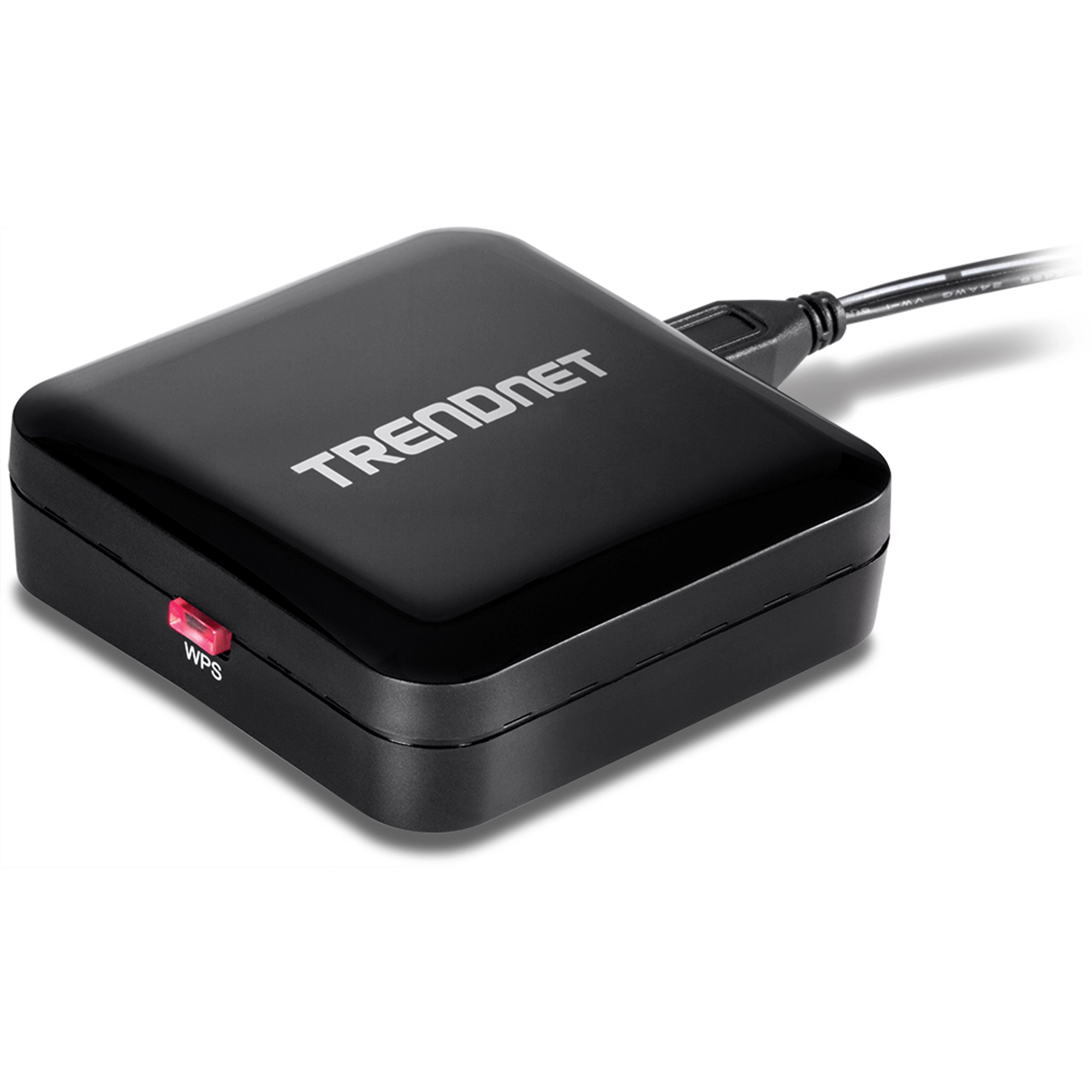

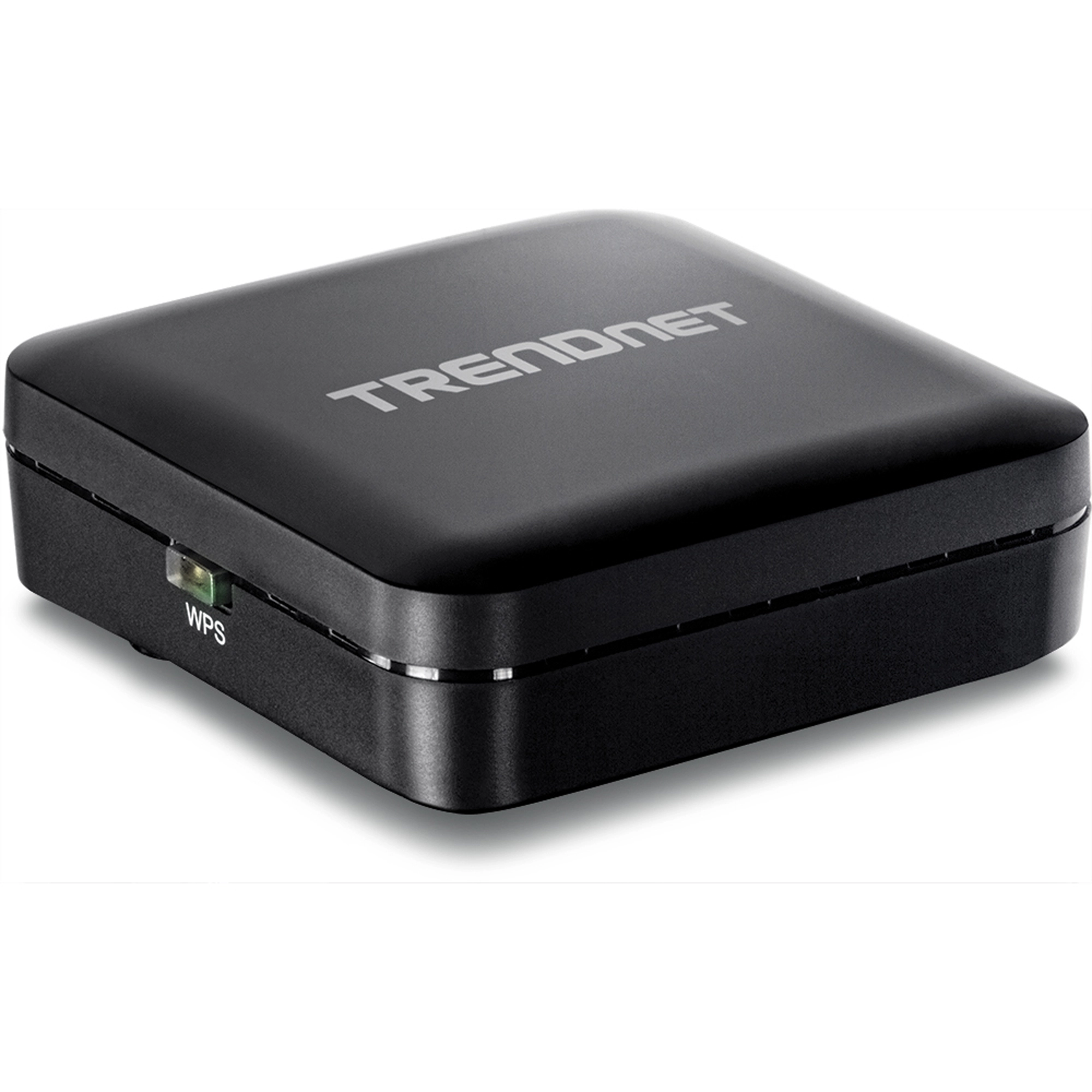

Product Images

JPEG Image
File Size: : 368.10 KB
Date: : 5/27/2015
Download
JPEG Image
File Size: : 311.38 KB
Date: : 5/27/2015
Download
JPEG Image
File Size: : 311.00 KB
Date: : 5/27/2015
Download
JPEG Image
File Size: : 299.33 KB
Date: : 5/27/2015
Download
JPEG Image
File Size: : 336.27 KB
Date: : 5/27/2015
Download
JPEG Image
File Size: : 265.25 KB
Date: : 5/27/2015
Download
JPEG Image
File Size: : 531.06 KB
Date: : 5/27/2015
Download
JPEG Image
File Size: : 881.46 KB
Date: : 10/14/2015
Download
ROHS compliant WEEE crossed-out bin symbol.
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.11a
  • Based on IEEE 802.11n (5 GHz up to 150 Mbps)
  • IEEE 802.11ac (up to 433 Mbps)

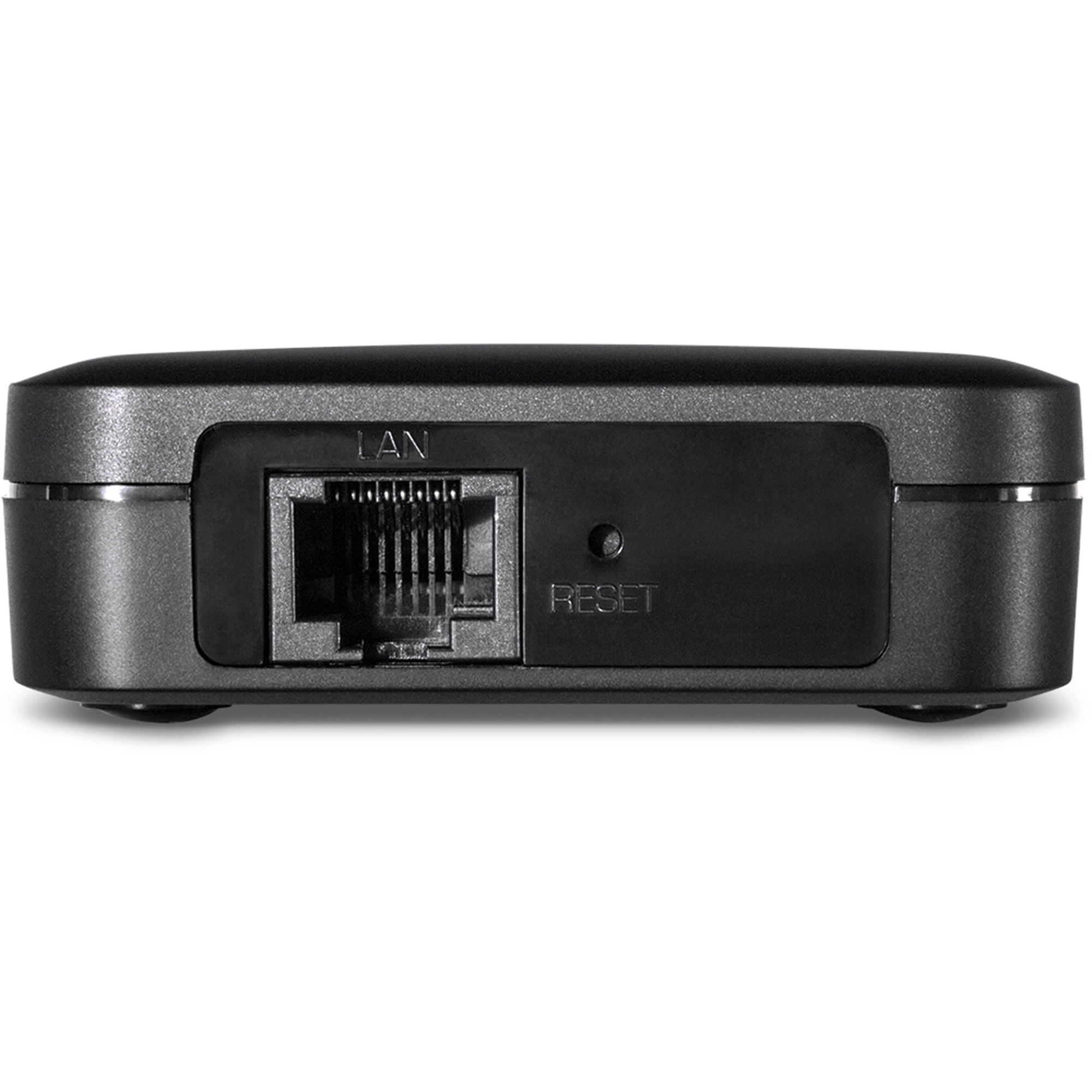

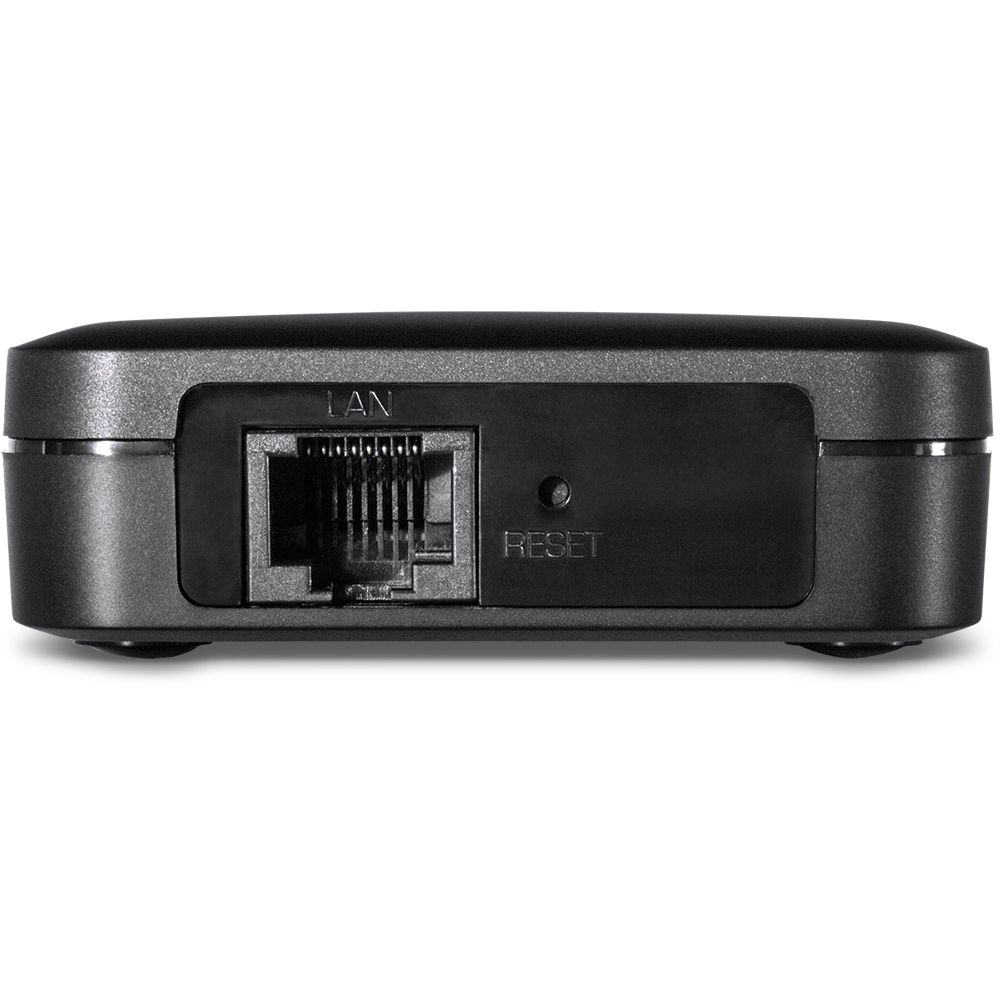

Hardware Interface
  • 1 x 10/100 Mbps LAN port

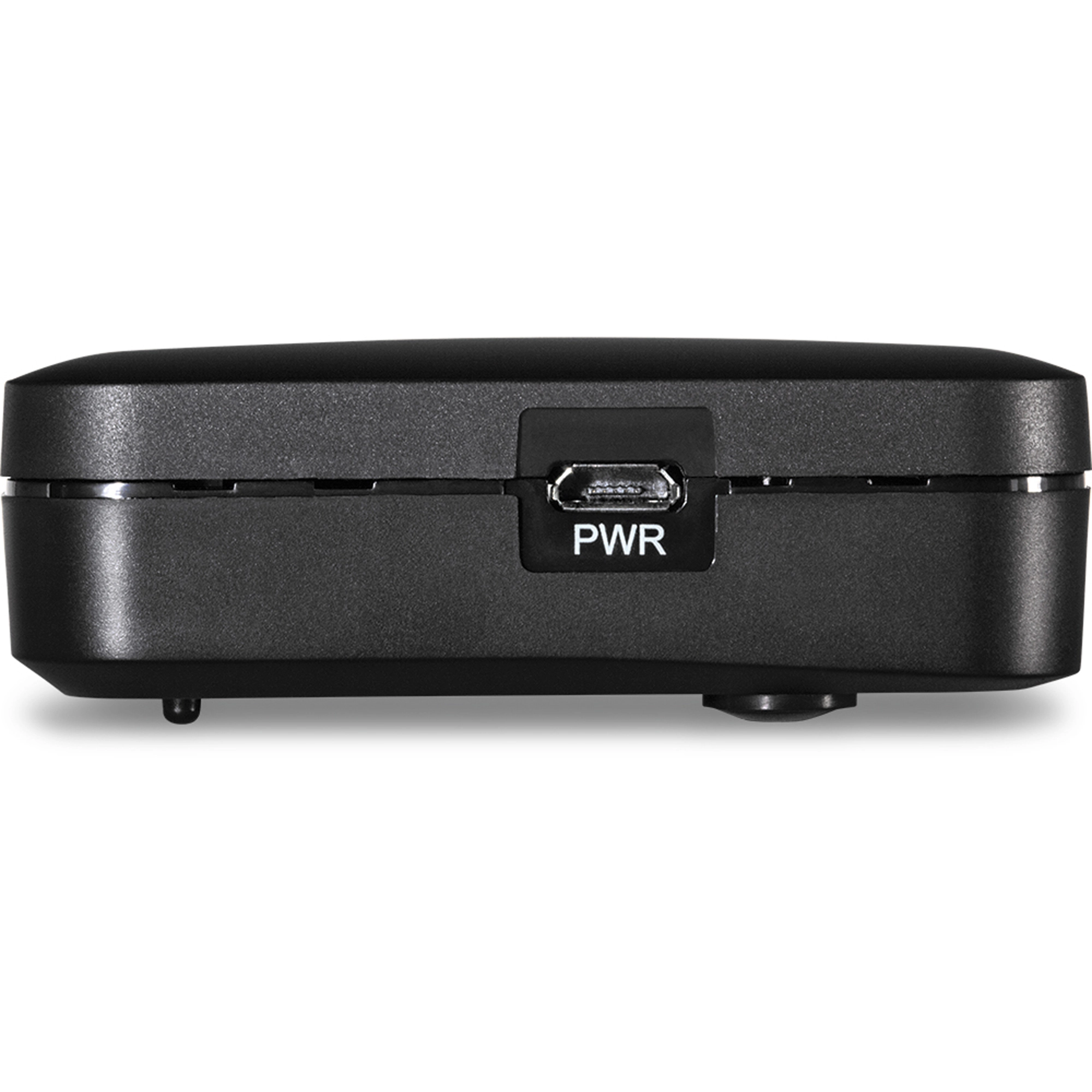

  • Micro USB power port
  • LED indicator

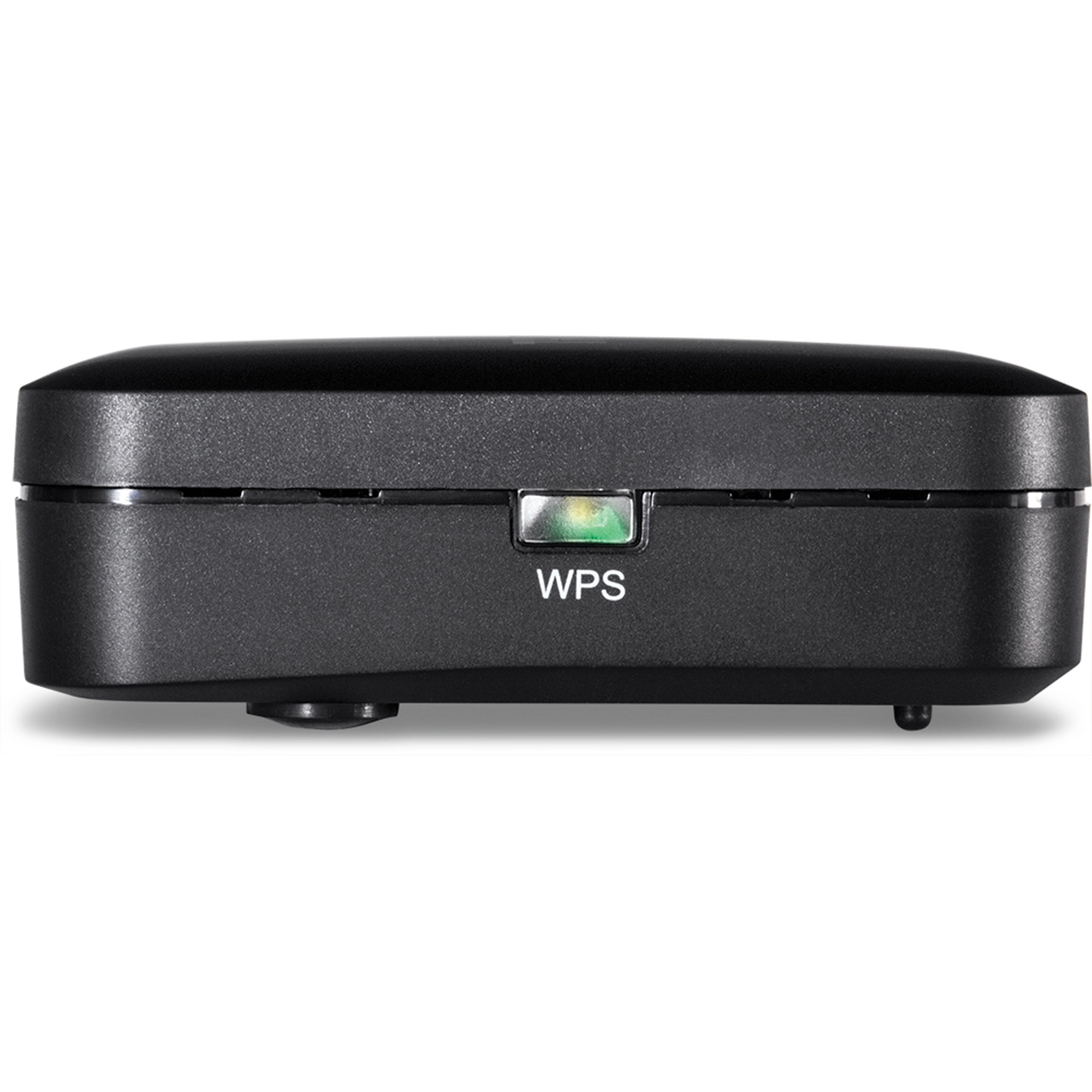

  • WPS button
  • Reset button
Operation Modes
  • Access Point (AP and AP+WDS)
  • Client
Special Features
  • Compact design
  • IPv6 support (Link local, Static, SLAAC/DHCPv6)
  • WLAN partition
  • WMM support
  • Easy CD installation Wizard
SSID
  • Up to 4 additional SSIDs
Access Control
  • Wireless encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS
  • MAC filter
  • Wireless user limit
Frequency
  • FCC: 5.150 - 5.250 GHz, 5.725 - 5.850 GHz
  • ETSI: 5.150 - 5.350 GHz, 5.470 - 5.725 GHz
Wireless Channels
  • FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165
  • ETSI: 36, 40, 44, 48, (52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140)**
  • BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM with OFDM
Media Access Protocol
  • CSMA/CA with ACK
Antenna Gain
  • 1 x 3 dBi (max.) internal antenna
Wireless Output Power/Receiving Sensitivity
  • 802.11a: FCC: 19 dBm (max.), ETSI: 19 dBm (max.)/ -75 dBm (typical) @ 54 Mbps
  • 802.11n (5 GHz only): FCC: 18 dBm (max.), ETSI: 18 dBm (max.)/ -70 dBm (typical) @ 150 Mbps
  • 802.11ac: FCC: 18 dBm (max.), ETSI: 18 dBm (max.)/ -59 dBm (typical) @ 433 Mbps
Power
  • Input: 100 - 240 V AC, 50 - 60 Hz
  • Output: 5 V DC, 1 A
  • Consumption: 2.3 Watts Max.
Operating Temperature
  • 0 - 40 °C (32 – 104 °F)
Operating Humidity
  • Max. 95 % non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 65 x 67 x 21 mm (2.5 x 2.6 x 1 in.)
Weight
  • 48 g (1.7 oz.)
Warranty
  • 3 year limited

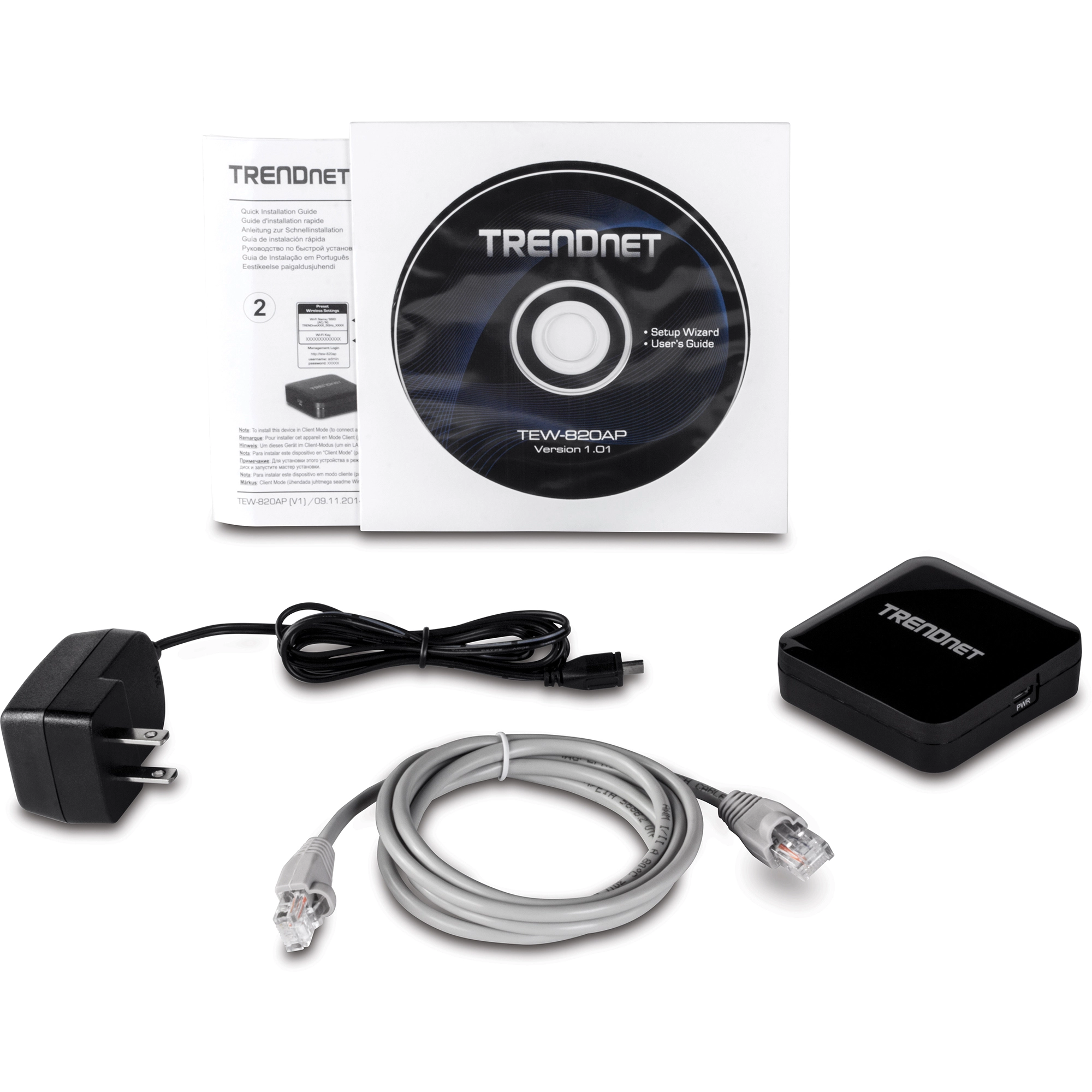

PACKAGE CONTENTS
  • TEW-820AP
  • CD-ROM (Installation Wizard and User's Guide)
  • Multi-Language Quick Installation Guide
  • Power adapter (5 V DC, 1 A)

*For maximum performance of up to 433 Mbps use with an 802.11ac wireless client. Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions **Due to regulatory requirements, the wireless channels specified cannot be statically assigned, but will be available within the available wireless channels when set to auto.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
