4-Port Gigabit Switch with 2 SFP Slots Ports

TFC-G22SFP   (Version v1.0R)

  • 2 x 1Gbps RJ-45 ports
  • 2 x 1Gbps SFP ports
  • 8Gbps switching capacity
  • Sturdy metal switch
  • Fanless design
  • SFP port accommodates multimode or single-mode modules
  • Auto-MDIX RJ-45 ports support full-duplex mode
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3z
  • IEEE 802.3ab
  • IEEE 802.3az
Device Interface
  • 2 x Gigabit RJ45 ports (10/100/1000Mbps)
  • 2 x Gigabit SFP ports (10/100/1000Mbps)
  • LED indicators
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex) 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex) 200Mbps (full duplex)
  • Gigabit: 2Gbps (full duplex)
  • 100Mbps SFP: 200Mbps (full duplex)
  • Gigabit SFP: 2Gbps (full duplex)
Performance
  • Switching Capacity: 8Gbps
  • RAM Buffer: 4MB
  • Jumbo Frames: 9KB
  • MAC Address Table: 8K entries
  • Forwarding Rate: 1.488Mpps (64-byte packet size)
Power
  • Input: 100 – 240V AC, 50/60 Hz
  • Output: 5V DC, 1.5A
  • Max. Consumption: 3.3W
Fan/Acoustics
  • Fanless design
MTBF
  • 770,000 hours @ 25° C
Operating Temperature
  • 0° – 50° C (32° – 122° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions (L x W x H)
  • 101 x 75 x 22.6mm (3.97 x 2.95 x 0.89 in.)
Weight
  • 203.5g (0.45 lbs)
Certifications
  • CE
  • FCC
  • LVD
Warranty
  • 3-year

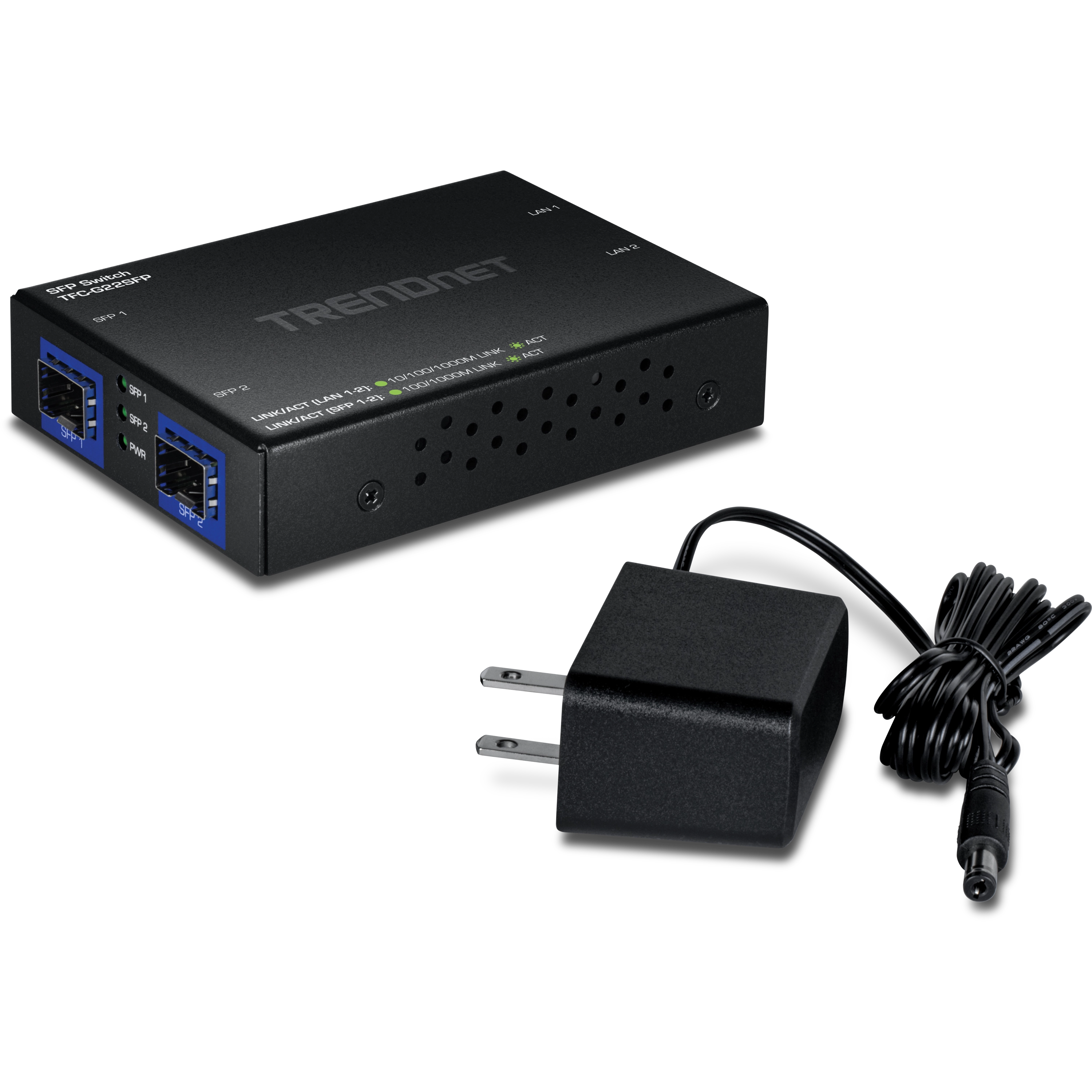

PACKAGE CONTENTS
  • TFC-G22SFP
  • Power adapter (5V DC, 1.5A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
