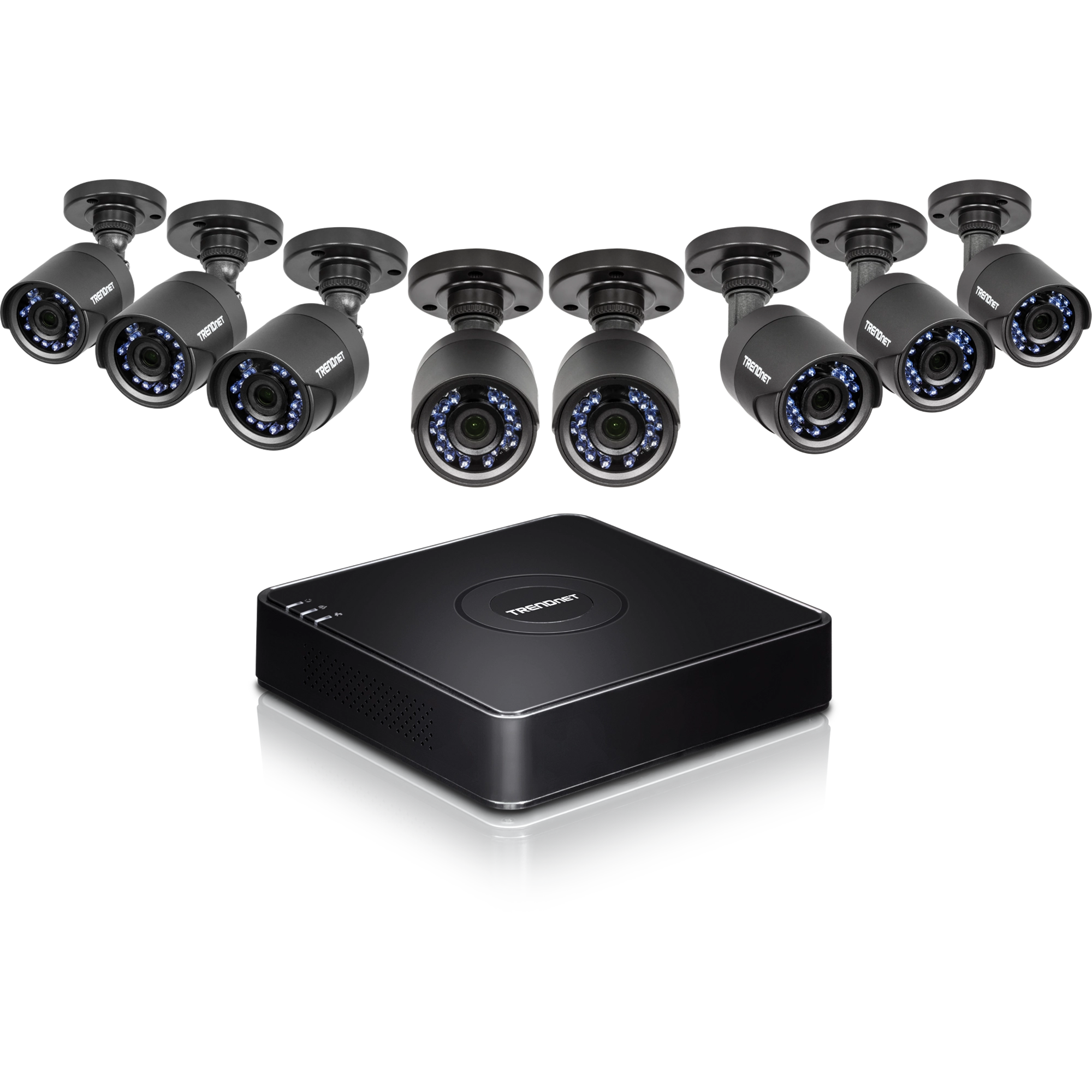

8-Channel HD CCTV DVR Surveillance Kit

TV-DVR208K   (Version v1.0R)

  • 8-Channel CCTV digital video recorder
  • Pre-installed 1 TB SATA HDD
  • Includes eight outdoor ready HD cameras
  • Plug and play up to 8 CCTV cameras
  • Video recording supported up to 1080p HD

DISCONTINUED PRODUCT

The TV-DVR208K (Version v1.0R) has been discontinued. For a list of discontinued products, click here.

Notes

Setup Guide
Filename: Web_TV-DVR104K_TV-DVR208K(V1)Setup_Guide.pdf
Date: 5/10/2018
File Size: 552.92 KB
Download
Safety Note
Filename: Safety_Note_160mmX100mm_(Rev_1.0).pdf
Date: 5/10/2018
File Size: 455.63 KB
Download

Utility

NVR video player
Filename: player.zip
SHA-1 Checksum: C71B448CD1E655D9A3CBADE38AB496EF3D04EC28
Date: 7/25/2017
File Size: 1.32 MB
Download
NVR Storage Calculator
Filename: Storage_Calculator.zip
SHA-1 Checksum: 26BE8392F414FE137337AFF66224AE9B06F24406
Date: 7/25/2017
File Size: 18.52 MB
Download

Firmware

Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection.
Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only

Firmware Version: 3.47
Release Date: 5/2017

Note:
  • Initial release

Filename: FW_TV-DVR104_208(3.4.7 170123).zip
SHA-1 Checksum: E9D96814578BA2228C84F9E4BAAC78F5BA1DB055
Date: 7/25/2017
File Size: 26.40 MB
Download

Software

TRENDnetVIEWPro Software

Software Version: 2.5.9
Release Date: 4/2017
Notes:

  • Fixed TV-IP420P P/T issue

Filename: TRENDnetViewPro(2.5.9).zip
SHA-1 Checksum: 7CD1D9AE621816395E9FE9644B651F3696388215
Date: 7/25/2017
File Size: 41.15 MB
Download

Datasheet

Datasheet (English)
Filename: EN_datasheet_TV-DVR208K_(v1.0R).pdf
Date: 5/24/2017
File Size: 931.43 KB
Download Email
Datasheet (Français)
Filename: FR_datasheet_TV-DVR208K_(v1.0R).pdf
Date: 5/24/2017
File Size: 940.35 KB
Download Email
Datasheet (Deutsch)
Filename: GE_datasheet_TV-DVR208K_(v1.0R).pdf
Date: 5/24/2017
File Size: 940.43 KB
Download Email
Datasheet (Português)
Filename: PO_datasheet_TV-DVR208K_(v1.0R).pdf
Date: 5/24/2017
File Size: 940.85 KB
Download Email
Datasheet (Español)
Filename: SP_datasheet_TV-DVR208K_(v1.0R).pdf
Date: 5/24/2017
File Size: 940.89 KB
Download Email
Datasheet (Italiano)
Filename: IT_datasheet_TV-DVR208K_(v1.0R).pdf
Date: 5/24/2017
File Size: 939.97 KB
Download Email

IPView App Quick Installation Guide

IPView App Quick Installation Guide
Filename: IPView_app.pdf
Date: 5/3/2017
File Size: 5.02 MB
Download

Quick Installation Guide

Quick Installation Guide (English)
Filename: EN_Web_TV-DVR104K_DVR208K(V1)_Steps.pdf
Date: 5/24/2017
File Size: 885.24 KB
Download
Quick Installation Guide (Français)
Filename: FR_Web_TV-DVR104K_DVR208K(V1)_Steps.pdf
Date: 5/24/2017
File Size: 886.48 KB
Download
Quick Installation Guide (Deutsch)
Filename: GE_Web_TV-DVR104K_DVR208K(V1)_Steps.pdf
Date: 5/24/2017
File Size: 886.57 KB
Download
Quick Installation Guide (Português)
Filename: PT_Web_TV-DVR104K_DVR208K(V1)_Steps.pdf
Date: 5/24/2017
File Size: 889.02 KB
Download
Quick Installation Guide (Español)
Filename: SP_Web_TV-DVR104K_DVR208K(V1)_Steps.pdf
Date: 5/24/2017
File Size: 885.83 KB
Download
Quick Installation Guide (Pусский)
Filename: Russian_TV-DVR104K_DVR208K(V1)_Steps.pdf
Date: 4/5/2018
File Size: 1.49 MB
Download
Quick Installation Guide (Italiano)
Filename: ITA_Web_TV-DVR104K_DVR208K(V1)_Steps.pdf
Date: 5/24/2017
File Size: 885.89 KB
Download

User's Guide

User's Guide
Filename: UG_TV-DVR104K_208K(v1.0R).pdf
Date: 7/19/2017
File Size: 7.44 MB
Download

Product Images

PNG Image
File Size: : 1.60 MB
Date: : 1/24/2017
Download
PNG Image
File Size: : 1.81 MB
Date: : 1/24/2017
Download
PNG Image
File Size: : 1.70 MB
Date: : 1/24/2017
Download
PNG Image
File Size: : 1.81 MB
Date: : 1/24/2017
Download
PNG Image
File Size: : 3.02 MB
Date: : 1/24/2017
Download
PNG Image
File Size: : 2.99 MB
Date: : 1/24/2017
Download
PNG Image
File Size: : 1.25 MB
Date: : 1/24/2017
Download
PNG Image
File Size: : 2.55 MB
Date: : 1/24/2017
Download
PNG Image
File Size: : 1.23 MB
Date: : 1/24/2017
Download
PNG Image
File Size: : 2.64 MB
Date: : 1/24/2017
Download
PNG Image
File Size: : 2.39 MB
Date: : 1/24/2017
Download
PNG Image
File Size: : 2.44 MB
Date: : 1/24/2017
Download
PNG Image
File Size: : 2.48 MB
Date: : 1/24/2017
Download
PNG Image
File Size: : 1.86 MB
Date: : 1/24/2017
Download
ROHS compliant WEEE crossed-out bin symbol.

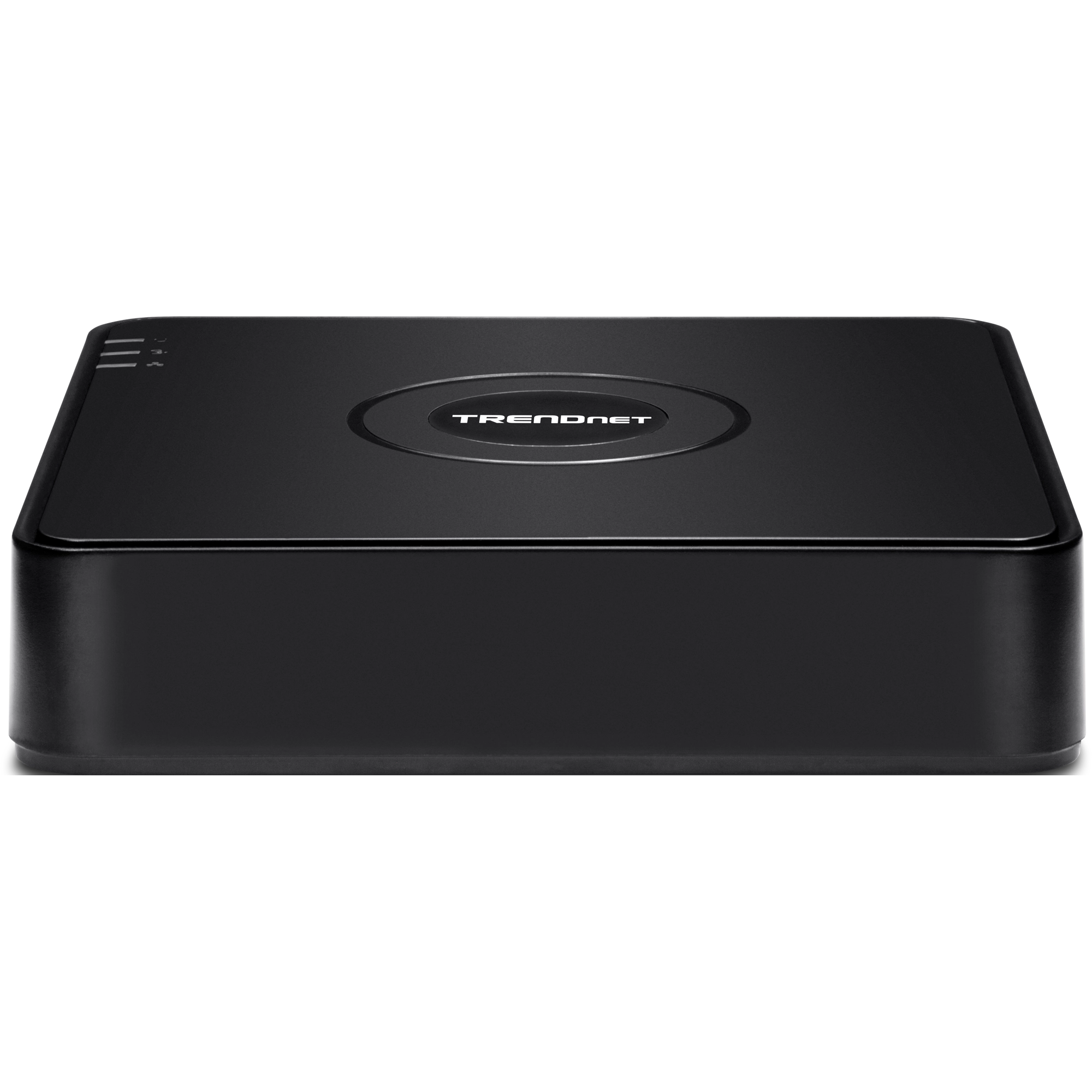

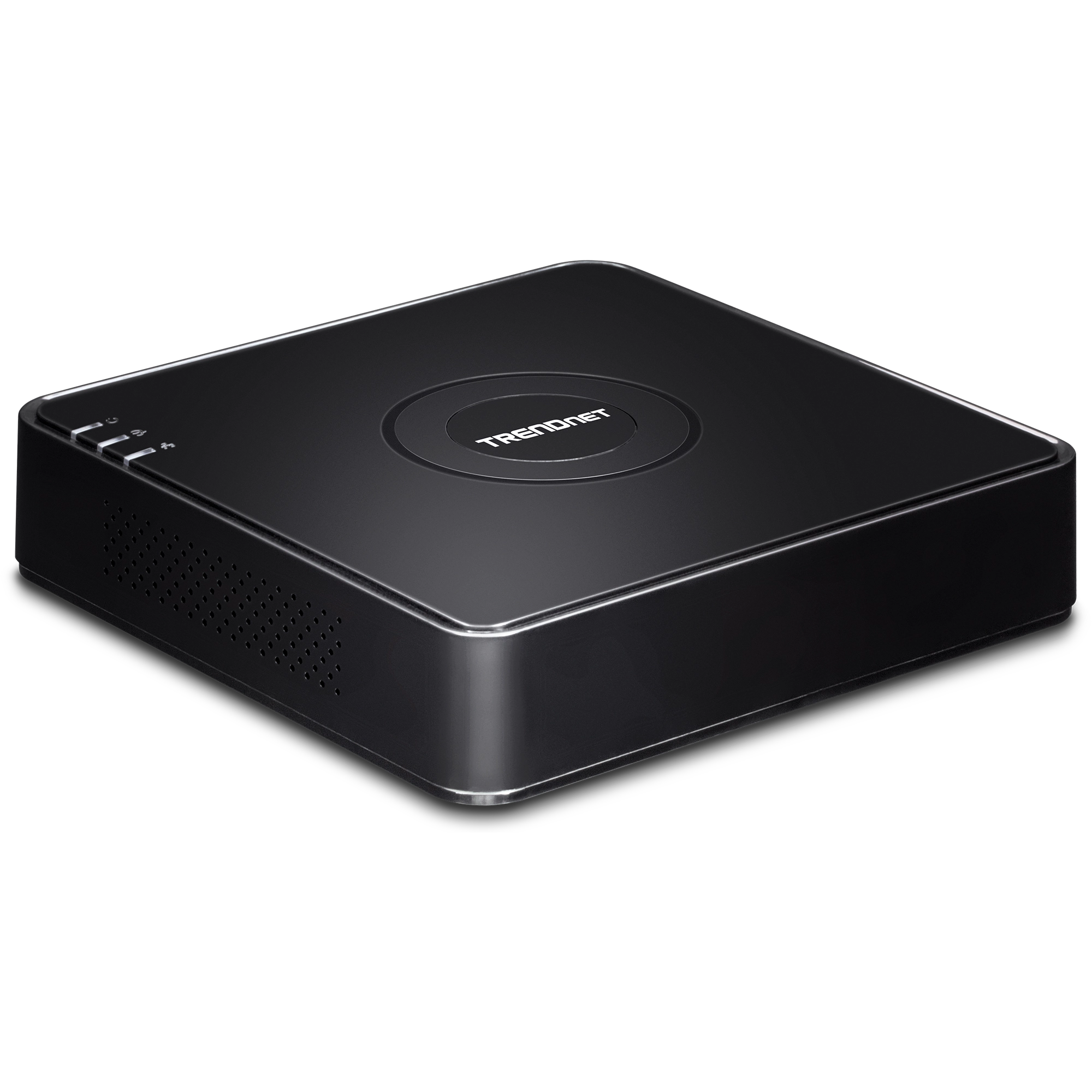

DVR Specifications
Video Input
  • 8 channels
  • Interface: BNC (1.0 Vp-p, 75 Ω)
Video Output
  • HDMI and VGA display outputs
  • Resolution: 1920 x 1080 (1080p), 1280 x 1024, 1280 x 720 (720p), 1024 x 768 @ 60Hz
  • Up to 22 fps
Audio
  • Analog audio in / out, RCA (linear, 1KΩ)
  • Compression: G.711u
Storage
  • One 3.5" SATA I/II HDD or SSD up to 6 TB storage
Network Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x

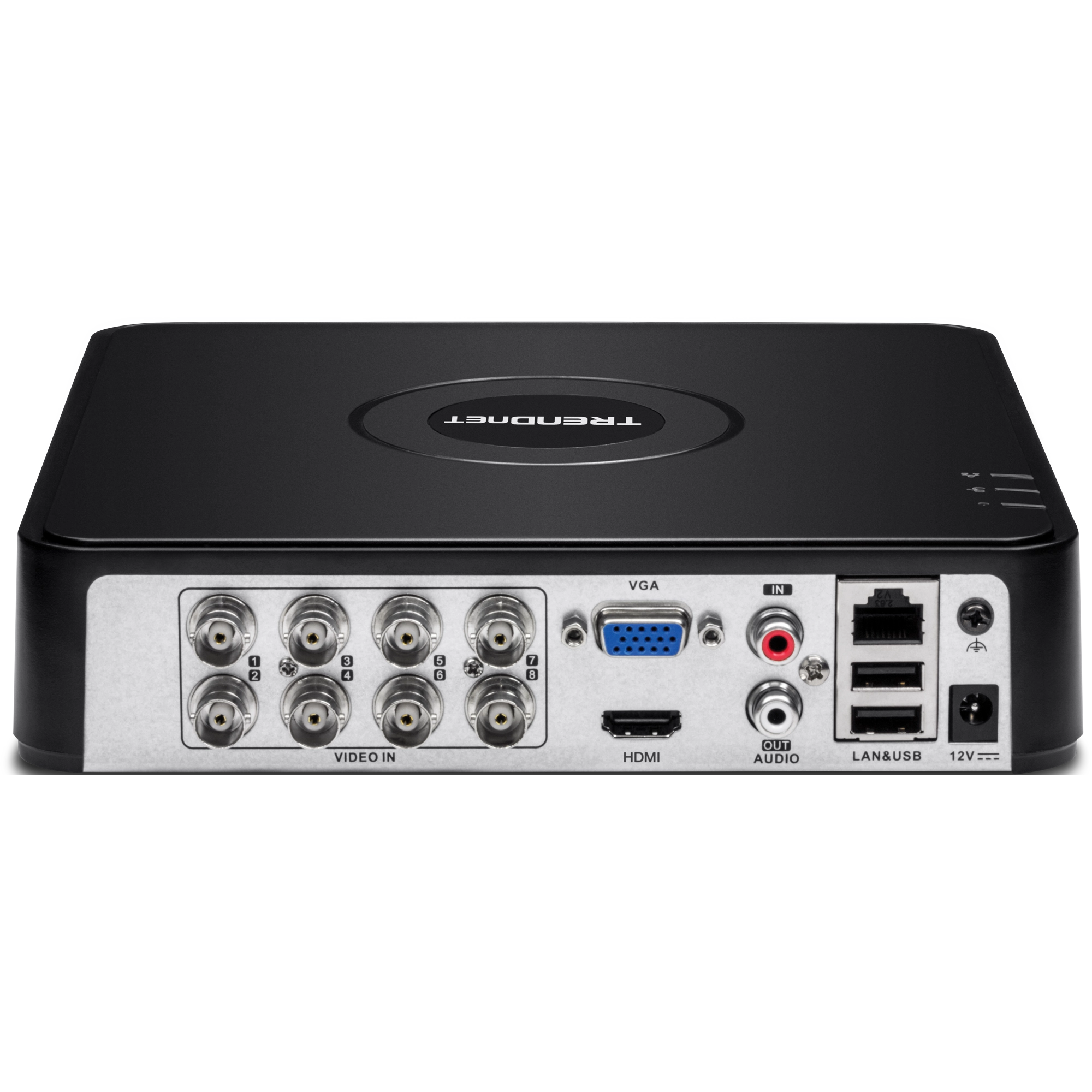

Device Interface
  • 1 x 10/100 Mbps network port
  • 2 x USB 2.0 ports
  • 8 x BNC connectors
  • 1 x 1 TB HDD (pre-installed)
  • HDMI port
  • VGA port
  • Analog audio in port
  • Analog audio out port
  • Power port
  • LED indicators (Power, Storage, and Network)
  • Grounding point
Network Protocol
  • IPv4, IPv6, UDP, TCP, ICMP
  • DHCP, NTP, DNS, DDNS, SMTP, FTP
  • HTTP, UPnP, RTSP, RTP, RTCP
Power
  • Input: 100 – 240 V AC, 50/60 Hz, 0.6A
  • Output: 12 V DC, 1.5 A
  • Consumption: 8 W max.
Operating Temperature
  • -10 - 55 °C (14 - 131 °F)
Operating Humidity
  • Max. 90% non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 200 x 200 x 45 mm (7.9 x 7.9 x 1.8 in.)
Weight
  • 1.15 kg (2.53 lb.)
Management Interface
  • Live view: Single camera or quad-view
  • Camera management :
  • On screen display: camera name, date, week, and date format
  • Image quality: brightness, contrast, saturation, hue, mirror
  • PTZ: pan, tilt, zoom, focus, iris, preset points, pattern, cruise, patrol
  • Motion detection: define custom motion detection areas, motion sensitivity, and triggering channels
  • Privacy masks: define custom privacy mask areas
  • Video tamper detection: trigger actions if the viewing field darkens suddenly
  • Scheduled recording: continuous and motion detection
  • Video recording: Record up to 1080p HD video
  • Holiday scheduling for custom recording schedules during observed holidays
  • Advanced playback: playback multiple channels simultaneously and search video recordings with special event or tag
  • Video export: tag, cut, and export video clips
  • Local live view settings: define screen layout and channel viewing sequence
  • Alert messages: storage full, storage error, network disconnected, IP conflict, illegal login, and recording exceptions
  • Supported dynamic DNS services: Dyn.com and NO-IP.com
  • Management Setting: maximum 32 user accounts
  • Remote Viewing and Management
  • User interface compatible with Internet Explorer® 9.0 or higher, Safari® 4.0 or higher
TRENDnet IP View App
  • Free iOS® and Android™ app
  • View your DVR video on your mobile device
  • Take snapshots
  • Zoom
Warranty
  • 2 year
  • Hard Drive: manufacturer warranty

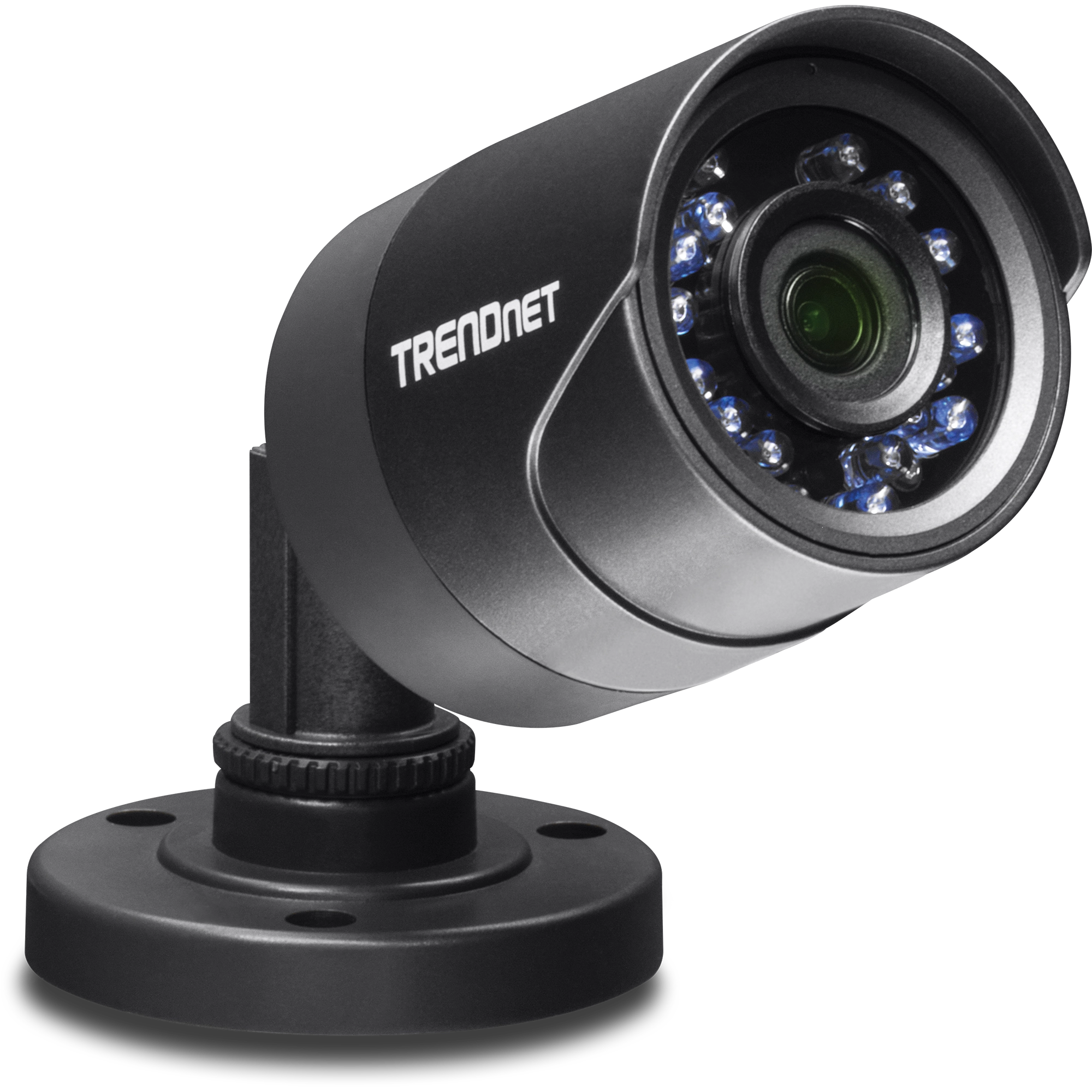

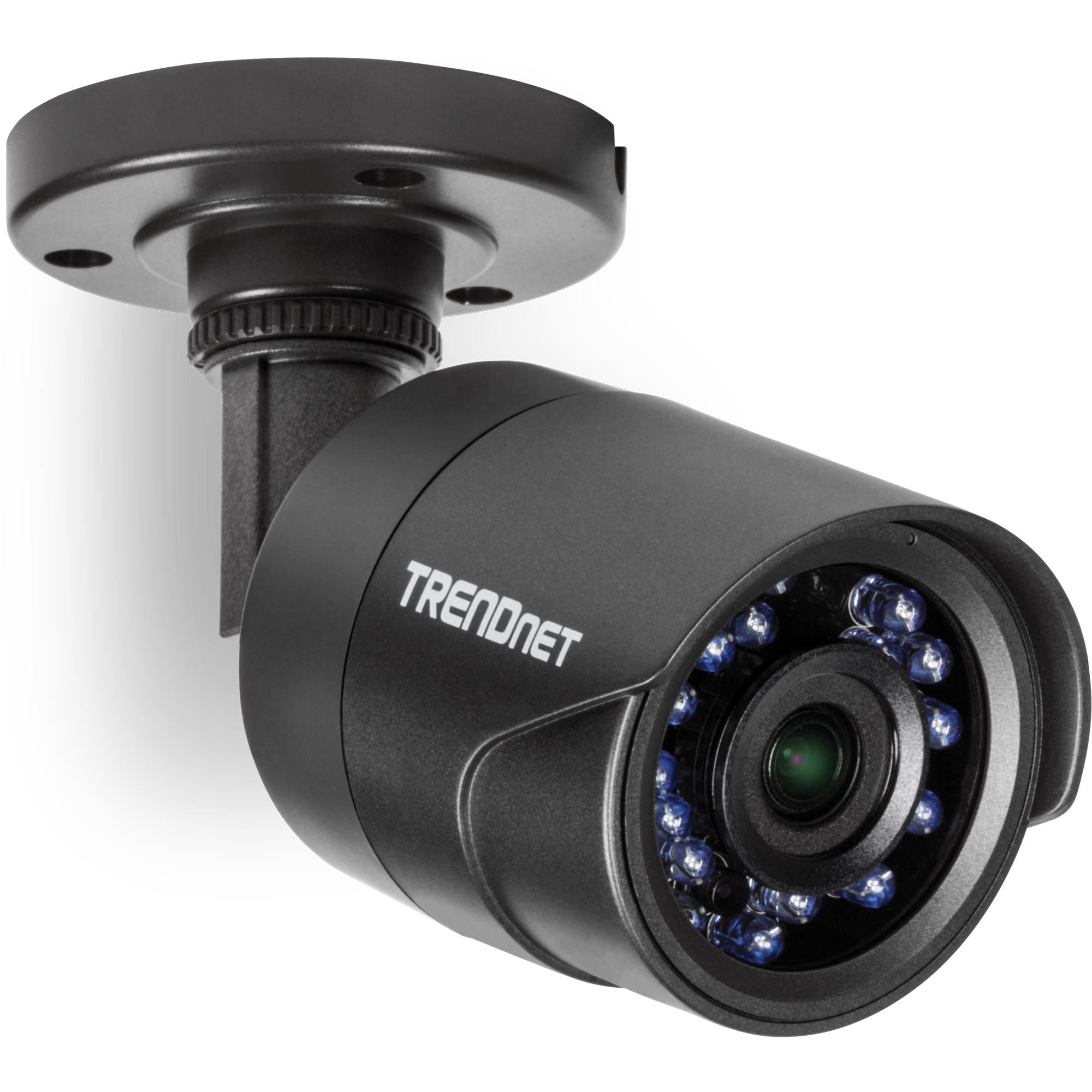

Camera Specifications
Lens
  • Focal Length: 3.6 mm
  • Sensor: 1/ 2.7” CMOS sensor
Viewing Angle
  • 82.2˚
Minimum Illumination
  • IR off: 0.01 lux
  • IR on: 0 lux
  • 20 m distance
  • IR wavelength : 850 nm
H.264 Resolution
  • Main stream: 1920 x 1080 up to 12 fps
  • Sub stream: 960 x 576 up to 22 fps
Device Interface
  • IR LEDs
  • BNC connectors
  • Power jack
Housing
  • IP66 rated
Dimension
  • 70 x 70 x 154 mm (2.75 x 2.75 x 6 in.)
Weight
  • 300 g (0.7 lbs.)
Operating Temperature
  • -40 – 60 °C (-40 – 140 °F)
Humidity
  • Max. 90% non-condensing
Power
  • Input: 100 - 240 V AC , 50/60 Hz, 0.7 A
  • Output: 12 V DC, 2 A external power adapter
  • Consumption: 4 W max.
Warranty
  • 2 year

PACKAGE CONTENTS
  • TV-DVR208
  • 8 x AC100

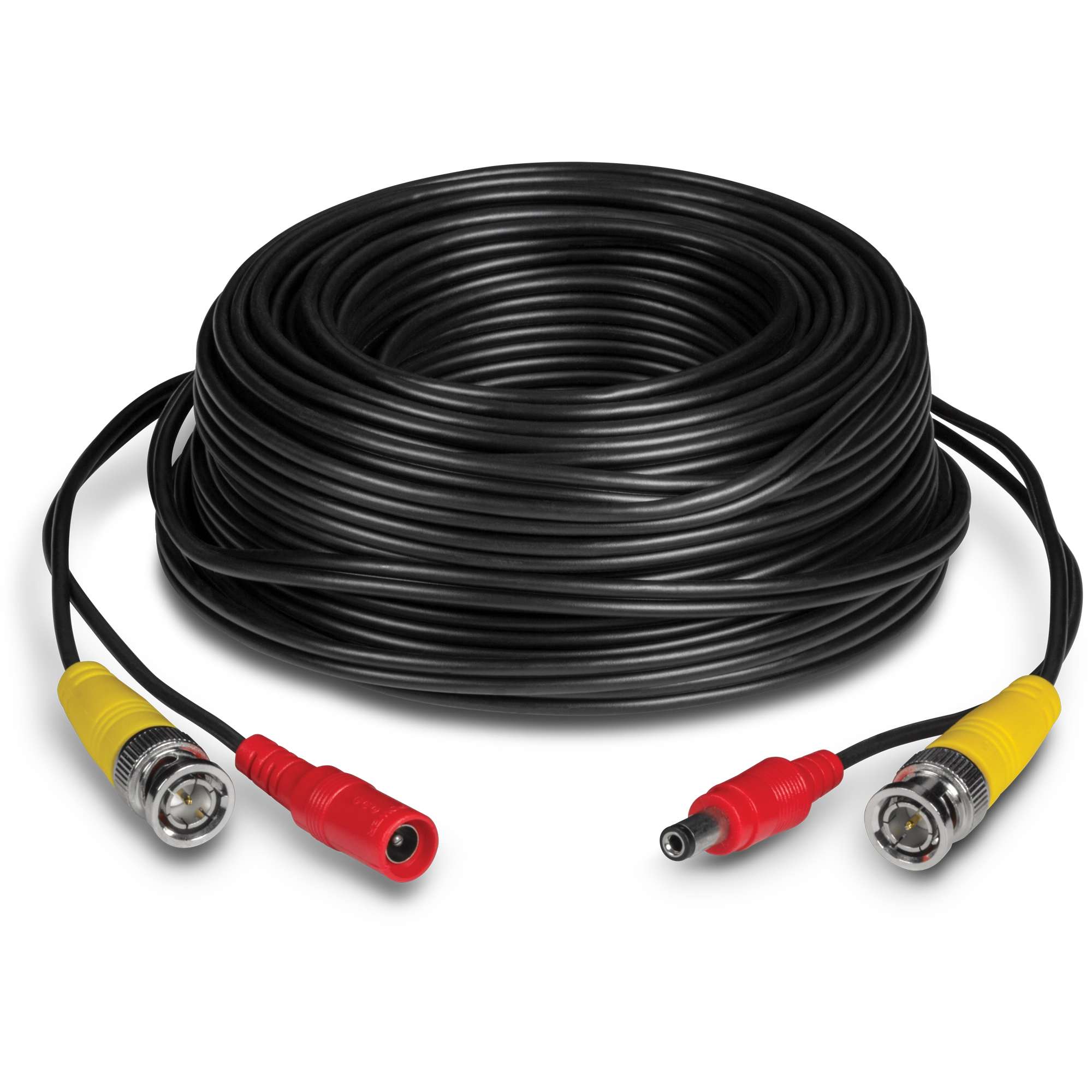

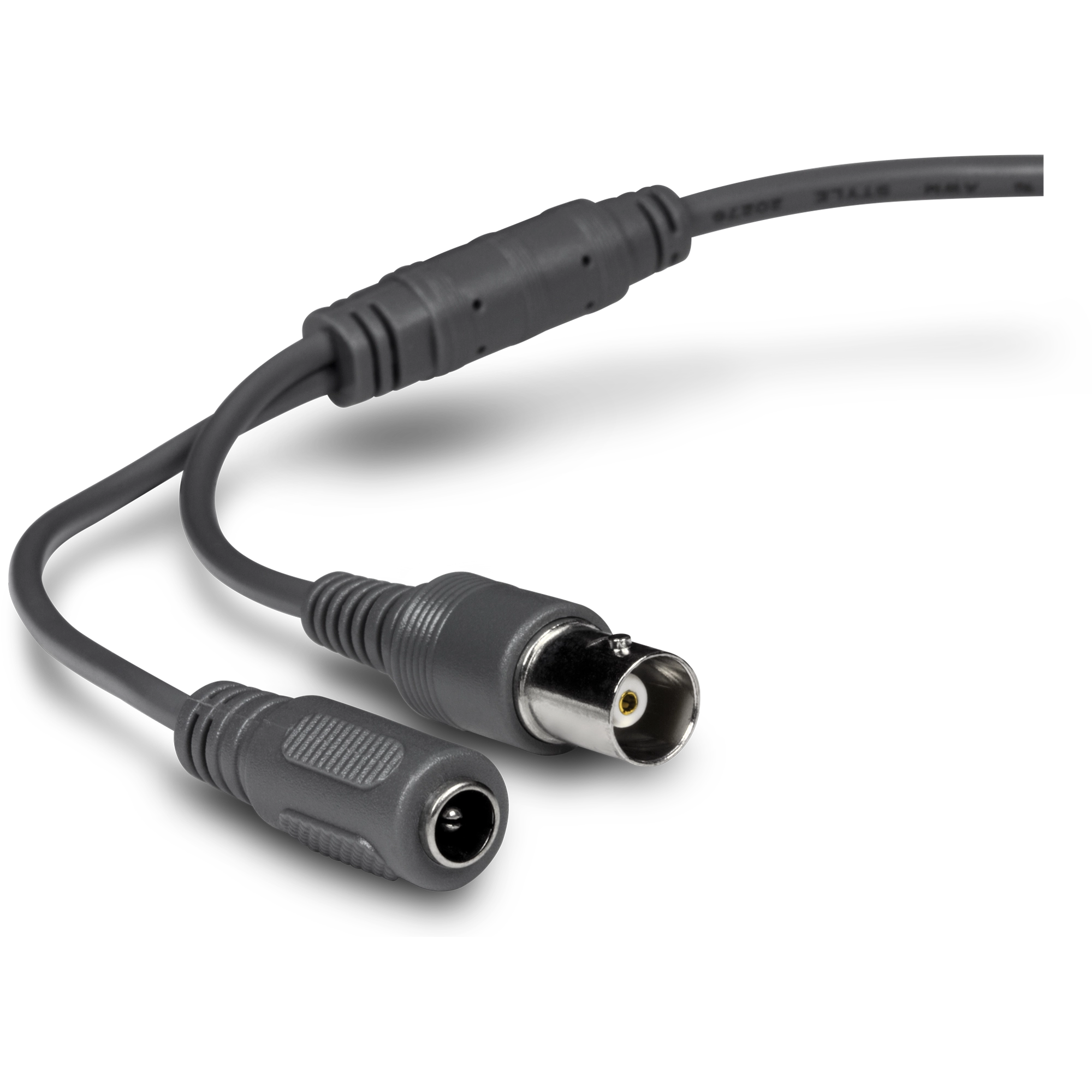

  • 8 x BNC / power cables (60 ft.)
  • 1 x 1TB HDD
  • 2 x Camera power splitter cables
  • Network cable (1.8 m / 6 ft.)

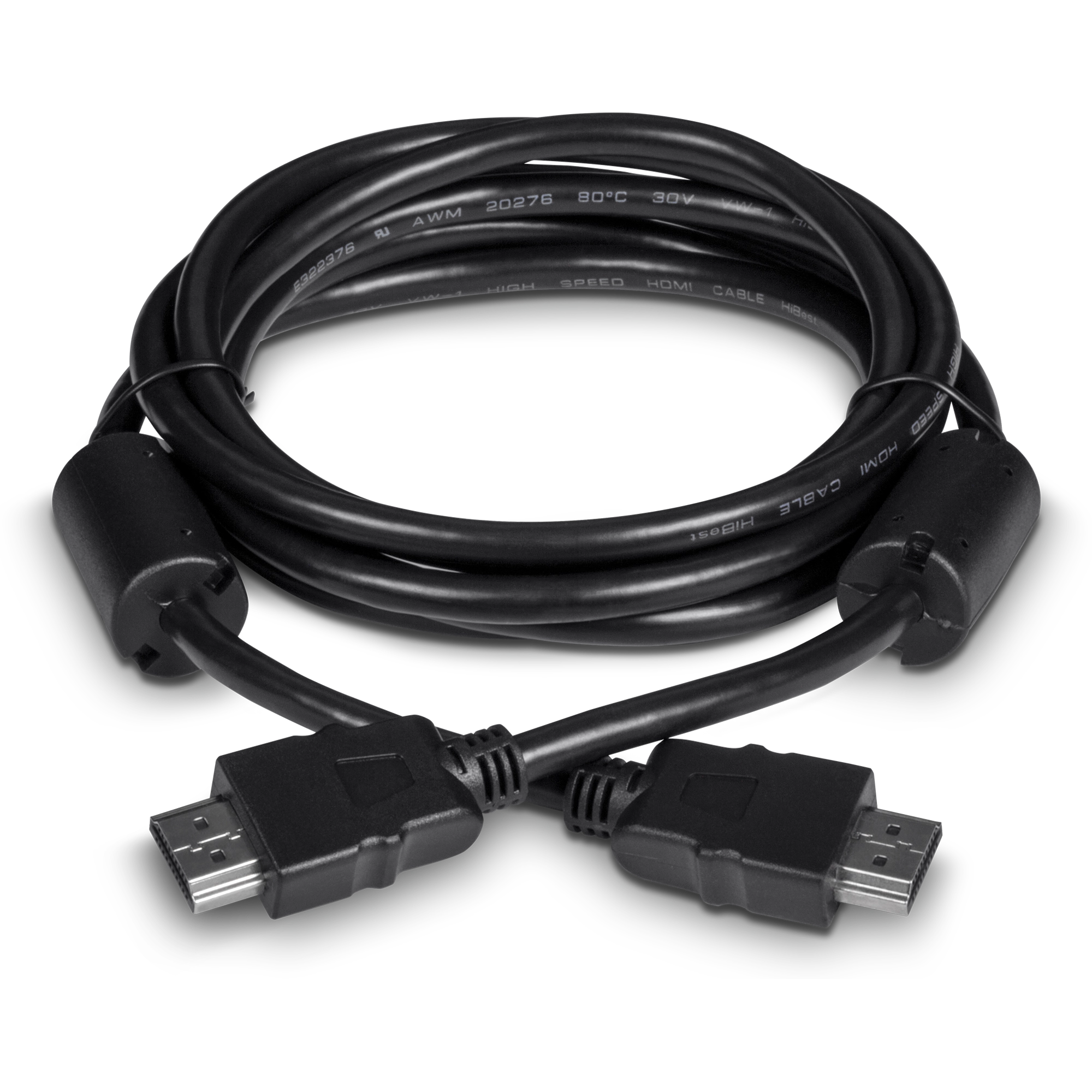

  • HDMI cable

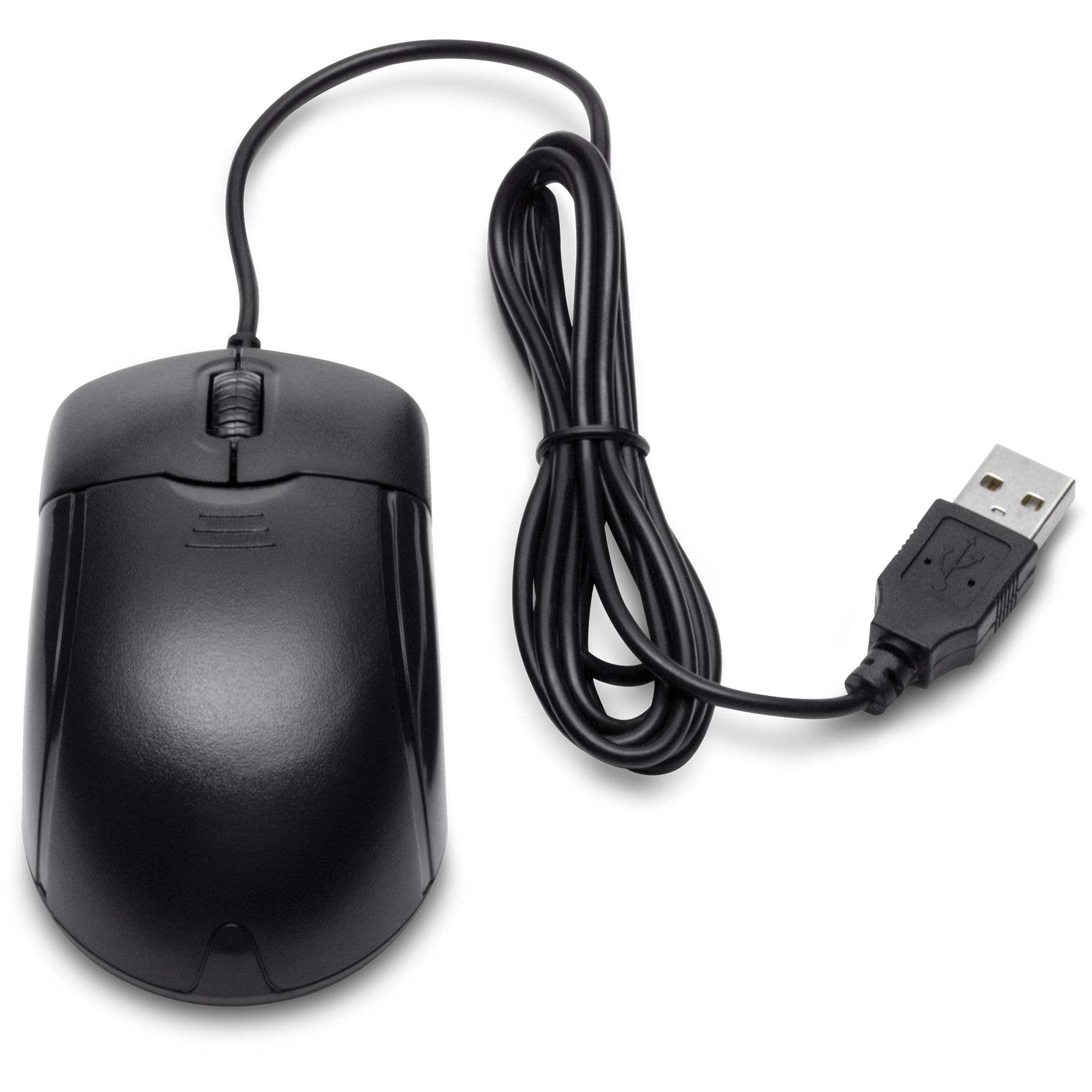

  • Optical mouse
  • CD-ROM (Utility / User's Guide)
  • Quick Installation Guide
  • Power adapter for DVR (12 V DC, 1.5 A)
  • 2 x Power adapter for cameras (12 V DC, 2 A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
