Indoor / Outdoor 2MP H.265 WDR PoE IR Bullet Network Camera

TV-IP326PI   (Version v1.0R)

  • 2MP 1080p HD video (1920 x 1080) at 30 fps
  • Smart covert IR LEDs for night vision up to 30 meters (98 ft.)
  • Outdoor IP67 weather rating
  • 120dB Wide Dynamic Range image balancing
  • Save installation costs with Power over Ethernet (PoE)
  • Program motion detection recording and email alerts
  • Micro SD card slot (up to 128GB)
  • Free iOS® and Android™ mobile apps


DISCONTINUED PRODUCT

The TV-IP326PI (Version v1.0R) has been discontinued. For a list of discontinued products, click here.

Drivers/Utility

MAC Plug-in
Web plug-in for MAC OS

Release Date: 07/2018
Release Note:
  • Updated latest Mac OS 10.12 support

Filename: Mac_Plugin.zip
SHA-1 Checksum: 52A5EC411C0FC29CF41C3557E08437EA83AE5B16
Date: 7/31/2018
File Size: 3.66 MB
Download

Firmware

Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection.
Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only

Firmware Version: 5.5.3 build 230926
Release Date: 11/2023
Release Notes:

  1. Update security patch

Filename: FW_5.5.3_(230926).zip
SHA-1 Checksum: 5310ED8D7780DED2FD8C07E61CDCB5DB65FEDA68
Date: 11/6/2023
File Size: 29.09 MB
Download

Software

TRENDnetView Evo Advanced camera management software (64-bit)

Version 1.17.1

Product Information
Filename: TRENDnetView_EVO__x64_1.17.1.zip
SHA-1 Checksum: 2B8961BD90A76803DC35A2888FD58872C5A5F9C2
Date: 3/12/2021
File Size: 515.12 MB
Download
TRENDnetView Evo Advanced camera management software (32-bit)

Version 1.17.1

Product Information
Filename: TRENDnetView_EVO__x86_1.17.1.zip
SHA-1 Checksum: C2AC48496FF10261DFEBEDD1993941DC5EF214DC
Date: 3/12/2021
File Size: 377.78 MB
Download

Datasheet

Datasheet (English)
Filename: EN_datasheet_TV-IP326PI(v1.0R).pdf
Date: 4/25/2018
File Size: 668.42 KB
Download Email
Datasheet (Français)
Filename: FR_datasheet_TV-IP326PI(v1.0R).pdf
Date: 4/25/2018
File Size: 650.67 KB
Download Email
Datasheet (Deutsch)
Filename: GE_datasheet_TV-IP326PI(v1.0R).pdf
Date: 4/25/2018
File Size: 637.80 KB
Download Email
Datasheet (Português)
Filename: PO_datasheet_TV-IP326PI(v1.0R).pdf
Date: 4/25/2018
File Size: 650.79 KB
Download Email
Datasheet (Español)
Filename: SP_datasheet_TV-IP326PI(v1.0R).pdf
Date: 4/25/2018
File Size: 649.20 KB
Download Email
Datasheet (Pусский)
Filename: RU_datasheet_TV-IP326PI(v1.0R).pdf
Date: 4/25/2018
File Size: 561.85 KB
Download Email
Datasheet (Italiano)
Filename: IT_datasheet_TV-IP326PI(v1.0R).pdf
Date: 4/25/2018
File Size: 652.07 KB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: En_TV-IP326PI_327PI(V1.0R).pdf
Date: 3/22/2018
File Size: 18.81 MB
Download
Quick Installation Guide (Français)
Filename: Fr_TV-IP326PI_327PI(V1.0R).pdf
Date: 3/22/2018
File Size: 19.11 MB
Download
Quick Installation Guide (Deutsch)
Filename: Gr_TV-IP326PI_327PI(V1.0R).pdf
Date: 3/22/2018
File Size: 16.10 MB
Download
Quick Installation Guide (Português)
Filename: Po_TV-IP326PI_327PI(V1.0R).pdf
Date: 3/22/2018
File Size: 16.03 MB
Download
Quick Installation Guide (Español)
Filename: Sp_TV-IP326PI_327PI(V1.0R).pdf
Date: 3/22/2018
File Size: 16.05 MB
Download
Quick Installation Guide (Pусский)
Filename: Ru_TV-IP326PI_327PI(V1.0R).pdf
Date: 3/22/2018
File Size: 15.98 MB
Download
Quick Installation Guide (Italiano)
Filename: It_TV-IP326PI_327PI(V1.0R).pdf
Date: 3/22/2018
File Size: 16.04 MB
Download

User's Guide

User's Guide
Filename: UG_TV-IP326PI_(v1.0R).pdf
Date: 3/22/2018
File Size: 4.15 MB
Download

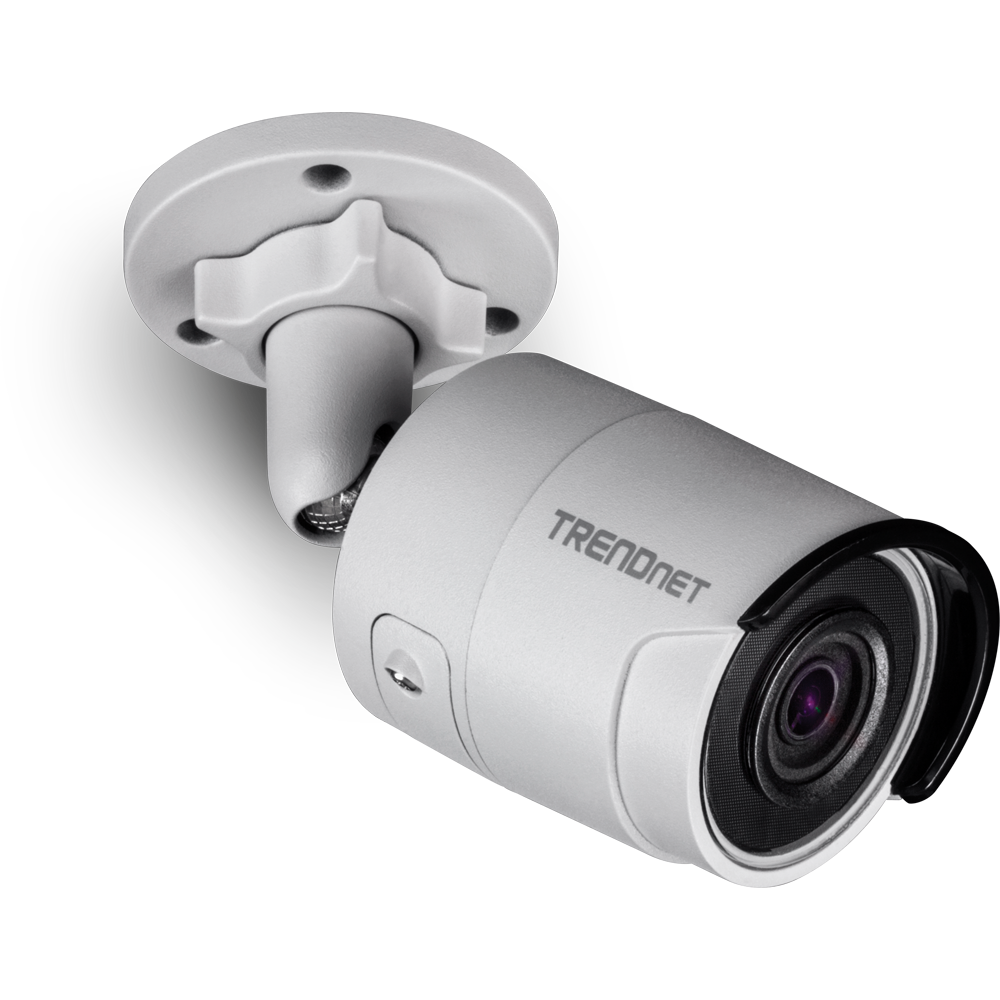

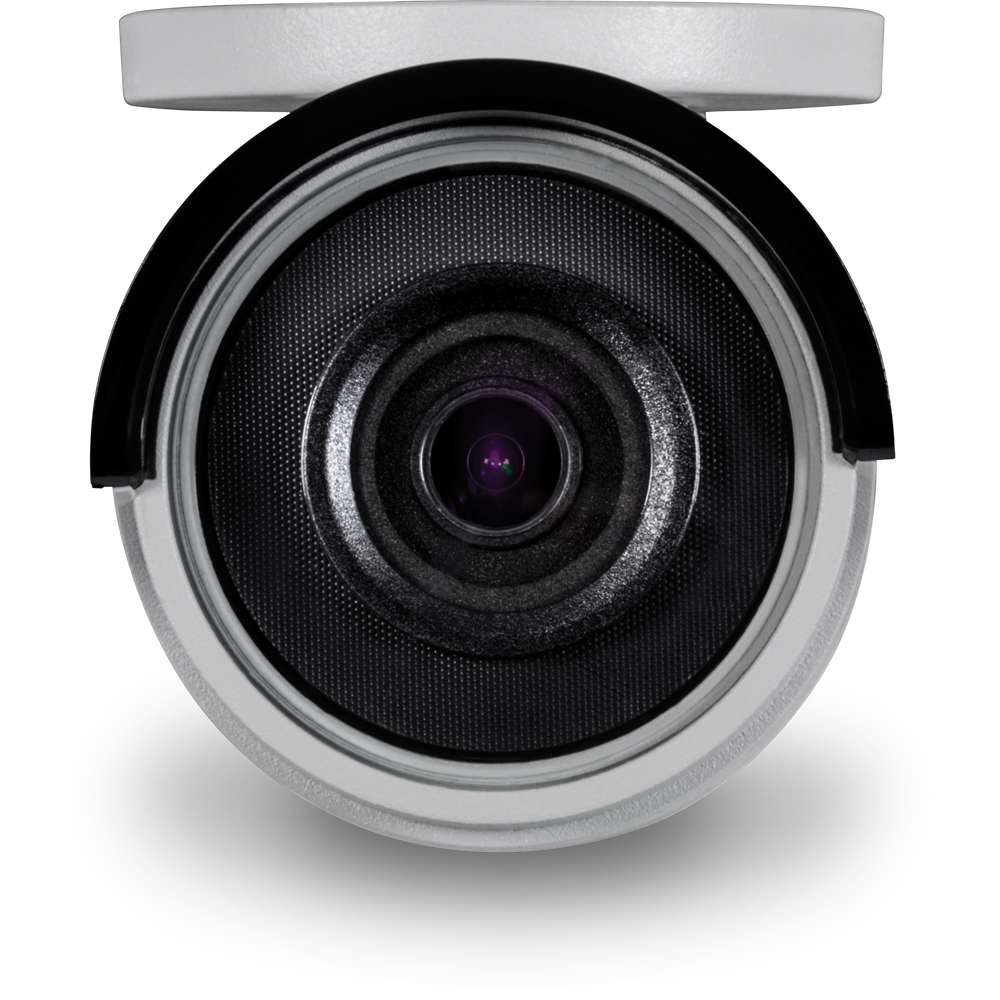

Product Images

PNG Image
File Size: : 3.01 MB
Date: : 3/22/2018
Download
PNG Image
File Size: : 2.50 MB
Date: : 3/22/2018
Download
PNG Image
File Size: : 2.46 MB
Date: : 3/22/2018
Download
PNG Image
File Size: : 3.80 MB
Date: : 3/22/2018
Download
ROHS compliant WEEE crossed-out bin symbol.
Lens
  • Focal length: 4mm @ F1.2
  • Sensor: 1/2.8” CMOS sensor
  • Digital zoom: 4x
  • WDR: 120dB
Viewing
  • Horizontal angle: 86˚
Minimum Illumination
  • IR off: 0.01 lux
  • IR on: 0 lux
  • IR distance: 30m (98 ft.)
  • IR LED wavelength: 850nm
Compression
  • H.265+ / H.265
  • H.264+ / H.264
  • MJPEG
Resolution
  • Main stream: H.265+/H.265/H.264+/H.264: 1920 x 1080 up to 30 fps
  • Sub stream: H.265/H.264/MJPEG: 640 x 480 up to 30 fps
  • Third stream: H.265/H.264: 1920 x 1080 up to 10 fps
Hardware Standards
  • IEEE 802.1x
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3af
Device Interface
  • 10/100Mbps PoE port
  • Micro SD card slot
  • Power jack
  • Reset button
Micro SD slot
  • Supports Micro SD/SDHC/SDXC (not included)
  • Up to 128GB
Housing
  • IP67 weather rated
3-Axis Manually Adjustable Mounting Arm
  • Pan: 0° to 360°
  • Tilt: 0° to 90°
  • Rotate: 0° to 360°
Network Protocol
  • IPv4, IPv6, UDP, TCP/IP
  • DHCP, NTP, DDNS, SMTP, FTP, LLTD
  • SNMP v1, v2c, v3, QoS/DSCP, IEEE 802.1X
  • NFS, SMB/CIFS
  • HTTP, HTTPS
  • PPPoE
  • UPnP, RTSP, RTP
Standard
  • ONVIF certified (Profile S, Profile G)
Dimension
  • 155 x 70 x 70mm (6.1 x 2.75 x 2.75 in.)
Weight
  • 400g (0.9 lb.)
Operating Temperature
  • -30° – 60° C (-22° – 140° F)
Humidity
  • Max. 95% non-condensing
Power
  • Input: PoE
  • Consumption: Max. 7.5W
Power Adapter (optional model: 12VDC1A)
  • Input: 100 – 240V AC , 50/60Hz
  • Output: 12V DC, 1A external power adapter
Management Interface
  • Multi-language support: English, French, German, Spanish, and Portuguese
  • Image settings: Brightness, Contrast, Saturation, Sharpness, Exposure Time, image Gain, Day/Night switch, Smart IR, BLC, WDR, white balance, Digital Noise Reduction, Mirror, Rotate, Scene Mode, Video Standard
  • WDR enhances video quality in high contrast daytime lighting
  • Digital Noise Reduction removes digital noise from the video signal
  • Recording: to computer, or SAMBA share
  • Time, date, and text overlay
  • IP Address Filter
  • Video Recording: scheduled, motion detection, and tamper detection
  • Motion detection: define up to three motion detection areas and motion sensitivity
  • Privacy masks: define custom privacy masks
  • Tamper detection function: email notification
  • Snapshot: real time snapshot and motion triggered
  • Supported dynamic DNS services: dyn.com and no-ip.com
  • Supports remote management
  • Compatible browsers: Chrome™, Firefox®, Internet Explorer®
TRENDnetVIEW EVO Software
  • Supports up to 32 TRENDnet cameras
  • Multiple language support
  • Set recording options (motion detection, schedule, event trigger)
  • Search and playback
  • Custom viewing modes and options
  • Compatibility: Windows® 10, 8.1, Windows Server® 2012, 2008
TRENDnet IPVIEW App
  • Free iOS® and Android™ apps
  • View live camera video on a mobile device
  • Take snapshots
  • Zoom
Certifications
  • CE
  • FCC
  • UL
Warranty
  • 3 year

PACKAGE CONTENTS
  • TV-IP326PI
  • Weather seal
  • Quick installation guide
  • Camera mounting hardware

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
