14-Port Gigabit Managed Layer 2 SFP Switch with 2 Shared RJ-45 Ports

TL2-FG142   (Version v1.0R)

  • 12 x SFP slots (100/1000Mbps)
  • 2 x Shared Gigabit ports (RJ-45 or SFP slots)
  • Web-based management interface
  • Supports IPv6, LACP, VLAN, and IGMP Snooping
  • 802.1Q tagged-based VLAN, Protocol, Private, and Voice VLAN support
  • Q-in-Q VLAN tunneling and translation
  • QoS with queue scheduling support
  • Supports up to 32 IPv4/IPv6 static routes
  • SFlow agent for layer 2 network analysis
  • Bandwidth control per port
  • 28Gbps switching capacity
  • Connectivity Fault Management / OAM

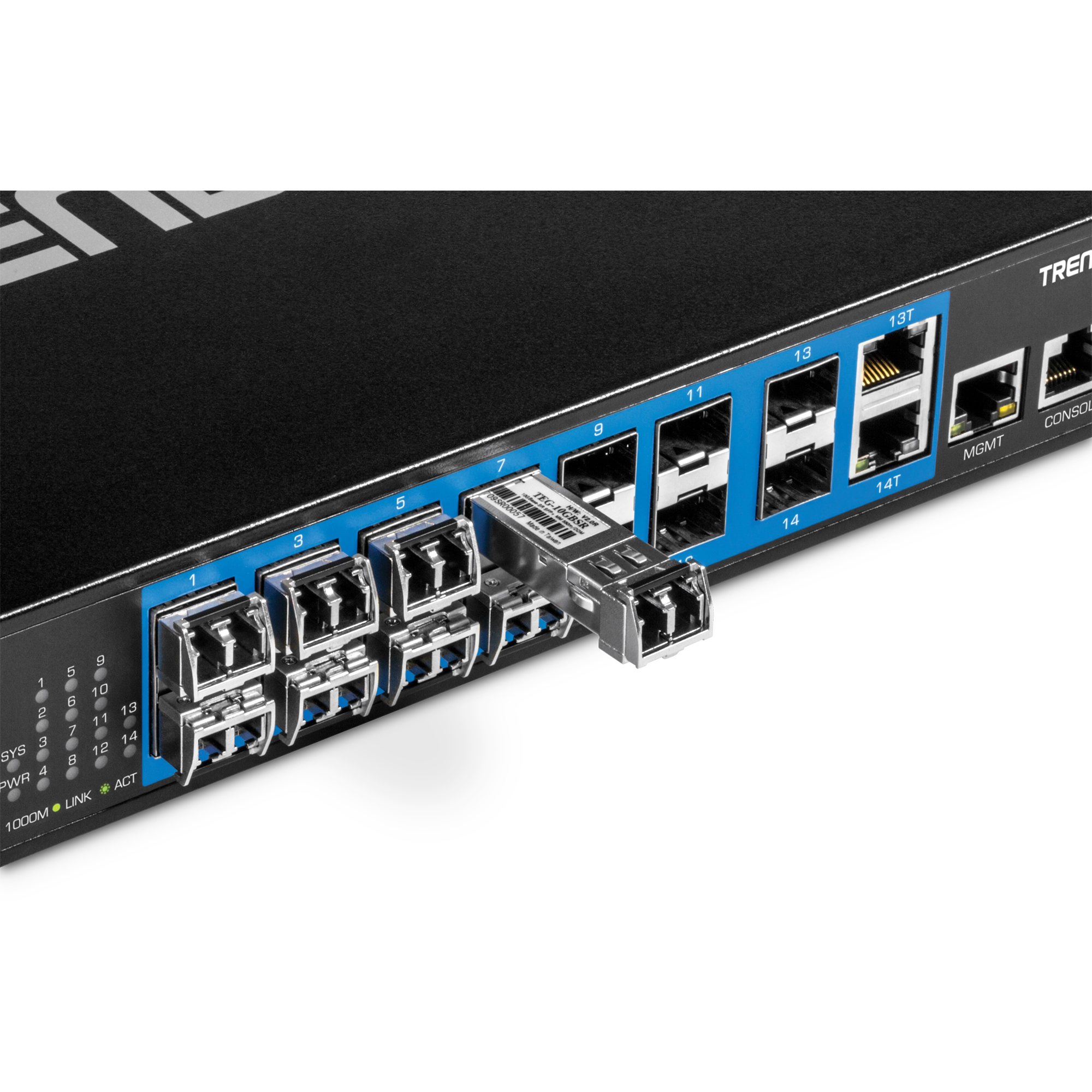

  • Supports 100/1000Base-FX fiber SFP modules
  • Compatible with TEG-MGBRJ and TE100-MGBFX RJ-45 SFP modules
  • Fanless design
  • Lifetime Warranty*

DISCONTINUED PRODUCT

The TL2-FG142 (Version v1.0R) has been discontinued. For a list of discontinued products, click here.

Firmware

Firmware
Model: TL2-FG142
Hardware Version: v1.XR

Firmware Version: 1.2.0.23
Release Date: 11/2022
  • -Removed GVRP feature
  • -Fixed NTP time sync issue

Filename: FW_TL2-FG142_v1(1.2.0.23).zip
SHA-1 Checksum: FEEF189DE03264E8FCA3D0BA9AD38811CC1E76C2
Date: 11/10/2022
File Size: 5.33 MB
Download

Other

MIB
MIB Version: 1.00
Release Date: 9/2019
Note:
  • Initial Release

Filename: MIB_TL2-FG142_v1(1.00).zip
Date: 9/6/2019
File Size: 432.08 KB
Download

Datasheet

Datasheet (English)
Filename: EN_datasheet_TL2-FG142_(v1.0R).pdf
Date: 11/10/2022
File Size: 1.13 MB
Download Email
Datasheet (Français)
Filename: FR_datasheet_TL2-FG142_(v1.0R).pdf
Date: 11/10/2022
File Size: 1.10 MB
Download Email
Datasheet (Deutsch)
Filename: GE_datasheet_TL2-FG142_(v1.0R).pdf
Date: 11/10/2022
File Size: 931.87 KB
Download Email
Datasheet (Português)
Filename: PO_datasheet_TL2-FG142_(v1.0R).pdf
Date: 11/10/2022
File Size: 925.49 KB
Download Email
Datasheet (Español)
Filename: SP_datasheet_TL2-FG142_(v1.0R).pdf
Date: 11/10/2022
File Size: 1.20 MB
Download Email
Datasheet (Italiano)
Filename: IT_datasheet_TL2-FG142_(v1.0R).pdf
Date: 11/10/2022
File Size: 1.18 MB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: English_TL2-FG142(V1.0R).pdf
Date: 11/10/2022
File Size: 2.20 MB
Download
Quick Installation Guide (Français)
Filename: French_TL2-FG142(V1.0R).pdf
Date: 11/10/2022
File Size: 2.34 MB
Download
Quick Installation Guide (Deutsch)
Filename: German_TL2-FG142(V1.0R).pdf
Date: 11/10/2022
File Size: 1.56 MB
Download
Quick Installation Guide (Português)
Filename: Portugese_TL2-FG142(V1.0R).pdf
Date: 11/10/2022
File Size: 1.57 MB
Download
Quick Installation Guide (Español)
Filename: Spanish_TL2-FG142(V1.0R).pdf
Date: 11/10/2022
File Size: 1.57 MB
Download
Quick Installation Guide (Pусский)
Filename: Russian_TL2-FG142(V1.0R).pdf
Date: 11/10/2022
File Size: 1.55 MB
Download
Quick Installation Guide (Italiano)
Filename: Italian_TL2-FG142(V1.0R).pdf
Date: 11/10/2022
File Size: 1.54 MB
Download

User's Guide

User's Guide
Filename: UG_TL2-FG142(v1).pdf
Date: 11/10/2022
File Size: 4.00 MB
Download

Product Images

PNG Image
File Size: : 3.61 MB
Date: : 8/29/2019
Download
PNG Image
File Size: : 2.63 MB
Date: : 8/29/2019
Download
PNG Image
File Size: : 2.59 MB
Date: : 8/29/2019
Download
PNG Image
File Size: : 3.42 MB
Date: : 8/29/2019
Download
PNG Image
File Size: : 6.78 MB
Date: : 8/29/2019
Download
PNG Image
File Size: : 5.22 MB
Date: : 8/29/2019
Download
PNG Image
File Size: : 4.30 MB
Date: : 8/29/2019
Download
ROHS compliant WEEE crossed-out bin symbol.
Standards
  • ITU-T G.8013/Y.1731
  • IEEE 802.1ag
  • IEEE 802.3ah
  • IEEE 802.1d
  • IEEE 802.1p
  • IEEE 802.1Q
  • IEEE 802.1s
  • IEEE 802.1w
  • IEEE 802.1X
  • IEEE 802.1ab
  • IEEE 802.1ad
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3az (RJ-45 ports only)
  • IEEE 802.3ab
  • IEEE 802.1ax
  • IEEE 802.3z
Device Interface

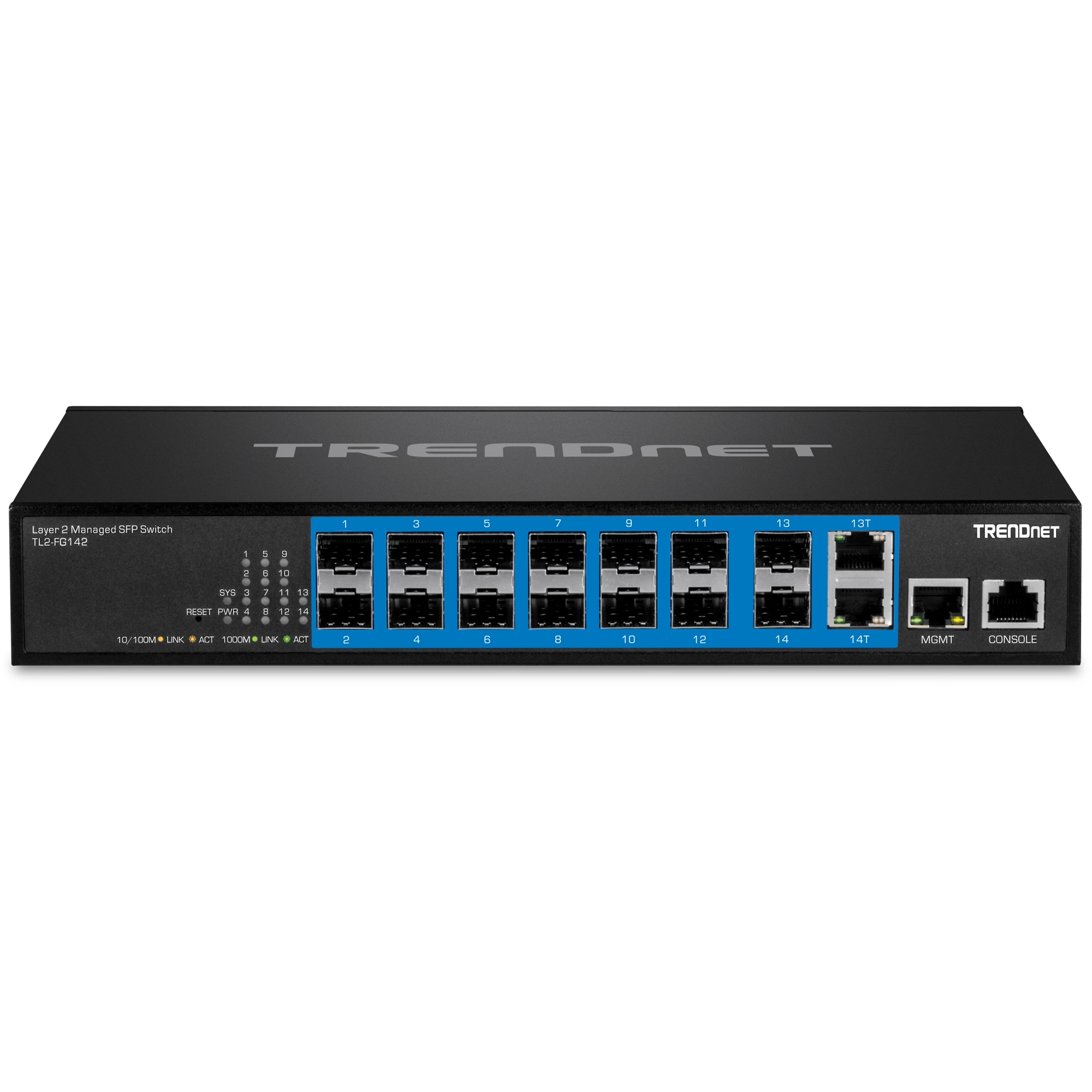

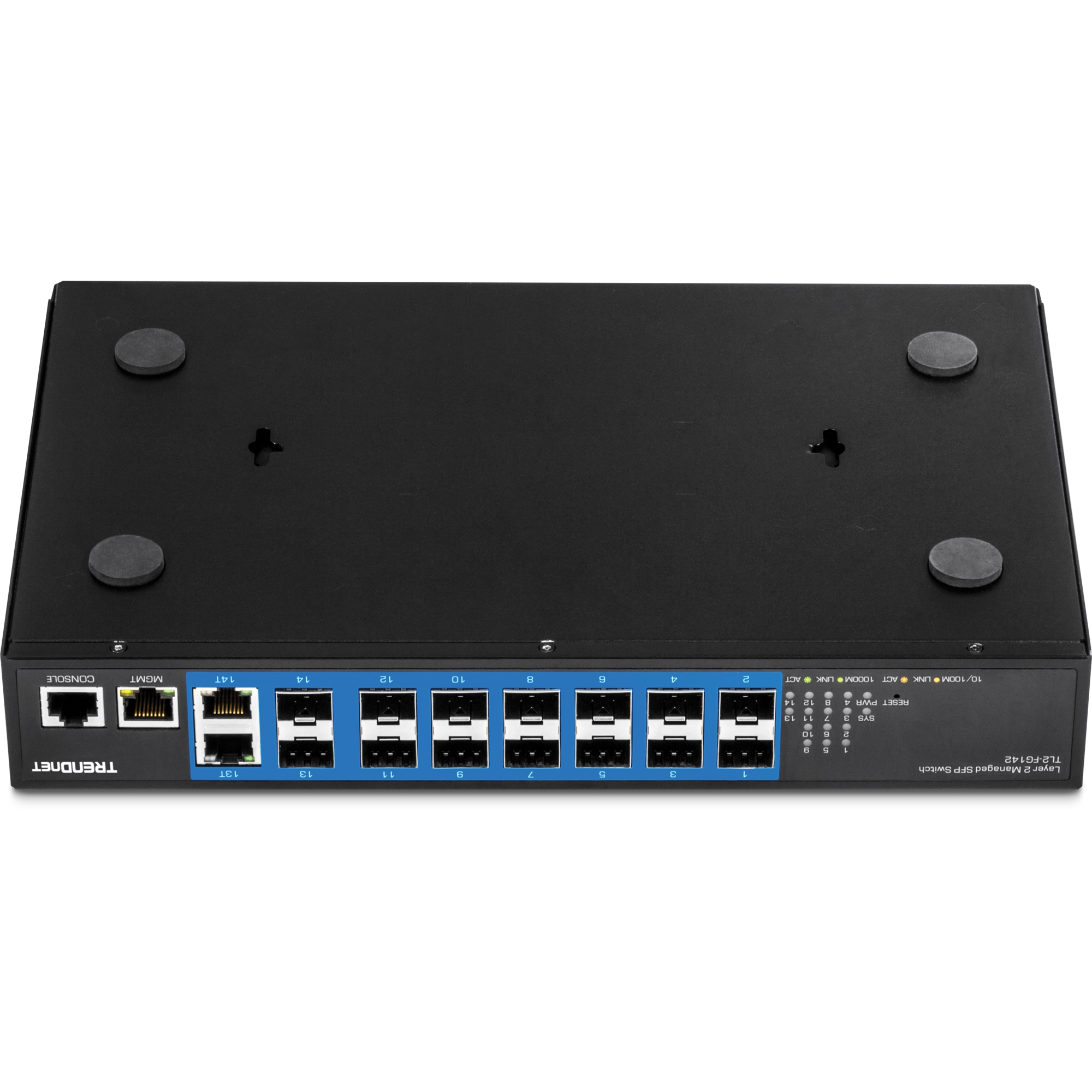

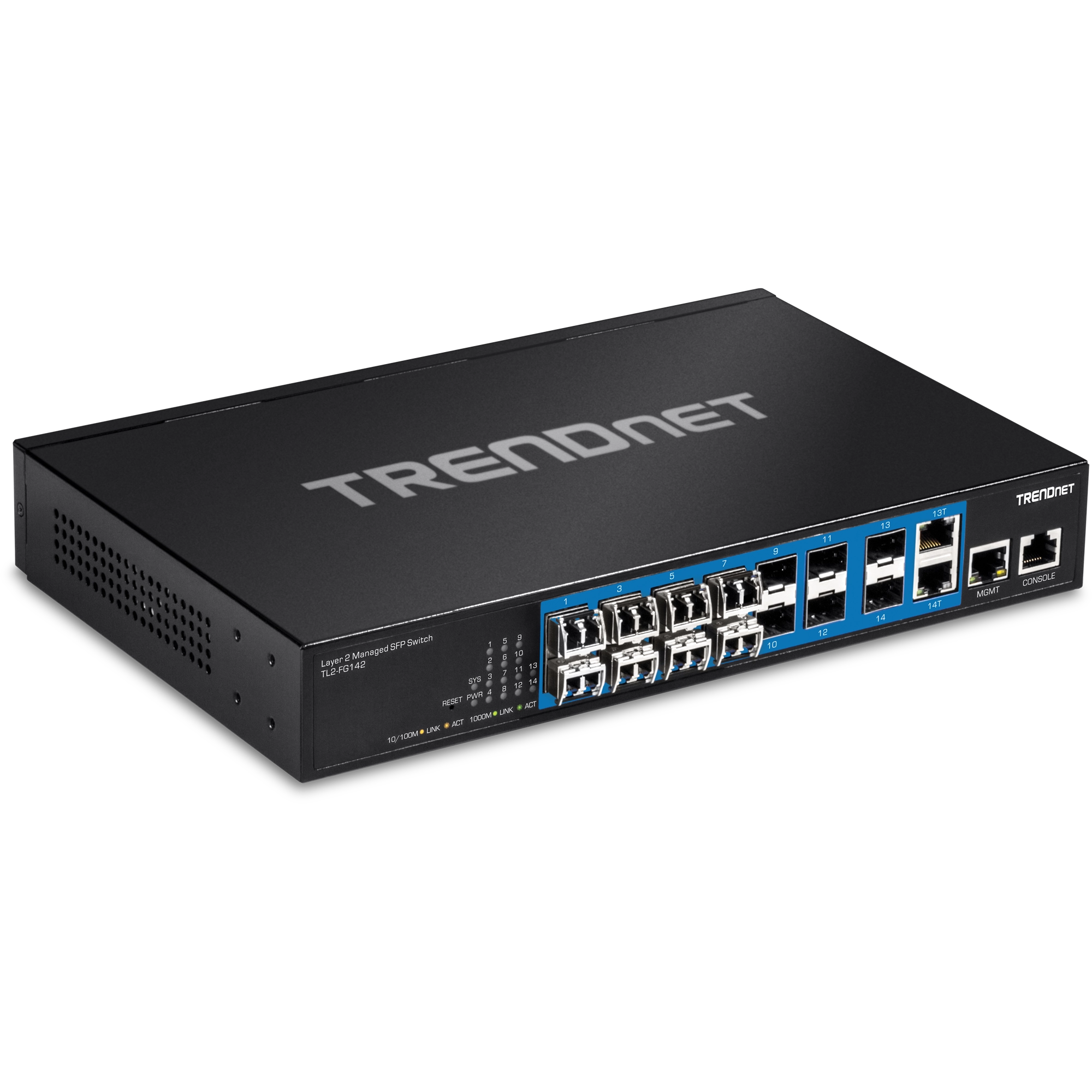

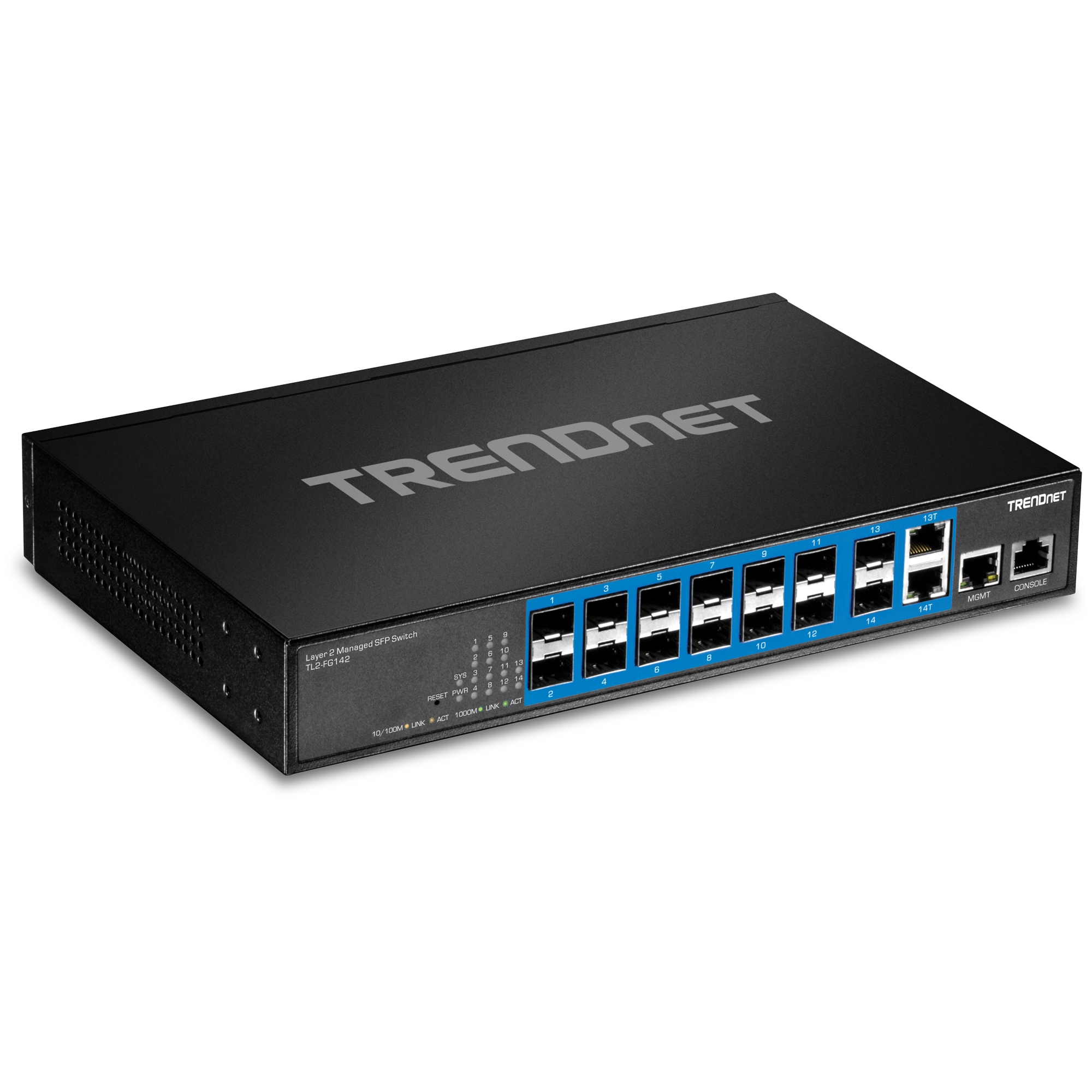

  • 12 x SFP slots (100/1000Mbps)
  • 2 x Shared Gigabit ports (RJ-45 or SFP slots)
  • 1 x RJ-45 management port (in-band)
  • 1 x RJ-45 console port (out-of-band)
  • Ground point
  • LED indicators
  • Reset button
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit Ethernet: 2000Mbps (full duplex)
Performance
  • Switching capacity: 28Gbps
  • RAM buffer: 128MB
  • MAC address table: 8K entries
  • Jumbo frames: 9.6KB (configurable per port)
  • Forwarding mode: store and forward
  • Forwarding rate: 20.8Mpps (64-byte packet size)
Management
  • CLI (Console / Telnet / SSHv2)
  • HTTP / HTTPS web based GUI
  • SNMP v1, v2c, v3
  • SNMP trap
  • RMON groups 1/2/3/9
  • LLDP/LLDP-MED with optional TLVs
  • ICMPv4/ICMPv6
  • IPv4/IPv6
  • IPv6 neighbor discovery
  • DNS proxy
  • Network time protocol (NTP)
  • Green Ethernet/EEE or 802.3az per port
  • Dual image
Monitoring
  • CPU load
  • IP interfaces/routing table
  • Internal system logging
  • External syslog
  • Port traffic statistics
  • QoS queue counters
  • QCL control list
  • Port mirror (One to one, many to one)
  • EVC (Ethernet Virtual Connection) statistics
  • MAC address table
  • Digital diagnostics monitoring (DDM) for SFP modules
  • RFC2544 support
  • SFlow statistics
MIB
  • MIB II RFC 1213
  • Bridge MIB IEEE8021-Q
  • RMON (Group 1,2,3,9) RFC 2819
  • Interface group MIB using SMIv2 RFC 2863
  • Multicast group membership discovery MIB RFC 5519
  • SNMP management frameworks RFC 3411
  • User-based security model for SNMPv3 RFC 3414
  • View-based access control model for SNMP RFC 3415
  • Ethernet-like MIB RFC 3635
  • 802.3 MAU MIB RFC 3636
  • Entity MIB v3 RFC 4133
  • Bridge MIB RFC 4188
  • IP MIB RFC 4293
  • RADIUS authentication client MIB RFC 4668
  • RADIUS accounting MIB RFC 4670
  • LLDP-MIB IEEE802.1AB
  • PAE MIB IEEE802.1X
Spanning Tree
  • Spanning tree protocol (STP)
  • Rapid spanning tree protocol (RSTP)
  • Multiple spanning tree protocol (MSTP)
Link Aggregation
  • Static link aggregation and 802.3ad dynamic LACP (Up to 15 groups)
Quality of Service (QoS)
  • Class of service (CoS)
  • Set default drop precedence (DPL), priority code point (PCP), drop eligible indicator (DEI)
  • Differentiated Services Code Point (DSCP) classification and translation
  • Set egress port scheduler, port shaping, port tag marking
  • Bandwidth control per port/rate limiting
  • Queue scheduling: strict priority (SP), deficit weighted round robin (DWRR)
Storm Control
  • Broadcast (Min. limit: 1pps)
  • Multicast (Min. limit: 1pps)
  • Unicast (Min. limit: 1pps)
VLAN
  • 802.1Q tagged VLAN
  • 802.1ad VLAN Q-in-Q
  • MAC-based VLAN
  • Protocol-based VLAN
  • VLAN ID range 1-4095
  • Private VLAN/port isolation
  • Voice VLAN (16 user defined OUIs)
  • VLAN port to group and VID translation
Carrier Ethernet / OAM
  • IEEE 802.1ag Connectivity Fault Management (CFM)
  • IEEE 802.3ah Link OAM
  • Per port per queue dual leaky bucket service policers with PCP or DSCP marking per service point
  • Statistics and tagging options per service point
  • Y.1731 Fault Management (AIS, RDI, LCK)
  • Y.1731 Performance Management (LM, DM)
  • RFC2544 support
  • Link OAM statistics, port status, event status
  • Link state tracking
  • Link OAM MIB Retrieval
  • Maintenance entity point (MEP)
Link Protection
  • ITU-T G.8032/Y.1344 Ethernet ring protection switching (ERPS)
  • ITU-T G.8031/Y.1342 Ethernet linear protection switching
L3 Features
  • IPv4 / IPv6 static routing
  • IPv4 interfaces: Up to 8
  • IPv6 interfaces: Up to 8
  • Routing table entries: Up to 32 (IPv4 / IPv6)
  • ARP table (up to 1024 entries)
  • DHCP IPv4 server, relay, option 82
  • Inter-VLAN routing
Multicast
  • IGMP snooping v1, v2, v3
  • IGMP fast leave
  • Static multicast entries
  • MLD Snooping v1, v2
  • Multicast VLAN Registration (MVR)
  • Up to 1K multicast groups
Access Control
  • User account control with privilege level management
  • Access management control
  • Port Security/MAC address learning restriction (Up to 64 entries per port)
  • 802.1X port-based/single/multiple or MAC-based authentication
  • RADIUS (Up to 5 servers)
  • TACACS+ (Up to 5 servers)
  • RADIUS assigned QoS/VLAN/Guest VLAN
  • Local dial in user authentication
  • DHCP IPv4 snooping
  • Loopback detection/prevention
  • IP Source Guard
  • Static/dynamic ARP inspection
  • Create ACLs based on rate limit/EVC profile
Power

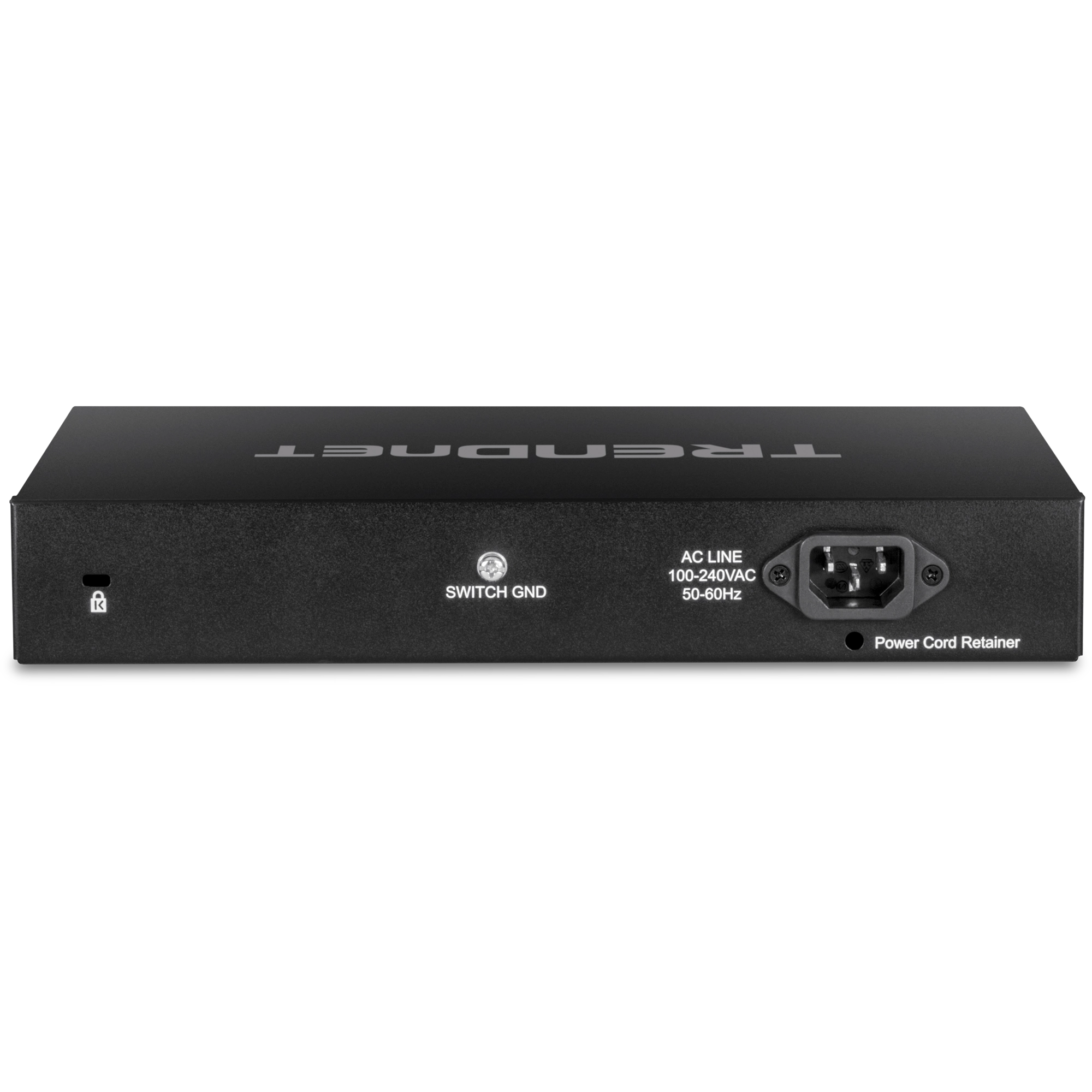

  • Input: 100 – 240V AC, 50/60 Hz
  • Max. Consumption: 36W
Fan/Acoustics
  • Fanless design
MTBF
  • 118,034 hours
Operating Temperature
  • 0° – 50° C (32° – 122° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions
  • 280 x 185 x 44.45mm (11.02 x 7.28 x 1.75 in.)
  • Rack mountable 1U height
  • Wall mountable
Weight
  • 1.6 kg (3.52 lbs.)
Certifications
  • CE
  • FCC
  • UL
Warranty

PACKAGE CONTENTS
  • TL2-FG142
  • Quick Installation Guide
  • Power cord
  • RJ-45 to RS-232 console cable (1.5m / 5 ft.)

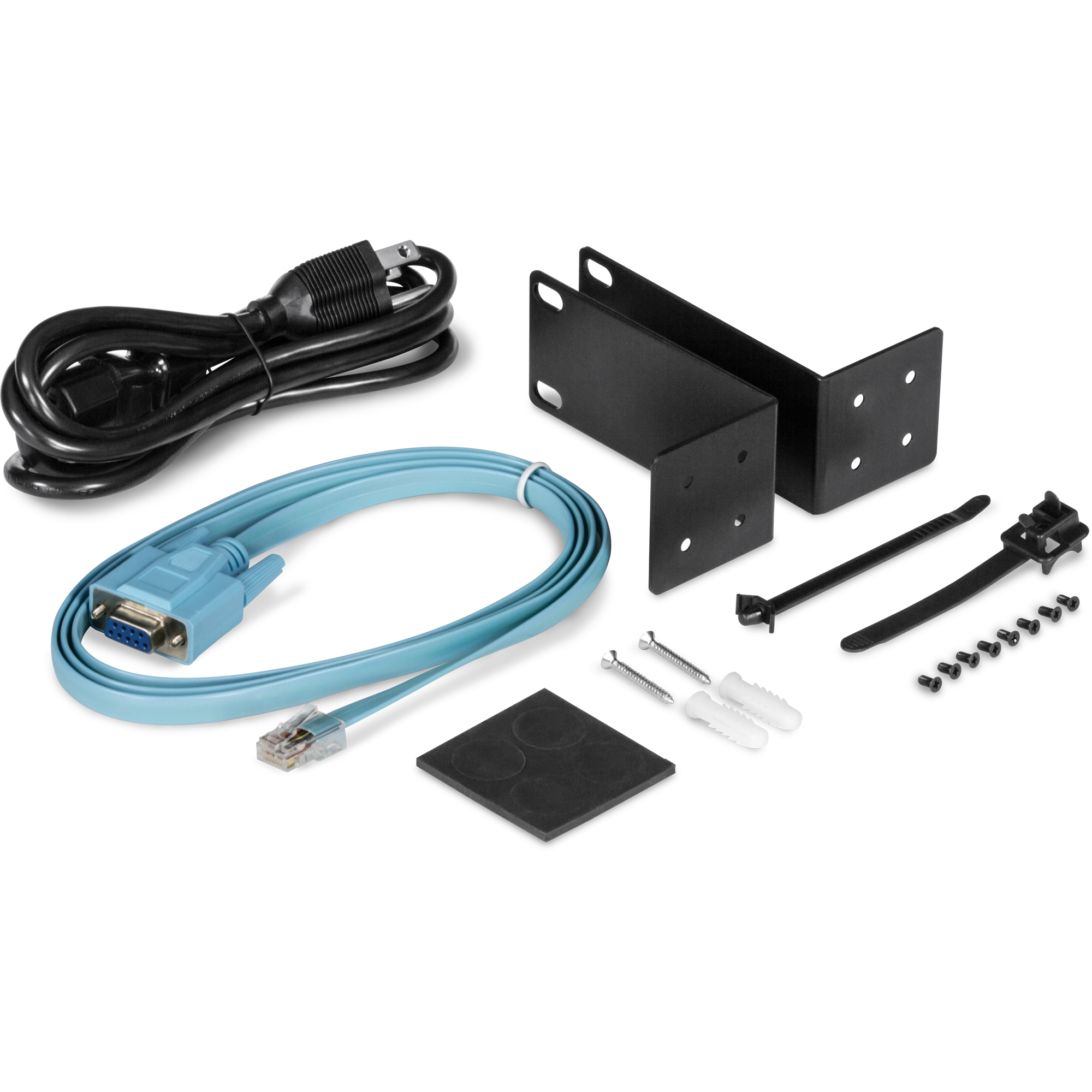

  • Wall mount and Rackmount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
