Powerline 500 AV Adapter Kit with Built-In Outlet

TPL-402E2K   (Version v1.0R)

  • Includes two TPL-402E adapters
  • Up to 500 Mbps networking speeds from electrical outlet

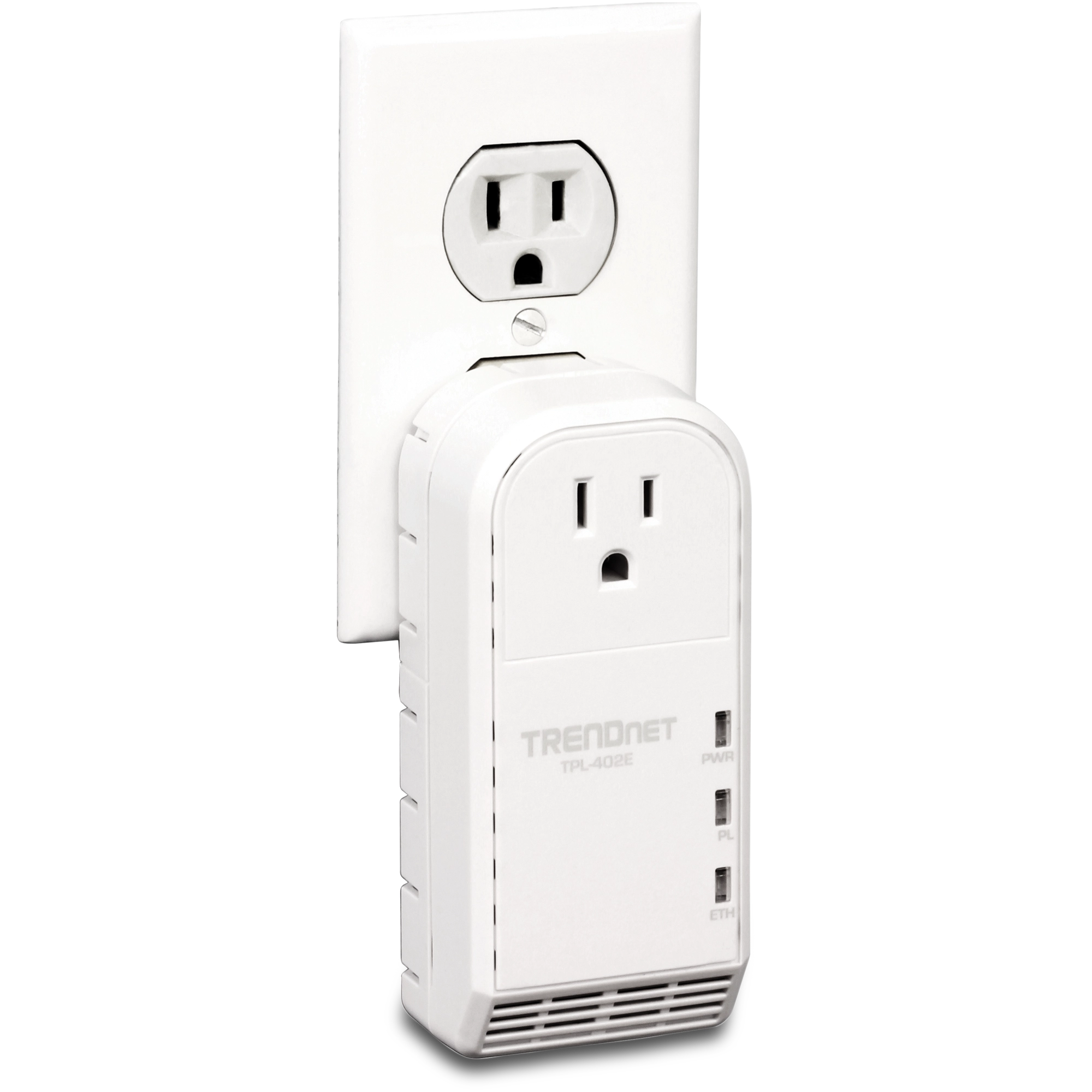

  • Never lose an electrical outlet with the built in socket
  • Advanced noise filter boosts performance
  • Power Save mode reduces electrical consumption by 80%

DISCONTINUED PRODUCT

The TPL-402E2K (Version v1.0R) has been discontinued. It has been replaced by the TPL-423E2K (Version v1.0R). For a list of discontinued products, click here.

Utility

Driver/Utility

Date: 12/2012
Version: 6.1.0008
Notes:

  1. Compatible with Windows 8

*Prerequisite: Requires Microsoft® .NET Framework 2.0. Please refer to the Microsoft download center for details on downloading and installing .NET Framework 2.0.


Filename: Utility_Powerline(v6.1.0008).zip
SHA-1 Checksum: 92DEED182D68719A8EED8A2D1CA7B86FA16BE9E7
Date: 7/28/2017
File Size: 1.56 MB
Download

Firmware

Firmware

Firmware Version: 5.2.4.03
Release Date: 8/2014
Note:

  1. Fixed - Interoperability issues between other powerline adapters
  2. Improved - Connection Stability and Performance

Filename: FW_TPL-402E_v1(5.2.4.03).zip
SHA-1 Checksum: F6BBD893CE14AF097E627A90938B2F2013C130D1
Date: 7/28/2017
File Size: 7.51 MB
Download

Datasheet

Datasheet (English)
Filename: EN_spec_TPL-402E2K(V1.0R).pdf
Date: 9/23/2011
File Size: 625.06 KB
Download Email
Datasheet (Français)
Filename: FR_spec_TPL-402E2K(V1.0R).pdf
Date: 9/23/2011
File Size: 659.76 KB
Download Email
Datasheet (Deutsch)
Filename: GE_spec_TPL-402E2K(V1.0R).pdf
Date: 9/23/2011
File Size: 639.73 KB
Download Email
Datasheet (Español)
Filename: SP_spec_TPL-402E2K(V1.0R).pdf
Date: 9/23/2011
File Size: 656.79 KB
Download Email
Datasheet (Pусский)
Filename: RU_spec_TPL-402E2K(V1.0R).pdf
Date: 9/23/2011
File Size: 633.59 KB
Download Email
Datasheet (Italiano)
Filename: IT_spec_TPL-402E2K(V1.0R).pdf
Date: 9/23/2011
File Size: 653.50 KB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: EN_Web_TPL-402E_TPL-402E2K(1.01).pdf
Date: 3/23/2011
File Size: 2.28 MB
Download
Quick Installation Guide (Français)
Filename: FR_Web_TPL-402E_TPL-402E2K(1.01).pdf
Date: 3/23/2011
File Size: 2.26 MB
Download
Quick Installation Guide (Deutsch)
Filename: GE_Web_TPL-402E_TPL-402E2K(1.01).pdf
Date: 3/23/2011
File Size: 1.78 MB
Download
Quick Installation Guide (Español)
Filename: SP_Web_TPL-402E_TPL-402E2K(1.01).pdf
Date: 3/23/2011
File Size: 1.77 MB
Download
Quick Installation Guide (Pусский)
Filename: RU_Web_TPL-402E_TPL-402E2K(1.01).pdf
Date: 3/23/2011
File Size: 2.77 MB
Download
Quick Installation Guide (Eesti)
Filename: EST_Web_Web_TPL-402E_TPL-402E2K(1.01).pdf
Date: 3/23/2011
File Size: 1.51 MB
Download

User's Guide

User's Guide
Filename: UG_TPL-402E_E2K(1.01).pdf
Date: 3/23/2011
File Size: 4.15 MB
Download

Product Images

JPEG Image
File Size: : 189.61 KB
Date: : 3/23/2011
Download
JPEG Image
File Size: : 209.05 KB
Date: : 3/23/2011
Download
JPEG Image
File Size: : 790.70 KB
Date: : 3/23/2011
Download
TIFF Image
File Size: : 2.09 MB
Date: : 3/23/2011
Download
TIFF Image
File Size: : 2.06 MB
Date: : 3/23/2011
Download
TIFF Image
File Size: : 2.01 MB
Date: : 3/23/2011
Download
JPEG Image
File Size: : 122.76 KB
Date: : 5/2/2011
Download
JPEG Image
File Size: : 1.29 MB
Date: : 5/2/2011
Download
TIFF Image
File Size: : 5.09 MB
Date: : 5/2/2011
Download
TIFF Image
File Size: : 6.18 MB
Date: : 5/2/2011
Download
JPEG Image
File Size: : 469.02 KB
Date: : 6/28/2012
Download
TIFF Image
File Size: : 40.34 MB
Date: : 6/28/2012
Download
ROHS compliant WEEE crossed-out bin symbol.
Hardware
StandardsIEEE 1901, HomePlug® AV, IEEE 802.3, IEEE 802.3x, IEEE 802.3u, IEEE 802.3ab

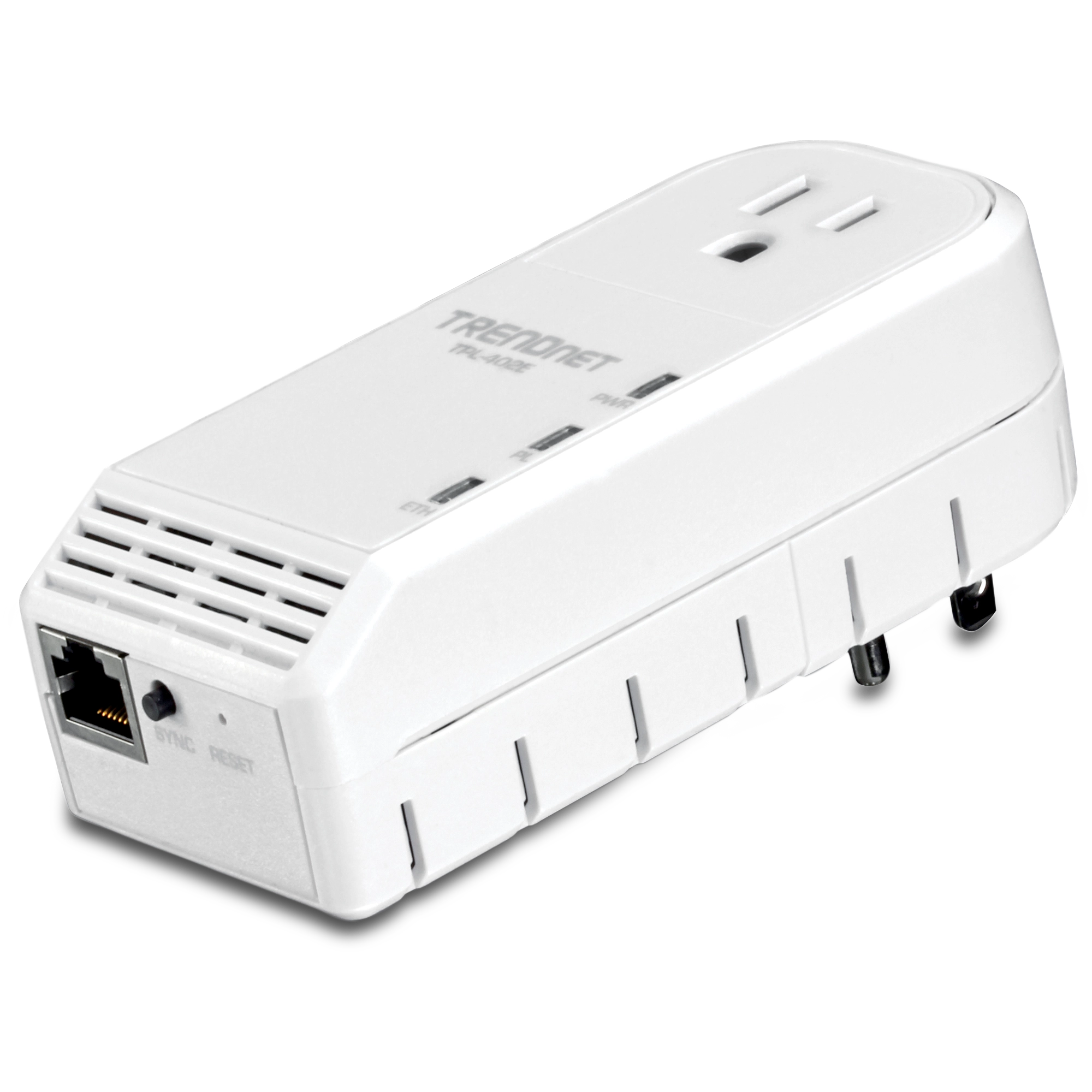

Interface 1 x 10/100/1000Mbps Auto-MDIX RJ-45 Port
1 x electrical power socket with noise filtering (12A max. load)
Power prong:

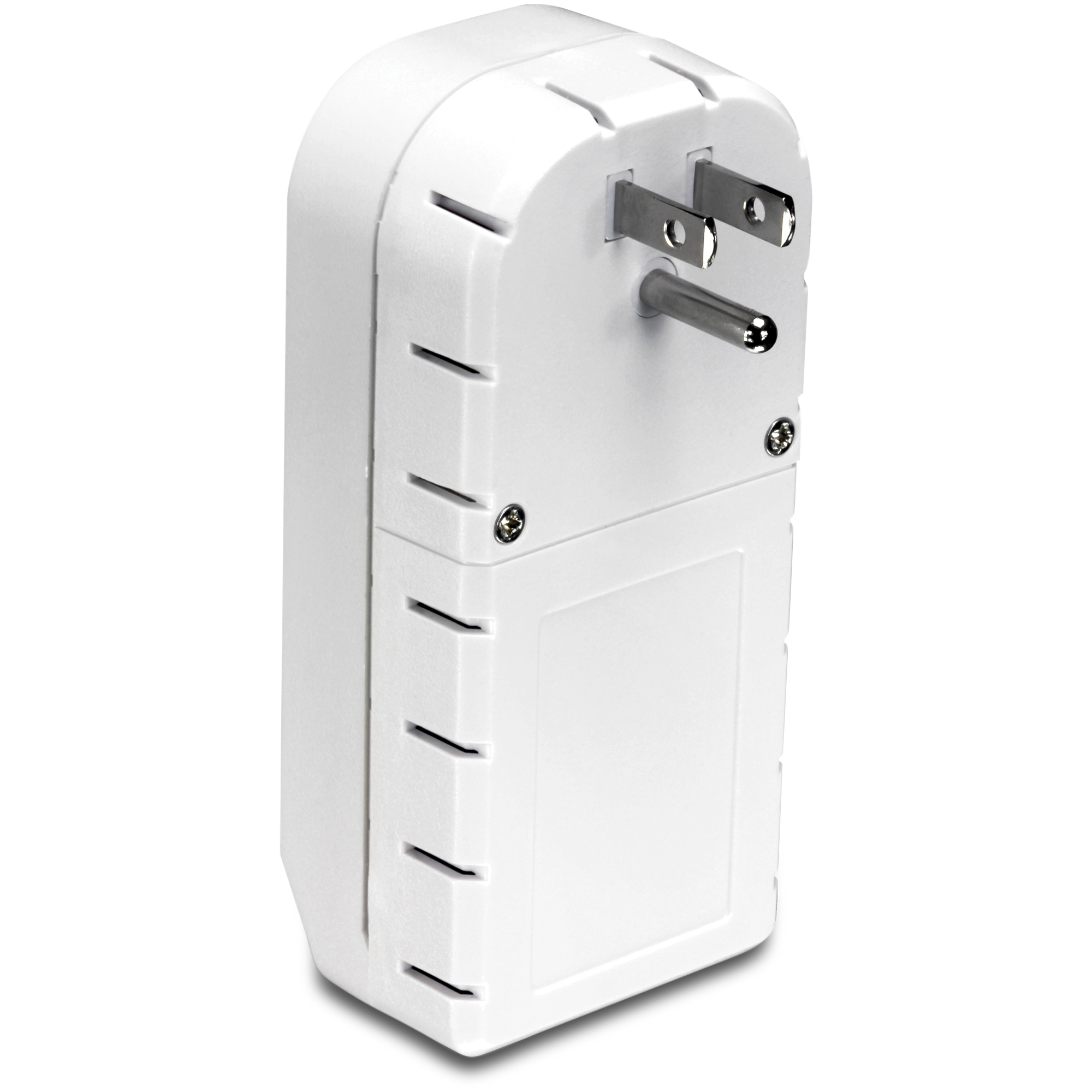

  • A: North America Type B (NEMA 5–15)
  • EU: Euro Type C (CEE 7/16)
  • FR: French Type E (CEE 7/5)

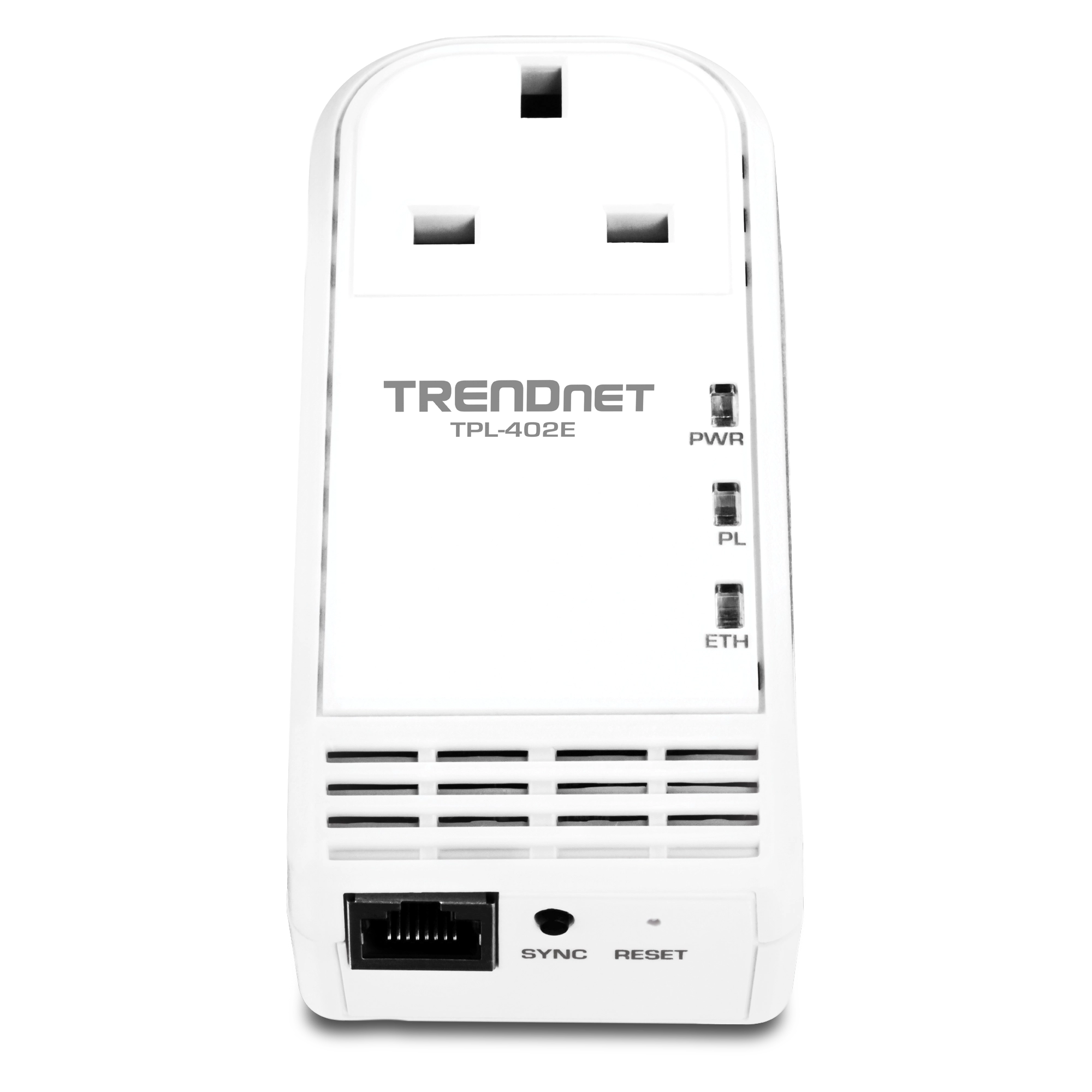

  • UK : United Kingdom Type G (BS 1363)
Frequency Band 2 ~ 50 MHz
ModulationOFDM Symbol modulation on link synchronization, 1024/256/64/8 - QAM, QPSK, BPSK, ROBO carrier
ProtocolsTDMA and CSMA/CA
Speed
  • Powerline: up to 500Mbps**
Utility OS CompatibilityWindows 7 (32/64-bit), Vista (32/64-bit), XP(32/64-bit)
NodesUp to 64 (max.)
Recommended: Up to 16* per powerline network
Overlapping Powerline Networks SupportedUp to 4 (per electrical system)
CoverageUp to 300m (984ft.)
Security128-Bit AES (Advanced Encryption Standard)
LEDPower (PWR)
Powerline (PL) Connection
  • Best (Green)
  • Better (Amber)
  • Good (Red)
  • No connection (Off)
Gigabit Ethernet (ETH) Connection
  • Solid
  • Blinking
  • Off
ButtonsSync, Reset
Dimension
(L x W X H)
  • A: 122 x 55 x 60 mm (4.8 x 2.2 x 2.4 in.) per unit
  • EU/FR: 122 x 55 x 78 mm (4.8 x 2.2 x 3.1 in.) per unit
  • UK: 122 x 55 x 72 mm (4.8 x 2.2 x 2.8 in.) per unit
Weight
  • A: Total Weight: 318 g (11.2 oz) / Per Unit Weight: 159 g (5.6 oz)
  • EU: Total Weight: 368 g ( 13 oz) / Per Unit Weight: 184 g (6.5 oz)
  • FR: Total Weight: 374 g (13.2 oz) / Per Unit Weight: 187 g (6.6 oz)
  • UK: Total Weight: 386 g (13.6 oz) / Per Unit Weight: 193 g (6.8 oz)
Power Source100~240V AC, 50~60Hz
Consumption
  • Active mode: 5 Watts (max.)
  • Standby mode: 0.72 Watts (max.)
Temperature
  • Operating: 0° ~ 40°C (32° ~ 104°F)
  • Storage: -20° ~ 70°C (-4° ~ 158°F)
HumidityMax. 90% (non-condensing)
CertificationsCE, FCC, HomePlug® AV

PACKAGE CONTENTS
  • 2 x TPL-402E
  • Multi-Language Quick Installation Guide
  • CD-ROM (Utility & User's Guide)
  • 2 x network cables (1.5 m / 5 ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
