Network Camera Server
TV-IP200 (Version v1.0R)
- Connects to 10Mbps or 100Mbps network
- Built-in web server; does not require additional computer and software
- Install it in local area network or connect it to Internet for remote monitoring
- Color 640x480 pixels resolution with up to 30 frames per second video frame rate
DISCONTINUED PRODUCT
The TV-IP200 (Version v1.0R) has been discontinued. It has been replaced by the TV-IP340PI (Version v1.0R). For a list of discontinued products, click here.Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection. Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only |
Firmware for Hardware Version A2
Note: Firmware can not be mixed between hardwares.
Filename: Firmware_TV-IP200_v2.34.zip
SHA-1 Checksum: 41D56724370029E9A7B3036C0D0799155043CBF8
Date: 7/25/2017
File Size: 189.50 KB
DO NOT upgrade firmware on any TRENDnet product using wireless connection. Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only |
Firmware for Hardware Version A1
Note: Firmware can not be mixed between hardwares.
Filename: Firmware_TV-IP200_v132.zip
SHA-1 Checksum: CDADF7BC28A8A3313DADBA822A59AFCC324CA973
Date: 7/25/2017
File Size: 133.22 KB
Datasheet
Filename: EN_Spec_TV-IP200.pdf
Date: 12/2/2005
File Size: 151.83 KB
Filename: FR_Spec_TV-IP200.pdf
Date: 12/2/2005
File Size: 158.78 KB
Filename: GE_Spec_TV-IP200.pdf
Date: 12/2/2005
File Size: 155.39 KB
Filename: SP_Spec_TV-IP200.pdf
Date: 12/2/2005
File Size: 155.16 KB
Frequently Asked Questions (FAQ)

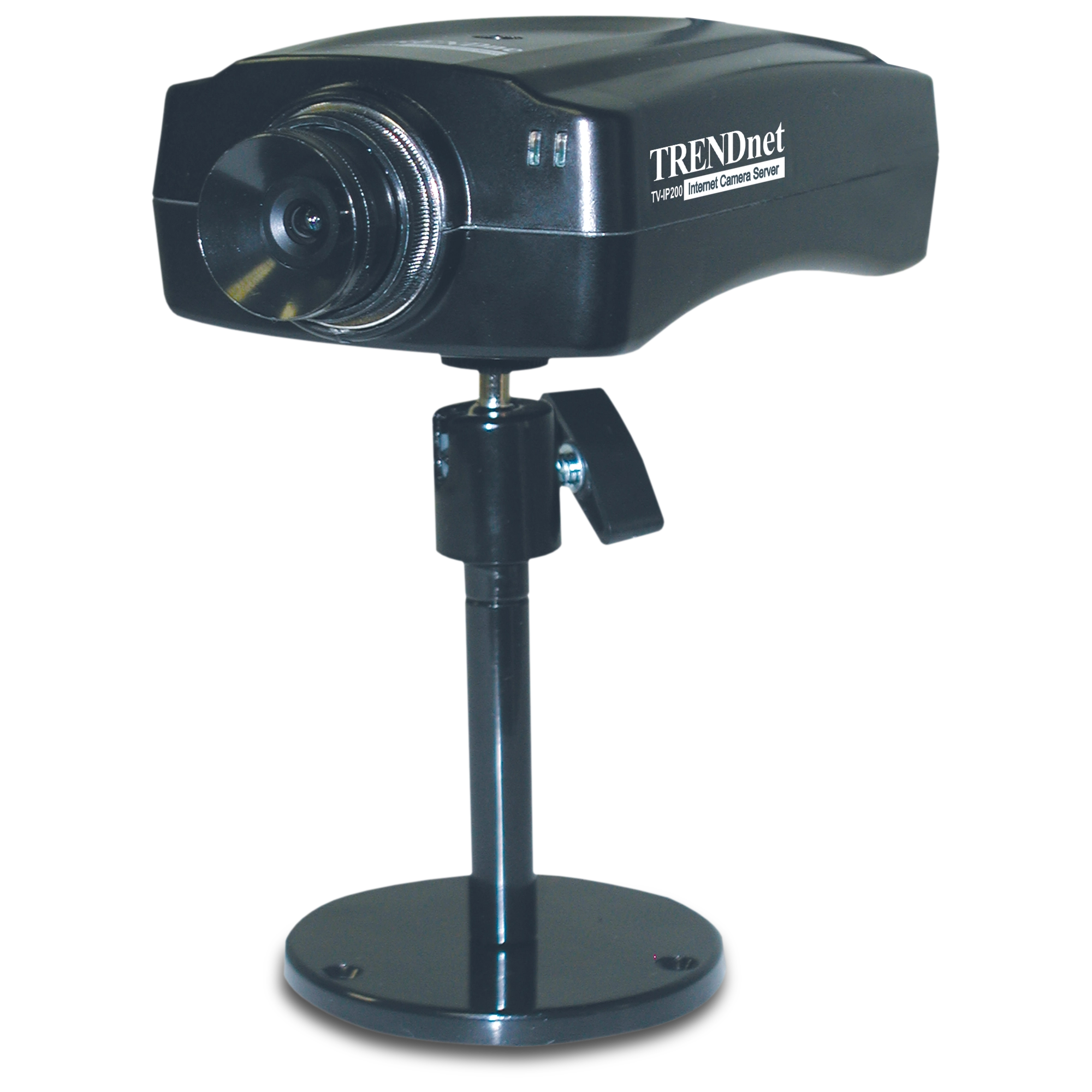

Product Images
| Video specification | |
| Resolution: | 640 x 480 pixels |
|---|---|
| Image Sensor: | 1/3" color CMOS |
| Gain / Exposure / White Balance Control: | Automatic |
| Shutter: | Electronics 1/60 ~ 1/15000 sec |
| Minimum Illumination: | 2.5 lux @ f1.4, 3000K color |
| Focal Length: | 6.0 mm |
| Aperture: | F=1.8 |
| Focus Extent: | 20 cm ~ 8 |
| Lens mounting: | Fixed board lens, CS-mount type |
| System Hardware | |
| LAN Connector: | RJ-45 10/100Mbps auto-sense |
| Generic I/O Port: | 2 x Inputs; 2 x Outputs (total 8-pin for 18AWG or smaller wires) |
| LED Indicator: | Power, LAN Activity |
| Power Supply: | DC 5V, 2.4A switching type |
| Power Consumption: | 4.5 Watts (900mA x 5V) |
| Physical / Environmental | |
| Dimensions: | 170 x 85 x 46 mm (6.7 x 3.3 x 1.8 inches) |
| Weight: | 270 grams (9.5 Oz) |
| Temperature: |
|
| Humidity: | 5% ~ 95% non-condensing |
| EMI: | FCC, CE, VCCI |
| Image (Video Setting) | |
| Image Compression: | JPEG |
| Frame Rate: | 30fps@QCIF, 20fps@CIF, 3fps@VGA |
| Compression Rate Selection: | 5-level, (very low, low, medium, high, very high) |
| Frame Rate Setting: | 1, 5, 7, 15, 20, auto (depends on video format) |
| Video Resolution: | 160x120, 320x240, 640x480 |
| Brightness / Contrast / Hue Control: | Range 1 ~ 128 |
| Communication Protocols | |
| HTTP, FTP, TCP/IP, UDP, ARP, ICMP, BOOTP, RARP, DHCP, PPPoE | |
| Hardware Requirements (minimum) | |
| Pentium 200 CPU, 64MB RAM, 8MB free hard drive space, 800x600 resolution VGA video card | |
| Software Requirements | |
| Operating System: | Windows 98, ME, 2000, XP, NT4.0, Mac OS 8 or above, Unix, or Linux |
| Web Browser: | Web Browser with Active X or Java enabled |
| Remote Management Software (included): | IP View , runs with Windows 98, ME, 2000, XP, and NT4.0 |
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
