AX1800 Dual Band WiFi 6 PoE+ Access Point

TEW-921DAP   (Version v1.5R)

   Select Another Version
Hardware versions of (v1.xR) can be upgraded with the latest firmware to update your model to the latest hardware version.
  • High-performance AX1800 PoE+ WiFi 6 access point
  • OFDMA and MU-MIMO technology boosts performance in a busy environment
  • Two concurrent WiFi bands maximize device networking speeds
  • AX1800 Dual Band: 1201Mbps (5GHz) + 567Mbps (2.4GHz) bands
  • Access Point, Client Bridge, WDS AP, WDS Bridge, WDS Station, and Repeater modes
  • Supports up to WPA3 encryption
  • Optional cloud management with TRENDnet Hive (Additional fee applies)
  • 1 x Gigabit PoE+ LAN port
  • Captive portal for hotspot applications
  • Low-profile housing blends into most environments
  • Includes wall / ceiling mounting plate
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant

Utility

TRENDnet Management Utility

Release Notes

Version: 2.0.5
OS Compatibility: Windows 10/11 64-bit

Important Note: Please uninstall any previous versions of the TRENDnet AP and TRENDnet Management software utilities before installing this software utility.

  • Added compatibility for both specific Hive cloud supported access point and web smart switches devices
  • Added batch multi-device Hive cloud registration feature

Filename: TRENDnet_Management_Utility(2.0.5).zip
SHA-1 Checksum: 3C8C4215DF5C530F5A27F0FF774BB2526E8D7860
Date: 3/18/2024
File Size: 69.05 MB
Download

Firmware

Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection.
Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only

Release Notes
Firmware Version: 2.17B02
Release Date: 08/2024

Important Note: It is highly recommended to reset the device to factory default after upgrading and clear web browser cache.

  • Added wireless guest network feature

Filename: FW_TEW-921DAP_v1(2.17B02).zip
SHA-1 Checksum: 95883AA0FF5E0B11465ED54BDB985C206DCBFBF7
Date: 8/14/2024
File Size: 30.60 MB
Download

Other

MIB
Model: TEW-921DAP
Hardware Version: v1.0R

MIB Version: 2.00
Release Date: 8/2022
Note:
  • Initial Release

Filename: TRENDnet_TEW-921DAP_MIB_Release_Notes.zip
Date: 8/18/2022
File Size: 15.52 KB
Download

Datasheet

Datasheet (English)
Filename: EN_datasheet_TEW-921DAP_(v1.0R).pdf
Date: 6/8/2022
File Size: 839.57 KB
Download Email
Datasheet (Français)
Filename: FR_datasheet_TEW-921DAP_(v1.0R).pdf
Date: 6/8/2022
File Size: 881.02 KB
Download Email
Datasheet (Deutsch)
Filename: GE_datasheet_TEW-921DAP_(v1.0R).pdf
Date: 6/8/2022
File Size: 918.83 KB
Download Email
Datasheet (Português)
Filename: PO_datasheet_TEW-921DAP_(v1.0R).pdf
Date: 6/8/2022
File Size: 705.34 KB
Download Email
Datasheet (Español)
Filename: SP_datasheet_TEW-921DAP_(v1.0R).pdf
Date: 6/8/2022
File Size: 705.56 KB
Download Email
Datasheet (Pусский)
Filename: RU_datasheet_TEW-921DAP_(v1.0R).pdf
Date: 6/8/2022
File Size: 711.30 KB
Download Email
Datasheet (Italiano)
Filename: IT_datasheet_TEW-921DAP_(v1.0R).pdf
Date: 6/8/2022
File Size: 705.05 KB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: English_TEW-921DAP(V1)_042321.pdf
Date: 8/19/2021
File Size: 5.18 MB
Download
Quick Installation Guide (Français)
Filename: French_TEW-921DAP(V1)_042321.pdf
Date: 8/19/2021
File Size: 4.60 MB
Download
Quick Installation Guide (Deutsch)
Filename: German_TEW-921DAP(V1)_042321.pdf
Date: 8/19/2021
File Size: 3.74 MB
Download
Quick Installation Guide (Português)
Filename: Portuguese_TEW-921DAP(V1)_042321.pdf
Date: 1/19/2023
File Size: 1.35 MB
Download
Quick Installation Guide (Español)
Filename: Spanish_TEW-921DAP(V1)_042321.pdf
Date: 8/19/2021
File Size: 3.88 MB
Download
Quick Installation Guide (Pусский)
Filename: Russian_TEW-921DAP(V1)_042321.pdf
Date: 8/19/2021
File Size: 3.44 MB
Download
Quick Installation Guide (Italiano)
Filename: Italian_TEW-921DAP(V1)_042321.pdf
Date: 8/19/2021
File Size: 3.75 MB
Download

User's Guide

User's Guide
Filename: UG_TEW-921DAP(v1.0R)6.5.24.pdf
Date: 6/5/2024
File Size: 2.11 MB
Download

Product Images

PNG Image
File Size: : 7.27 MB
Date: : 5/24/2023
Download
PNG Image
File Size: : 3.63 MB
Date: : 5/24/2023
Download
PNG Image
File Size: : 5.35 MB
Date: : 8/19/2021
Download
PNG Image
File Size: : 4.64 MB
Date: : 8/19/2021
Download
PNG Image
File Size: : 4.02 MB
Date: : 8/19/2021
Download
PNG Image
File Size: : 5.94 MB
Date: : 8/19/2021
Download
PNG Image
File Size: : 5.54 MB
Date: : 8/19/2021
Download
ROHS compliant Non-Disposable
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3at
  • IEEE 802.1Q
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11k
  • IEEE 802.11n (up to 400Mbps)*
  • IEEE 802.11r
  • IEEE 802.11v
  • IEEE 802.11w
  • IEEE 802.11ac Wave 2 (up to 867Mbps)*
  • IEEE 802.11ax (up to 1201Mbps)*
Hardware Interface
  • 1 x PoE+ Gigabit LAN port (power input)
  • Power port (optional power adapter sold separately)
  • LED indicators

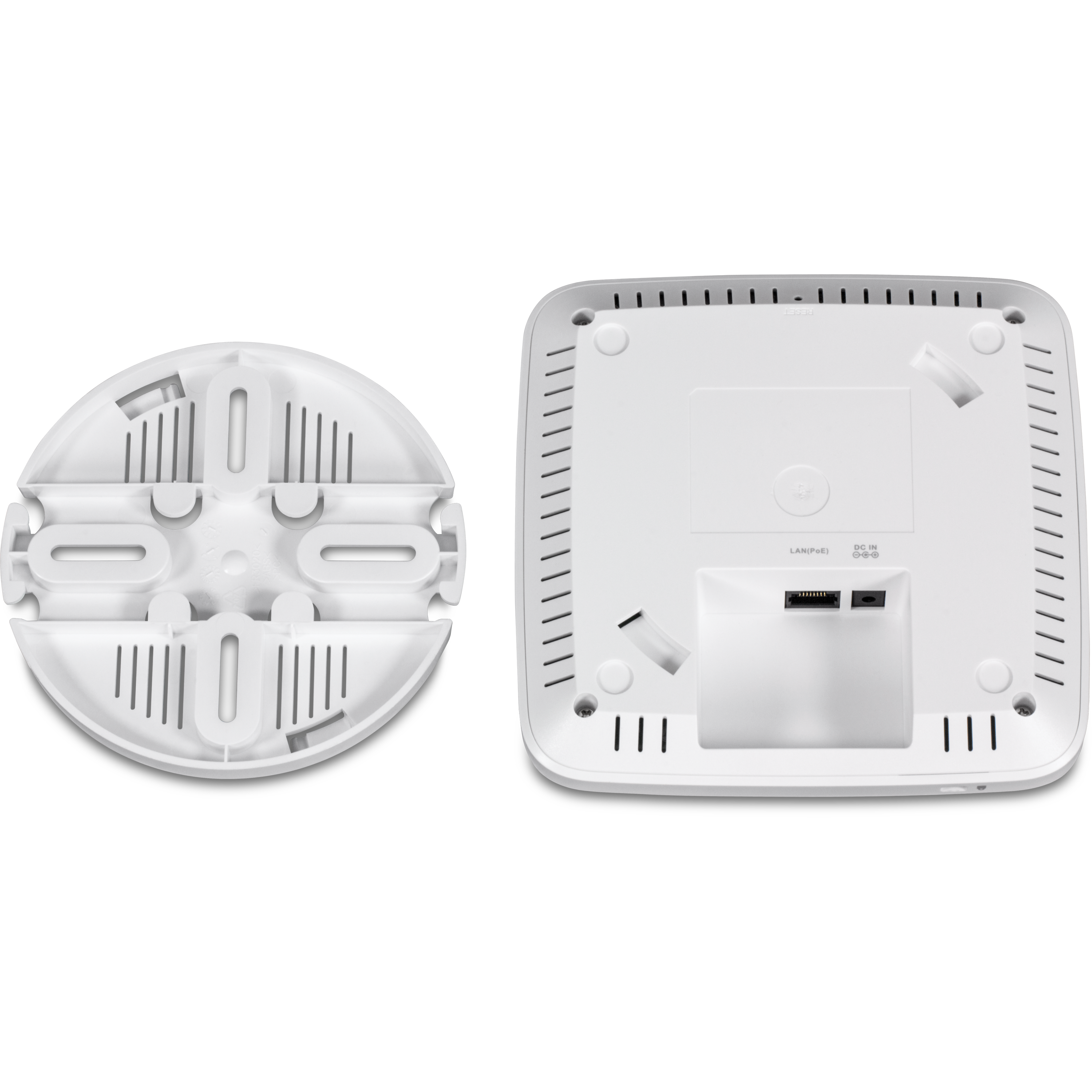

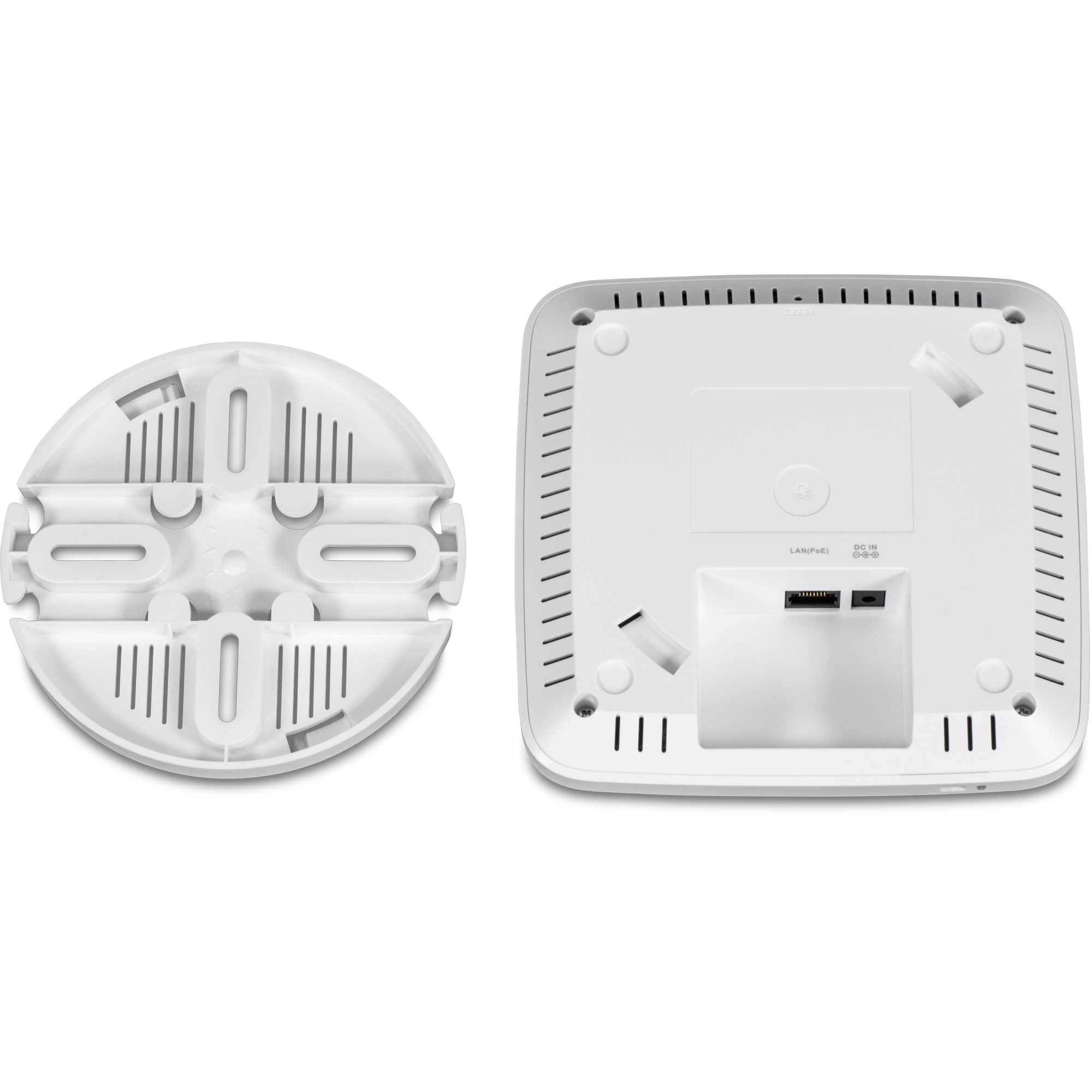

  • Mounting plate
  • Reset button
Features
  • MU-MIMO
  • OFDMA
  • Band steering
  • WiFi traffic shaping
  • 802.1Q VLAN assignment per SSID
  • IPv6 support (Link-Local, Static IPv6, Auto-Configuration (SLAAC/DHCPv6))
  • Multi-Language interface, English, French, Spanish, German, Russian
  • LEDs on/off
  • External Captive Portal (Coovachilli server authentication)
  • Internal Captive Portal (Local user account authentication and customizable portal page)
  • Redirect Captive Portal
  • 802.11k intelligent radio resource management
  • RSSI Threshold (client signal strength and connectivity control)
  • Airtime Fairness
  • IGMP Snooping
Operation Modes
  • Access Point
  • Client Bridge
  • WDS AP
  • WDS Bridge
  • WDS Station
  • Repeater
Management/Monitoring
  • Web based management
  • SNMP v1/v3
  • STP
  • Event logging
  • Ping test
  • Traceroute
  • Telnet
  • Reboot & scheduled automatic reboot
Hive Cloud Management
  • Configure, monitor, and manage through the TRENDnet Hive Cloud Management Portal remotely via PC or Mac web browser, or through the mobile app
  • Multi-device management
  • Provisioning through scheduled batch firmware or configuration updates for multiple switches
  • Event/hardware network monitoring (CPU/memory utilization)
  • Configure features such as IP address settings, WiFi settings, operation modes, and LED control through cloud management
Access Control
  • Wireless encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS, WPA3-PSK
  • MAC filter
  • Maximum client limit
QoS
  • Bandwidth control per SSID or client
SSID
  • Up to 8 SSIDs per wireless band (24 total)
Frequency
  • 2.4GHz: 2.412 – 2.472GHz
  • 5GHz: 5.180 – 5.320GHz
Wireless Channels
  • 2.4GHz: FCC: 1–11, ETSI: 1 – 13
  • 5GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161 and 165 ETSI: 36, 40, 44, 48 (52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140) **
Modulation
  • DBPSK/DQPSK/CCK for DSSS technique
  • BPSK/QPSK/16-QAM/64-QAM/256-QAM/1024-QAM for OFDM technique
  • OFDMA
MIMO Configuration
  • 5GHz: 2x2:2
  • 2.4GHz: 2x2:2
Antenna Gain
  • 2.4GHz: 2 x 3.2 dBi internal
  • 5Ghz: 2 x 4.3 dBi internal
Wireless Output Power
  • 802.11a: FCC: 30 dBm (max.) / CE: 28 dBm (max.)
  • 802.11b: FCC: 29 dBm (max.) / CE: 18 dBm (max.)
  • 802.11g: FCC: 29 dBm (max.) / CE: 19 dBm (max.)
  • 802.11n (2.4GHz): FCC: 29 dBm (max.) / CE: 19 dBm (max.)
  • 802.11n (5GHz): FCC: 30 dBm (max.) / CE: 28 dBm (max.)
  • 802.11ac: FCC: 30 dBm (max.) / CE: 28 dBm (max.)
  • 802.11ax (2.4GHz): FCC: 29 dBm / CE: 19 dBm
  • 802.11ax (5GHz): FCC: 30 dBm / CE: 28 dBm
Receiving Sensitivity
  • 802.11a: -75 dBm (typical) @ 54Mbps
  • 802.11b: -90 dBm (typical) @ 11Mbps
  • 802.11g: -77 dBm (typical) @ 54Mbps
  • 802.11n (2.4 GHz): -77 dBm (typical) @ 400Mbps
  • 802.11n (5 GHz): -71 dBm (typical) @ 400Mbps
  • 802.11ac: -71 dBm (typical) @ 867 Mbps
  • 802.11ax (2.4GHz): -65 dBm (typical) @ 574Mbps
  • 802.11ax (5GHz): -63 dBm (typical) @ 1201Mbps
Power
  • IEEE 802.3at Type 2 PoE PD Class 4
  • Input: 100 - 240V AC, 50/60Hz, Output: 12V DC, 1.5A external power adapter (optional power adapter sold separately)
  • Max. consumption: 15W
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 95% non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 160 x 160 x 34mm (6.3 x 6.3 x 1.34 in.)
Weight
  • 486g (1.07 lbs.)
Warranty:
  • 3 year

PACKAGE CONTENTS
  • TEW-921DAP
  • Network cable (1.5m/5 ft.)
  • Quick Installation Guide
  • Mounting plate

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions. For maximum performance of up to 1201Mbps, use with a 1201Mbps 802.11ax wireless adapter. For maximum performance of up to 867Mbps use with an 867Mbps 802.11ac wireless adapter. For maximum performance of up to 400Mbps, use with a 400Mbps 802.11n wireless adapter. Multi-User MIMO (MU-MIMO) requires the use of multiple MU-MIMO enabled wireless adapters.

**Due to regulatory requirements, the wireless channels specified cannot be statically assigned, but will be available within the available wireless channels when set to auto.


All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
