125Mbps 802.11g Wireless AP Router

TEW-411BRPplus   (Version A)

DISCONTINUED PRODUCT

The TEW-411BRPplus (Version A) has been discontinued. It has been replaced by the TEW-831DR (Version v1.0R). For a list of discontinued products, click here.

Firmware

Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection.
Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only


TEW-411BRPplus (EU), European model (ETSI, with 13 wireless channels) Firmware version: 2.07.

Note:
This firmware is for TEW-411BRPplus European version (ETSI) with 13 wireless channels. Please do not upload this firmware to TEW-411BRPplus FCC version with 11 wireless channels.

Release Note:
411BRPplus_2.07_EU.trx
Date: 11-19-2004
1. (For Singapore users) Improves Dynamic DNS Account automatic IP update function when using www.dyndns.org account.

Firmware upload instructions:
After downloading the file, unzip the file, and follow the instructions in the "readme.txt" file to upload the firmware.
Filename: Firmware_TEW-411BRPplus_2.07_EU.zip
SHA-1 Checksum: 93EC7C61D2838E79B22AC5F30A0B0B7BBBCFF9DF
Date: 7/26/2017
File Size: 2.80 MB
Download

Datasheet

Datasheet (English)
Filename: Spec_TEW-411BRPplus(English).pdf
Date: 12/20/2004
File Size: 1.52 MB
Download Email
Datasheet (Français)
Filename: Spec_TEW-411BRPplus(French).pdf
Date: 12/21/2004
File Size: 1.53 MB
Download Email
Datasheet (Deutsch)
Filename: Spec_TEW-411BRPplus(German).pdf
Date: 2/15/2005
File Size: 204.62 KB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: QIG_TEW-411BRPplus_EN.pdf
Date: 10/27/2004
File Size: 3.48 MB
Download
Quick Installation Guide (Français)
Filename: QIG_TEW-411BRPplus_FR.pdf
Date: 10/27/2004
File Size: 3.67 MB
Download
Quick Installation Guide (Deutsch)
Filename: QIG_TEW-411BRPplus_GE.pdf
Date: 10/27/2004
File Size: 3.79 MB
Download
Quick Installation Guide (Español)
Filename: QIG_TEW-411BRPplus_SP.pdf
Date: 10/27/2004
File Size: 3.77 MB
Download

User's Guide

User's Guide
Filename: UG_TEW-411BRPplus.pdf
Date: 10/27/2004
File Size: 4.62 MB
Download

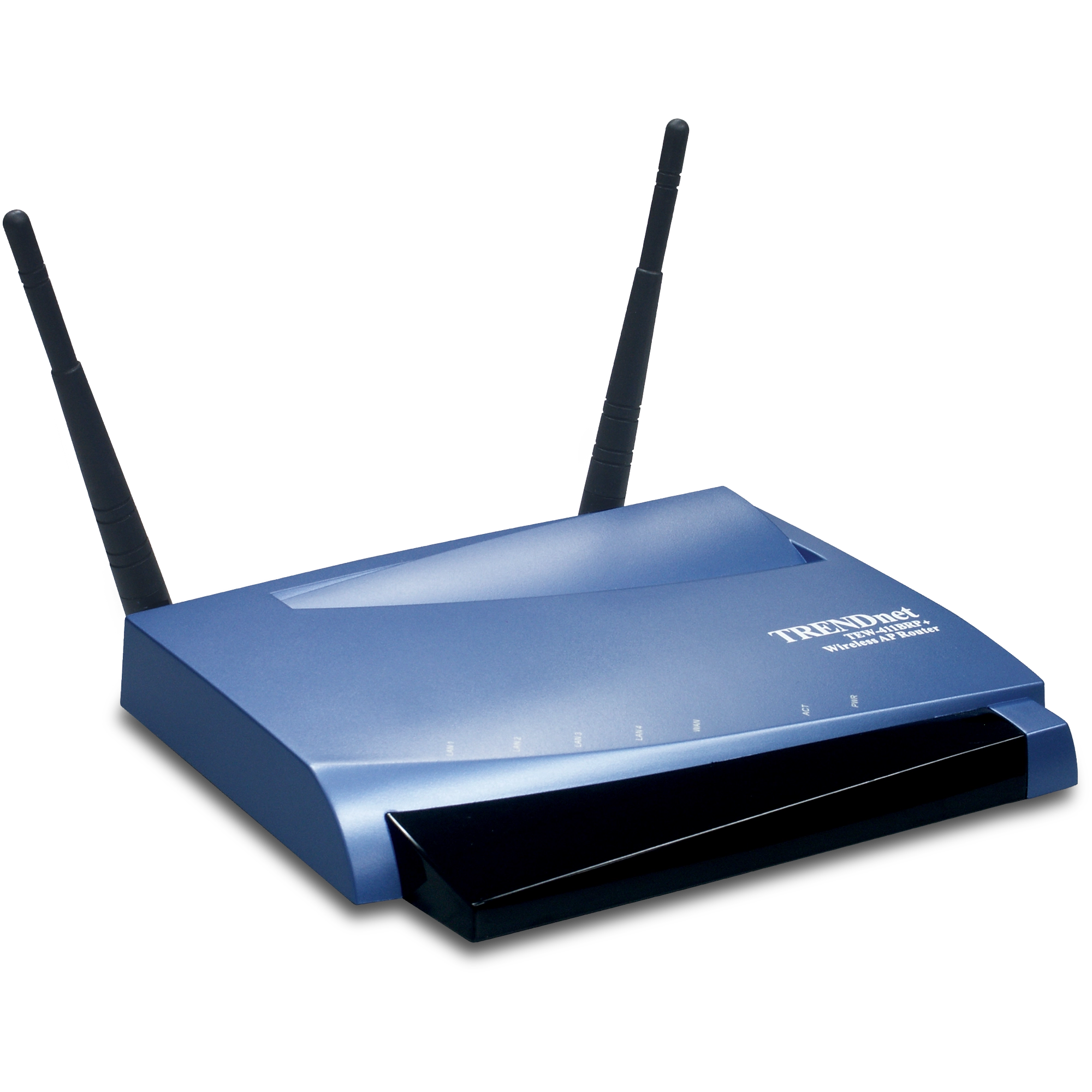

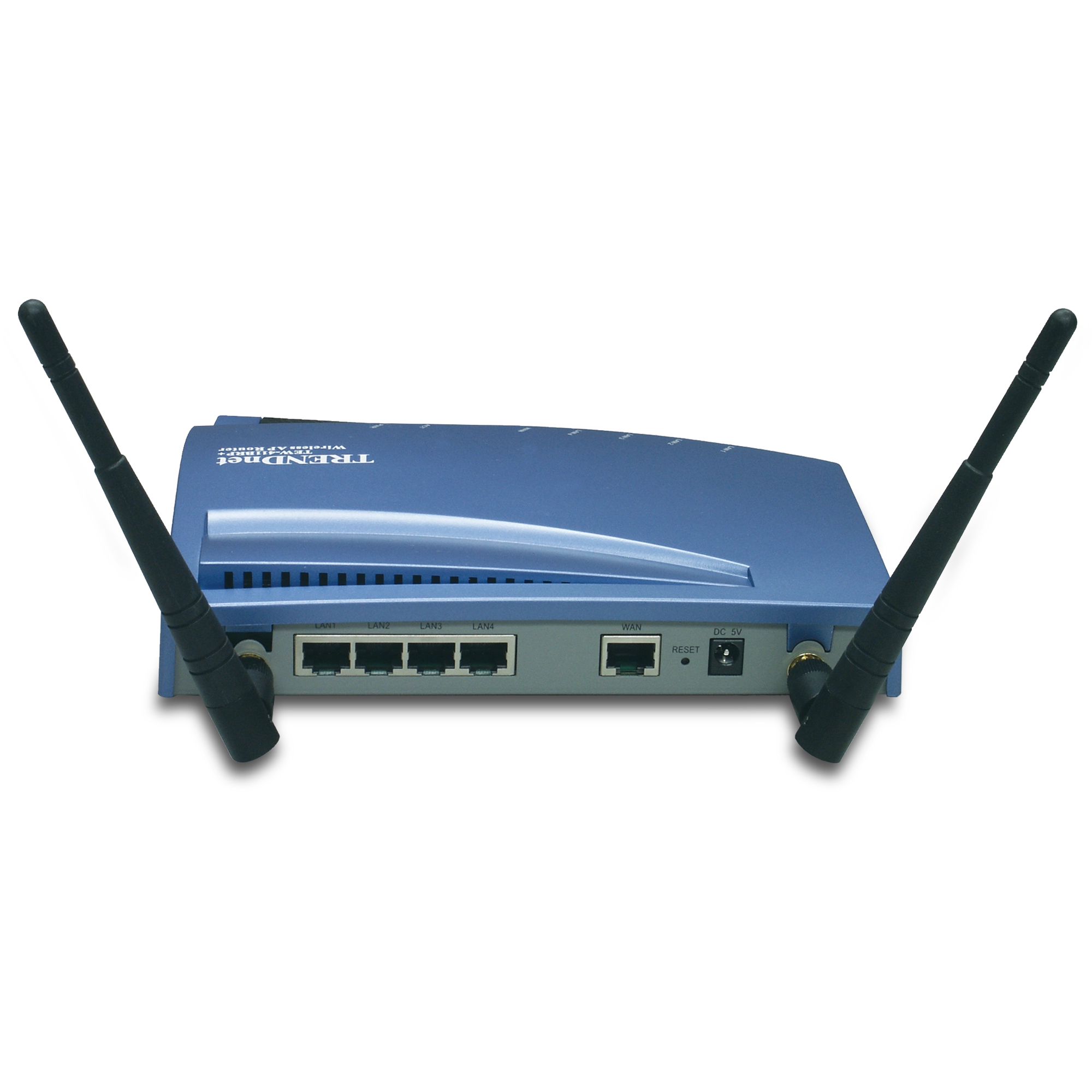

Product Images

JPEG Image
File Size: : 330.86 KB
Date: : 10/1/2004
Download
TIFF Image
File Size: : 2.81 MB
Date: : 9/1/2004
Download
JPEG Image
File Size: : 272.96 KB
Date: : 9/20/2004
Download
TIFF Image
File Size: : 2.15 MB
Date: : 1/27/2006
Download
ROHS compliant WEEE crossed-out bin symbol.
Hardware
Standards:
  • Wired: IEEE 802.3 (10Base-T), and IEEE 802.3u (100Base-TX)
  • Wireless: IEEE 802.11b (11Mbps), IEEE 802.11g (54Mbps) and High Speed-G (125Mbps)
SNMP:
  • SNMP V1/V2c
WAN:
  • 1 x 10/100Mbps Port (Internet)
LAN:
  • 4 x 10/100Mbps Auto-MDIX Ports
Connection Type:
  • Dynamic IP, Static (Fixed) IP, PPPoE, PPTP
LED Indicator:
  • Power, WAN, LAN1, LAN2, LAN3, LAN4
Antenna:
  • 2 x 2dBi Detachable Antennas
Reset Button:
  • Reset Settings to Factory Default
Dimension (L x W x H) :
  • 195 x 160 x 27 mm (7.7 x 6.3 x 1.1inches)
Weight:
  • 0.7kg (1.54 lbs)
Temperature:
  • -10°~ 50°C (14°F~ 122°F)
Humidity:
  • Max. 95% (Non-Condensing)
Power Adapter:
  • 5V DC, 2A (Standard Package Accessory) or 12V DC, 0.5A External Power Adapter
Certification:
  • FCC & CE
Warranty:
  • 3 Years
Wireless
Frequency:
  • 2.4 to 2.4835GHz (Industrial Scientific Medical Band)
Module Technique:
  • 802.11b: CCK (11 and 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps)
  • 802.11g: OFDM
Media Access Protocol:
  • CSMA/CA with ACK
Security:
  • 64/128bit WEP, WPA, Enable/Disable SSID, Password Protection
Transmit Power:
  • 16 dBm ± 1dBm
Data Rate:
  • 802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps
  • 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps
  • High Speed-G: 125Mbps (Afterburner Technology, Enhanced Throughput by up to 40%)
Receiving Sensitivity:
  • 11Mbps 10 – 5 BER @ -80 dBm (typical)
  • 54Mbps 10 – 5 BER @ -65 dBm (typical)
Operating Range:
  • 802.11b: 11Mbps up to 35~60 meters (indoor), 300 meters (outdoor)
  • 802.11g: 54Mbps up to 20 meters (indoor), 50 meters (outdoor)
Channels:
  • 11 Channels (US), 13 Channels (EU)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
