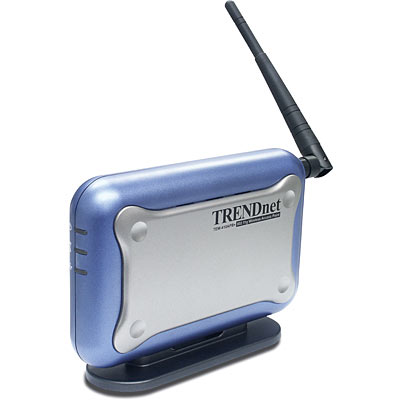

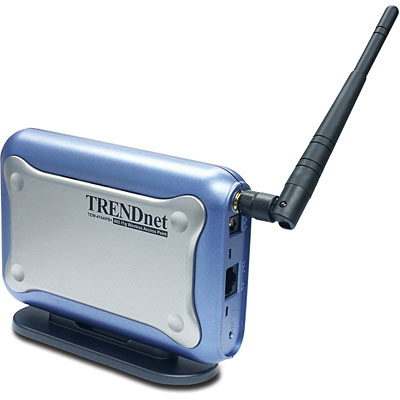

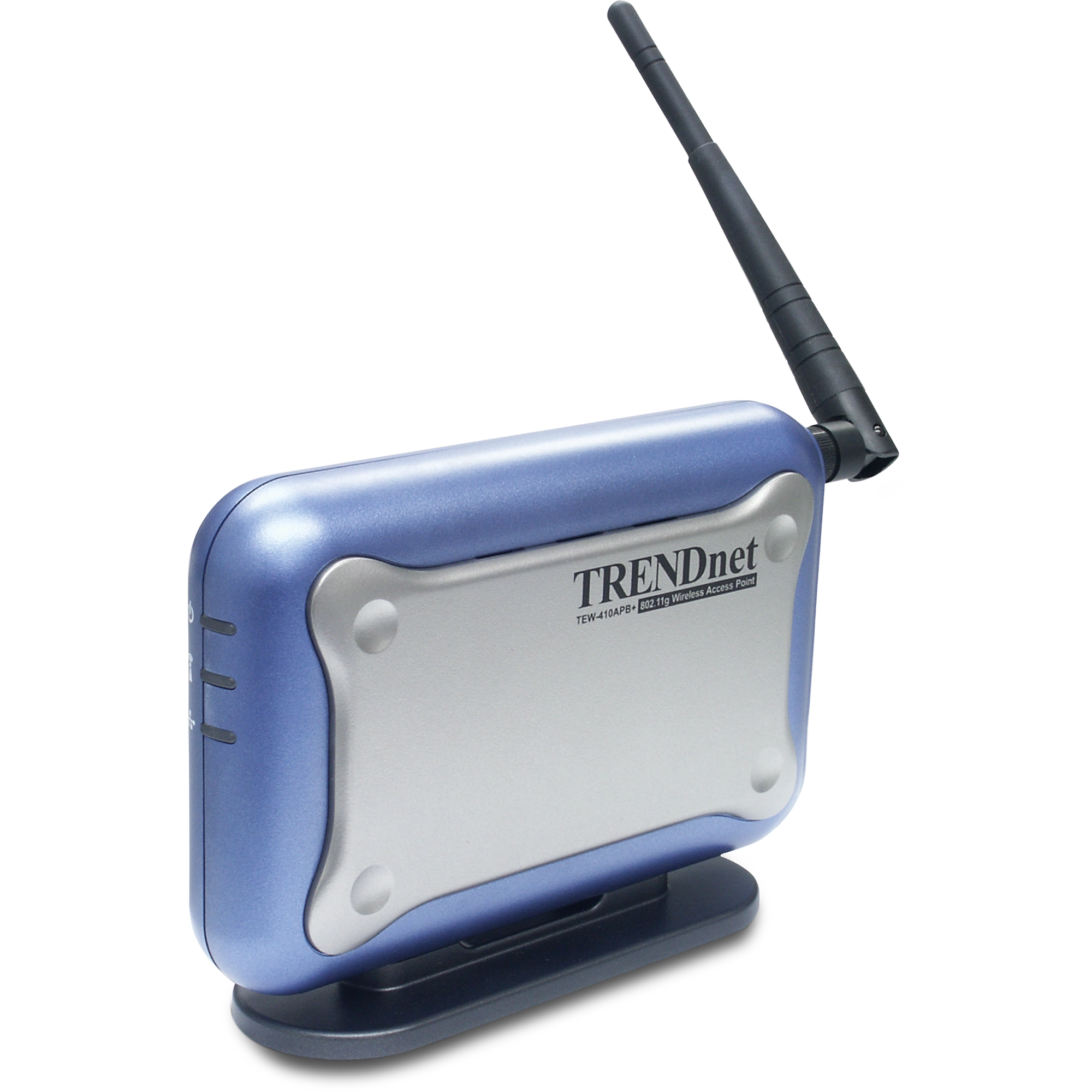

125Mbps 802.11g Wireless Access Point

TEW-410APBplus   (Version A)

DISCONTINUED PRODUCT

The TEW-410APBplus (Version A) has been discontinued. For a list of discontinued products, click here.

Firmware

Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection.
Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only


Model: TEW-410APBplus
Firmware : 1.3.06b
Releast Date: 12.1.04

Firmware Fix:
1. AP Client and WEP Issue when AP has ESSID Broadcasting Disabled.
Filename: Firmware_TEW-410APBplus_1.3.06b.zip
SHA-1 Checksum: 2657E88AA2DEA3D00F9C3D3942B2A88A481565F5
Date: 7/26/2017
File Size: 1.58 MB
Download

Datasheet

Datasheet (English)
Filename: Spec_TEW-410APBplus(English).pdf
Date: 12/20/2004
File Size: 1.30 MB
Download Email
Datasheet (Français)
Filename: Spec_TEW-410APBplus(French).pdf
Date: 12/21/2004
File Size: 1.44 MB
Download Email
Datasheet (Deutsch)
Filename: Spec_TEW-410APBplus(German).pdf
Date: 2/15/2005
File Size: 209.65 KB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: QIG_TEW-410APBplus(English).pdf
Date: 11/29/2004
File Size: 2.56 MB
Download
Quick Installation Guide (Français)
Filename: QIG_TEW-410APBplus(French).pdf
Date: 11/29/2004
File Size: 2.46 MB
Download
Quick Installation Guide (Deutsch)
Filename: QIG_TEW-410APBplus(German).pdf
Date: 11/29/2004
File Size: 2.53 MB
Download
Quick Installation Guide (Español)
Filename: QIG_TEW-410APBplus(Spanish).pdf
Date: 11/29/2004
File Size: 2.48 MB
Download

User's Guide

User's Guide
Filename: UG_TEW-410APBplus.pdf
Date: 10/22/2012
File Size: 997.18 KB
Download

Product Images

TIFF Image
File Size: : 3.06 MB
Date: : 9/15/2004
Download
JPEG Image
File Size: : 470.21 KB
Date: : 9/15/2004
Download
TIFF Image
File Size: : 3.85 MB
Date: : 9/10/2004
Download
ROHS compliant WEEE crossed-out bin symbol.
Hardware
Standards:
  • Wired: IEEE 802.3 (10Base-T), and IEEE 802.3u (100Base-TX)
  • Wireless: IEEE 802.11b (11Mbps), IEEE 802.11g (54Mbps) and High Speed-G (125Mbps)
Protocols:
  • TCP/IP, IPX/SPX, NetBEUI
LAN:
  • 1 x 10/100Mbps Auto-MDIX Port
LED Indicator:
  • Power, Active, WAN, LAN1, LAN2, LAN3, LAN4
Antenna:
  • 1 x 3dBi External Detachable Dipole Antenna
Reset Button:
  • Reset settings to factory default
Dimension (L x W x H):
  • 142 x 101 x 36.9 mm (5.6 x 4 x 1.45 inches)
Weight:
  • 0.33kg (11.6 oz.)
Temperature:
  • 0°~ 40°C (32°F~104°F)
Humidity:
  • Max. 90% (non-condensing)
Power Adapter:
  • Input:
  • US power type: 120V AC 60Hz
  • EU power type: 230V AC 50Hz
  • AU power type: 240V AC 50Hz
  • UK power type: 230V AC 50Hz
  • Output:
  • 12V DC, 0.5A (Standard Package Accessory) or 5V DC, 2A External Power Adapter
Certification:
  • FCC & CE
Wireless
Frequency:
  • 2.4 to 2.4385GHz (Industrial Scientific Medical Band)
Module Technique:
  • 802.11b: CCK (11 and 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps)
  • 802.11g: OFDM
Media Access Protocol:
  • CSMA/CA with ACK
Security:
  • 64/128bit WEP, WPA, Enable/Disable SSID, Password Protection
Transmit Power:
  • 15 dBm ± 1dBm
Operation Modes:
  • AP, Bridge, Repeater and AP-Client
Data Rate:
  • 802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps
  • 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps
  • High Speed-G: 125Mbps (Afterburner technology, Enhanced Throughput by up to 40%)
Receiving Sensitivity:
  • 11Mbps 10 – 5 BER @ -80 dBm (typical)
  • 54Mbps 10 – 5 BER @ -65 dBm (typical)
Operating Range:
  • 802.11b: 11Mbps up to 35~60 meters (indoor), 300 meters (outdoor)
  • 802.11g: 54Mbps up to 20 meters (indoor), 50 meters (outdoor)
Channels:
  • 11 Channels (US), 13 Channels (EU)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
