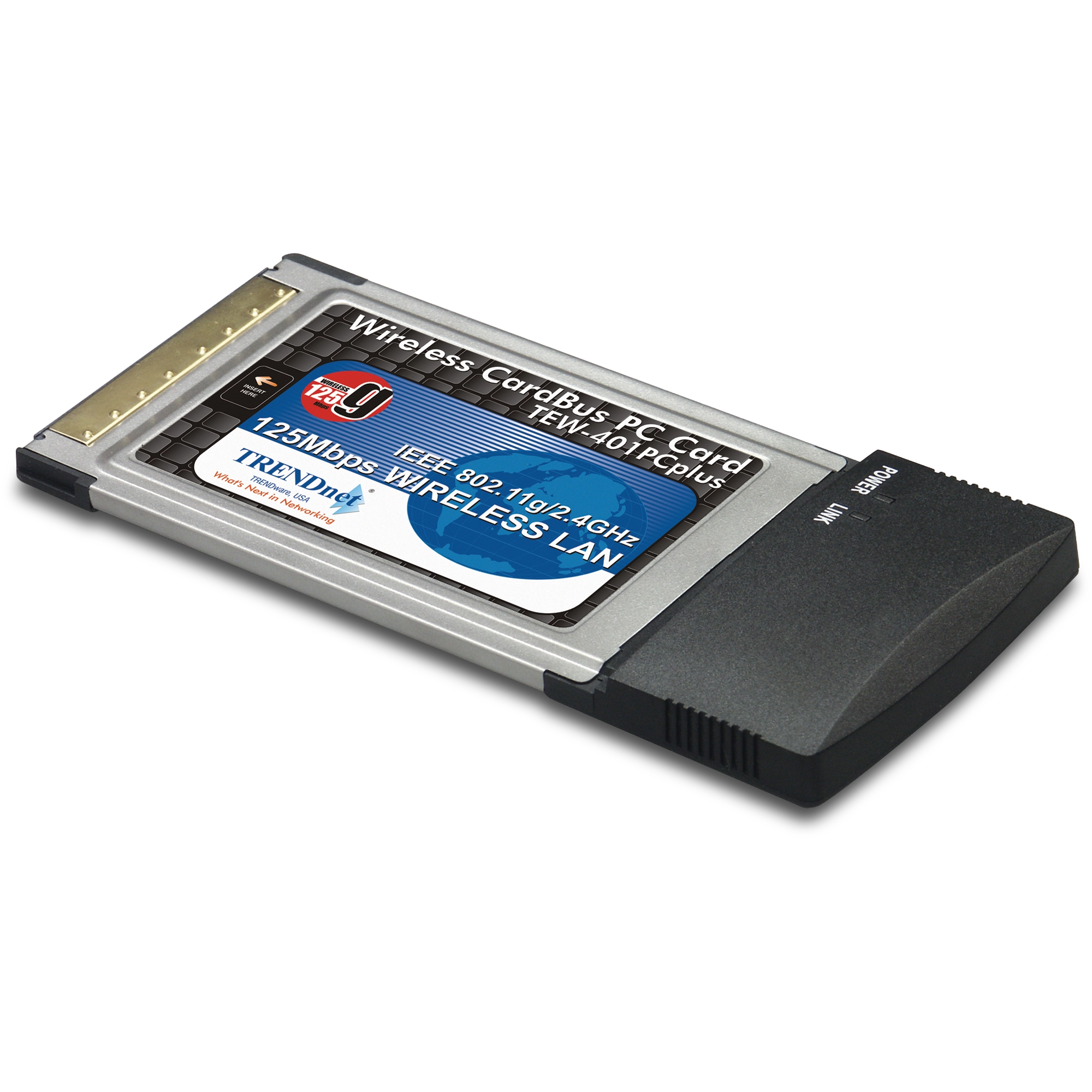

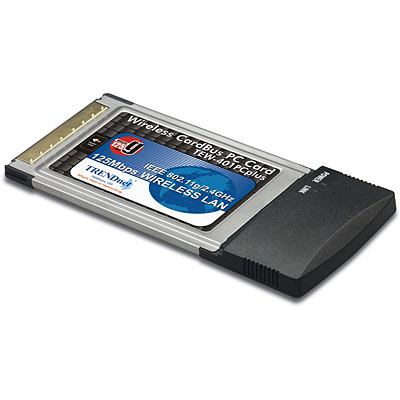

125Mbps 802.11g Wireless PC Card

TEW-401PCplus   (Version A)

DISCONTINUED PRODUCT

The TEW-401PCplus (Version A) has been discontinued. For a list of discontinued products, click here.

Utility

Driver/Utility
TEW-401PCPlus/TEW-403PIplus Wireless Adapter Driver Set for Windows 98SE/ME/2000/XP

Utility Version: 1.0.2.18
Driver Version: 3.50.21.10
Firmware Version: 3.60.9.1
  1. Modified utility to display "125Mbps" connection speed.
  2. Modified driver to display "125Mbps" connection speed in Windows "local area connection" status.
Installation Instruction:
After downloading and unzipping the file, please follow the instructions in the "readme.txt" file.
Filename: Driver_Utility_TEW401PCplus_403PIplus_v3.50.21.zip
SHA-1 Checksum: CF8B4C111F2B0C3991DCCC7B37CE21B156E317E7
Date: 7/26/2017
File Size: 3.34 MB
Download

Datasheet

Datasheet (English)
Filename: Spec_TEW-401PCplus(English).pdf
Date: 12/21/2004
File Size: 1.01 MB
Download Email
Datasheet (Français)
Filename: Spec_TEW-401PCplus(French).pdf
Date: 12/21/2004
File Size: 1.20 MB
Download Email
Datasheet (Deutsch)
Filename: Spec_TEW-401PCplus(German).pdf
Date: 2/14/2005
File Size: 204.25 KB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: QIG_TEW-401PCplus(English).pdf
Date: 11/29/2004
File Size: 2.89 MB
Download
Quick Installation Guide (Français)
Filename: QIG_TEW-401PCplus(French).pdf
Date: 11/29/2004
File Size: 3.18 MB
Download
Quick Installation Guide (Deutsch)
Filename: QIG_TEW-401PCplus(German).pdf
Date: 11/29/2004
File Size: 3.22 MB
Download
Quick Installation Guide (Español)
Filename: QIG_TEW-401PCplus(Spanish).pdf
Date: 11/29/2004
File Size: 3.39 MB
Download

Product Images

JPEG Image
File Size: : 400.82 KB
Date: : 12/23/2004
Download
TIFF Image
File Size: : 3.12 MB
Date: : 12/23/2004
Download
ROHS compliant WEEE crossed-out bin symbol.
Hardware
Adapter Type:
  • 32-bit CardBus PCMCIA Type II (fits PCMCIA Type II or Type III slot)
Standards:
  • IEEE 802.11g and IEEE 802.11b
Driver Support:
  • Windows 98SE/ME/2000/XP
Antenna:
  • Built-in Diversity Patch Antenna
LED Indicator:
  • Power, Link Activity
Dimensions (L x W) :
  • 118 x 54 mm(4.65 x 2.1 inches)
Weight:
  • 40g. (1.4 oz.)
Temperature:
  • Operating: 0° ~ 50° C (32° ~ 122° F)
  • Storage : -20° ~ 65° C (-4° ~ 149° F)
Humidity:
  • Max. 95% (Non-Condensing)
Certification:
  • FCC class B, CE
Frequency:
  • 2.4 to 2.4385GHz (Industrial Scientific Medical Band)
Module Technique:
  • 802.11b: CCK (11 and 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps)
  • 802.11g: OFDM
Media Access Protocol:
  • CSMA/CA with ACK
Transmit Power:
  • 15dBm (max.)
Data Rate:
  • 802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps
  • 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps
  • High Speed-G: 125Mbps (Afterburner technology, Enhanced Throughput by up to 40%)
Receiving Sensitivity:
  • 11Mbps 10 – 5 BER @ -80 dBm (typical)
  • 54Mbps 10 – 5 BER @ -65 dBm (typical)
Power Consumption:
  • Operating: (TX: 550mA, RX: 350mA) @ 3.3VDC
  • Idle: 225mA @ 3.3VDC ; Radio Disabled: <10mA @ 3.3VDC
Channel:
  • 1~13 Channels

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
