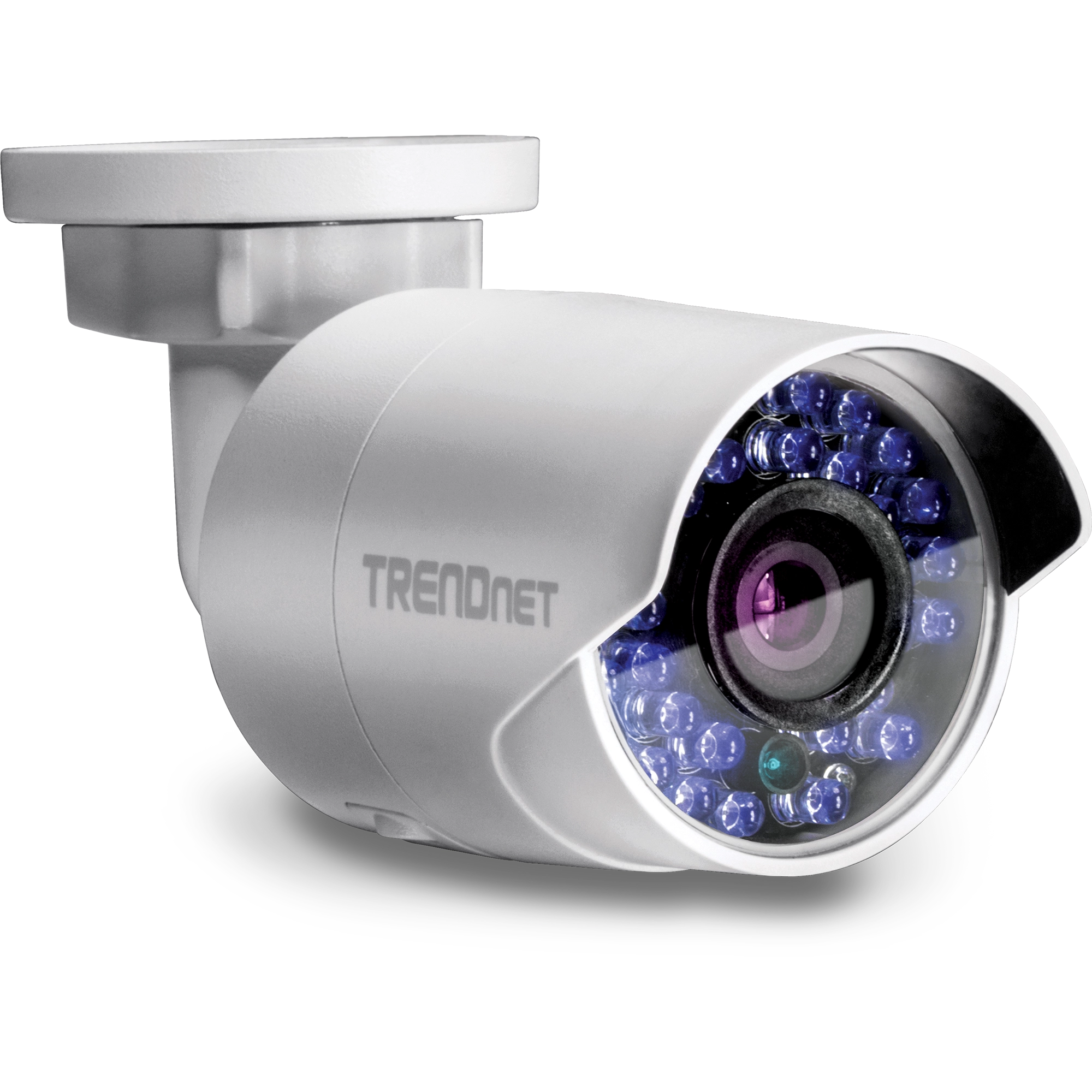

Indoor / Outdoor 1.3 MP HD WiFi IR Network Camera

TV-IP322WI   (Version v1.0R)

  • 1.3 Megapixel HD resolution (960p)
  • Connect to a WiFi N or PoE network
  • Compact IP66 weather rated housing
  • Night vision up to 30 meters (100 ft.)
  • Program motion detection recording and email alerts
  • MicroSD card slot (up to 64 GB)
  • Digital Wide Dynamic Range image balancing
  • ONVIF and IPv6 support


DISCONTINUED PRODUCT

The TV-IP322WI (Version v1.0R) has been discontinued. It has been replaced by the TV-IP1314PI (Version v1.0R). For a list of discontinued products, click here.

Utility

Camera Utility
Filename: Camera_Utility.zip
SHA-1 Checksum: 679B96BB0EF1F0763DC23D01D670C8FC4E943004
Date: 10/27/2017
File Size: 20.98 MB
Download

Drivers/Utility

MAC Plug-in
Web plug-in for MAC OS

Release Date: 07/2018
Release Note:
  • Updated latest Mac OS 10.12 support

Filename: Mac_Plugin.zip
SHA-1 Checksum: 52A5EC411C0FC29CF41C3557E08437EA83AE5B16
Date: 7/31/2018
File Size: 3.66 MB
Download

Firmware

Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection.
Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only

Incremental updates required.
Update Firmware in the following order: 5.3.3 to 5.3.4

Firmware Version: 5.3.4
Release Date: 9/2021
Release Note:

  1. Security update


Filename: TV-IP322WI(5.3.4_build_210929).zip
SHA-1 Checksum: 64066F0D053B6CA9FC0F8A5D076F79B0C762CBA3
Date: 10/1/2021
File Size: 14.01 MB
Download
Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection.
Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only

Firmware Version: 5.3.3
Release Date: 3/2016
Notes:

  • Address Windows 10 viewing compatibility
  • Update security patch


Filename: FW_TV-IP320PI_320PI2K_321PI_322WI(5.3.3).zip
SHA-1 Checksum: CBAB9BCB367B8984FACFC2EABC9AFA11ED39BBBD
Date: 11/21/2017
File Size: 14.03 MB
Download

Software

TRENDnetView Evo Advanced camera management software (64-bit)

Release Note:

  1. Added TV-IP323PI, TV-IP460PI, TV-IP344PIv2, TV-IP345PIv2, TV-IP328PI, TV-IP329PI support
  2. Fixed TV-NVR408, TV-NVR416 detection issue
  3. Fixed PT speed on TV-IP420P, TV-IP440PI issue
  4. Removed offline activation option

Version 1.12.0

Product Information
Filename: TRENDnetView_EVO__x64_1.12.0.zip
SHA-1 Checksum: A4566734A9DBAE4DD283B85576AEB4E0FF8A0B96
Date: 2/14/2019
File Size: 372.89 MB
Download
TRENDnetView Evo Advanced camera management software (32-bit)

Release Note:

  1. Added TV-IP323PI, TV-IP460PI, TV-IP344PIv2, TV-IP345PIv2, TV-IP328PI, TV-IP329PI support
  2. Fixed TV-NVR408, TV-NVR416 detection issue
  3. Fixed PT speed on TV-IP420P, TV-IP440PI issue
  4. Removed offline activation option

Version 1.12.0

Product Information
Filename: TRENDnetView_EVO__x86_1.12.0.zip
SHA-1 Checksum: B9F07E9FAA203B8CA71FCB1489EAC236BF1D0E23
Date: 2/14/2019
File Size: 269.18 MB
Download

Datasheet

Datasheet (English)
Filename: EN_datasheet_TV-IP322WI(v1.0R).pdf
Date: 3/30/2017
File Size: 1.09 MB
Download Email
Datasheet (Français)
Filename: FR_datasheet_TV-IP322WI(v1.0R).pdf
Date: 3/30/2017
File Size: 1.12 MB
Download Email
Datasheet (Deutsch)
Filename: GE_datasheet_TV-IP322WI(v1.0R).pdf
Date: 3/30/2017
File Size: 1.11 MB
Download Email
Datasheet (Português)
Filename: PO_datasheet_TV-IP322WI(v1.0R).pdf
Date: 3/30/2017
File Size: 1.10 MB
Download Email
Datasheet (Español)
Filename: SP_datasheet_TV-IP322WI(v1.0R).pdf
Date: 3/30/2017
File Size: 1.10 MB
Download Email
Datasheet (Pусский)
Filename: RU_datasheet_TV-IP322WI(v1.0R).pdf
Date: 3/30/2017
File Size: 1.18 MB
Download Email
Datasheet (Italiano)
Filename: IT_datasheet_TV-IP322WI(v1.0R).pdf
Date: 3/30/2017
File Size: 1.10 MB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: EN_Web_TV-IP322WI(V1.1R).pdf
Date: 5/18/2017
File Size: 1.55 MB
Download
Quick Installation Guide (Français)
Filename: FR_Web_TV-IP322WI(V1.1R).pdf
Date: 5/18/2017
File Size: 1.56 MB
Download
Quick Installation Guide (Deutsch)
Filename: GE_Web_TV-IP322WI(V1.1R).pdf
Date: 5/18/2017
File Size: 1.41 MB
Download
Quick Installation Guide (Português)
Filename: PT_Web_TV-IP322WI(V1.1R).pdf
Date: 5/18/2017
File Size: 1.41 MB
Download
Quick Installation Guide (Español)
Filename: SP_Web_TV-IP322WI(V1.1R).pdf
Date: 5/18/2017
File Size: 1.41 MB
Download
Quick Installation Guide (Italiano)
Filename: ITA_Web_TV-IP322WI(V1.1R).pdf
Date: 5/18/2017
File Size: 1.40 MB
Download

User's Guide

User's Guide
Filename: UG_TV-IP322WI_(v1.1R).pdf
Date: 8/9/2017
File Size: 4.25 MB
Download

Product Images

JPEG Image
File Size: : 1.12 MB
Date: : 5/18/2017
Download
JPEG Image
File Size: : 702.89 KB
Date: : 5/18/2017
Download
ROHS compliant WEEE crossed-out bin symbol.
Lens
  • Focal length: 4 mm
  • Focal depth: 20 cm+
  • Aperture: F2.0
  • Board lens
  • Sensor: 1/3" progressive scan CMOS
Viewing Angle
  • Horizontal: 71.6°
  • Vertical: 52°
  • Diagonal: 92°
Zoom
  • User-defined digital zoom
Minimum Illumination
  • IR off: 0.028 lux
  • IR on: 0 lux
  • IR Wavelength: 850nm
  • 30 meter IR illumination distance
  • Smart IR reduces close object overexposure
Video
  • D-WDR: 0-100 scale
  • 3D Digital Noise Reduction (DNR)
  • Shutter speed: 1/3 - 1/100,000
  • H.264: 1280 x 960 up to 30 fps
  • MJPEG: 704 x 480 up to 30 fps
Hardware Standards
  • IEEE 802.1X
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3af
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Device Interface
  • 10/100 Mbps PoE port
  • Power port (for wireless installations)
  • Integrated adjustable mounting base
  • MicroSD card slot (up to 64 GB)
  • WPS button
  • Reset button
  • LED indicator
Frequency
  • 2.412 – 2.483 GHz
Modulation
  • 802.11b: CCK, QPSK, BPSK
  • 802.11g/n: OFDM
Antenna Gain
  • Built-in 3dBi
Encryption
  • 64/128-bit, WPA/WPA2-PSK
Data Rate
  • 802.11b: up to 11 Mbps
  • 802.11g: up to 54 Mbps
  • 802.11n: up to 150 Mbps
Output Power
  • 802.11b: 17 ± 1.5 dBm (typical)
  • 802.11g: 14 ± 1.5 dBm (typical)
  • 802.11n: 12.5 ± 1.5 dBm (typical)
Receiving Sensitivity
  • 802.11b: -90 dBm at 11 Mbps
  • 802.11g: -75 dBm at 54 Mbps
  • 802.11n: -74 dBm at 150 Mbps
Channel
  • 1-11 (FCC), 1-13 (ETSI)
Wireless Range
  • 50 Meter (depends on the environment)
Housing
  • Weather rating: IP66
Network Protocol
  • IPv4, IPv6, UDP, TCP, ICMP, ONVIF v2.2, DHCP, NTP, DNS, DDNS, SMTP, FTP, SNMP (v1, v2c, v3), QoS, IGMP, Bonjour
  • NFS, SMB/CIFS
  • HTTP, HTTPS
  • PPPoE
  • UPnP, RTSP, RTP, RTCP, SSL
Operating Temperature
  • -30 – 60 °C (-22 – 140 °F)
Operating Humidity
  • Max. 95% non-condensing
Certifications
  • CE
  • FCC
  • UL 60950
Dimensions
  • 150 x 60 x 75 mm (5.9 x 2.4 x 3.0 in.)
Weight
  • 334 g (11.9 oz.)
Power
  • Input: 100 – 240 V 50/60 Hz 0.3 A
  • Output: 12 V 1 A
  • Consumption: 7 Watts max.
  • PoE: 802.3af
Management Interface
  • Multi-language support: English, French, German, Russian, and Spanish
  • IP address filter
  • QoS traffic prioritization
  • Time, date, and text overlay
  • Image settings: brightness, contrast, saturation, sharpness, smart IR, exposure time (1/3 – 1/100,000), video standard, day/night switch, sensitivity, switch time, mirror, D-WDR, white balance, digital noise reduction
  • D-WDR enhances video quality in high contrast daytime lighting
  • 3D Digital Noise Reduction enhances night vision quality
  • Scheduled recording: continuous and motion detection
  • Video storage: to computer, NAS, CIFS/SAMBA share or through software
  • Motion detection fields: define custom motion detection areas, motion sensitivity, and dynamic motion analysis
  • Privacy masks: define custom privacy mask areas
  • Tamper detection: email notification if the viewing field darkens suddenly
  • Video playback: advanced playback functionality with visual timeline displaying detected motion and scheduled recordings
  • Alert messages: storage full, storage error, and illegal login
  • Snapshot: real time snapshot, motion detection with schedule, video tamper detection with schedule
  • Supported dynamic DNS services: Dyn.com and NO-IP.com
  • Management Setting: maximum 32 user accounts
  • Supports remote management
  • Storage logs: Alarm, Exception, Operation, and others
  • Compatibility: Internet Explorer® 9.0 or higher
TRENDnetView Pro Software
  • Supports up to 32 TRENDnet cameras
  • Multiple language support
  • Set recording options (motion detection, schedule, event trigger)
  • Search and playback
  • Custom viewing modes and options
  • Compatibility: Windows® 10, 8.1, 8, 7, Vista, XP, Windows Server® 2003, 2008
TRENDnet IPView App
  • Free iOS and Android™ app
  • View your camera on your mobile device
  • Take snapshots
  • Zoom
Warranty
  • 3 year limited

PACKAGE CONTENTS
  • TV-IP322WI
  • CD-ROM (Utility, Software & User's Guide)
  • Quick Installation Guide
  • Camera mounting hardware
  • Power adapter (12V 1A)
  • Network Cable (2 m / 6.5 ft.)

Compatible NVR: www.trendnet.com/info/tv-nvr104

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
