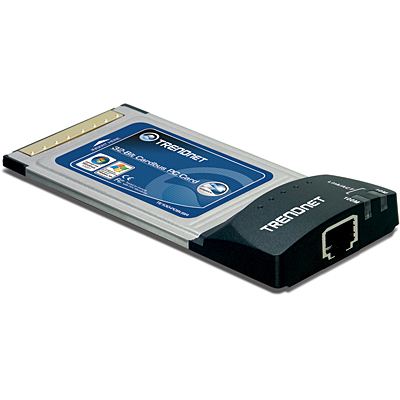

10/100Mbps PC Card

TE100-PCBUSR   (Version 2.xR)

   Select Another Version
  • Install a fast Ethernet port on your laptop in minutes
  • Save time by sharing files and accessing data quickly
  • Plug it in and start accessing the network right away

DISCONTINUED PRODUCT

The TE100-PCBUSR (Version 2.xR) has been discontinued. It has been replaced by the TU2-ET100 (Version v6.0R). For a list of discontinued products, click here.

Utility

Driver/Utility
Filename: TE100-PCBUSR(2.21).zip
SHA-1 Checksum: 78A1FF9A6E68F5529D8CC516B61C16949A7C6B06
Date: 7/25/2017
File Size: 700.83 KB
Download

Datasheet

Datasheet (English)
Filename: EN_Spec_TE100-PCBUSR(V2.0R).pdf
Date: 9/23/2010
File Size: 678.57 KB
Download Email
Datasheet (Français)
Filename: FR_Spec_TE100-PCBUSR(V2.0R).pdf
Date: 9/23/2010
File Size: 689.40 KB
Download Email
Datasheet (Deutsch)
Filename: GE_Spec_TE100-PCBUSR(V2.0R).pdf
Date: 9/23/2010
File Size: 676.69 KB
Download Email
Datasheet (Español)
Filename: SP_Spec_TE100-PCBUSR(V2.0R).pdf
Date: 9/23/2010
File Size: 696.05 KB
Download Email
Datasheet (Pусский)
Filename: RU_Spec_TE100-PCBUSR(V2.0R).pdf
Date: 9/23/2010
File Size: 1.20 MB
Download Email
Datasheet (Italiano)
Filename: ITA_Spec_TE100-PCBUSR(V2.0R).pdf
Date: 9/23/2010
File Size: 747.29 KB
Download Email

Quick Installation Guide

Windows Vista Quick Installation Guide
Filename: QIG_TE100-PCBUSR_PCIWA_PCIWN_TEG-PCBUSR_PCITXR(VISTA).pdf
Date: 5/2/2013
File Size: 286.84 KB
Download
Quick Installation Guide (English)
Filename: EN_QIG_TE100-PCBUSR_Vista(v2.0R).pdf
Date: 8/20/2007
File Size: 600.86 KB
Download
Quick Installation Guide (Français)
Filename: FR_QIG_TE100-PCBUSR_Vista(v2.0R).pdf
Date: 8/20/2007
File Size: 619.67 KB
Download
Quick Installation Guide (Deutsch)
Filename: GE_QIG_TE100-PCBUSR_Vista(v2.0R).pdf
Date: 8/20/2007
File Size: 600.69 KB
Download
Quick Installation Guide (Português)
Filename: PO_QIG_TE100-PCBUSR.pdf
Date: 6/21/2007
File Size: 488.66 KB
Download
Quick Installation Guide (Español)
Filename: SP_QIG_TE100-PCBUSR_Vista(v2.0R).pdf
Date: 8/20/2007
File Size: 602.93 KB
Download
Quick Installation Guide (Pусский)
Filename: RU_QIG_TE100-PCBUSR_Vista(v2.0R).pdf
Date: 8/20/2007
File Size: 889.93 KB
Download

User's Guide

User's Guide
Filename: UG_TE100-PCBUSR_XP_Vista.pdf
Date: 8/20/2007
File Size: 433.99 KB
Download

Product Images

JPEG Image
File Size: : 364.69 KB
Date: : 1/31/2007
Download
TIFF Image
File Size: : 2.53 MB
Date: : 1/31/2007
Download
ROHS compliant WEEE crossed-out bin symbol.
Hardware
Standards
  • IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet
  • ANSI/IEEE 802.3 Auto-Negotiation
  • PCMCIA 2.x
  • 32-Bit CardBus
Network Media
  • Ethernet: UTP Cat. 3, 4, 5, EIA/TIA-568 100-ohm STP Fast Ethernet: UTP Cat. 5, EIA/TIA-568 100-ohm STP
Data Rate
  • Ethernet: 10Mbps/20Mbps (Half/Full-Duplex) Fast Ethernet: 100Mbps/200Mbps (Half/Full-Duplex)
Protocol
  • CSMA/CD
Interface
  • 32-Bit CardBus Type II
Dimension
  • 120 x 53 x 3mm (4.7 x 2 x 0.1 inches)
Power Consumption
  • 3.3V DC
Diagnostic LED
  • 10M Link/Activity
  • 100M Link/Activity
Supported Drivers
  • Windows 7 (32/64-bit)/ Vista (32/64-bit) /XP (32-bit) /2000/NT4.0/ME /98SE
  • Novell NetWare Server 3.21, 4.1x, 5.0
  • Novell Netware ODI for DOS / ODI Client 32
  • Packet Driver, NDIS 2.0
Temperature
  • Operating: 0° ~ 40° C (32° ~ 104° F)
  • Storage: -10°~ 70° C (14° ~ 158° F)
Humidity
  • Operating: 10%~90% (Non-Condensing)
  • Storage: 5%~90% (Non-Condensing)
Certifications
  • CE, FCC

PACKAGE CONTENTS
  • TE100-PCBUSR
  • Multi-Language Quick Installation Guide
  • CD-ROM (Drivers)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
