WiFi Everywhere™ Powerline 500 Kit

TPL-410APK   (Version v2.0R)

   Select Another Version
  • Create or expand a wireless network with this Powerline adapter
  • 500 AV Powerline and N300 Wireless N
  • Easy installation
  • Two convenient Ethernet ports
  • Includes TPL-406E + TPL-410AP adapters

DISCONTINUED PRODUCT

The TPL-410APK (Version v2.0R) has been discontinued. It has been replaced by the TPL-430APK (Version v2.0R). For a list of discontinued products, click here.

Firmware

Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection.
Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only

Firmware Version: 1.00.04
Release Date: 9/2017
Note:

  1. Addressed LAN IP issue
  2. Improved multi-language user interface
  3. Update security support

Filename: FW_TPL-410AP(1.00.14).zip
SHA-1 Checksum: 0C54062434DCDC1B7C1A0E8BB037D44B48164405
Date: 9/26/2017
File Size: 6.93 MB
Download

Datasheet

Data Sheets (English)
Filename: EN_datasheet_TPL-410APK(v2.0R).pdf
Date: 8/15/2016
File Size: 690.61 KB
Download Email
Data Sheets (Français)
Filename: FR_datasheet_TPL-410APK(v2.0R).pdf
Date: 8/15/2016
File Size: 694.47 KB
Download Email
Data Sheets (Deutsch)
Filename: GE_datasheet_TPL-410APK(v2.0R).pdf
Date: 8/15/2016
File Size: 695.54 KB
Download Email
Data Sheets (Português)
Filename: PO_datasheet_TPL-410APK(v2.0R).pdf
Date: 8/15/2016
File Size: 713.78 KB
Download Email
Data Sheets (Español)
Filename: SP_datasheet_TPL-410APK(v2.0R).pdf
Date: 8/15/2016
File Size: 698.40 KB
Download Email
Data Sheets (Italiano)
Filename: IT_datasheet_TPL-410APK(v2.0R).pdf
Date: 8/15/2016
File Size: 696.73 KB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: EN_SP_lineart_QIG_TPL-410APK(V2).pdf
Date: 1/19/2017
File Size: 1.50 MB
Download
Quick Installation Guide (Français)
Filename: FR_GE_lineart_QIG_TPL-410APK(V2).pdf
Date: 1/19/2017
File Size: 1.48 MB
Download
Quick Installation Guide (Deutsch)
Filename: FR_GE_lineart_QIG_TPL-410APK(V2).pdf
Date: 1/19/2017
File Size: 1.48 MB
Download
Quick Installation Guide (Português)
Filename: PT_ITA_lineart_QIG_TPL-410APK(V2).pdf
Date: 1/19/2017
File Size: 1.48 MB
Download
Quick Installation Guide (Spanish)
Filename: EN_SP_lineart_QIG_TPL-410APK(V2).pdf
Date: 1/19/2017
File Size: 1.50 MB
Download
Quick Installation Guide (Italiano)
Filename: PT_ITA_lineart_QIG_TPL-410APK(V2).pdf
Date: 1/19/2017
File Size: 1.48 MB
Download

User's Guide

User's Guide
Filename: UG_TPL-410AP(v2.0R)_410APK(v2.0R).pdf
Date: 8/15/2016
File Size: 1.91 MB
Download

Product Images

JPEG Image
File Size: : 8.19 MB
Date: : 8/15/2016
Download
JPEG Image
File Size: : 4.92 MB
Date: : 8/15/2016
Download
JPEG Image
File Size: : 7.91 MB
Date: : 8/15/2016
Download
JPEG Image
File Size: : 6.63 MB
Date: : 8/15/2016
Download
JPEG Image
File Size: : 862.67 KB
Date: : 8/15/2016
Download
JPEG Image
File Size: : 817.28 KB
Date: : 8/15/2016
Download
JPEG Image
File Size: : 7.44 MB
Date: : 8/15/2016
Download
PNG Image
File Size: : 4.56 MB
Date: : 8/15/2016
Download
JPEG Image
File Size: : 5.75 MB
Date: : 8/15/2016
Download
ROHS compliant WEEE crossed-out bin symbol.

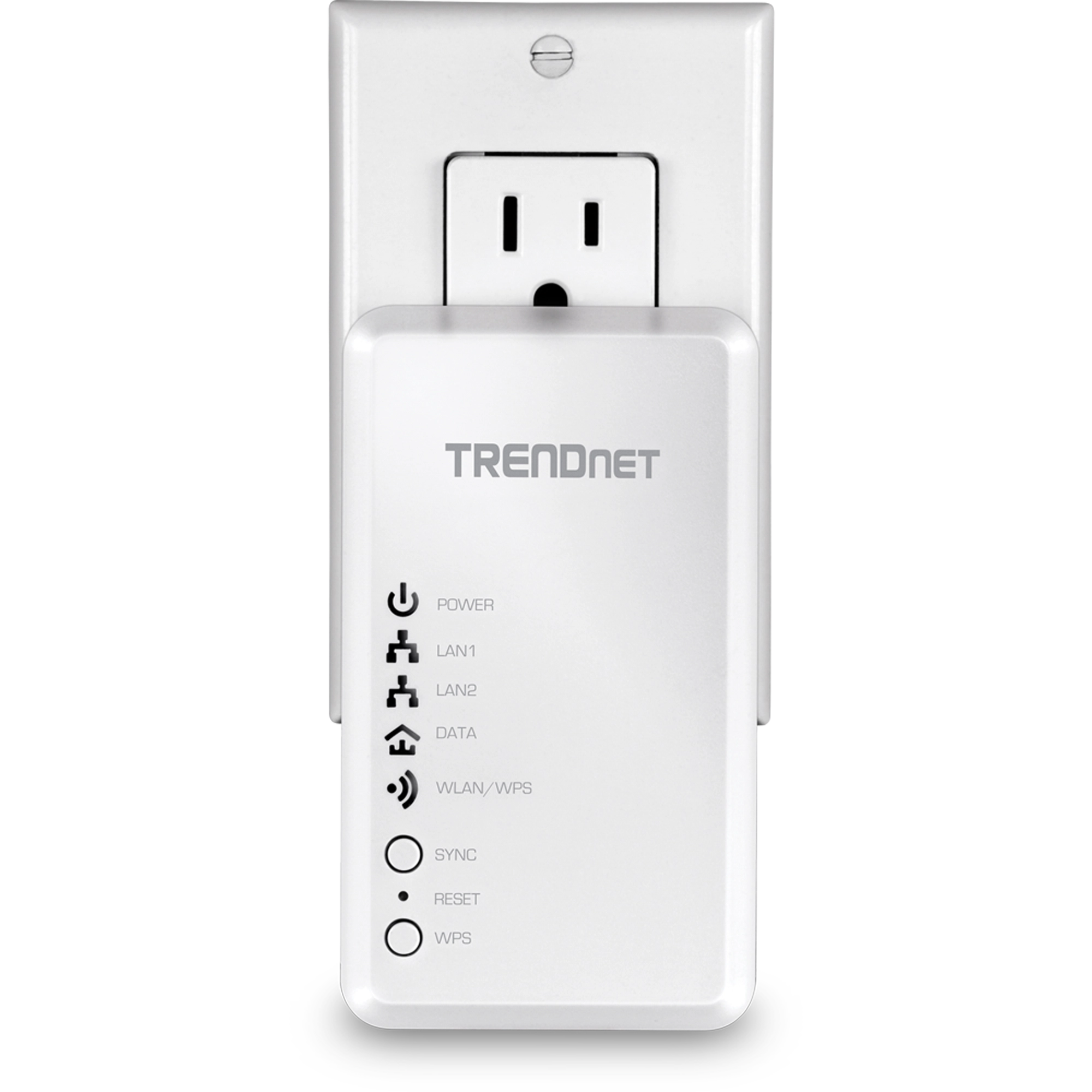

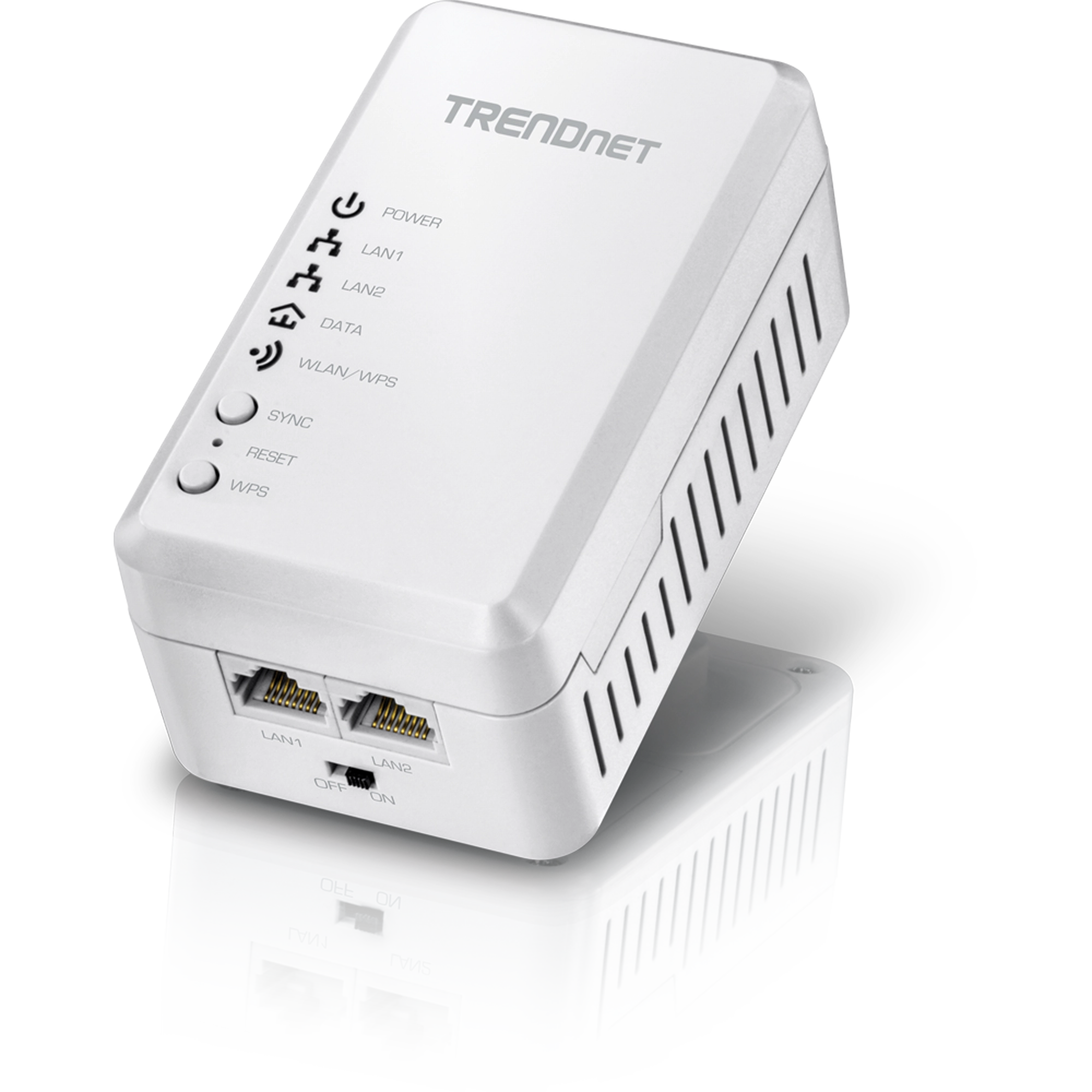

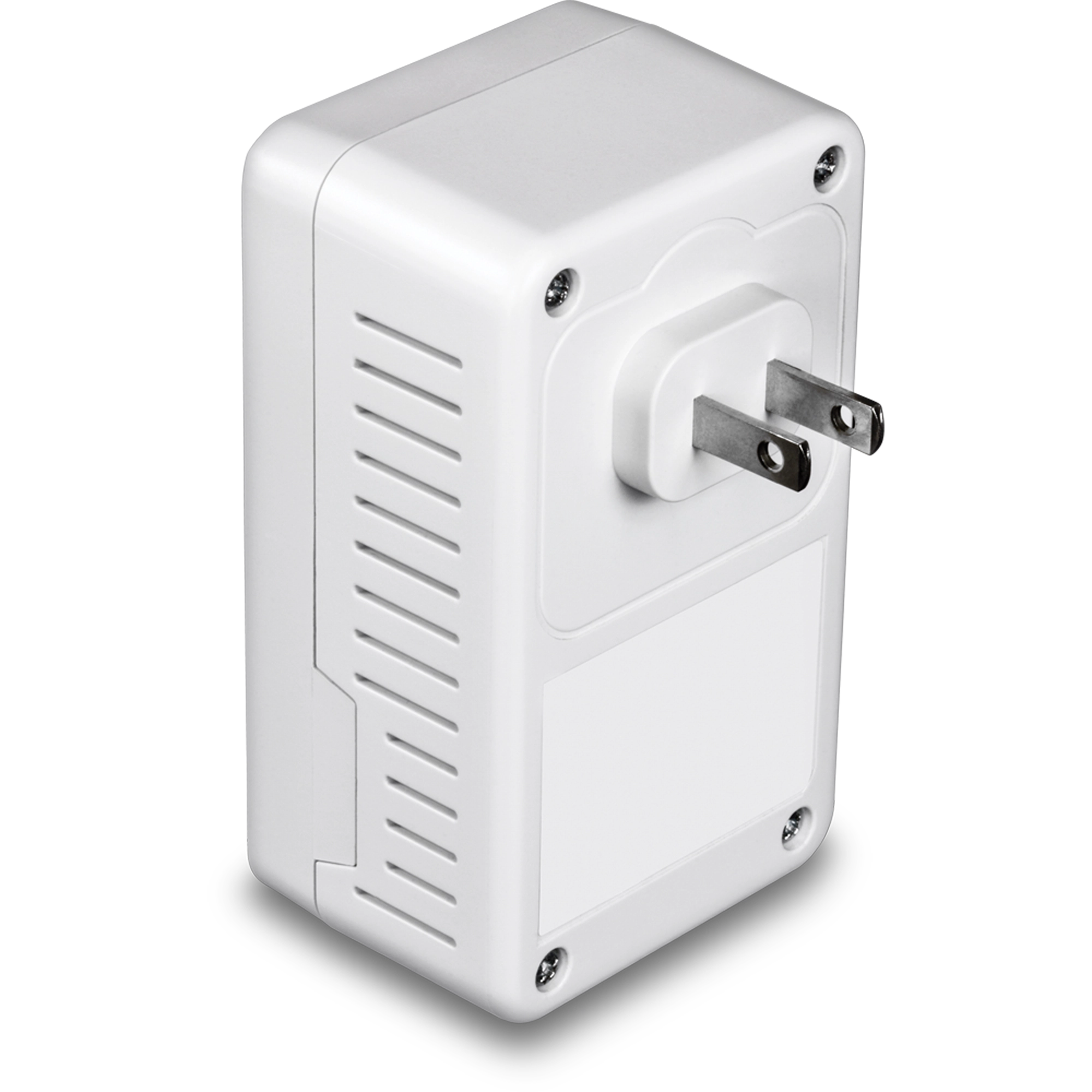

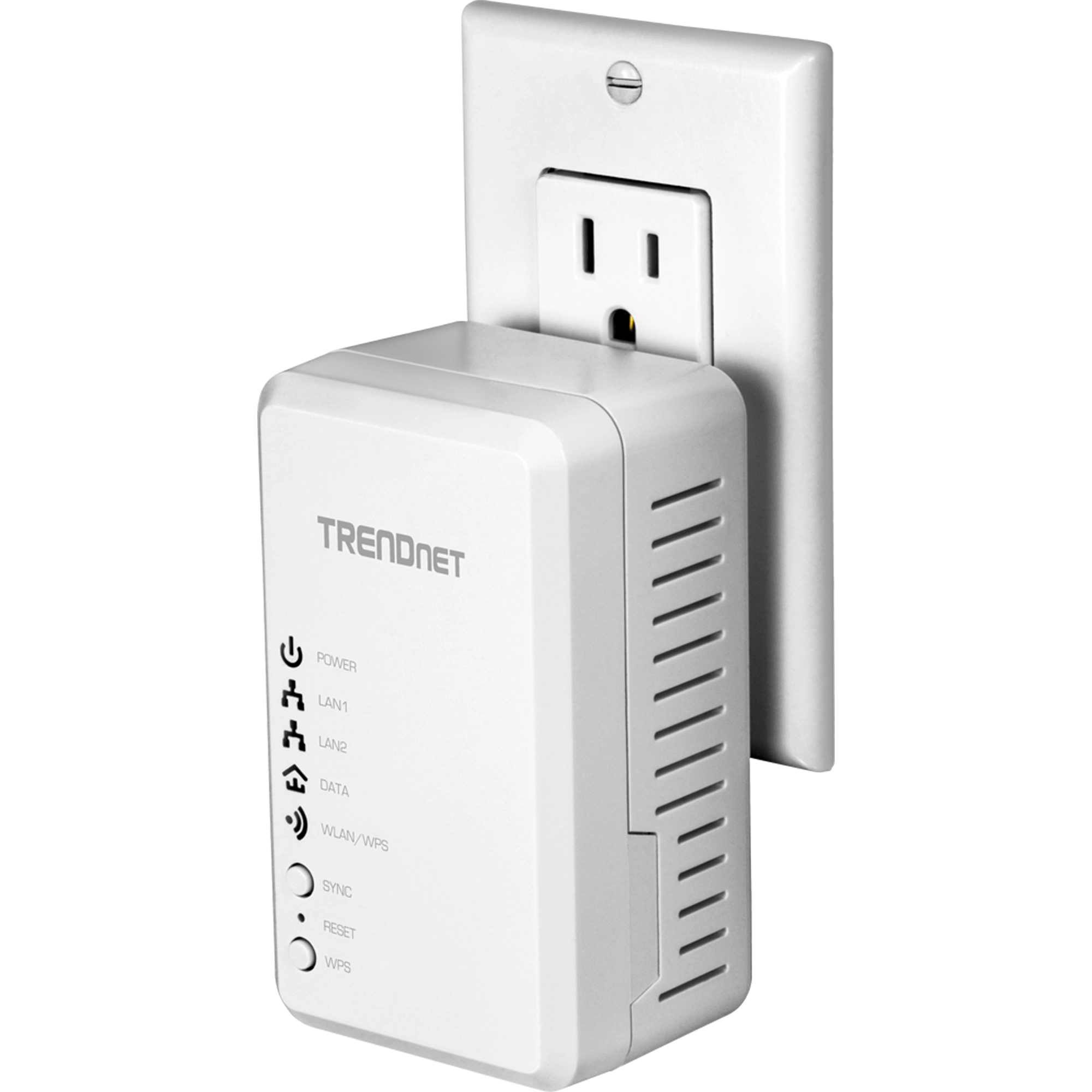

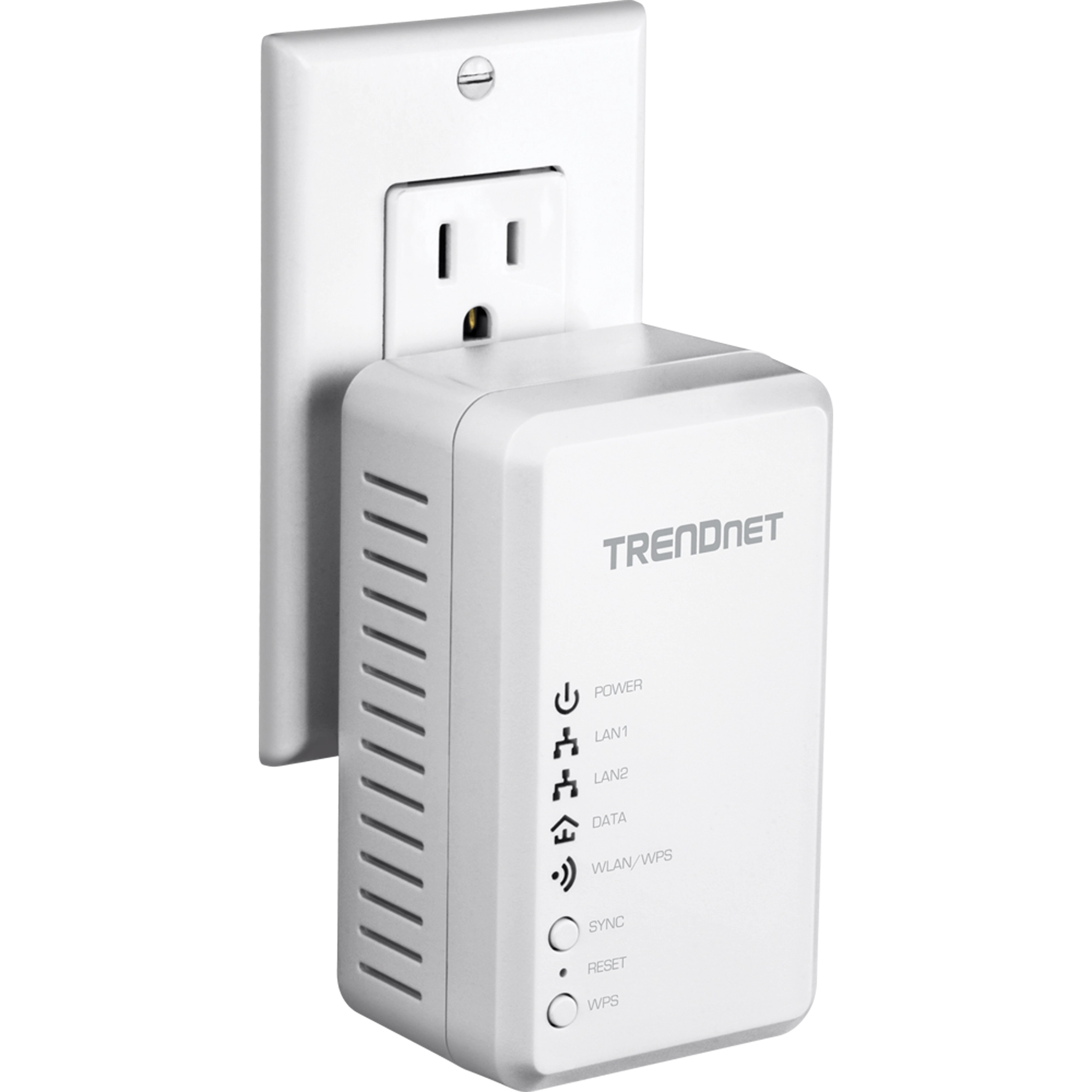

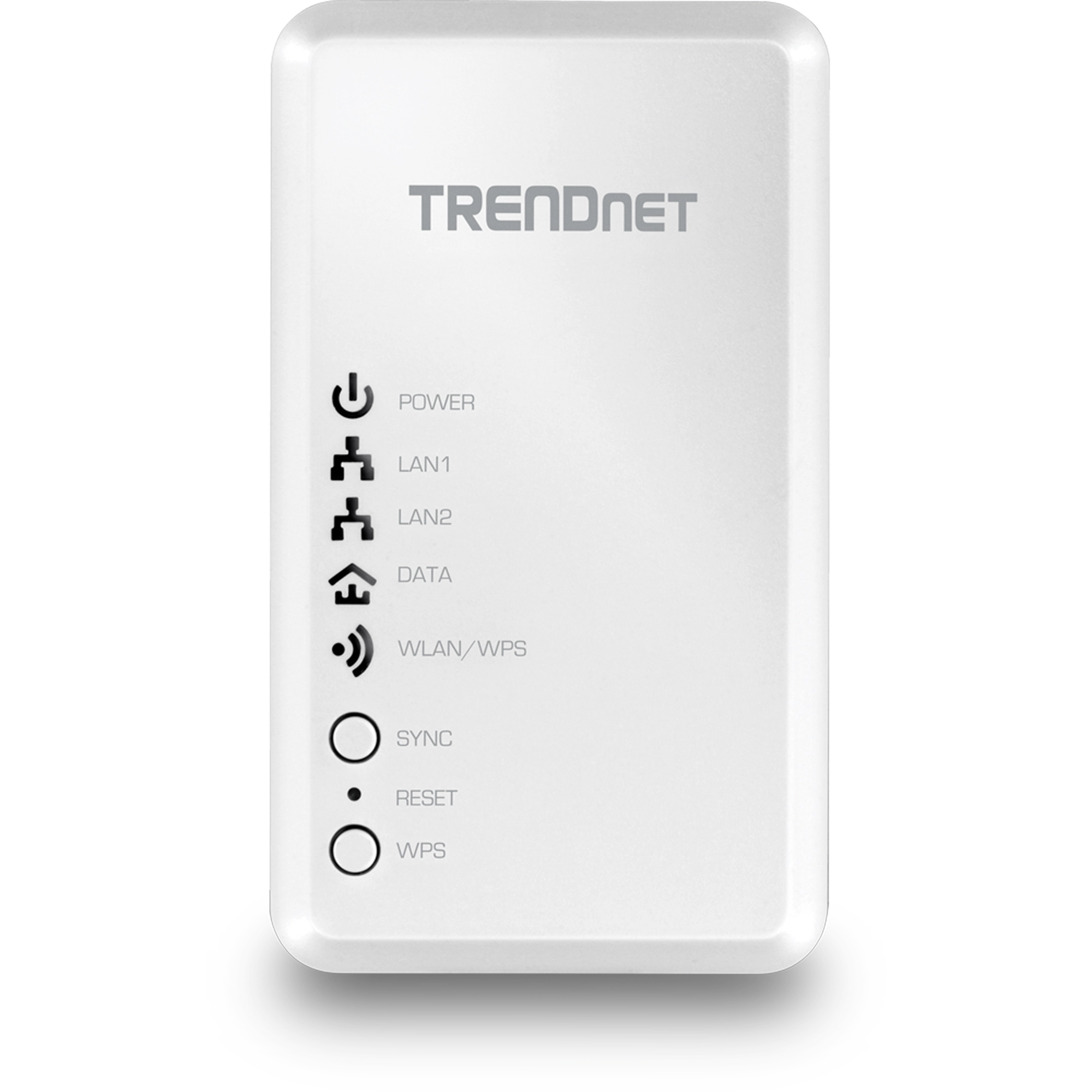

TPL-410AP (v2.0R)
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3az
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n (up to 300 Mbps)
  • IEEE 1901

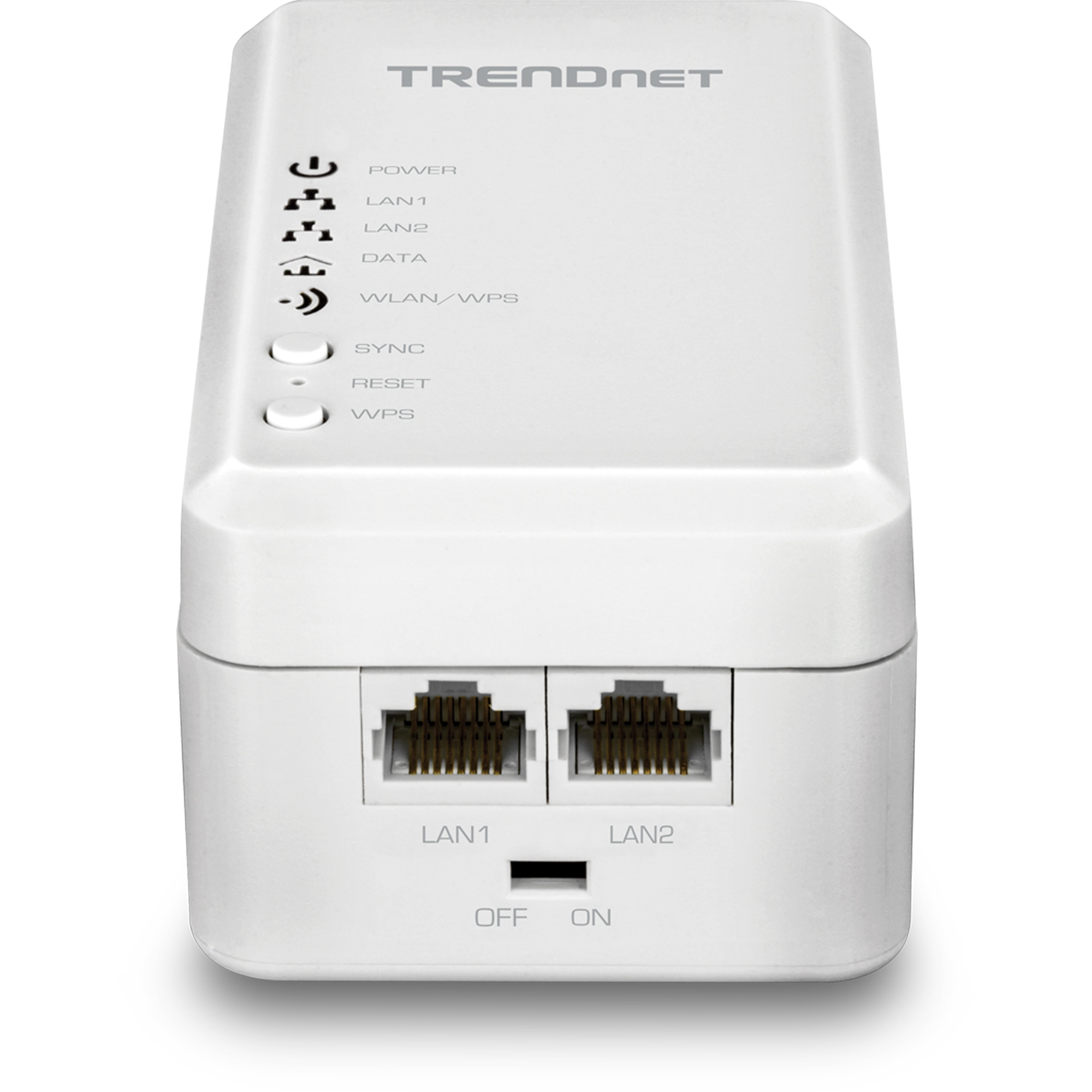

Device Interface
  • 2 x 10/100 Mbps ports
  • Sync button
  • Reset button
  • WPS button
  • Power switch
  • LED indicators

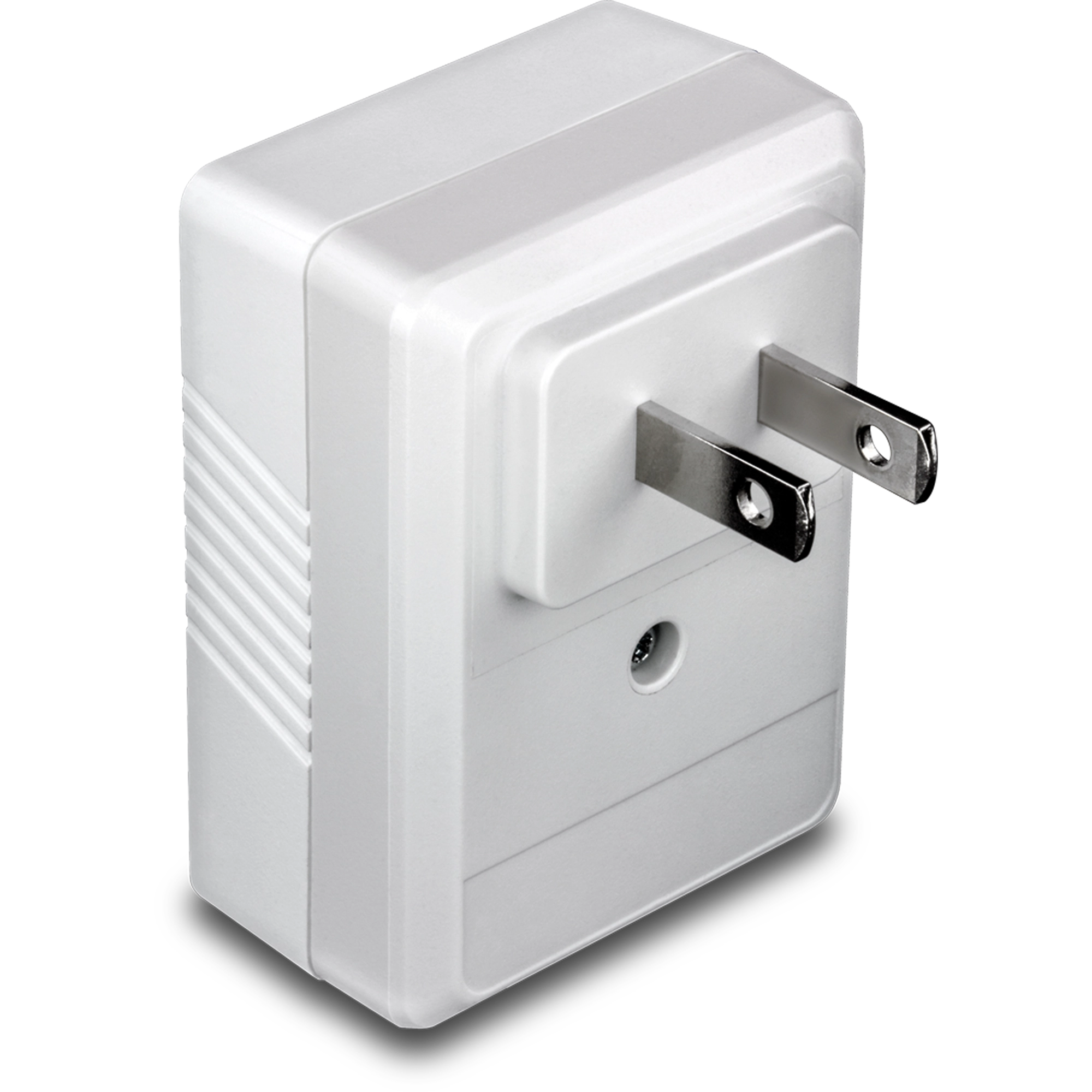

  • Power plug
  • A: North America Type B (NEMA 5–15)
  • EU: Euro Type C (CEE 7/16)
  • UK : United Kingdom Type G (BS 1363)
Frequency Band
  • 2 – 68 MHz
Networking Distance
  • Up to 300 m (980 ft.) linear distance over electrical power lines***
Encryption
  • Wireless: up to WPA2
  • Powerline: 128-bit AES (Advanced Encryption Standard)
Utility OS Compatibility (optional)
  • Windows® 10, 8.1, 8, 7, Vista, XP
Special Features
  • Auto-connects to other TRENDnet Powerline adapters
  • Additional Ethernets port for wired connectivity
Antenna Gain
  • 2.4 GHz: 2 x 3 dBi
Wireless Output Power/Receiving Sensitivity
  • 802.11b: 17 dBm (typical) / -76 dBm (typical) @ 11 Mbps
  • 802.11g: 14.5 dBm (typical) / -66 dBm (typical) @ 54 Mbps
  • 802.11n: 14 dBm (typical) / -68 dBm (typical) @ 300 Mbps
Power
  • Input: 100 – 240 V AC, 50 – 60 Hz, 0.2 A
  • Active mode consumption: 6.5 Watts (max.)
Operating Temperature
  • 0 - 40 °C (32 – 104 °F)
Operating Humidity
  • Max. 90% non-condensing
Certifications
  • CE
  • FCC
  • IC
Dimensions
  • 107 x 62 x 48.5 mm (4.2 x 2.44 x 1.9 in.)
Weight
  • A: 180 g (6.3 oz.)
  • EU: 190 g (6.7 oz.)
  • UK: 190 g (6.7 oz.)

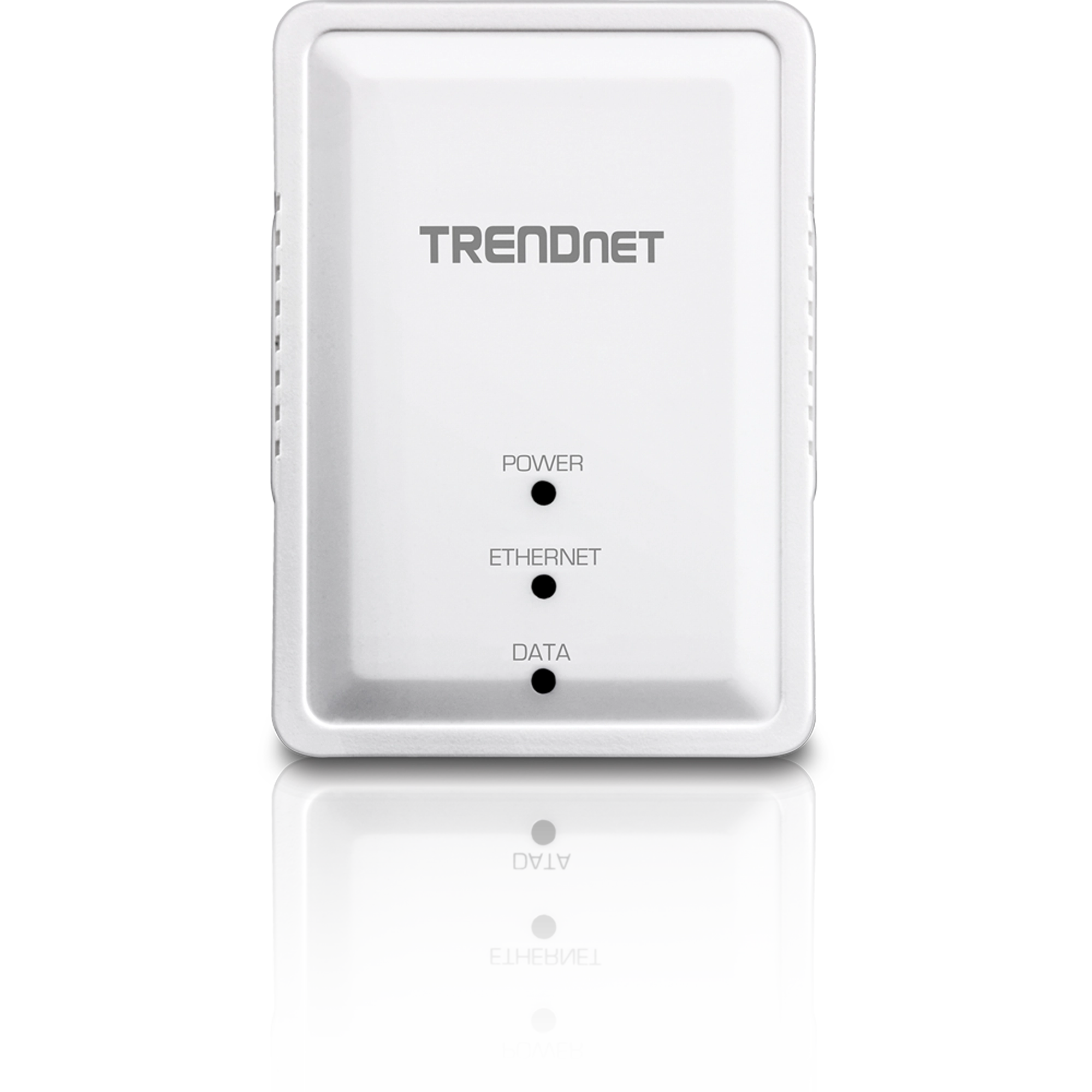

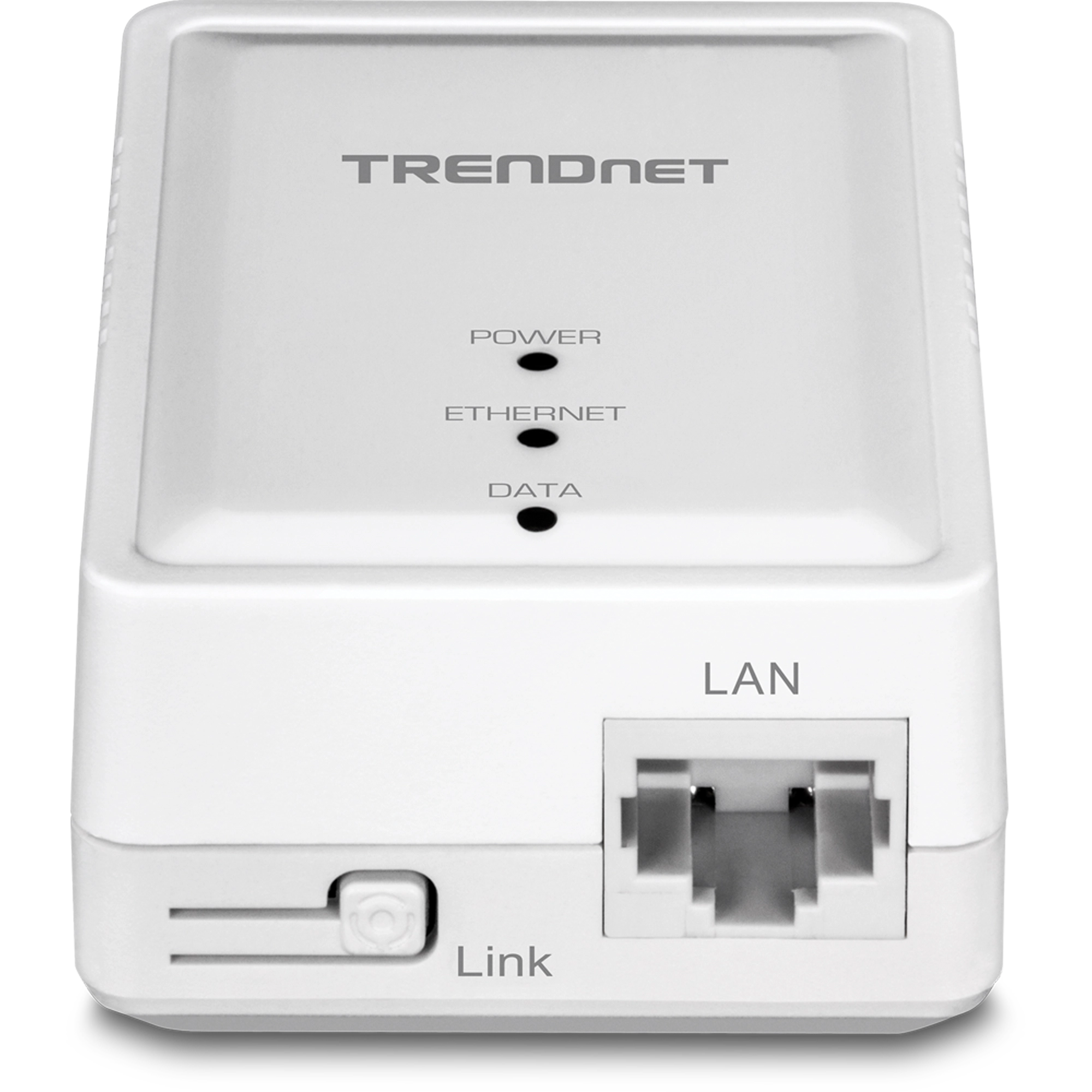

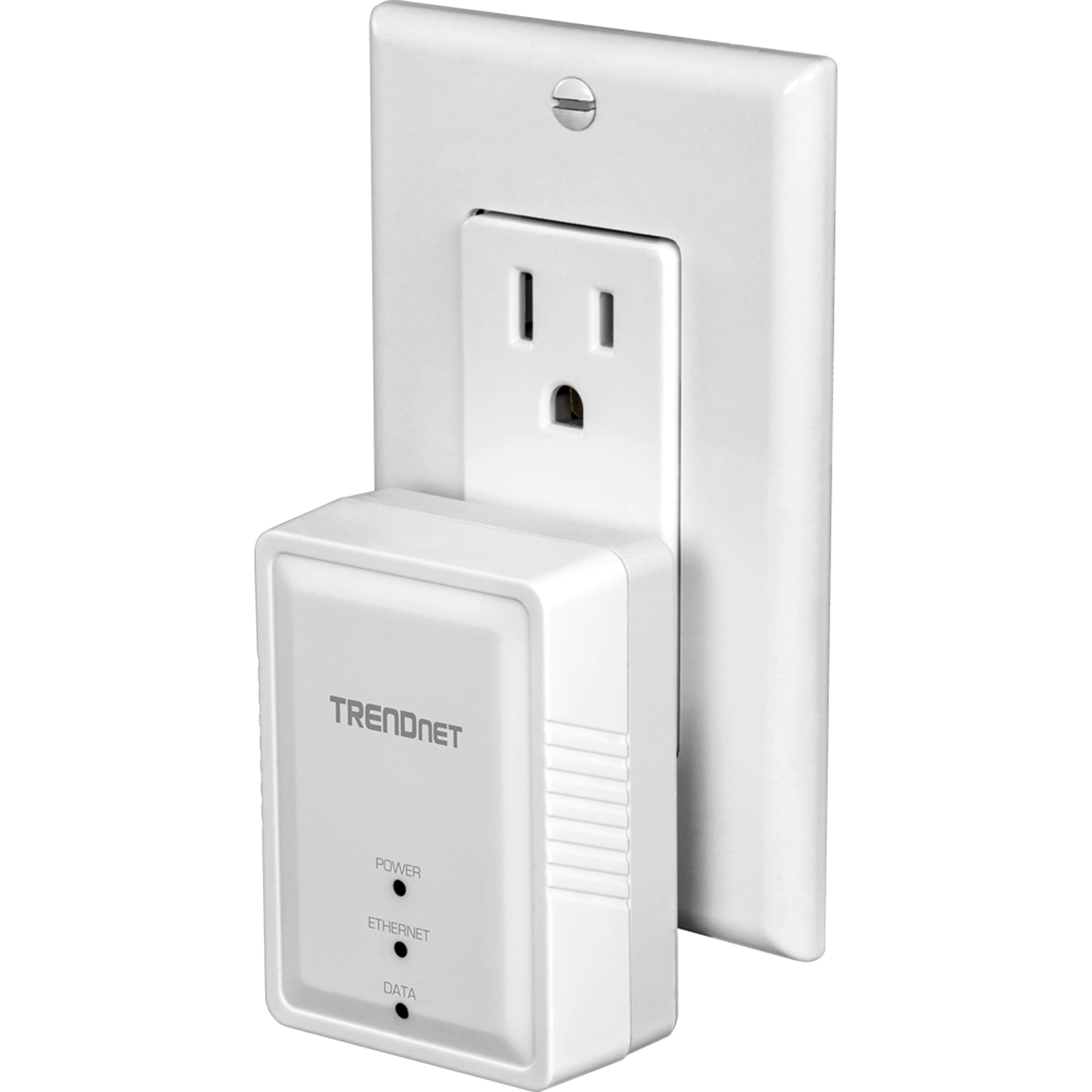

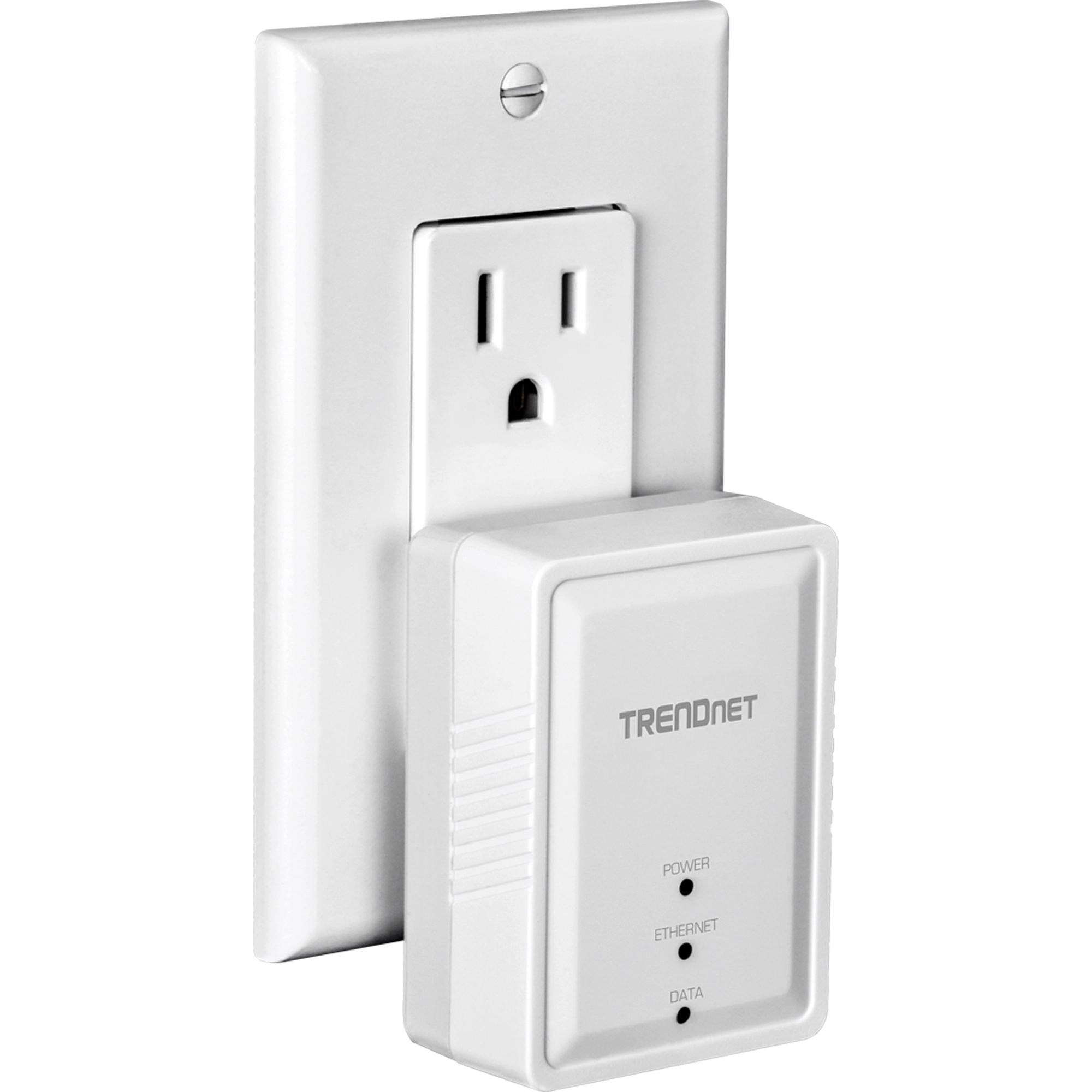

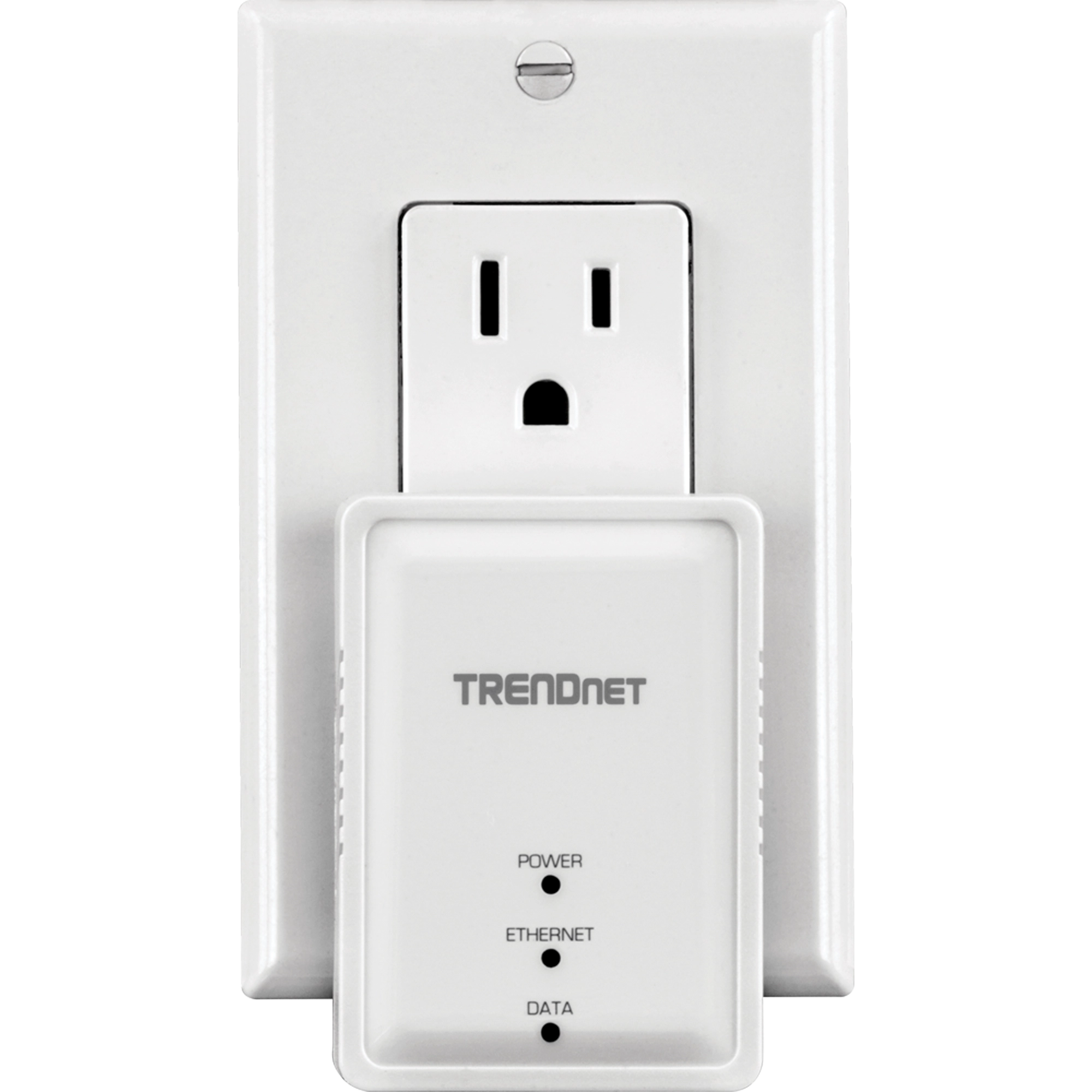

TPL-406E (v2.0R)
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 1901
Device Interfaces
  • Ethernet port
  • Sync / reset button
  • Status LEDs
  • Power plug
  • A: North America Type B (NEMA 5–15)
  • EU: Euro Type C (CEE 7/16)
  • UK: United Kingdom Type G (BS 1363)
Frequency Band
  • 2 – 68MHz
Data PHY Rate
  • Ethernet: Up to 200 Mbps (full-duplex)
Networking Distance
  • Up to 300 m (980 ft.) linear distance over electrical power lines
Encryption
  • 128-Bit AES (Advanced Encryption Standard)
Optional Utility: OS Compatibility
  • Windows® 10, 8.1, 8, 7, Vista, XP
Nodes
  • Up to 8 (max.)
Overlapping Powerline Networks
  • Up to 4 (per electrical system)
Power
  • Input: 100 – 240 V AC, 50/60 Hz
  • Consumption: Active mode: 2.7 Watts (max.); Standby mode: 0.34 Watts (max.)
Operating Temperature
  • 0 – 40 °C (32 – 104 °F)
Operating Humidity
  • Max. 90% non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 68 x 55 x 28 mm (2.7 x 2.2 x 1.1 in.)
Weight
  • A: 64 g (2.2 oz.)
  • EU: 68 g (2.4 oz.)
  • UK: 68 g (2.4 oz.)
Warranty
  • 3 year limited

PACKAGE CONTENTS
  • TPL-410AP
  • TPL-406E
  • Quick Installation Guide
  • 2 x Network cable (1.5 m / 5 ft.)

* Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions
** 500 Mbps is the maximum physical Powerline data rate. Data throughput may vary by circuit wire condition. Maximum of 8 adapters (nodes) recommended for streaming video across your network.
*** Powerline networking is limited to the same electrical system. Power strips, GFCI outlets, and AFCI circuit breakers may degrade Powerline signals.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
