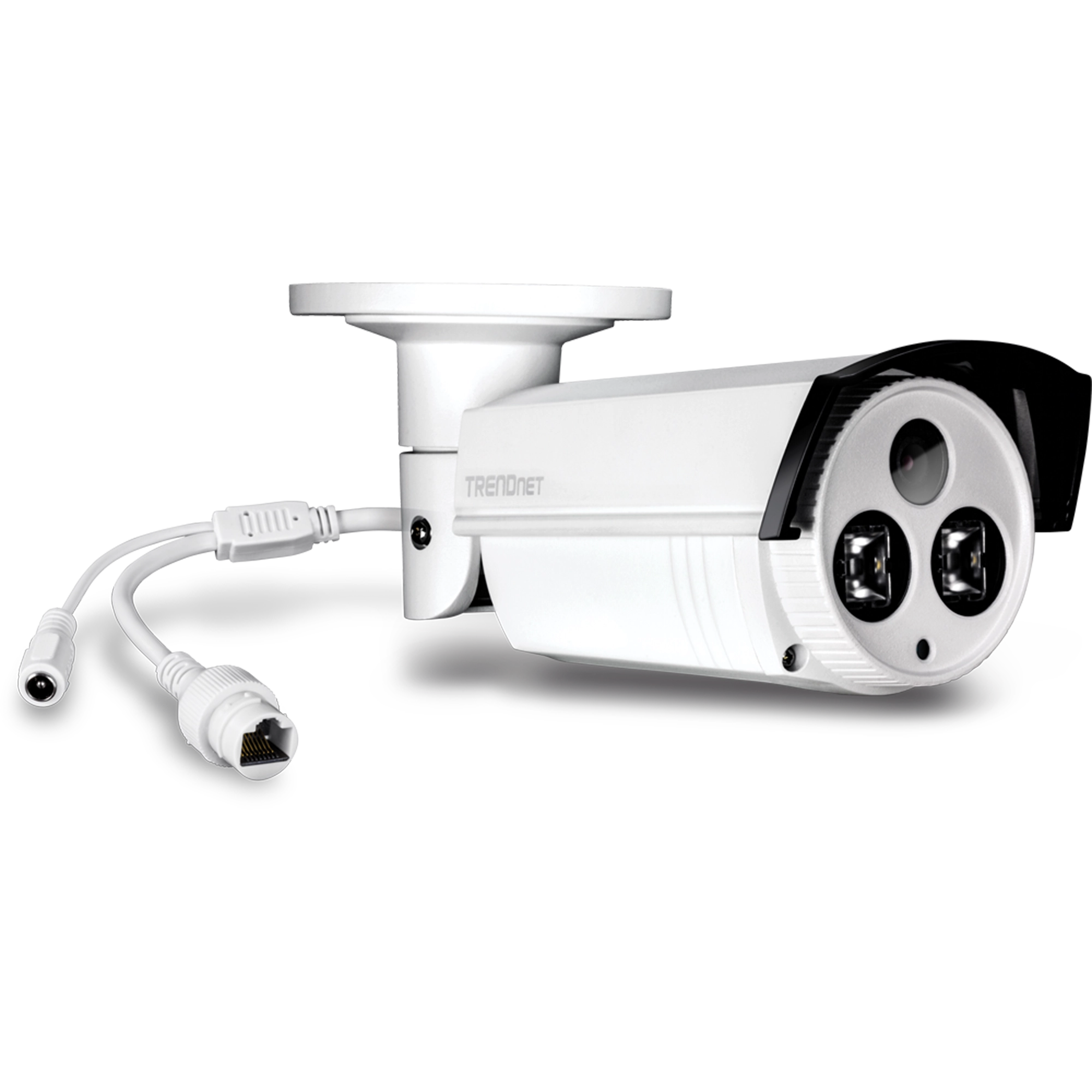

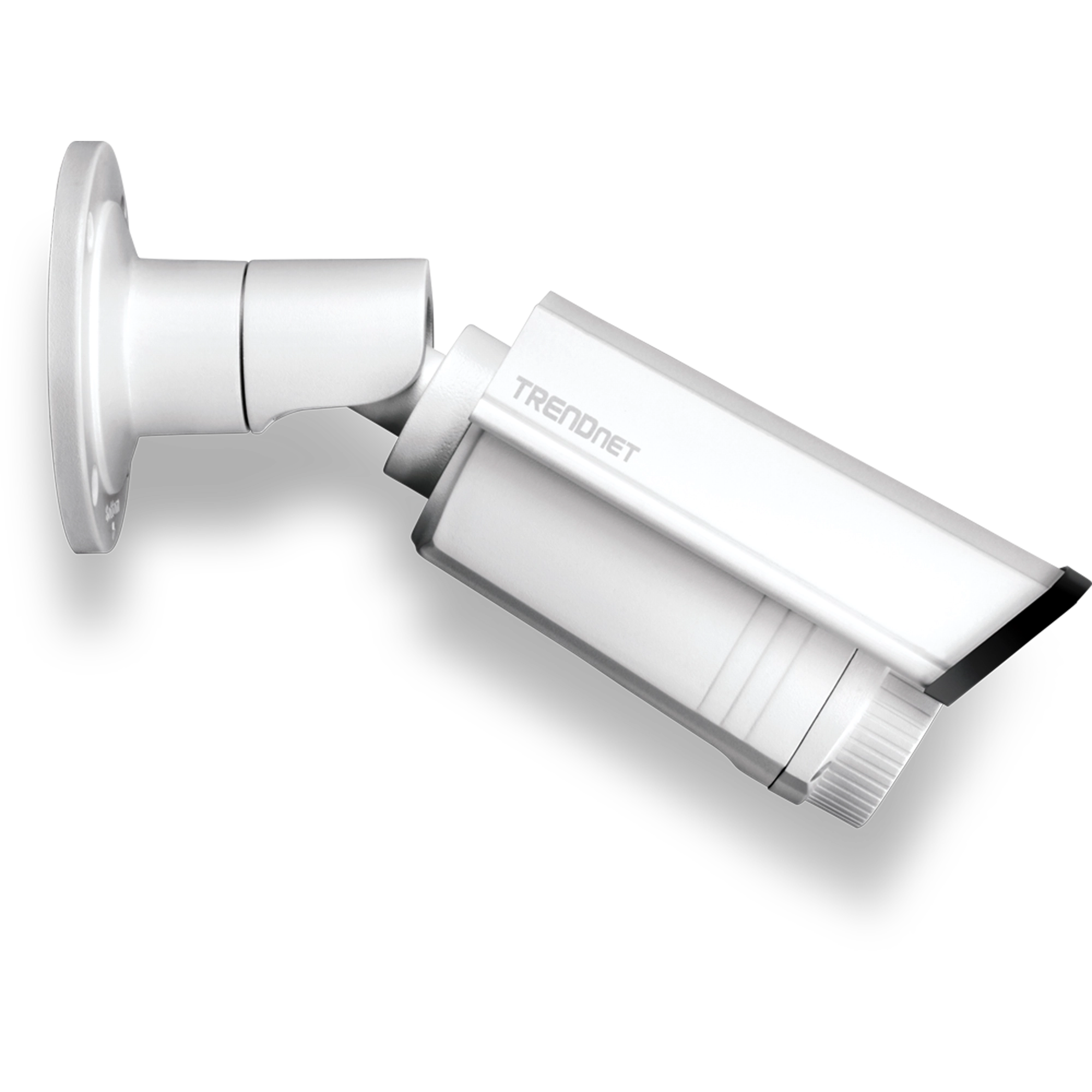

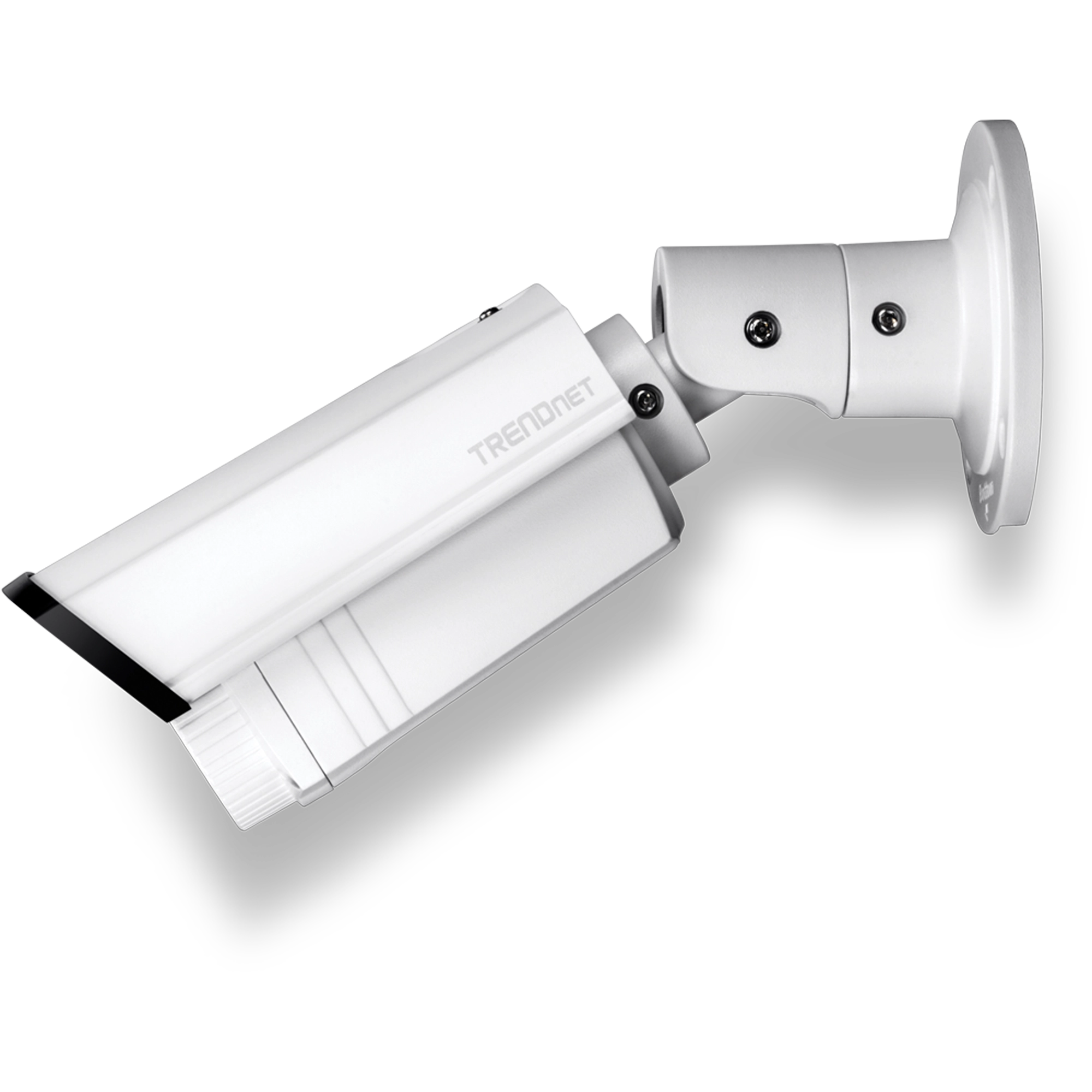

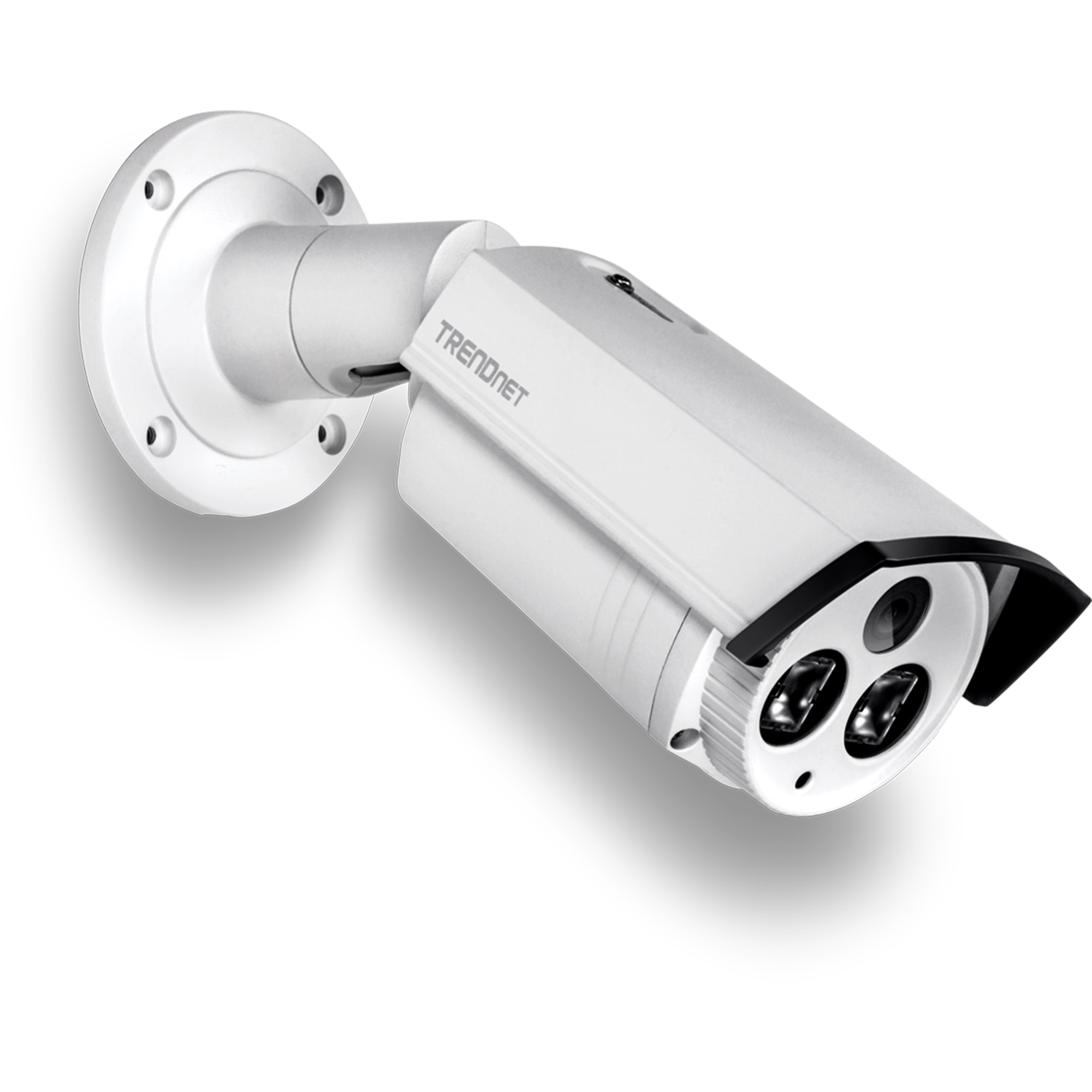

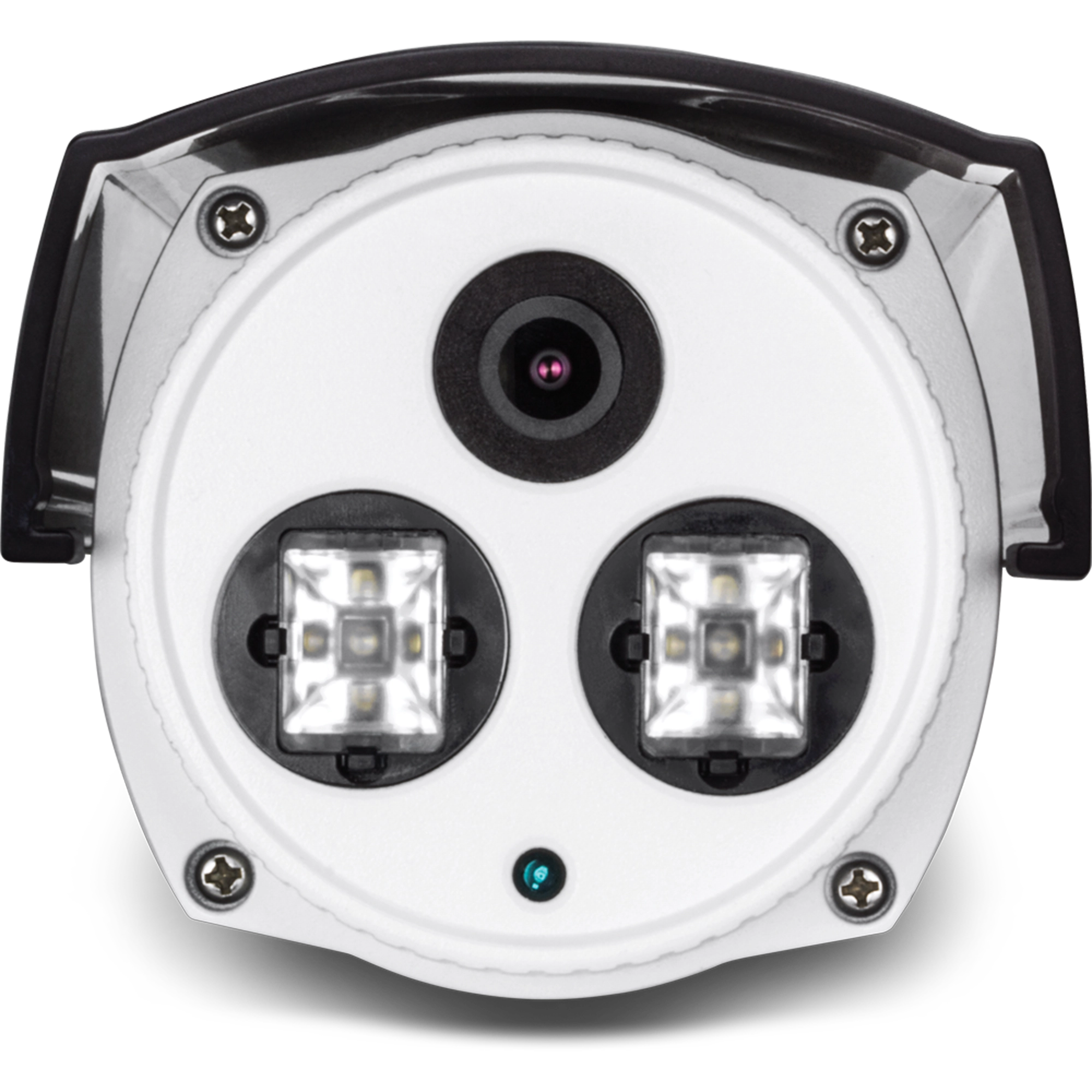

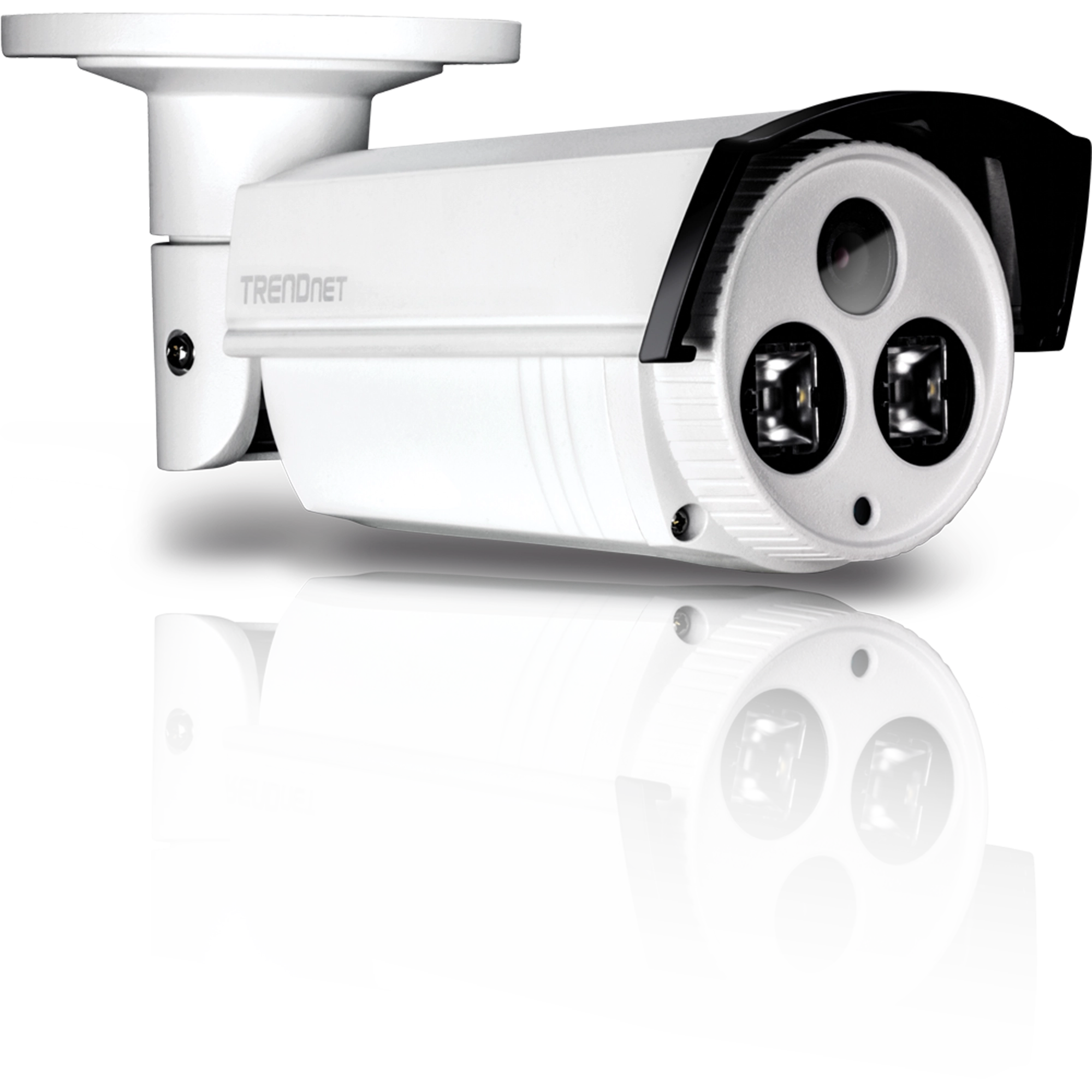

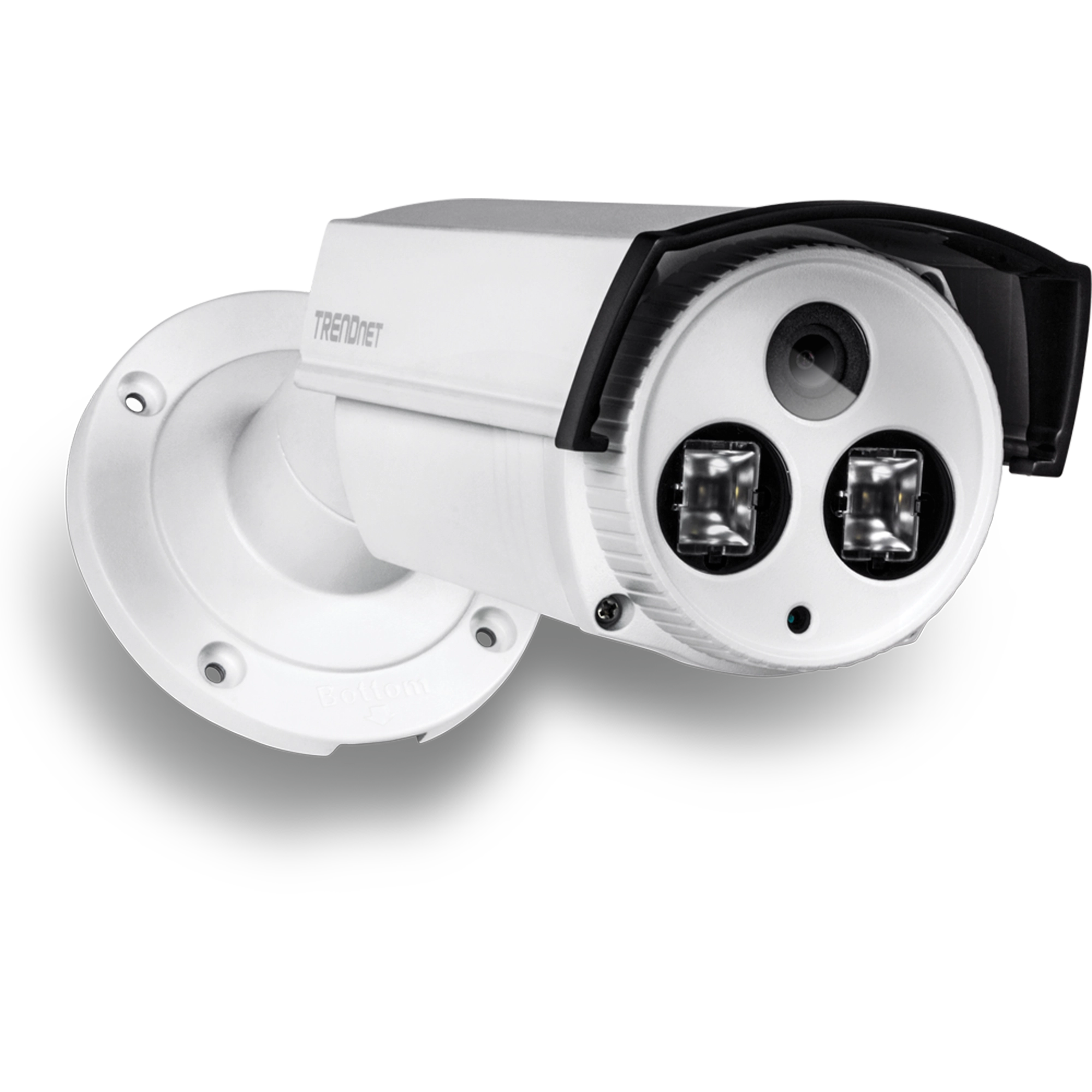

Indoor / Outdoor 3 MP HD PoE IR Network Camera

TV-IP312PI   (Version v1.0R)

   Select Another Version
  • 3 Megapixel max. resolution
  • Night vision up to 50 meters (164 ft.)
  • EXIR provides up to a 30% increase in illuminant efficiency over traditional IR LED array technology
  • Outdoor IP66 weather rating
  • Digital WDR optimizes high contrast lighting environments
  • Free pro-grade management software and mobile app
  • Save installation costs with Power over Ethernet (PoE)
  • ONVIF and IPv6 support

DISCONTINUED PRODUCT

The TV-IP312PI (Version v1.0R) has been discontinued. It has been replaced by the TV-IP1313PI (Version v1.0R). For a list of discontinued products, click here.

Utility

Camera Utility
Filename: Camera_Utility.zip
SHA-1 Checksum: 679B96BB0EF1F0763DC23D01D670C8FC4E943004
Date: 10/27/2017
File Size: 20.98 MB
Download
Camera Reset Utility
Filename: Camera_Reset_Utility.zip
SHA-1 Checksum: 5B41FE54ADFE7027DD928EFDA2A1D2C6957304DB
Date: 7/26/2017
File Size: 25.42 MB
Download

Firmware

Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection.
Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only

Incremental updates required.
Update Firmware in the following order: 5.1.8 to 5.3.3 to 5.3.4

Firmware Version: 5.3.4 Build 170802
Release Date: 8/2017
Notes:

  • Added locking solution after multiple attempts


Filename: FW_TV-IP310PI_311PI_312PI-5.3.4 (170802).zip
SHA-1 Checksum: 33DC231B8C95C8BF7414FD23D135E5C65FADB8E2
Date: 11/22/2017
File Size: 16.64 MB
Download
Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection.
Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only

Firmware Version: 5.3.3
Release Date: 3/2016
Notes:

  • Address Windows 10 viewing compatibility
  • Update security patch


Filename: FW_TV-IP312PI(5.3.3).zip
SHA-1 Checksum: F544A7F67E312381AC7AB9BC707861384D97A0BE
Date: 11/21/2017
File Size: 16.94 MB
Download
Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection.
Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only

Firmware Version: 5.1.8
Release Date: 07/2015
Notes:

  1. Initial release


Filename: FW_TV-IP312PI_V1(5.1.8).zip
SHA-1 Checksum: 68F681F8E36157EA61AE416D11306539146B4660
Date: 11/21/2017
File Size: 16.09 MB
Download

Software

TRENDnetView Evo Advanced camera management software (64-bit)

Version 1.10.0

Product Information
Filename: TRENDnetView_EVO__x64_1.10.0.zip
SHA-1 Checksum: 2B5BD0BFFF960D487E4ADFC1130AE0B64220A986
Date: 8/2/2018
File Size: 367.72 MB
Download
TRENDnetView Evo Advanced camera management software (32-bit)

Version 1.10.0

Product Information
Filename: TRENDnetView_EVO__x86_1.10.0.zip
SHA-1 Checksum: 2963E3F4127E318913ABCDA69CB347364CB39448
Date: 8/2/2018
File Size: 261.77 MB
Download

Datasheet

Datasheet (English)
Filename: EN_spec_TV-IP312PI(v1.0R).pdf
Date: 4/3/2017
File Size: 3.52 MB
Download Email
Datasheet (Français)
Filename: FR_spec_TV-IP312PI(v1.0R).pdf
Date: 4/3/2017
File Size: 3.55 MB
Download Email
Datasheet (Deutsch)
Filename: GE_spec_TV-IP312PI(v1.0R).pdf
Date: 4/3/2017
File Size: 3.68 MB
Download Email
Datasheet (Português)
Filename: PO_spec_TV-IP312PI(v1.0R).pdf
Date: 4/3/2017
File Size: 3.57 MB
Download Email
Datasheet (Español)
Filename: SP_spec_TV-IP312PI(v1.0R).pdf
Date: 4/3/2017
File Size: 3.61 MB
Download Email
Datasheet (Italiano)
Filename: IT_spec_TV-IP312PI(v1.0R).pdf
Date: 4/3/2017
File Size: 3.60 MB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: EN_Web_TV-IP312PI(V1.1R).pdf
Date: 5/15/2017
File Size: 1.37 MB
Download
Quick Installation Guide (Français)
Filename: FR_Web_TV-IP312PI(V1.1R).pdf
Date: 5/15/2017
File Size: 1.34 MB
Download
Quick Installation Guide (Deutsch)
Filename: GE_Web_TV-IP312PI(V1.1R).pdf
Date: 5/15/2017
File Size: 1.34 MB
Download
Quick Installation Guide (Português)
Filename: PO_Web_TV-IP312PI(V1.1R).pdf
Date: 5/15/2017
File Size: 1.37 MB
Download
Quick Installation Guide (Español)
Filename: SP_Web_TV-IP312PI(V1.1R).pdf
Date: 5/15/2017
File Size: 1.34 MB
Download
Quick Installation Guide (Italiano)
Filename: ITA_Web_TV-IP312PI(V1.1R).pdf
Date: 5/15/2017
File Size: 1.34 MB
Download

User's Guide

User's Guide
Filename: UG_TV-IP312PI(v1.1R).pdf
Date: 8/9/2017
File Size: 4.60 MB
Download

Product Images

JPEG Image
File Size: : 242.16 KB
Date: : 4/10/2015
Download
JPEG Image
File Size: : 185.21 KB
Date: : 4/10/2015
Download
JPEG Image
File Size: : 259.46 KB
Date: : 4/10/2015
Download
JPEG Image
File Size: : 490.29 KB
Date: : 4/10/2015
Download
JPEG Image
File Size: : 359.61 KB
Date: : 4/10/2015
Download
JPEG Image
File Size: : 236.82 KB
Date: : 4/10/2015
Download
JPEG Image
File Size: : 204.96 KB
Date: : 4/10/2015
Download
JPEG Image
File Size: : 502.06 KB
Date: : 4/10/2015
Download
JPEG Image
File Size: : 502.06 KB
Date: : 4/13/2015
Download
ROHS compliant WEEE crossed-out bin symbol.
How do I reset or recover my password?
For security reasons the camera cannot be reset without assistance from TRENDnet. Please go to:https://TRENDnet.com/asp/helpdesk to submit a Help Desk ticket to begin the password reset process. We will have a technician assist you as soon as possible. After the reset process has been completed, ple...
Lens
  • Focal length: 4 mm
  • Focal depth: 20 cm+
  • Aperture: F2.0
  • Board lens
  • Sensor: 1/3" progressive scan CMOS
Viewing Angle
  • Horizontal: 77°
  • Vertical: 42°
  • Diagonal: 90°
Zoom
  • User-defined digital zoom
Minimum Illumination
  • IR off: 0.19 lux
  • IR on: 0 lux
  • 50 meter IR illumination distance
  • Smart IR reduces close object overexposure
Video
  • D-WDR: 0-100 scale
  • 3D Digital Noise Reduction (DNR)
  • Shutter speed: 1/3 - 1/100,000
  • H.264: 2048 x 1536 up to 20 fps
  • MJPEG: 704 x 480 up to 30 fps
Hardware Standards
  • IEEE 802.1X
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3af
Device Interface
  • 10/100 Mbps PoE port
  • Power port (for non-PoE installations, power adapter sold separately (12VDC1A))
  • Integrated adjustable mounting base
  • LED indicator
Housing
  • Weather rating: IP66
  • Adjustable sun visor
Network Protocol
  • IPv4, IPv6, UDP, TCP, ICMP, ONVIF v2.2, DHCP, NTP, DNS, DDNS, SMTP, FTP, SNMP (v1, v2c, v3), QoS
  • NFS, SMB/CIFS
  • HTTP, HTTPS
  • PPPoE
  • UPnP, RTSP, RTP, RTCP, SSL
Operating Temperature
  • -30 - 60 °C (-22 - 140 °F)
Operating Humidity
  • Max. 95% non-condensing
Certifications
  • CE
  • FCC
  • UL 60950
Dimensions
  • 104 x 104 x 243 mm (3.9 x 4.1 x 9.6 in.)
Weight
  • 835 g (1.8 lbs.)
Power
  • Input: PoE (802.3af)
  • Consumption: 9 Watts max.
Optional Power Supply (Sold separately)
  • Output: 12 V DC 1 A
  • 5.5 mm barrel connector
  • TRENDnet power adapter, model 12VDC1A, sold separately
Management Interface
  • Multi-language support: English, French, German, Russian, and Spanish
  • IP address filter
  • QoS traffic prioritization
  • Time, date, and text overlay
  • Image settings: brightness, contrast, saturation, sharpness, smart IR, exposure time (1/3 – 1/100,000), video standard, day/night switch, sensitivity, switch time, mirror, D-WDR, white balance, digital noise reduction
  • D-WDR enhances video quality in high contrast daytime lighting
  • 3D Digital Noise Reduction enhances night vision quality
  • Scheduled recording: continuous and motion detection
  • Video storage: to computer, NAS, CIFS/SAMBA share or through software
  • Motion detection fields: define custom motion detection areas, motion sensitivity, and dynamic motion analysis
  • Privacy masks: define custom privacy mask areas
  • Tamper detection: email notification if the viewing field darkens suddenly
  • Video playback: advanced playback functionality with visual timeline displaying detected motion and scheduled recordings
  • Alert messages: storage full, storage error, and illegal login
  • Snapshot: real time snapshot, motion detection with schedule, video tamper detection with schedule
  • Supported dynamic DNS services: Dyn.com and NO-IP.org
  • Management Setting: maximum 32 user accounts
  • Supports remote management
  • Storage logs: Alarm, Exception, Operation, and others
  • Compatibility: Internet Explorer® 9.0 or higher, Safari® 4.0 or higher
TRENDnetView Pro Software
  • Supports up to 32 TRENDnet cameras
  • Multiple language support
  • Set recording options (motion detection, schedule, event trigger)
  • Search and playback
  • Custom viewing modes and options
  • Compatibility: Windows® 10, 8.1, 8, 7, Vista, XP, Windows Server® 2003, 2008
TRENDnetVIEW App
  • Free iOS and Android™ app
  • View your camera on your mobile device
  • Take snapshots
  • Zoom
Warranty
  • 3 year limited

PACKAGE CONTENTS
  • TV-IP312PI
  • CD-ROM (Software & User's Guide)
  • Quick Installation Guide
  • Camera mounting hardware
  • (Optional power adapter sold separately)

Compatible NVR: www.trendnet.com/info/tv-nvr104

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
