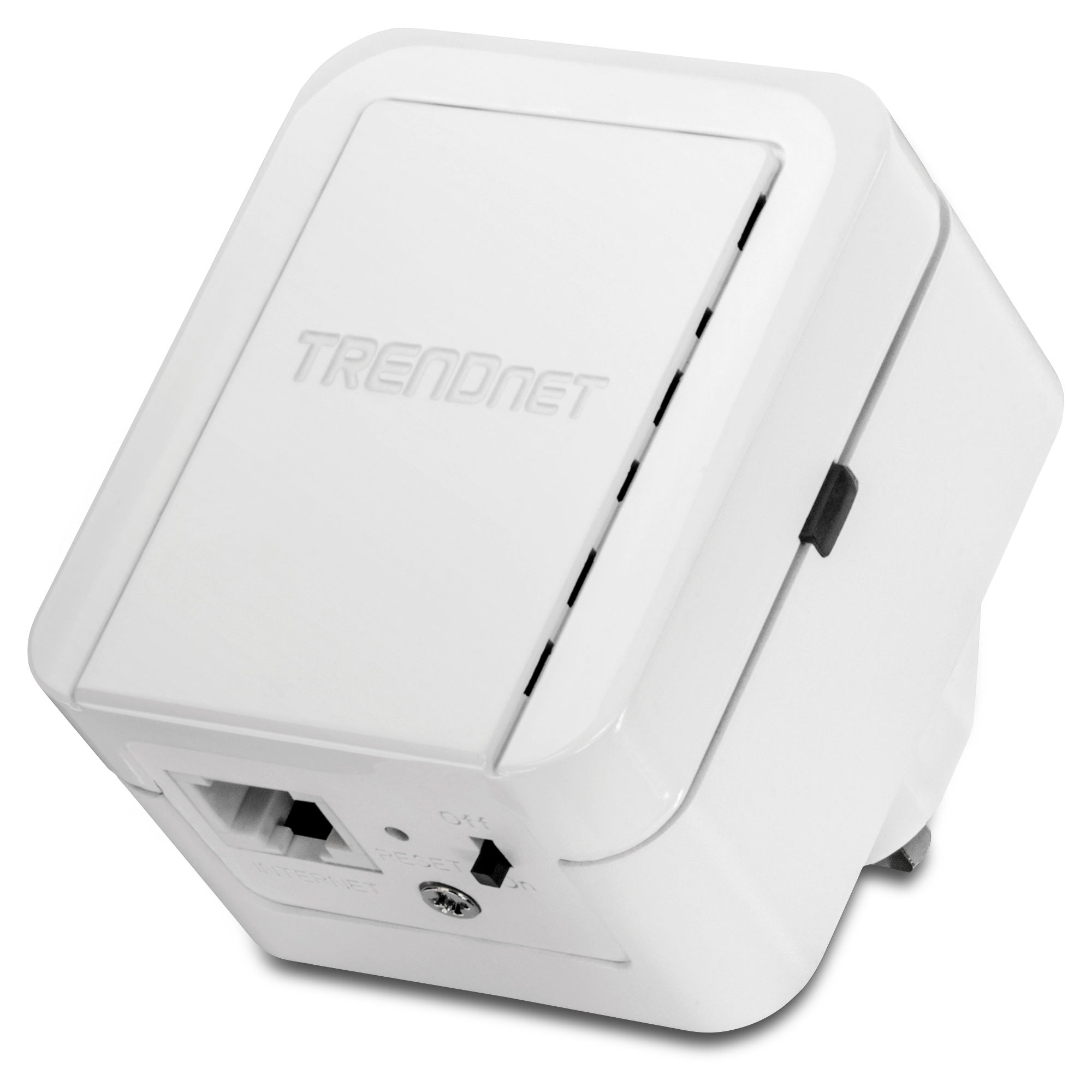

N300 High Power Easy-N-Range Extender

TEW-737HRE   (Version v1.1R)

   Select Another Version
  • High power wireless penetrates walls and greatly extends coverage

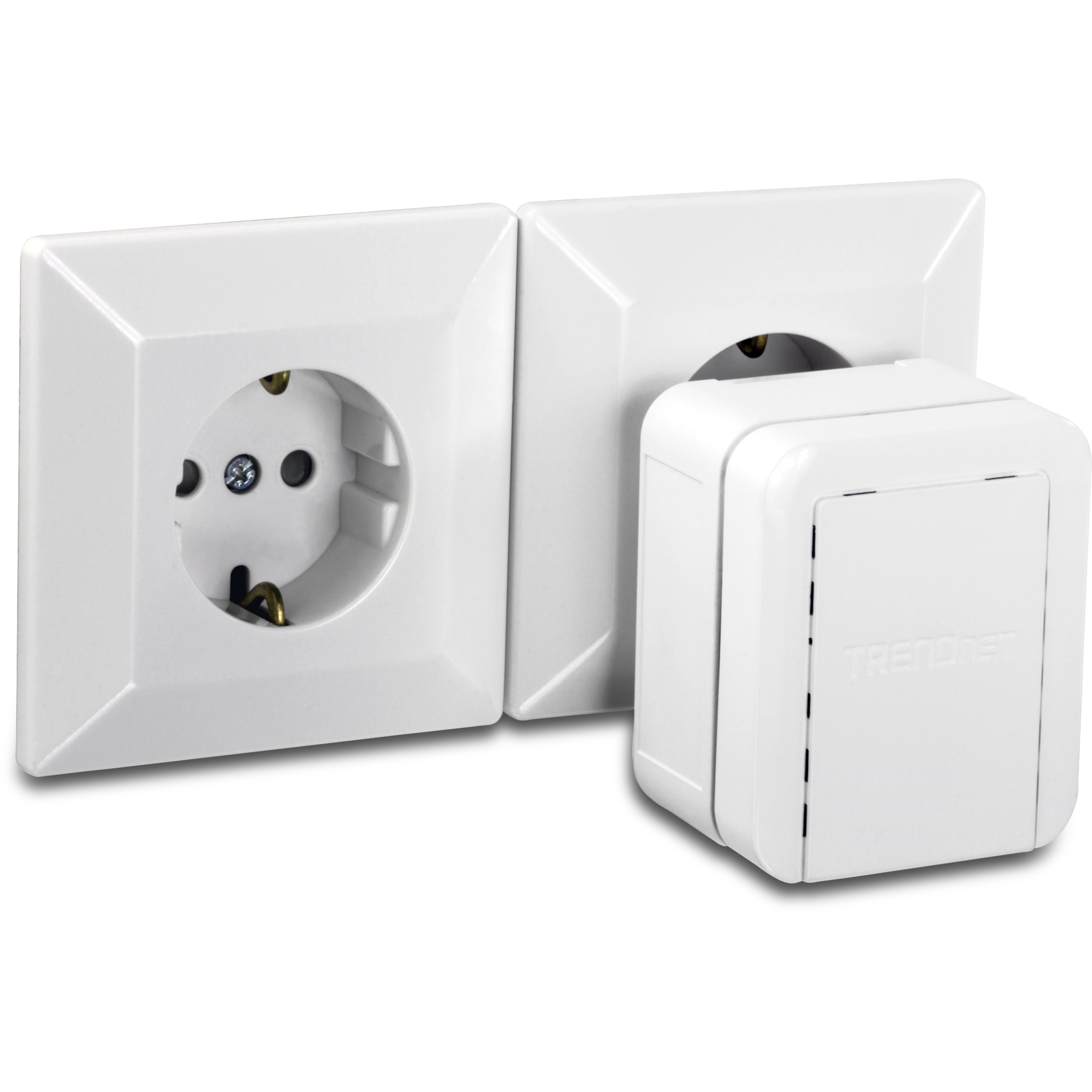

  • Compact housing plugs directly into an electrical outlet
  • Extends the range of your existing wireless network
  • No CD installation required
  • Automatically adopts router's password and encryption
  • Advanced wireless encryption protects your data

Firmware

Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection.
Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only

Firmware Version: V1.02.B02
Release Date: 06/2014
Notes:

  1. Patch for security. Remove local file disclosure.

Filename: FW_TEW-737HRE(v1.1R)-1.02B02.zip
SHA-1 Checksum: BB4CEA84526455F0AD5686BC44074C79B8AFF3BE
Date: 7/28/2017
File Size: 2.83 MB
Download

Datasheet

Datasheet (English)
Filename: EN_spec_TEW-737HRE(v1.1R).pdf
Date: 4/16/2014
File Size: 887.55 KB
Download Email
Datasheet (Français)
Filename: FR_spec_TEW-737HRE(v1.1R).pdf
Date: 4/16/2014
File Size: 834.79 KB
Download Email
Datasheet (Deutsch)
Filename: GE_spec_TEW-737HRE(v1.1R).pdf
Date: 4/16/2014
File Size: 840.46 KB
Download Email
Datasheet (Português)
Filename: PO_spec_TEW-737HRE(v1.1R).pdf
Date: 4/16/2014
File Size: 838.14 KB
Download Email
Datasheet (Español)
Filename: SP_spec_TEW-737HRE(v1.1R).pdf
Date: 4/16/2014
File Size: 847.14 KB
Download Email
Datasheet (Pусский)
Filename: RU_spec_TEW-737HRE(v1.1R).pdf
Date: 4/16/2014
File Size: 823.91 KB
Download Email
Datasheet (Italiano)
Filename: IT_spec_TEW-737HRE(v1.1R).pdf
Date: 4/16/2014
File Size: 839.43 KB
Download Email

Quick Installation Guide

Quick Installation Guide (European)
Filename: EuropeanQIG_TEW-737HRE(V1.1).pdf
Date: 12/3/2018
File Size: 4.19 MB
Download
Quick Installation Guide
Filename: QIG_TEW-737HRE(V1.1).pdf
Date: 4/16/2014
File Size: 3.22 MB
Download

User's Guide

User's Guide
Filename: UG_TEW-737HRE(v1.1R).pdf
Date: 2/24/2015
File Size: 1.91 MB
Download

Product Images

JPEG Image
File Size: : 338.09 KB
Date: : 4/18/2014
Download
JPEG Image
File Size: : 1.09 MB
Date: : 4/18/2014
Download
JPEG Image
File Size: : 348.49 KB
Date: : 4/18/2014
Download
JPEG Image
File Size: : 344.79 KB
Date: : 4/18/2014
Download
JPEG Image
File Size: : 313.52 KB
Date: : 4/18/2014
Download
JPEG Image
File Size: : 253.92 KB
Date: : 4/18/2014
Download
JPEG Image
File Size: : 323.66 KB
Date: : 4/18/2014
Download
JPEG Image
File Size: : 351.78 KB
Date: : 4/18/2014
Download
JPEG Image
File Size: : 305.33 KB
Date: : 4/18/2014
Download
JPEG Image
File Size: : 262.73 KB
Date: : 4/18/2014
Download
JPEG Image
File Size: : 338.38 KB
Date: : 4/18/2014
Download
JPEG Image
File Size: : 333.50 KB
Date: : 4/18/2014
Download
ROHS compliant Non-Disposable
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n (up to 300 Mbps)
Device Interfaces
  • 1 x 10/100 Mbps LAN port
WPS Button
  • Power switch
  • LED indicator
Encryption
  • Wireless encryption up to WPA2
Special Features
  • High power amplifier
  • MIMO antenna technology
  • Compact form factor
  • IPv6 ready
Antenna Gain
  • 2 dBi internal PIFA x 2
Wireless Output Power (EIRP)/Receiving Sensitivity
  • 802.11b: FCC: 22 dBm (typical), CE: 20 dBm (typical)/-90 dBm (typical) @ 11 Mbps
  • 802.11g: FCC: 20 dBm (typical), CE: 20 dBm (typical)/-72 dBm (typical) @ 54 Mbps
  • 802.11n: FCC: 20 dBm (typical), CE: 20 dBm (typical)/-66 dBm (typical) @ 300 Mbps
Output Power
  • 802.11b: 20 dBm
  • 802.11g: 18 dBm
  • 802.11n: 20 dBm
Power
  • 100 - 240 V AC
  • Consumption: 6 Watts (Max)
Operating Temperature
  • 0 - 40°C (32 – 104°F)
Operating Humidity
  • Max. 95% non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 67 x 56 x 45 mm (2.6 x 2.2 x 1.8 in.)
Weight
  • 120 g (4.2 oz)
Warranty
  • 3 year limited

PACKAGE CONTENTS
  • TEW-737HRE
  • Multi-language Quick Installation Guide
  • CD-ROM (User's Guide)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
