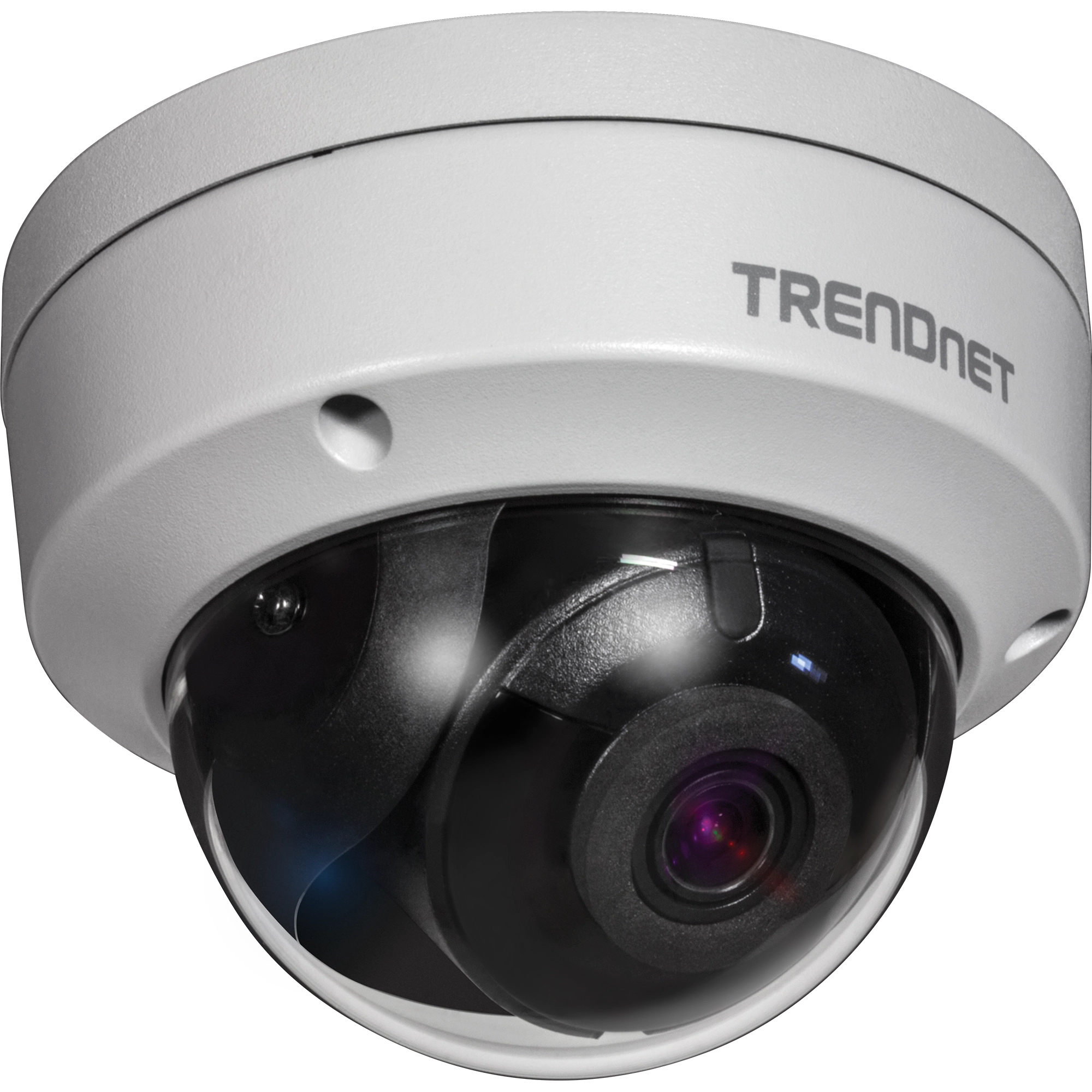

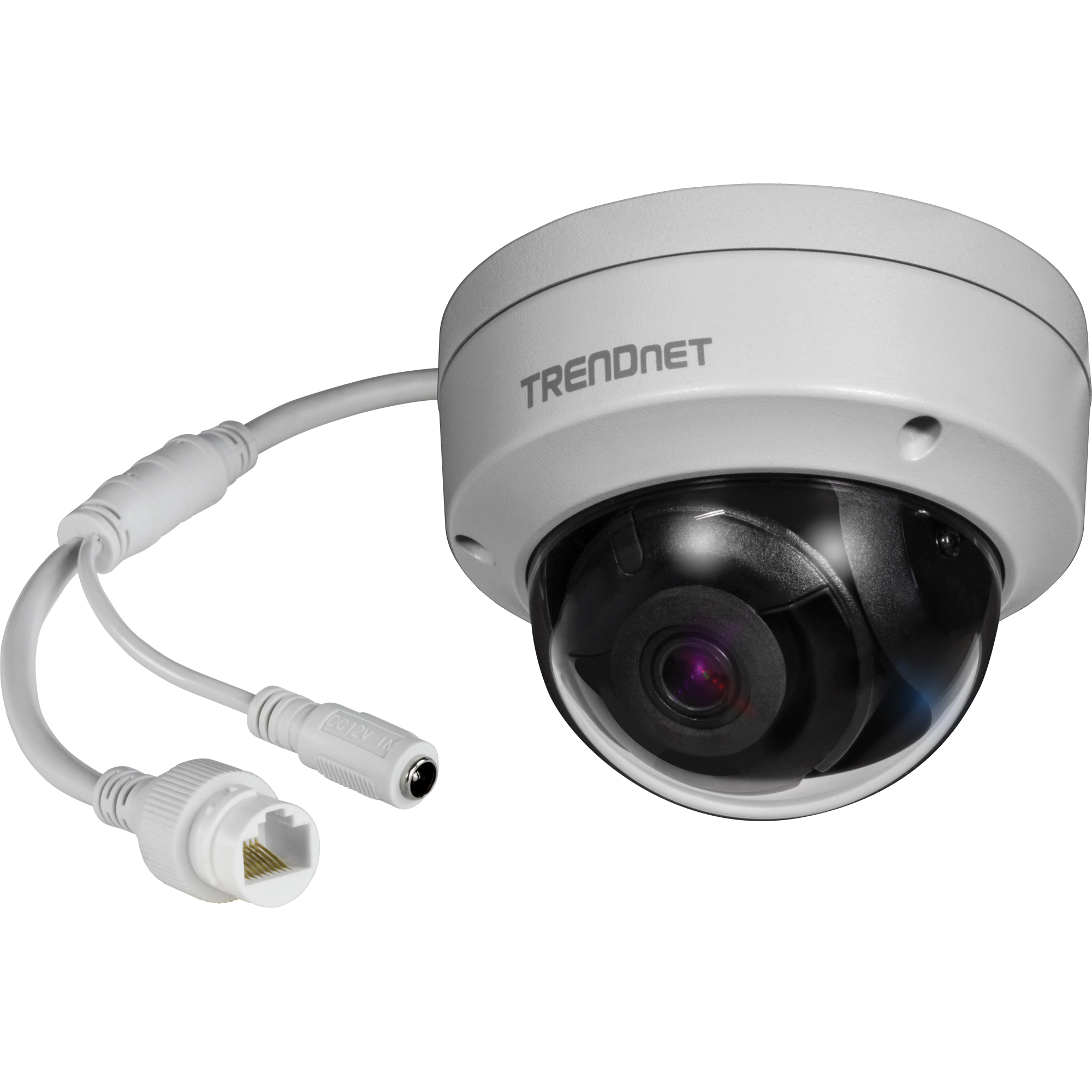

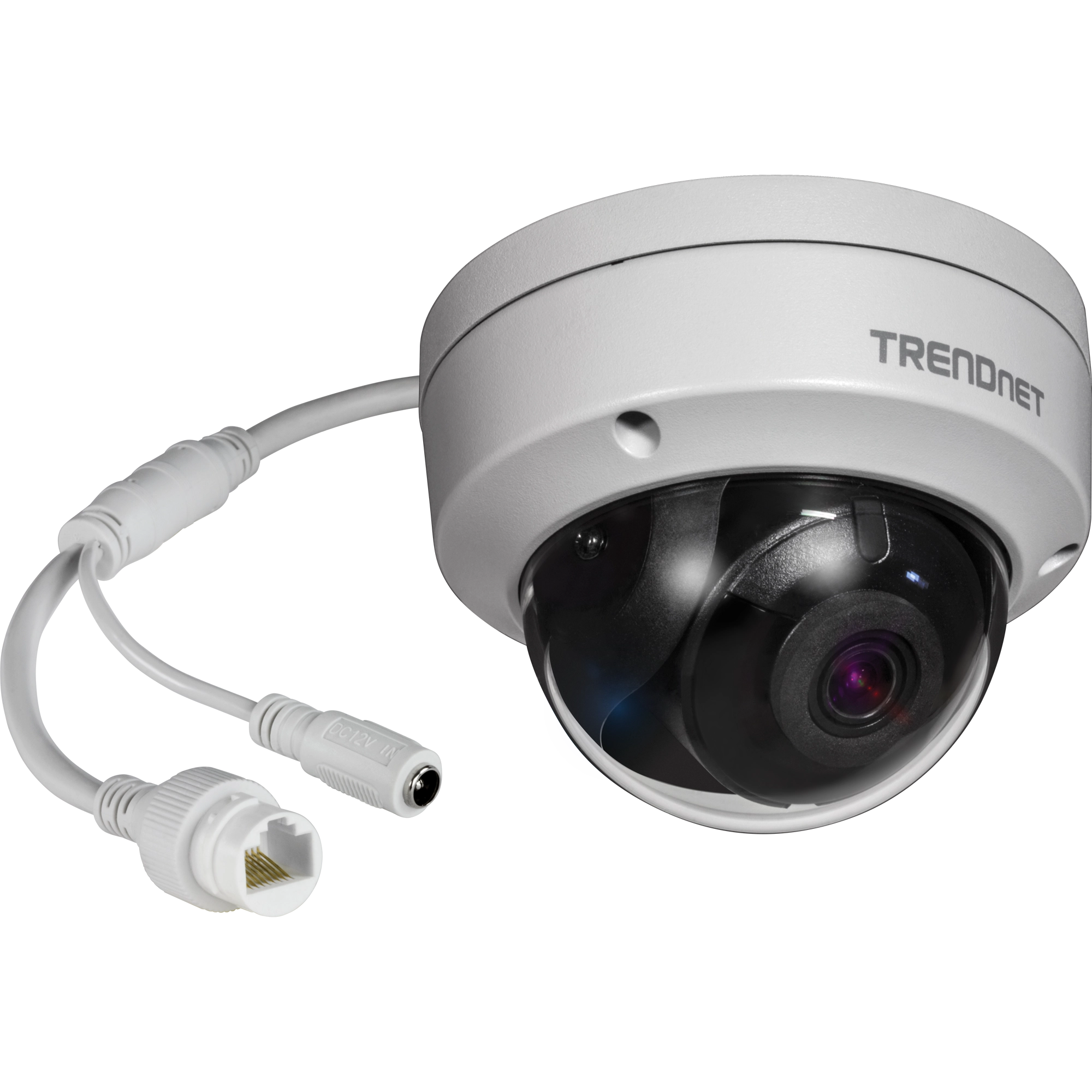

Indoor / Outdoor 4MP H.265 WDR PoE IR Dome Network Camera

TV-IP1315PI   (Version v1.0R)

  • Easy Cloud P2P QR code installation
  • 4MP HD resolutions at 30fps
  • Smart covert IR LEDs for night vision up to 30m (98 ft.)
  • Outdoor IP67 weather rating
  • 120dB Wide Dynamic Range image balancing
  • Save installation costs with Power over Ethernet (PoE)
  • Program motion detection recording and email alerts
  • Micro SD card slot (up to 128GB)
  • Free Mira iOS® and Android™ mobile apps

DISCONTINUED PRODUCT

The TV-IP1315PI (Version v1.0R) has been discontinued. It has been replaced by the TV-IP1515PI (Version v1.0R). For a list of discontinued products, click here.

Drivers

TRENDnet Mira VMS video management software for Mac OS
Video Management Software (VMS) for Mac OS
Filename: Mira_VMS_(Mac)_201105.zip
SHA-1 Checksum: 7EADF76F43B5F5E2FE9ED93C60FBDAB72B3D2360
Date: 5/21/2021
File Size: 74.50 MB
Download

Firmware

Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection.
Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only

Firmware Version: 5.5.3 build 230926
Release Date: 11/2023
Release Notes:

  • Update security patch

Filename: FW_5.5.3_(230926).zip
SHA-1 Checksum: 5310ED8D7780DED2FD8C07E61CDCB5DB65FEDA68
Date: 11/6/2023
File Size: 29.09 MB
Download

Software

TRENDnet Mira Storage Server for Windows
Filename: Storage_Server(V1.5.0.50_N).zip
SHA-1 Checksum: A2EA4288D0EF74B120B27BBCA555AA6AF442C341
Date: 6/11/2021
File Size: 39.91 MB
Download
TRENDnet Mira Stream Media Server for Windows
Filename: Stream_Media_Server(V1.5.0.50_N).zip
SHA-1 Checksum: E8BF79CC99C8A9B627E9F32C5082569134904DB4
Date: 6/11/2021
File Size: 39.36 MB
Download
TRENDnet Mira VMS video management software for Windows
Video Management Software (VMS) for Windows
Filename: TRENDnet_Mira(V3.5.0.50_E).zip
SHA-1 Checksum: 32B5D23C350B238B5BA4D36B06EE23A58E2D6D47
Date: 6/11/2021
File Size: 259.42 MB
Download

Mobile Apps

TRENDnet Mira App



Date: 6/18/2020

Datasheet

Data Sheets (English)
Filename: EN_datasheet_TV-IP1315PI_(v1.0R).pdf
Date: 6/8/2020
File Size: 730.81 KB
Download Email
Data Sheets (Français)
Filename: FR_datasheet_TV-IP1315PI_(v1.0R).pdf
Date: 6/8/2020
File Size: 972.70 KB
Download Email
Data Sheets (Deutsch)
Filename: GE_datasheet_TV-IP1315PI_(v1.0R).pdf
Date: 6/8/2020
File Size: 971.75 KB
Download Email
Data Sheets (Português)
Filename: PO_datasheet_TV-IP1315PI_(v1.0R).pdf
Date: 6/8/2020
File Size: 969.80 KB
Download Email
Data Sheets (Español)
Filename: SP_datasheet_TV-IP1315PI_(v1.0R).pdf
Date: 6/8/2020
File Size: 971.27 KB
Download Email
Data Sheets (Pусский)
Filename: RU_datasheet_TV-IP1315PI_(v1.0R).pdf
Date: 6/8/2020
File Size: 983.43 KB
Download Email
Data Sheets (Italiano)
Filename: IT_datasheet_TV-IP1315PI_(v1.0R).pdf
Date: 6/8/2020
File Size: 972.06 KB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: EN_TV-IP1314PI_1315PI(V1.0R)_032320.pdf
Date: 6/8/2020
File Size: 2.79 MB
Download
Quick Installation Guide (Français)
Filename: FR_TV-IP1314PI_1315PI(V1.0R)_032320.pdf
Date: 6/8/2020
File Size: 2.86 MB
Download
Quick Installation Guide (Deutsch)
Filename: GE_TV-IP1314PI_1315PI(V1.0R)_033120.pdf
Date: 6/8/2020
File Size: 2.25 MB
Download
Quick Installation Guide (Português)
Filename: PT_TV-IP1314PI_1315PI(V1.0R)_032320.pdf
Date: 6/8/2020
File Size: 2.24 MB
Download
Quick Installation Guide (Español)
Filename: SP_TV-IP1314PI_1315PI(V1.0R)_032320.pdf
Date: 6/8/2020
File Size: 2.22 MB
Download
Quick Installation Guide (Pусский)
Filename: RU_TV-IP1314PI_1315PI(V1.0R)_032320.pdf
Date: 6/8/2020
File Size: 2.21 MB
Download
Quick Installation Guide (Italiano)
Filename: ITA_TV-IP1314PI_1315PI(V1.0R)_032320.pdf
Date: 6/8/2020
File Size: 2.24 MB
Download

User's Guide

User's Guide
Filename: UG_TV-IP1315PI_(v1.0R).pdf
Date: 6/8/2020
File Size: 4.21 MB
Download

Product Images

PNG Image
File Size: : 3.50 MB
Date: : 6/8/2020
Download
PNG Image
File Size: : 1.97 MB
Date: : 6/8/2020
Download
PNG Image
File Size: : 1.82 MB
Date: : 6/8/2020
Download
ROHS compliant WEEE crossed-out bin symbol.
Lens
  • Focal length: 4mm @ F1.2
  • Sensor: 1/2.8" CMOS sensor
  • Digital zoom: 4x
  • WDR: 120dB
Viewing
  • Horizontal angle: 86˚
  • Manual pan: 0° to 355°
  • Manual tilt: 0° to 75°
  • Lens rotation: 0° to 355°
Minimum Illumination
  • IR off: 0.01 lux
  • IR on: 0 lux
  • IR distance: 30m (98 ft.)
  • IR LED wavelength: 850nm
Compression
  • H.265+ / H.265
  • H.264+ / H.264
  • MJPEG
Resolution
  • Main stream: H.265+/H.265/H.264+/H.264: 2560 x 1440 up to 30fps
  • Sub stream: H.265/H.264/MJPEG: 640 x 480 up to30 fps
  • Third stream: H.265/H.264: 1280 x 720 up to 10fps
Hardware Standards
  • IEEE 802.1x
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3af
Device Interface
  • 10/100Mbps PoE port
  • Micro SD card slot
  • Power jack
  • Reset button
Micro SD slot
  • Supports Micro SD/SDHC/SDXC (not included)
  • Up to 128GB
Housing
  • IP67 weather rated
  • Impact resistant
Network Protocol
  • IPv4, IPv6, UDP, TCP/IP
  • DHCP, NTP, DDNS, SMTP, FTP, LLTD
  • SNMP v1, v2c, v3, QoS/DSCP, IEEE 802.1X
  • NFS, SMB/CIFS
  • HTTP, HTTPS
  • PPPoE
  • UPnP, RTSP, RTP
Compliant Standard
  • ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Dimension
  • 110 x 110 x 82.5mm (4.4 x 4.4 x 3.2 in.)
Weight
  • 500g (1.1 lb.)
Operating Temperature
  • -30° – 60° C (-22° – 140° F)
Humidity
  • Max. 95% non-condensing
Power
  • Input: PoE
  • Consumption: Max. 9W
Power Adapter (optional model: 12VDC1A)
  • Input: 100 – 240V AC , 50/60Hz
  • Output: 12V DC, 1A external power adapter
Management Interface
  • Multi-language support: English, French, German, Spanish, and Portuguese
  • Image settings: Brightness, Contrast, Saturation, Sharpness, Exposure Time, image Gain, Day/Night switch. Smart IR, BLC, WDR, white balance, Digital Noise Reduction, Mirror, Scene Mode, Video Standard
  • WDR enhances video quality in high contrast daytime lighting
  • Digital Noise Reduction removes digital noise from the video signal
  • Recording: to computer, or SAMBA share
  • Time, date, and text overlay
  • IP Address Filter
  • Video Recording: scheduled, motion detection, and tamper detection
  • Motion detection: define up to three motion detection areas and motion sensitivity
  • Privacy masks: define custom privacy masks
  • Tamper detection function: email notification
  • Snapshot: real time snapshot and motion triggered
  • Supported dynamic DNS services: dyn.com and no-ip.com
  • Supports remote management
  • Compatible browsers: Chrome™ or Firefox® (live view resolution up to 1280 x 720), Internet Explorer® (live view resolution up to 2560 x 1440)
TRENDnet Mira VMS
  • Supports TRENDnet cameras
  • Manage basic configurations for connected cameras
  • Search and playback
  • Custom viewing modes and options
  • Compatibility: Windows® and Mac®
TRENDnet Mira App
  • Free iOS® and Android™ apps
  • View live camera video
  • Push notifications
  • Take snapshots and videos
  • Playback
  • Share live view to family members or friends
Certifications
  • CE
  • FCC
  • UL
Warranty
  • 3 year

PACKAGE CONTENTS
  • TV-IP1315PI
  • Weather seal
  • Torx Security Allen Key
  • Quick installation guide
  • Camera mounting hardware

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
