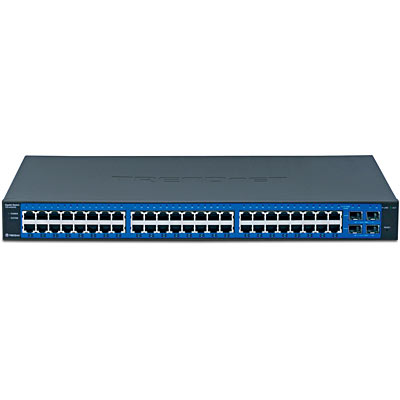

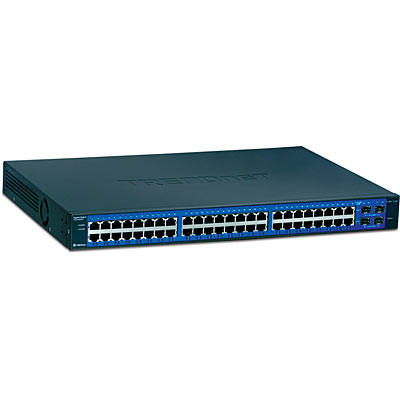

48-Port Gigabit Web Smart Switch w/ 4 Shared Mini-GBIC Slots (Certified Refurbished)

RB-TEG-448WS   (Version B3.XR)

   Select Another Version
  • Provides SNMP ( v1), IEEE 802.1X and STP support
  • 96Gbps switching capacity
  • 48 x Gigabit Auto-MDIX ports
  • 4 shared mini-GBIC slots
  • Supports IEEE 802.1Q VLAN, Asymmetric VLAN, QoS, IGMP, Trunking and Mirroring

Firmware

Firmware

Firmware Version: 3.02.01
Release Date: 3/2012
Note:

  1. Fixed issue modifying VLAN member ports when Asymmetric VLAN is enabled.
  2. Fixed web management login issue with Chrome, Opera, and Safari web browsers
  3. Fixed web management issue frequently prompting to re-login on some web browsers.
  4. Fixed web management issue display error in new version browsers such as IE9.

Note:
If you encounter problems when logging into the web management interface, you may need to temporarily disable your Antivirus software. Antivirus software installed with additional web browser components installed (such as the AVG® Anti-Virus Surf Shield component under the LinkScanner feature) may cause problems when accessing or logging into the web management interface.


Filename: FW_TEG-448WS_B1.xR_B2.xR(3.02.01).zip
SHA-1 Checksum: 5512F9A4BFF7E651661DF19F4B1371951EC35C36
Date: 7/25/2017
File Size: 459.72 KB
Download

Datasheet

Datasheet (English)
Filename: EN_Spec_TEG-448WS(B1.0R).pdf
Date: 12/20/2013
File Size: 766.75 KB
Download Email
Datasheet (Français)
Filename: FR_Spec_TEG-448WS(B1.0R).pdf
Date: 12/20/2013
File Size: 783.83 KB
Download Email
Datasheet (Deutsch)
Filename: GE_Spec_TEG-448WS(B1.0R).pdf
Date: 12/20/2013
File Size: 785.51 KB
Download Email
Datasheet (Español)
Filename: SP_Spec_TEG-448WS(B1.0R).pdf
Date: 12/20/2013
File Size: 800.30 KB
Download Email
Datasheet (Pусский)
Filename: RU_Spec_TEG-448WS(B1.0R).pdf
Date: 12/20/2013
File Size: 1.14 MB
Download Email
Datasheet (Italiano)
Filename: ITA_Spec_TEG-448WS(B1.0R).pdf
Date: 12/20/2013
File Size: 772.80 KB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: EN_QIG_TEG-448WS(B2).pdf
Date: 8/6/2008
File Size: 721.75 KB
Download
Quick Installation Guide (Français)
Filename: FR_QIG_TEG-448WS(B2).pdf
Date: 8/6/2008
File Size: 724.63 KB
Download
Quick Installation Guide (Deutsch)
Filename: GE_QIG_TEG-448WS(B2).pdf
Date: 8/6/2008
File Size: 723.04 KB
Download
Quick Installation Guide (Português)
Filename: PO_QIG_TEG-448WS(B2).pdf
Date: 8/6/2008
File Size: 718.86 KB
Download
Quick Installation Guide (Español)
Filename: SP_QIG_TEG-448WS(B2).pdf
Date: 8/6/2008
File Size: 712.75 KB
Download
Quick Installation Guide (Pусский)
Filename: RU_QIG_TEG-448WS(B2).pdf
Date: 8/6/2008
File Size: 1.65 MB
Download
Quick Installation Guide (Eesti)
Filename: EST_QIG_TEG-448WS(B2).pdf
Date: 8/6/2008
File Size: 725.13 KB
Download

User's Guide

User's Guide (English)
Filename: UG_TEG-448WS(B2.01).pdf
Date: 4/15/2009
File Size: 1.90 MB
Download

Product Images

JPEG Image
File Size: : 214.08 KB
Date: : 7/24/2008
Download
JPEG Image
File Size: : 216.61 KB
Date: : 7/24/2008
Download
TIFF Image
File Size: : 2.36 MB
Date: : 7/24/2008
Download
TIFF Image
File Size: : 2.23 MB
Date: : 7/24/2008
Download
ROHS compliant WEEE crossed-out bin symbol.
Hardware
Standards
  • IEEE 802.3 10Base-T
  • IEEE 802.3u 100Base-TX
  • IEEE 802.3ab 1000Base-T
  • IEEE 802.3z 1000Base-SX/LX (Mini-GBIC)
  • IEEE 802.3x Flow Control and Back Pressure
  • IEEE 802.3ad Port Trunk
  • IEEE 802.1D Spanning Tree Protocol
  • IEEE 802.1p QoS
  • IEEE 802.1Q VLAN Tag
  • IEEE 802.1X Authentication SNMP v1
Network Media
  • Ethernet: UTP/STP Cat. 3, 4, 5 up to 100m
  • Fast Ethernet: UTP/STP Cat. 5, 5e up to 100m
  • Gigabit: UTP/STP Cat. 5, 5e, 6 up to 100m
Protocol /Topology
  • CSMA/CD, Star
LAN Ports
  • 48 x 10/100/1000Mbps Auto-MDIX Gigabit Ethernet ports
  • 4 x Mini-GBIC slots (shared with Gigabit ports 45-48)
Data Transfer Rate
  • Ethernet: 10Mbps/20Mbps (Half /Full-Duplex)
  • Fast Ethernet: 100Mbps/200Mbps (Half /Full-Duplex)
  • Gigabit Ethernet: 2000Mbps (Full-Duplex)
Address Table
  • 8K entries
Data RAM Buffer
  • 1024KBytes
Switch Fabric
  • 96Gbps forwarding capacity
Forwarding Rate
  • 71.4 Mpps
Diagnostic LEDs
  • Per Unit: Power, System Per Cooper Gigabit Port: Link/ACT, Speed (1000M-Green, 100M-Amber) Per Mini-GBIC Gigabit Port: Link/ACT
Power Supply
  • 100-240V AC, 50/60Hz internal power supply
Power Consumption
  • 99.7 watts (max)
Dimensions (W x D x H)
  • 440 x 310 x 44mm (17.32 x 12.25 x 1.73 in.)
Weight
  • 4.43kg (9.75 lbs)
Temperature
  • Operating: 0° C ~ 40° C (32° F ~ 104° F);
  • Storage: -10° C ~ 70° C (14° F ~ 158° F)
Humidity
  • Operating: 10% ~ 90% RH (non-condensing)
  • Storage: 5% ~ 90% RH (non-condensing)
Certifications
  • CE, FCC

PACKAGE CONTENTS
  • TEG-448WS
  • Multi-Language Quick Installation Guide
  • Utility CD-ROM
  • Power Cord
  • Rack-Mount Kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
