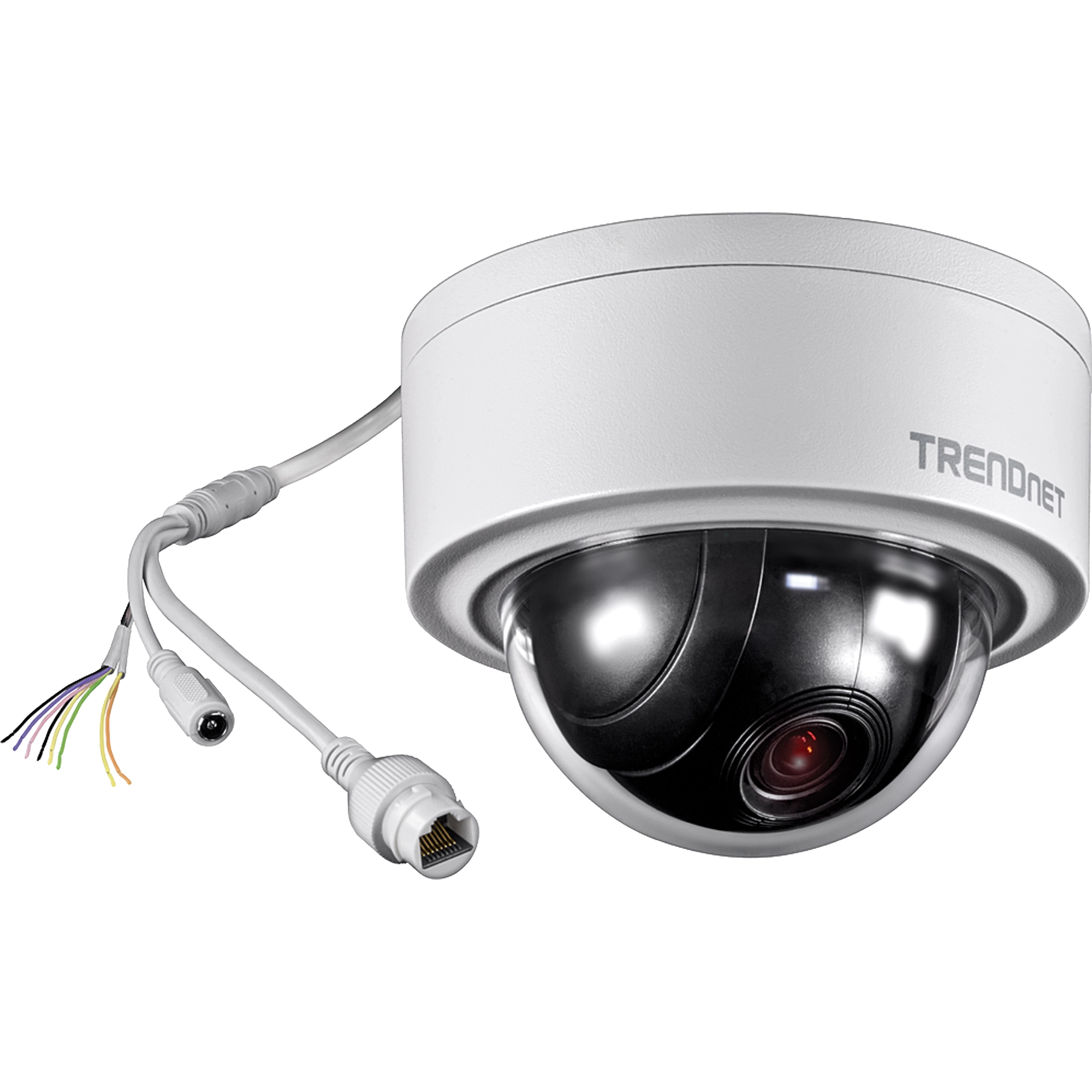

Indoor / Outdoor 3 MP Motorized PTZ Dome Network Camera

TV-IP420P   (Version v1.0R)

   Select Another Version
  • Motorized PTZ
  • 3 MP HD resolution
  • 4x optical zoom, 16x digital zoom, and autofocus
  • Outdoor IP66 weather rating
  • Digital Wide Dynamic Range image balancing


DISCONTINUED PRODUCT

The TV-IP420P (Version v1.0R) has been discontinued. For a list of discontinued products, click here.

Utility

Camera Utility
Filename: Camera_Utility.zip
SHA-1 Checksum: 679B96BB0EF1F0763DC23D01D670C8FC4E943004
Date: 10/27/2017
File Size: 20.98 MB
Download

Drivers/Utility

Plug-in for MAC OS
Filename: MacPlugin.zip
SHA-1 Checksum: 74F6C552683FF1508EE3F094581CE6528CB7A5D4
Date: 7/26/2017
File Size: 3.65 MB
Download

Firmware

Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection.
Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only

Firmware Version: 5.4.3 Build 180621
Release Date: 7/2018
Notes:

  • Addressed IP scan issue


Filename: FW_TV-IP420P_440PI(5.4.3 build 180621).zip
SHA-1 Checksum: E7C5EA3ABA23EEC3B5A18ACD948491D5521F30A9
Date: 12/19/2018
File Size: 20.39 MB
Download

Full Software Package

Luxriot EVO S Advanced camera management software (64-bit)

Luxriot EVO S terms and conditions
Notes:
Support following cameras
  • TV-IP1313PI
  • TV-IP1314PI
  • TV-IP1315PI
  • TV-IP1318PI
  • TV-IP1319PI
  • TV-IP1329PI
  • TV-IP1328PI

Filename: Luxriot_EVO_x64_1.19.1.zip
Date: 10/18/2021
File Size: 793.48 MB
Download

Individual Installation Software

Luxriot Monitor (64-bit)

Luxriot EVO S terms and conditions
Filename: Luxriot_Monitor_x64_1.19.1.zip
Date: 10/18/2021
File Size: 776.57 MB
Download
Luxriot Console (64-bit)

Luxriot EVO S terms and conditions
Filename: Luxriot_Console_x64_1.19.1.zip
Date: 10/18/2021
File Size: 793.01 MB
Download

Datasheet

Datasheet (English)
Filename: EN_datasheet_TV-IP420P_(v1.0R).pdf
Date: 9/30/2021
File Size: 1.42 MB
Download Email
Datasheet (Français)
Filename: FR_datasheet_TV-IP420P_(v1.0R).pdf
Date: 9/30/2021
File Size: 1.43 MB
Download Email
Datasheet (Deutsch)
Filename: GE_datasheet_TV-IP420P_(v1.0R).pdf
Date: 9/30/2021
File Size: 1.46 MB
Download Email
Datasheet (Português)
Filename: PO_datasheet_TV-IP420P_(v1.0R).pdf
Date: 9/30/2021
File Size: 1.42 MB
Download Email
Datasheet (Español)
Filename: SP_datasheet_TV-IP420P_(v1.0R).pdf
Date: 9/30/2021
File Size: 2.53 MB
Download Email
Datasheet (Italiano)
Filename: IT_datasheet_TV-IP420P_(v1.0R).pdf
Date: 9/30/2021
File Size: 1.43 MB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: EN_Web_TV-IP420P(V1.1R).pdf
Date: 5/15/2017
File Size: 1.38 MB
Download
Quick Installation Guide (Français)
Filename: FR_Web_TV-IP420P(V1.1R).pdf
Date: 5/15/2017
File Size: 1.38 MB
Download
Quick Installation Guide (Deutsch)
Filename: GE_Web_TV-IP420P(V1.1R).pdf
Date: 5/15/2017
File Size: 1.37 MB
Download
Quick Installation Guide (Português)
Filename: PT_Web_TV-IP420P(V1.1R).pdf
Date: 5/15/2017
File Size: 1.34 MB
Download
Quick Installation Guide (Español)
Filename: SP_Web_TV-IP420P(V1.1R).pdf
Date: 5/15/2017
File Size: 1.33 MB
Download
Quick Installation Guide (Italiano)
Filename: ITA_Web_TV-IP420P(V1.1).pdf
Date: 5/15/2017
File Size: 1.33 MB
Download

User's Guide

User's Guide
Filename: UG_TV-IP420P (v1.1R).pdf
Date: 5/15/2017
File Size: 4.72 MB
Download

Product Images

JPEG Image
File Size: : 1.06 MB
Date: : 7/1/2016
Download
ROHS compliant WEEE crossed-out bin symbol.
Lens
  • Focal length: 2.8 - 12 mm
  • Focal depth: 10 – 1,500 mm (Wide - Tele)
  • Aperture: F1.6 – 2.7 (Wide - Tele)
  • Sensor: 1/2.8” Progressive Scan CMOS
  • Focus: auto, semi-auto, and manual
  • Iris control: auto and manual
Viewing Angle
  • 105 – 33.5° (Wide – Tele)
Zoom
  • Optical: 4x
  • Digital: 16x
Pan/Tilt
  • Pan: 0° – 350°
  • Tilt: 0 – 90°
  • Pan speed: (manual) 0.1 – 60°/s, (preset) 60°/s
  • Tilt speed: (manual) 0.1 – 50°/s, (preset) 50°/s
  • Number of presets: 256
  • Patrol: 8 patrols, up to 32 presets per patrol
Video
  • Digital Wide Dynamic Range (D-WDR)
  • Backlight Compensation (BLC)
  • 3D Digital Noise Reduction (DNR)
  • Shutter speed: 1 – 1/10,000s
  • H.264 resolution: 2048 x 1536 up to 25 fps
  • MJPEG resolution: 704 x 576 up to 25 fps
Audio
  • 2-way audio supported (mic and speaker not included)
  • External microphone line in / speaker line out
I/O
  • External input / output for alarm installation
Micro SD
  • Up to 128 GB micro SD card support
Hardware Standards
  • IEEE 802.1x
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3af
Device Interface
  • 10/100 Mbps PoE port
  • Power connector (for non-PoE installation)

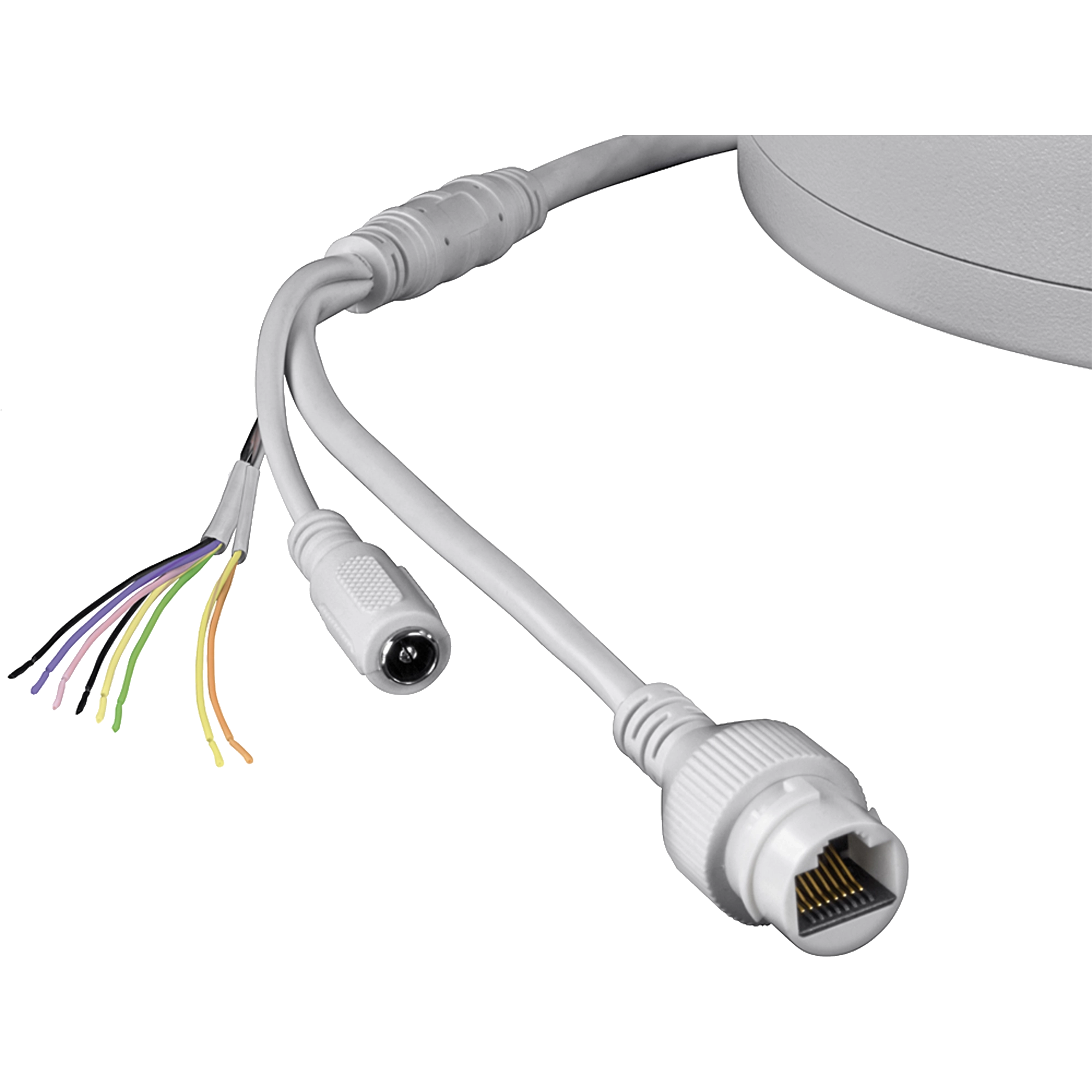

  • Audio wires (in / out / ground)
  • Alarm wires (in / out / ground)
  • Micro SD card slot (128 GB max.)
Input / Output
  • Alarm input: 1 ( 0 – 5 V DC)
  • Alarm output: 1 relay output
  • Audio input: 1 audio line in, 2 – 2.4 V; impedance: 1000 Ω, ± 10%
  • Audio output: 1 output line out, impedance: 600 Ω
Housing
  • IP66 and IK10 rated
  • TVS 4,000 V lightning, surge, and voltage transient protection
Network Protocol
  • IPv4, IPv6, UDP, TCP, IGMP, ICMP, ONVIF v2.2
  • DHCP, NTP, DNS, DDNS, SMTP, FTP, SNMP (v1, v2c, v3)
  • CIFS / SMB, NFS
  • HTTP, HTTPS
  • PPPoE
  • UPnP, RTSP, RTP
Operating Temperature
  • -30 – 65 °C (-22 – 149 °F)
Operating Humidity
  • Max. 90% non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 140 x 140 x 107 mm (5.5 x 5.5 x 4.2 in.)
Weight
  • 0.93 kg (2.05 lbs.)
Power
  • Input: PoE (IEEE 802.3af)
  • Consumption: 8 Watts max.
Optional Power Supply (sold separately)
  • Output: 12 V DC 1 A
  • 5.5 mm barrel connector
  • TRENDnet power adapter, model 12VDC1A, sold separately
Management Interface
  • Multi-language support: English, French, German, Russian, and Spanish
  • IP address filter
  • QoS traffic prioritization
  • Time, date, and text overlay
  • Display settings: brightness, contrast, saturation, limit gain, sharpness, focus mode, minimum focus, exposure mode, video standard, day / night switch, sensitivity, mirror, slow shutter, D-WDR, lens initialization, BLC, white balance, digital noise reduction, noise reduction level, Defog mode, zoom limit, HLC, EIS
  • D-WDR enhances video quality in high contrast daytime lighting
  • 3D DNR Digital Noise Reduction enhances night vision quality
  • Scheduled recording: continuous and motion detection
  • Video storage: to computer, NAS, CIFS / SMB share, NFS, Micro SD card, FTP server, or via software
  • Motion detection fields: define custom motion detection areas, motion sensitivity, and dynamic motion analysis
  • Smart privacy masks: custom privacy masks are fixed to an area of interest as the camera pans and tilts
  • Tamper detection: email notification if the viewing field is suddenly obscured
  • Browser video playback: advanced playback functionality with visual timeline displaying detected motion and scheduled recordings
  • Alert messages: storage full, storage error, and illegal login
  • Snapshot: real time snapshot, motion detection with schedule, tamper detection with schedule
  • Supported dynamic DNS services: dyn.com and No-IP.org
  • Management setting: maximum 32 user accounts
  • Supports remote management
  • Storage logs: alarm, exception, operation, and others
  • Compatibility: Internet Explorer® 9.0 or higher
Warranty
  • 3 year limited

PACKAGE CONTENTS
  • TV-IP420P
  • CD-ROM (Software & User's Guide)
  • Quick Installation Guide
  • Camera mounting hardware

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
