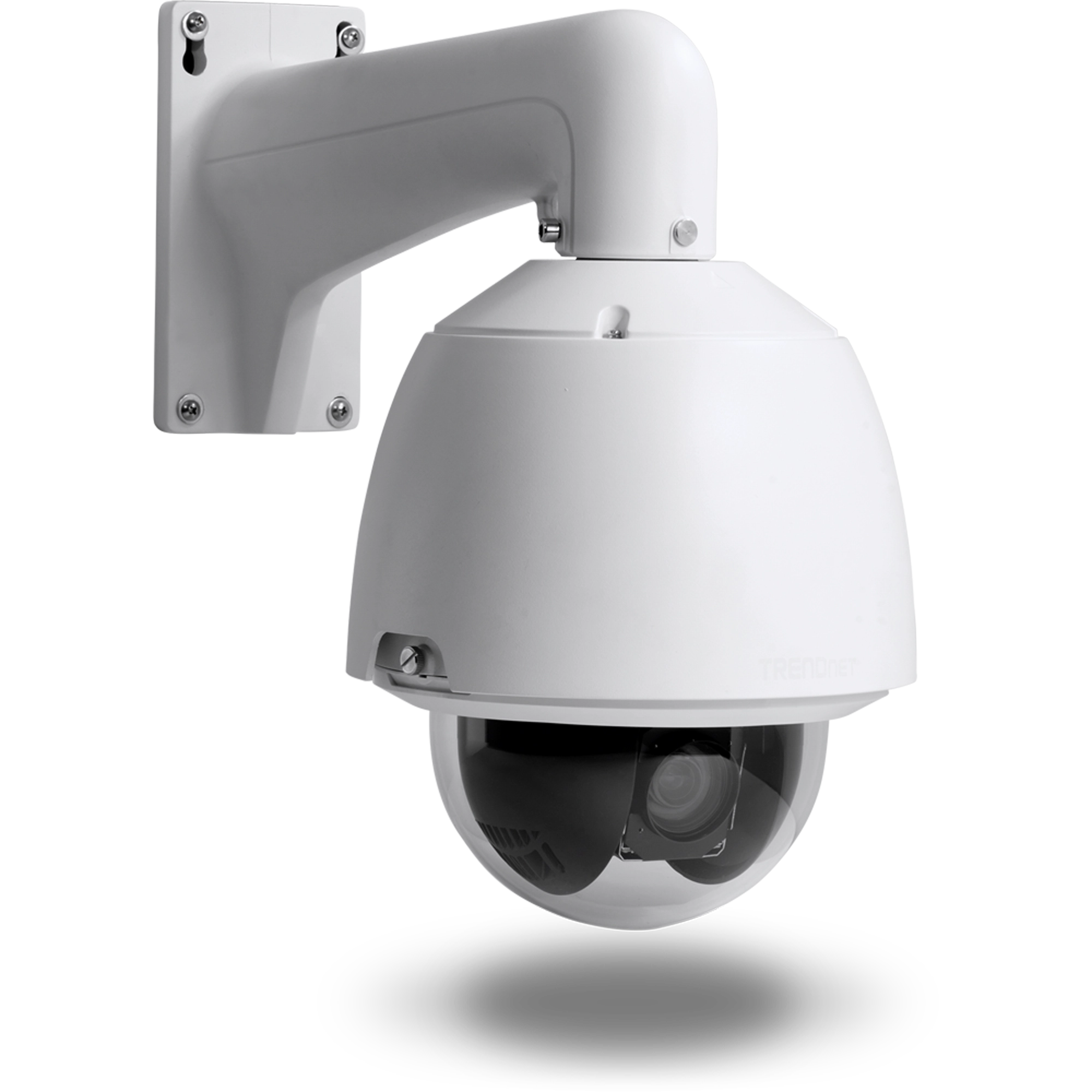

Outdoor 1.3 MP HD PoE+ Speed Dome Network Camera

TV-IP450P   (Version v1.1R)

   Select Another Version
  • 1280 x 960 HD resolution
  • 20x optical zoom, 16x digital zoom, and autofocus
  • Powerful low light sensor
  • Outdoor IP66 weather rating
  • Endless 360° PTZ
  • Digital WDR optimizes high contrast lighting environments
  • Free pro-grade management software and mobile app

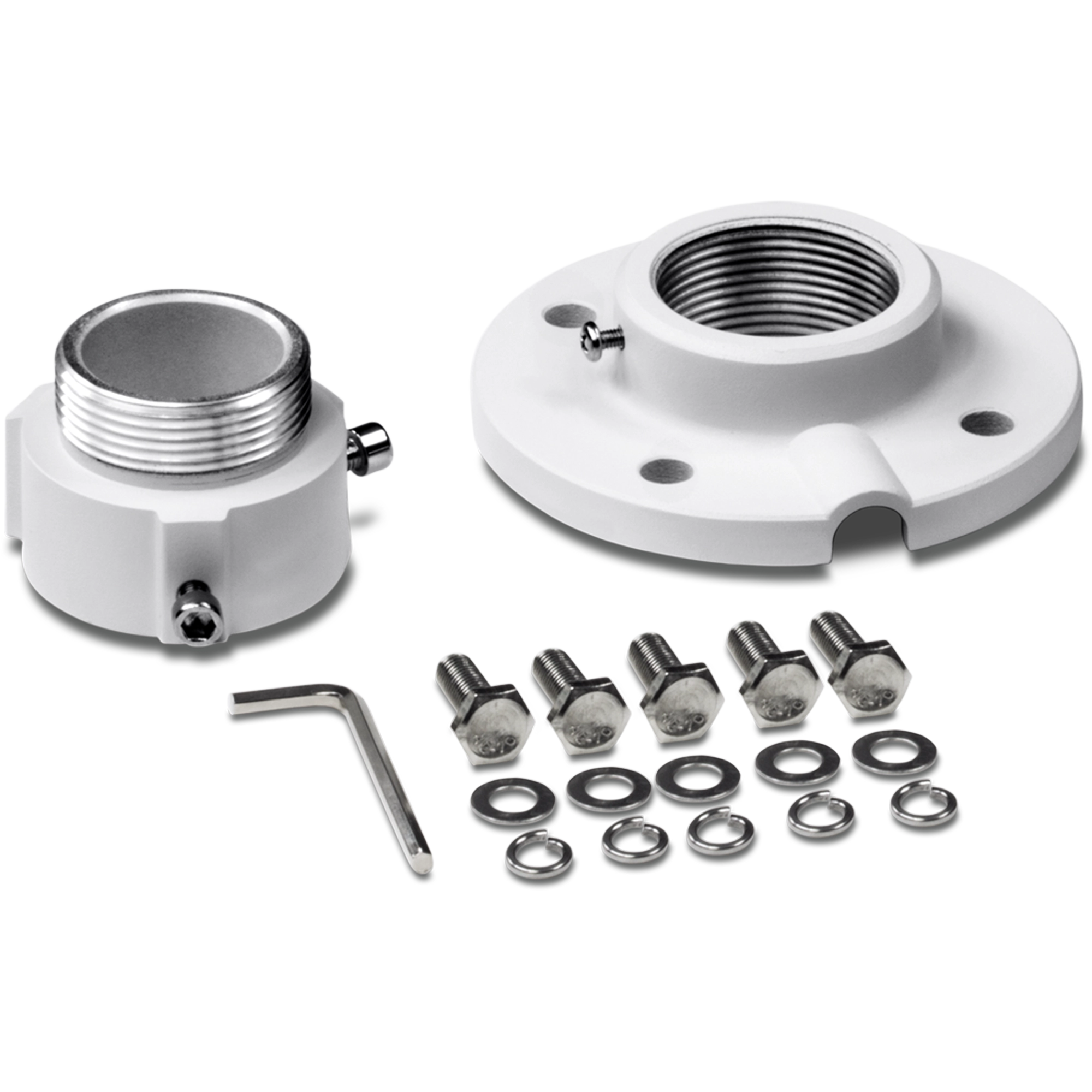

  • Separate mounting bracket required—TV-HC400, TV-HW400, TV-HP400, or TV-HN400

DISCONTINUED PRODUCT

The TV-IP450P (Version v1.1R) has been discontinued. It has been replaced by the TV-IP440PI (Version v1.0R). For a list of discontinued products, click here.

Utility

Camera Utility
Filename: Camera_Utility.zip
SHA-1 Checksum: 679B96BB0EF1F0763DC23D01D670C8FC4E943004
Date: 10/27/2017
File Size: 20.98 MB
Download

Firmware

Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection.
Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only

Firmware Version: 5.3.9 build 170413
Release Date: 10/2017
Note:

  1. Update to new password login rule

Filename: FW_TV-IP450P_450PI_430PI(5.3.9 build 170413).zip
SHA-1 Checksum: 1CAC1715679F0DB4523DB1C906CB8F2CD2AF45F7
Date: 10/27/2017
File Size: 17.21 MB
Download

Software

TRENDnetView Evo Advanced camera management software (64-bit)

Version 1.10.0

Product Information
Filename: TRENDnetView_EVO__x64_1.10.0.zip
SHA-1 Checksum: 2B5BD0BFFF960D487E4ADFC1130AE0B64220A986
Date: 8/2/2018
File Size: 367.72 MB
Download
TRENDnetView Evo Advanced camera management software (32-bit)

Version 1.10.0

Product Information
Filename: TRENDnetView_EVO__x86_1.10.0.zip
SHA-1 Checksum: 2963E3F4127E318913ABCDA69CB347364CB39448
Date: 8/2/2018
File Size: 261.77 MB
Download

Datasheet

Datasheet (English)
Filename: EN_spec_TV-IP450P(v1.1R).pdf
Date: 3/23/2017
File Size: 688.02 KB
Download Email
Datasheet (Français)
Filename: FR_spec_TV-IP450P(v1.1R).pdf
Date: 3/23/2017
File Size: 691.55 KB
Download Email
Datasheet (Deutsch)
Filename: GE_spec_TV-IP450P(v1.1R).pdf
Date: 3/23/2017
File Size: 683.48 KB
Download Email
Datasheet (Português)
Filename: PO_spec_TV-IP450P(v1.1R).pdf
Date: 3/23/2017
File Size: 697.61 KB
Download Email
Datasheet (Español)
Filename: SP_spec_TV-IP450P(v1.1R).pdf
Date: 3/23/2017
File Size: 665.10 KB
Download Email
Datasheet (Pусский)
Filename: RU_spec_TV-IP450P(v1.1R).pdf
Date: 3/23/2017
File Size: 667.86 KB
Download Email
Datasheet (Italiano)
Filename: IT_spec_TV-IP450P(v1.1R).pdf
Date: 3/23/2017
File Size: 665.04 KB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: EN_Web_TV-IP450P(V1.0R).pdf
Date: 10/7/2016
File Size: 7.63 MB
Download
Quick Installation Guide (Français)
Filename: FR_Web_TV-IP450P(V1.0R).pdf
Date: 7/19/2016
File Size: 7.73 MB
Download
Quick Installation Guide (Português)
Filename: PO_Web_TV-IP450P(V1.0R).pdf
Date: 7/19/2016
File Size: 7.52 MB
Download
Quick Installation Guide (Español)
Filename: SP_Web_TV-IP450P(V1.0R).pdf
Date: 7/19/2016
File Size: 7.64 MB
Download
Quick Installation Guide (Pусский)
Filename: RU_Web_TV-IP450P(V1.0R).pdf
Date: 7/19/2016
File Size: 7.66 MB
Download
Quick Installation Guide (Polski)
Filename: POL_Web_TV-IP450P(V1.0R).pdf
Date: 7/19/2016
File Size: 7.59 MB
Download
Quick Installation Guide (Român)
Filename: RO_Web_TV-IP450P(V1.0R).pdf
Date: 10/7/2016
File Size: 7.59 MB
Download
Quick Installation Guide (Nederlands)
Filename: NL_Web_TV-IP450P(V1.0R).pdf
Date: 7/19/2016
File Size: 7.58 MB
Download
Quick Installation Guide (Magyar)
Filename: HU_Web_TV-IP450P(V1.0R).pdf
Date: 7/19/2016
File Size: 7.58 MB
Download

User's Guide

User's Guide
Filename: UG_TV-IP450P(1.04).pdf
Date: 9/18/2015
File Size: 4.29 MB
Download

Product Images

JPEG Image
File Size: : 312.53 KB
Date: : 9/18/2015
Download
ROHS compliant WEEE crossed-out bin symbol.
Specification
Lens
  • Focal length: 4.7 - 94 mm
  • Focal depth: 10 - 1000 mm (Wide-Tele)
  • Aperture: F1.4 - 3.5 (Wide-Tele)
  • Sensor: 1/3” Progressive Scan CMOS
  • Focus: auto/semi-auto/manual
  • Iris control: auto and manual
Viewing Angle
  • Horizontal: 54°
Zoom
  • Combined zoom factor: 320x
  • Optical: 20x
  • Digital: 16x
  • Speed: 3s
Pan/Tilt
  • Pan: endless 360°
  • Tilt: -5 - 90° (auto-flip)
  • Pan speed: (manual) 0.1 - 250°/s, (preset) 300°/s
  • Tilt speed: (manual) 0.1 - 150°/s, (preset) 200°/s
  • Number of presets: 256
  • Patrol: 8 patrols, up to 32 presets per patrol
  • Scheduled PTZ: create detailed weekly schedule with the following activity options: auto scan, frame scan, random scan, patrol, pattern, preset, panorama scan, tilt scan, dome reboot, and dome adjust
Minimum Illumination
  • Color: 0.05 lux
  • B/W: 0.01 lux
Video
  • D-WDR: 128x
  • Shutter speed: 1 - 1/10,000s
  • H.264 resolution: 1280 x 960 up to 30 fps
  • MJPEG resolution: 704 x 480 up to 30 fps
Audio
  • 2-way audio
  • External microphone line in / speaker line out (mic and speaker not included)
Alarm
  • External alarm line in / line out (alarm not included)
Hardware Standards
  • IEEE 802.1x
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3at
Device Interface
  • 10/100 Mbps PoE+ port
  • Power connector (for non-PoE installation)
  • Audio wires (in/out/ground)
  • Micro SD card slot
  • Suspension cable hold the camera during installation
Housing
  • Weather rating: IP66
Network Protocol
  • IPv4, IPv6, UDP, TCP, IGMP, ICMP, ONVIF v2.2
  • DHCP, NTP, DNS, DDNS, SMTP, FTP, SNMP (v1, v2c, v3)
  • CIFS/SMB, NFS
  • HTTP, HTTPS
  • PPPoE
  • UPnP, RTSP, RTP
Operating Temperature
  • -30 - 65 °C (-22 - 149 °F)
Operating Humidity
  • Max. 90% non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 220 x 305 mm (8.7 x 12 in.)
Weight
  • 2.4 kg (7 lbs.)
Power
  • Input: 100~240V AC, 50/60 Hz, 2A
  • Output: 56V DC, 30W (PoE+)
  • Consumption: 22 Watts/14 Watts max. (heater on/off)
Required Mounting Accessories (not included)
  • Ceiling mount: TV-HC400
  • Pole mount: TV-HP400
  • Wall mount: TV-HW400
  • Corner mount: TV-HN400
Management Interface
  • Multi-language support: English, French, German, Russian, and Spanish
  • IP address filter
  • QoS traffic prioritization
  • Time, date, and text overlay
  • Image settings: brightness, contrast, saturation, limit gain, sharpness, focus mode, minimum focus, exposure mode, video standard, day/night switch, sensitivity, mirror, slow shutter, D-WDR, lens initialization, BLC, white balance, digital noise reduction, noise reduction level, zoom limit, HLC
  • D-WDR enhances video quality in high contrast daytime lighting
  • 3D DNR Digital Noise Reduction enhances night vision quality
  • Scheduled recording: continuous and motion detection
  • Video storage: to computer, NAS, CIFS/SMB share, NFS, Micro SD card, FTP server, or through software
  • Motion detection fields: define custom motion detection areas, motion sensitivity, and dynamic motion analysis
  • Smart privacy masks: custom privacy masks are fixed to an area of interest as the camera pans and tilts
  • Tamper detection: email notification if the viewing field is suddenly obscured
  • Browser video playback: advanced playback functionality with visual timeline displaying detected motion and scheduled recordings
  • Alert messages: storage full, storage error, and illegal login
  • Snapshot: real time snapshot, motion detection with schedule, tamper detection with schedule
  • Supported dynamic DNS services: dyn.com and No-IP.org
  • Management Setting: maximum 32 user accounts
  • Supports remote management
  • Storage logs: Alarm, Exception, Operation, and others
  • Compatibility: Internet Explorer® 9.0 or higher, Safari® 4.0 or higher
TRENDnetVIEW Pro Software
  • Supports up to 32 TRENDnet cameras
  • Multiple language support
  • Set recording options (motion detection, schedule, event trigger)
  • Search and playback
  • Custom viewing modes and options
  • Compatibility: Windows® 10, 8.1, 8, 7, Vista, XP, Windows Server® 2003, 2008
TRENDnetVIEW App
  • Free Apple® and Android™ app
  • View your camera on your mobile device
  • Take snapshots
  • Pan/ Tilt / Zoom
Warranty
  • 3 year limited

PACKAGE CONTENTS
  • TV-IP450P
  • CD-ROM (Software & User's Guide)
  • Multi-Language Quick Installation Guide
  • Installation gloves & waterproof tape
  • PoE+ injector

Compatible NVR: www.trendnet.com/info/tv-nvr104

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
