Step 1 Go to Start>Settings>Printers>Add New Printer (WinXP - Start>Printers and Faxes>Add a Printer).

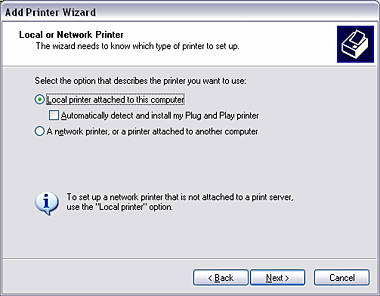

Step 2 Select Local Printer. Make sure to uncheck Automatically detect and install my plug and play printer. Click Next.

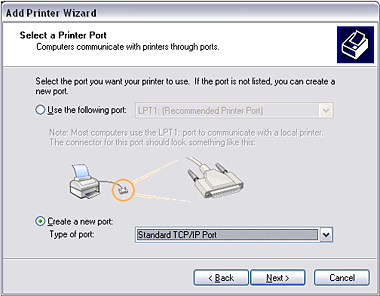

Step 3 Select Create a New Port and select Standard TCP/IP port. Click Next.

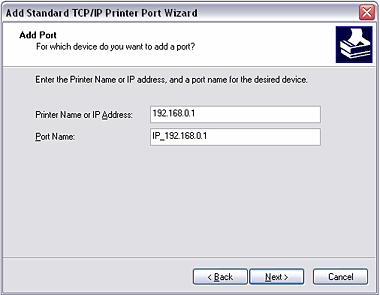

Step 4 Enter the IP address of the print server (192.168.0.1). Leave the port name with the default name. Click Next.

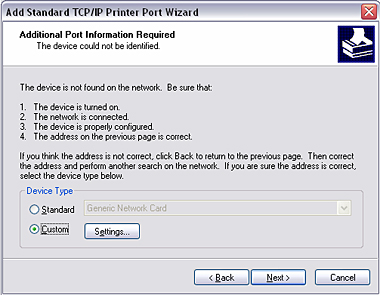

Step 5 You will get a message saying that additional port information required.
Step 6 Select Custom and then click Settings.

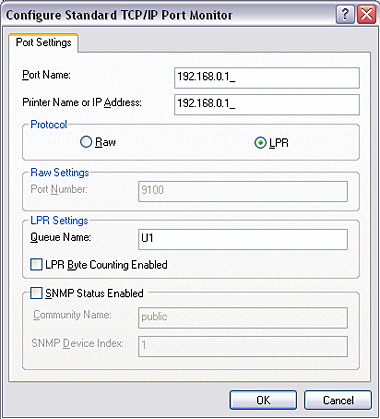

Step 7 Set Protocol to LPR.
Step 8 For the LPR Settings the Te100-P1P the Queue Name is P1 and for the Te100-P1U the port name will be U1. It is case sensitive! In most cases, check LPRByte Counting Enabled. If you cannot print, then try unchecking this.
Step 9 Select OK > Finish.

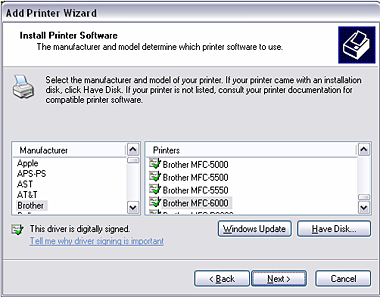

Step 10 Continue with the Add Printer Wizard. Choose your printer from the list or click Have Disk and point to your printer driver disk.
- I pressed the reset button and held it for 15 seconds. I also typed in http://192.168.0.1 in a web browser, but I still cannot access my print server.
- Why doesn't BiAdmin detect my print server?
- I configured my print server to automatically receive an IP Address from a DHCP server, and now I cannot go into the print server's web utility.
- I typed in the server name and printer name correctly and successfully installed the network printer. But I can't print a test page.
- I cannot add a network printer after I typed the server name and printer name.
