Step 1 Open your web browser and type the IP address of the TV-IP200 (C1) in the address bar. The default IP address is 192.168.0.20.

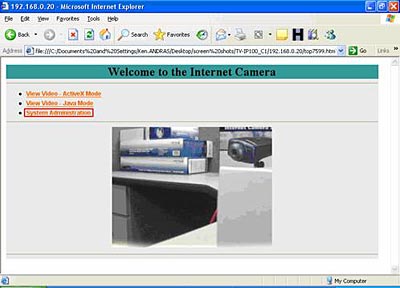

Step 2 Click "System Administration".

Step 3 Click on "Upload" on the top of the screen. Fill in the FTP section and then click "Save".

Step 4 Enter in a schedule or configure a manual upload. To initiate the manual upload do the following.

a) Open your web browser and type the IP address of the TV-IP200 (C1) in the address bar. The default IP address is 192.168.0.20.

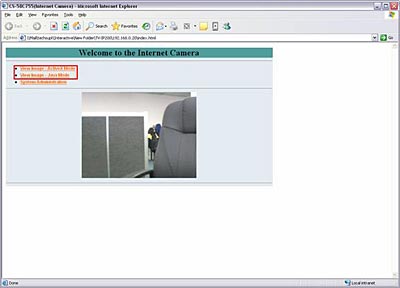

b) Click on either Active X mode or Java mode.

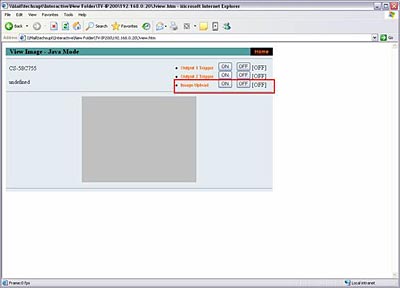

c) To start the manual upload, click "On" next to "Image upload".
