Each camera behind a firewall or Router will need one port forwarded for the video streaming. The default port is: 80 (TCP) HTTP Port.

If you are installing multiple cameras you must change the port on the additional cameras.

Example: Camera 1 is using the default ports 80 (TCP) and 8481 (TCP). Camera 2 must use a different port. For example: ports 81 (TCP) and 8482 (TCP).

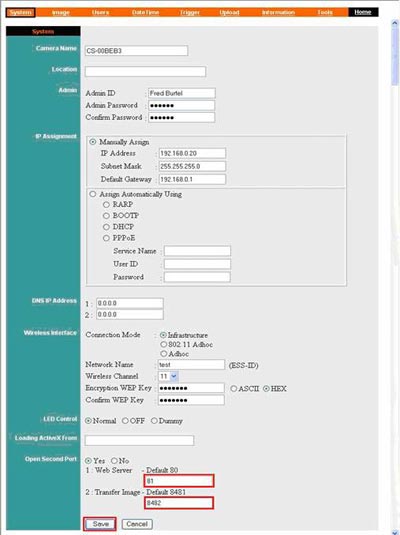

You can change the port on the camera on the System Administration tab in the web-configuration page.

Step 1 Open your web browser and type the IP address of the TV- IP200 (w) in the address bar. The default IP address is 192.168.0.20.

Step 2 Click on "System Administration".

Step 3 Click on "System" at the top of the screen.
