The Wireless Bridge feature uses WDS (Wireless Distribution System). The channel and SSID on the remote Access Points must be the same as the TEW-450APB. The remote Access Point must also support WDS.

Note: WPA encryption is not supported on WDS links.

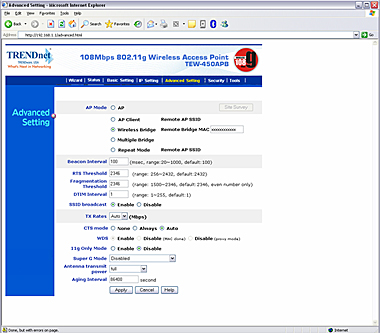

1) Open your web browser and type the IP address of the TEW-450APB in the address bar. The default IP address is 192.168.1.1. At the login, enter your username (admin) and password (admin).

2) Click on the Advanced Setting tab at the top of the page.

3) Select “Wireless Bridge” and enter in the remote Access Points MAC Address into the “Remote Bridge MAC” field. Click “Apply” then back.
